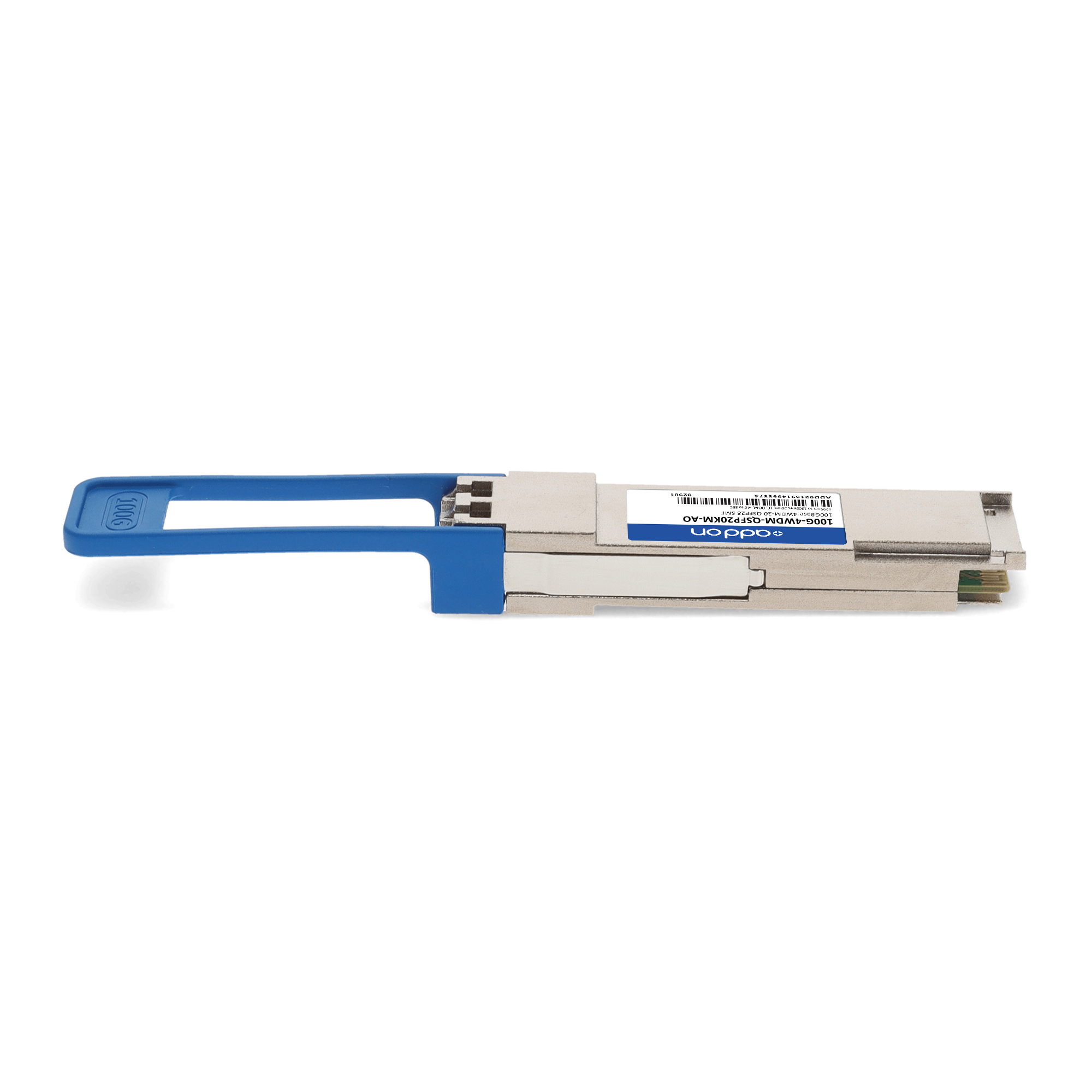

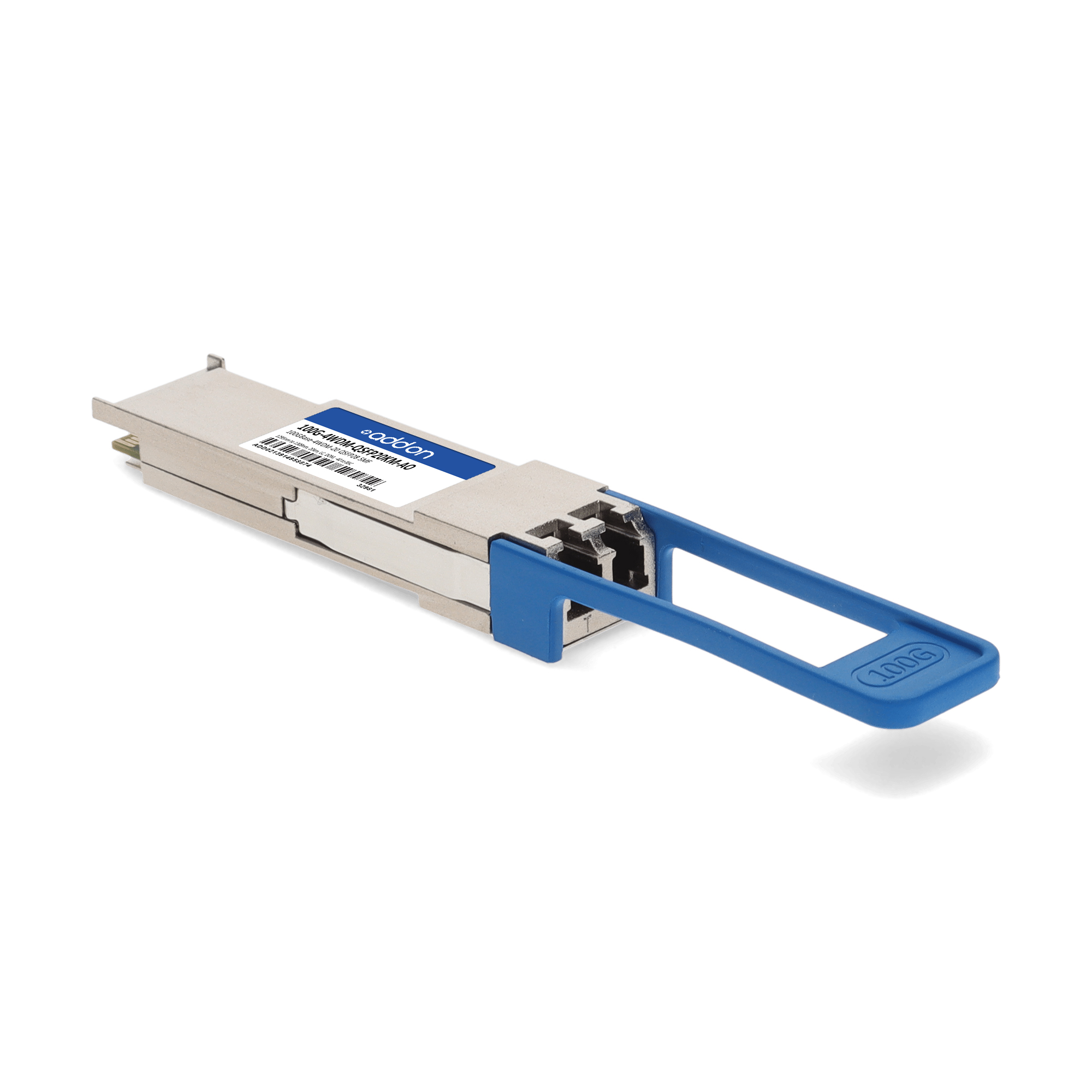

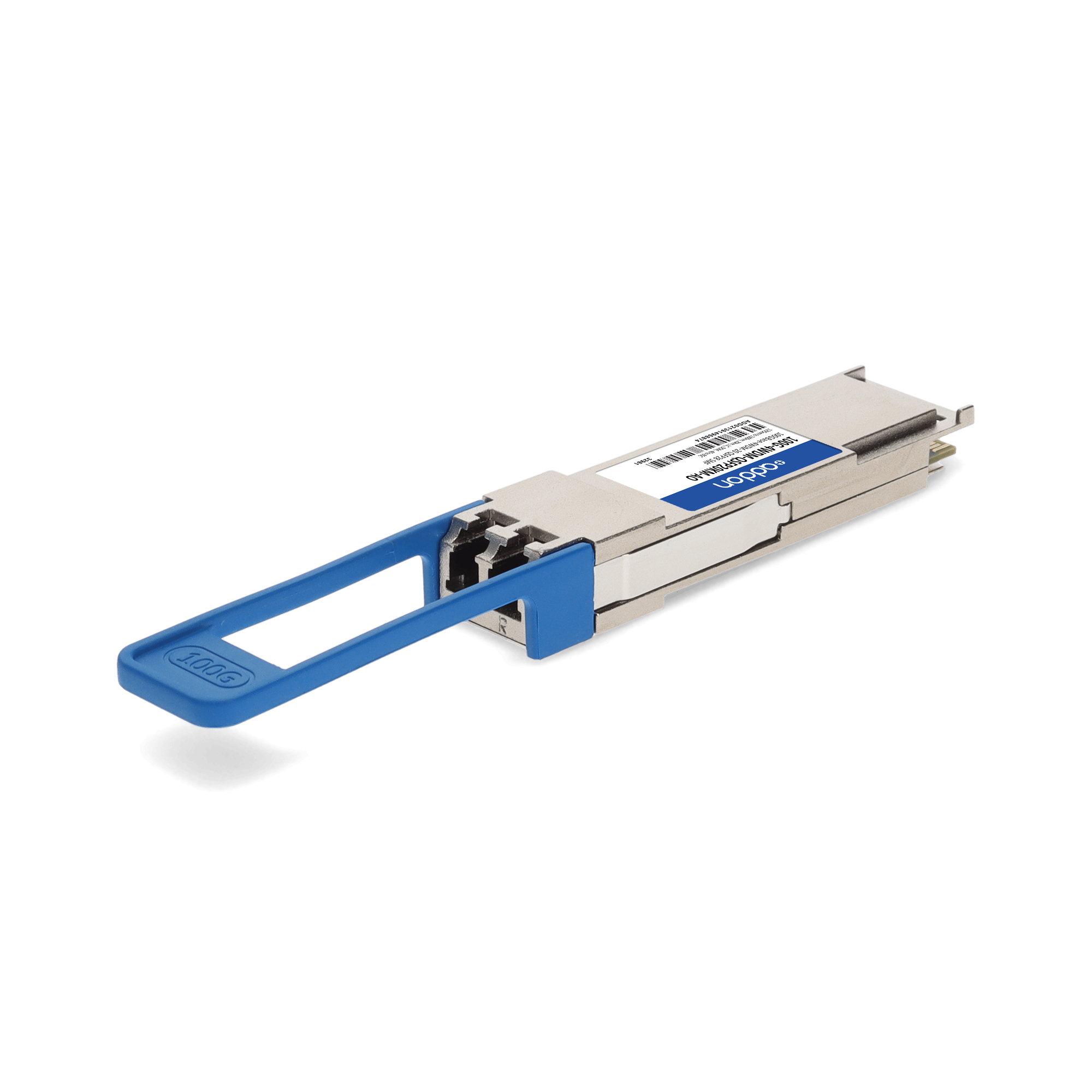

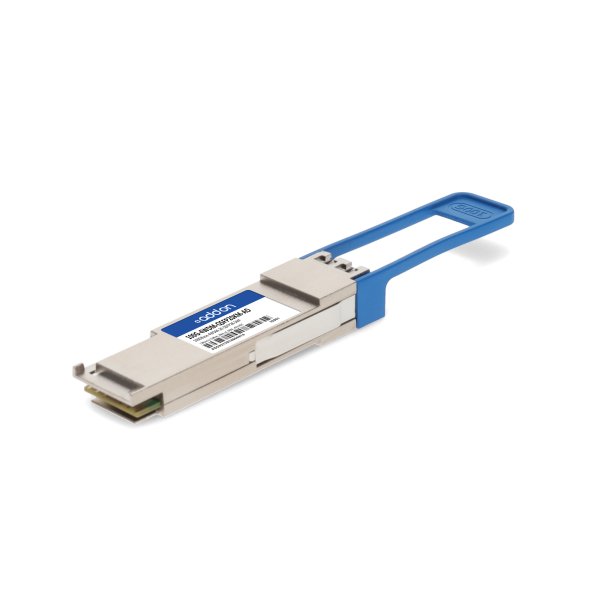

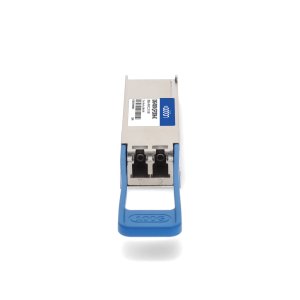

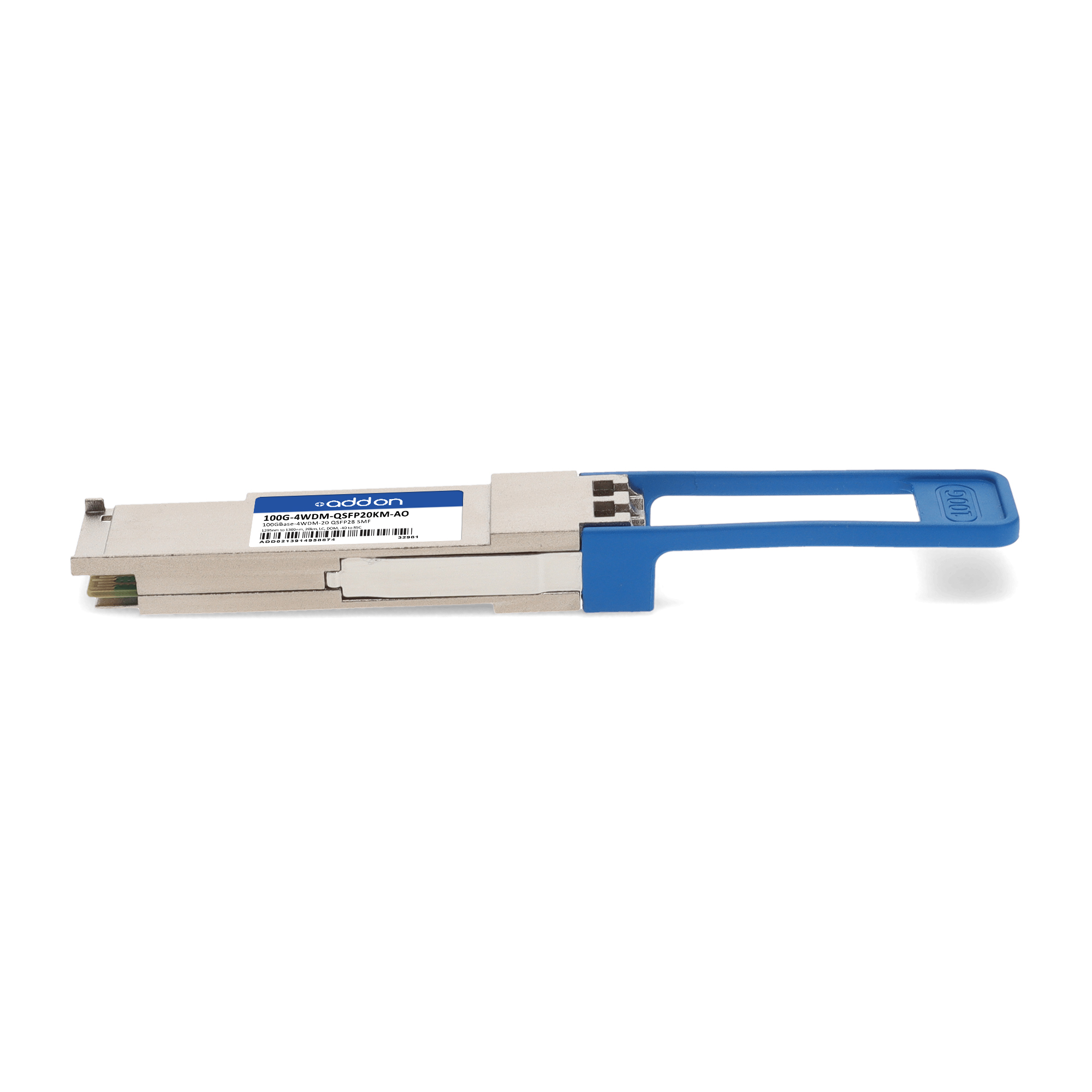

AddOn Networks 100G-4WDM-QSFP20KM-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
Roll over image to zoom inClick to Open expanded view
AddOn Networks 100G-4WDM-QSFP20KM-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
AddOn Networks 100G-4WDM-QSFP20KM-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
AddOn Networks 100G-4WDM-QSFP20KM-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
AddOn Networks 100G-4WDM-QSFP20KM-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
AddOn Networks 100G-4WDM-QSFP20KM-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
AddOn Networks 100G-4WDM-QSFP20KM-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm

AddOn Networks 100G-4WDM-QSFP20KM-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm

SKU: 100G-4WDM-QSFP20KM-AO
AddOn Networks 100G-4WDM-QSFP20KM-AO, Fiber optic, 100000 Mbit/s, QSFP28, LC, 4WDM-20, 20000 m
Specifications
More Information
PDF

Product Properties

  • Warranty
  • Lifetime
  • SKU
  • 100G-4WDM-QSFP20KM-AO
  • EAN
  • 199278018715
  • Bullet points
  • Certificates
  • Features
  • Logistics data
  • Operational conditions
  • Packaging content
  • Packaging data
  • Performance
  • Export Control Classification Number (ECCN)
  • 5A991
  • Fiber optic connector
  • LC
  • Single-mode fiber (SMF) supported
  • Yes
  • Power
  • Sustainability

Description

AddOn Networks 100G-4WDM-QSFP20KM-AO. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP28. Product colour: Silver, Form factor: QSFP28, Brand compatibility: Extreme Networks. Input voltage: 3.3 V, Maximum voltage: 3.46 V. Compliance certificates: RoHS, Trade Agreements Act (TAA). Doesn't contain: Lead
  • QSFP28 Fiber optic 100000 Mbit/s
  • 100 Gigabit Ethernet Wavelength: 1309 nm
  • QSFP28 Hot-swap
  • Input voltage: 3.3 V
  • QSFP28 MSA compliant
  • Single 3.3V Power Supply and Power dissipation < 4.8W
  • Supports 103Gbps
  • Operating case temperature: -40C to 85C
  • Four 25Gbps DFB-based LAN-WDM transmitter
  • Up to 20km over SMF
  • 4x25G electrical interface
  • PIN and TIA array on the receiver side
  • I2C interface with integrated Digital Diagnostic Monitoring
  • Duplex LC receptacles
  • RoHS compliant
