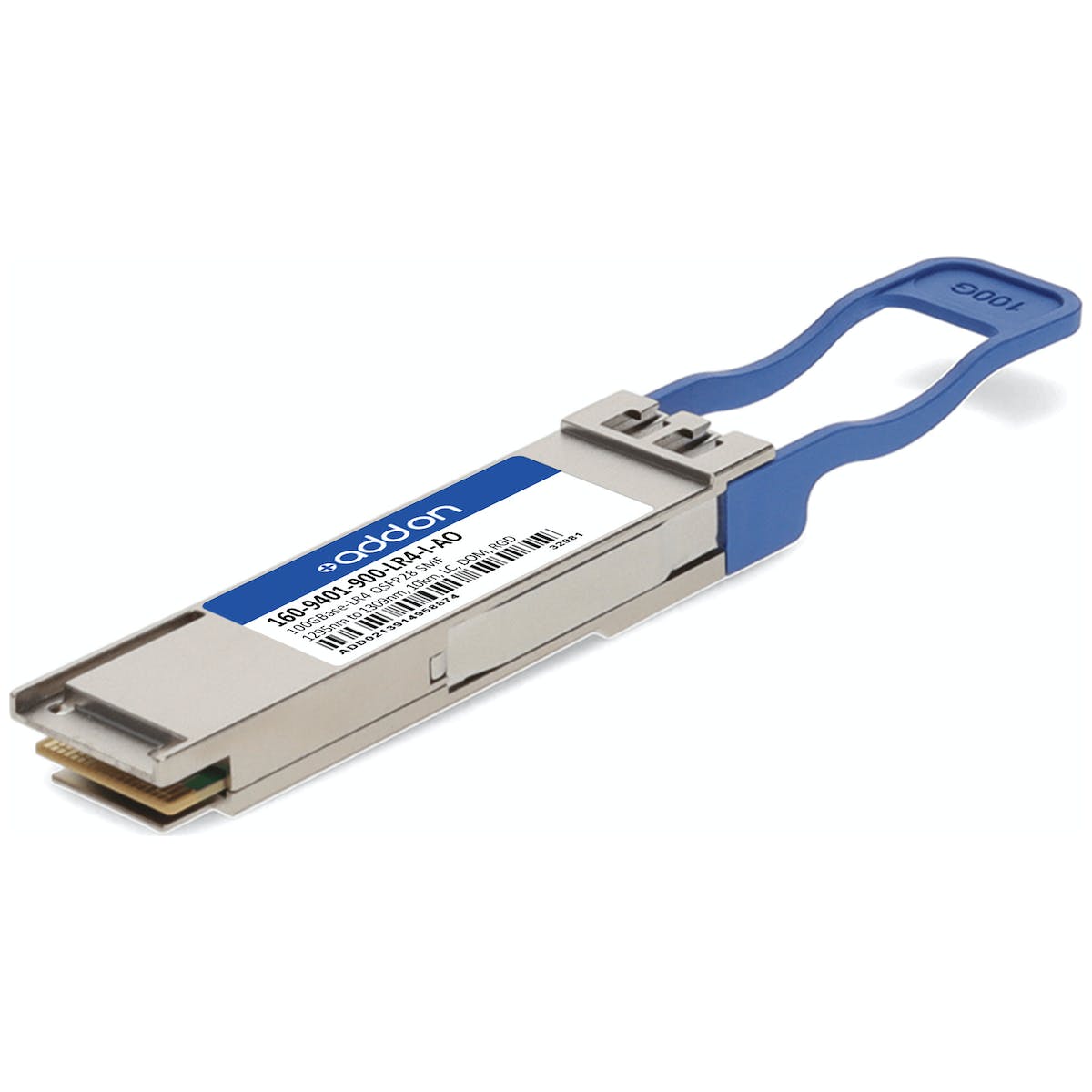

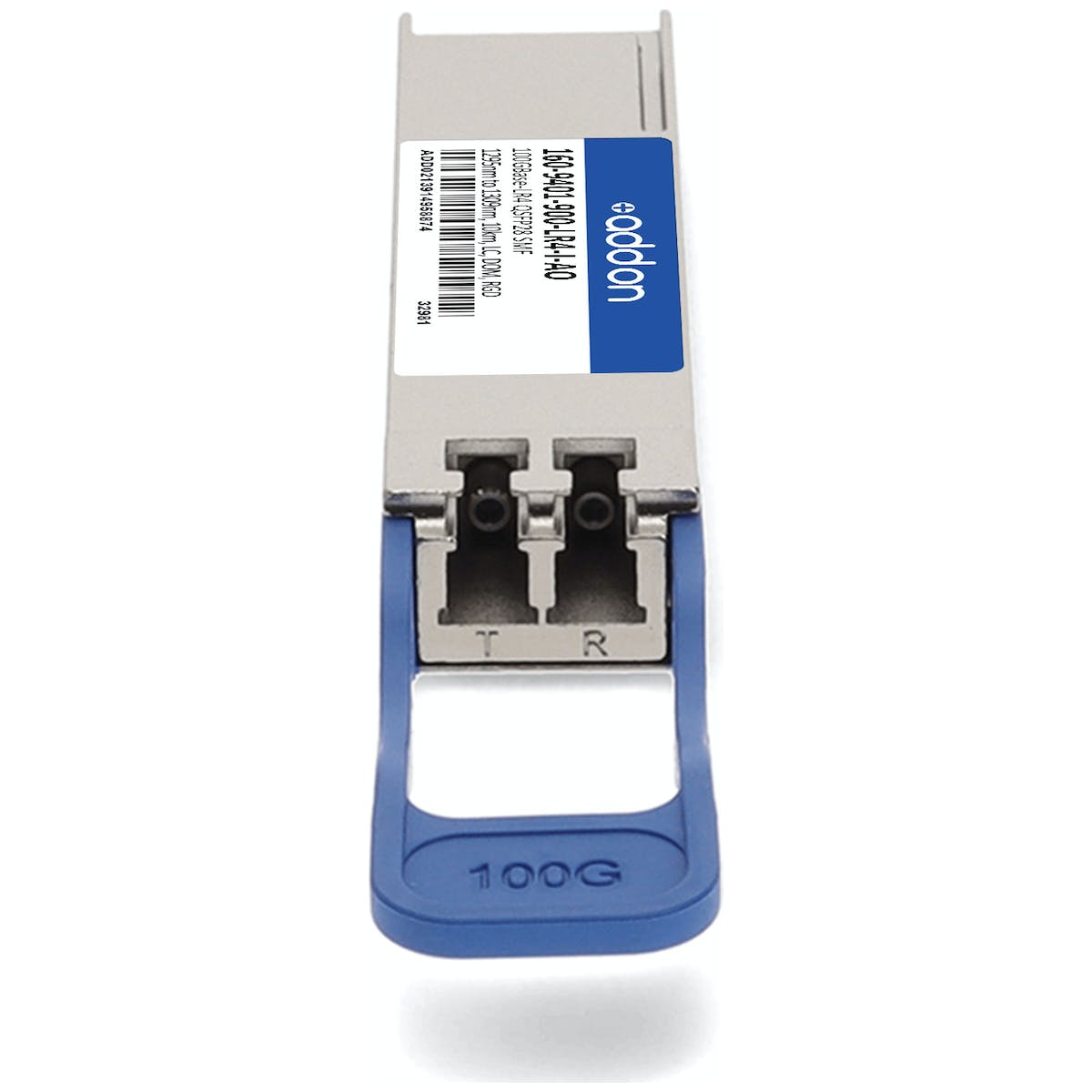

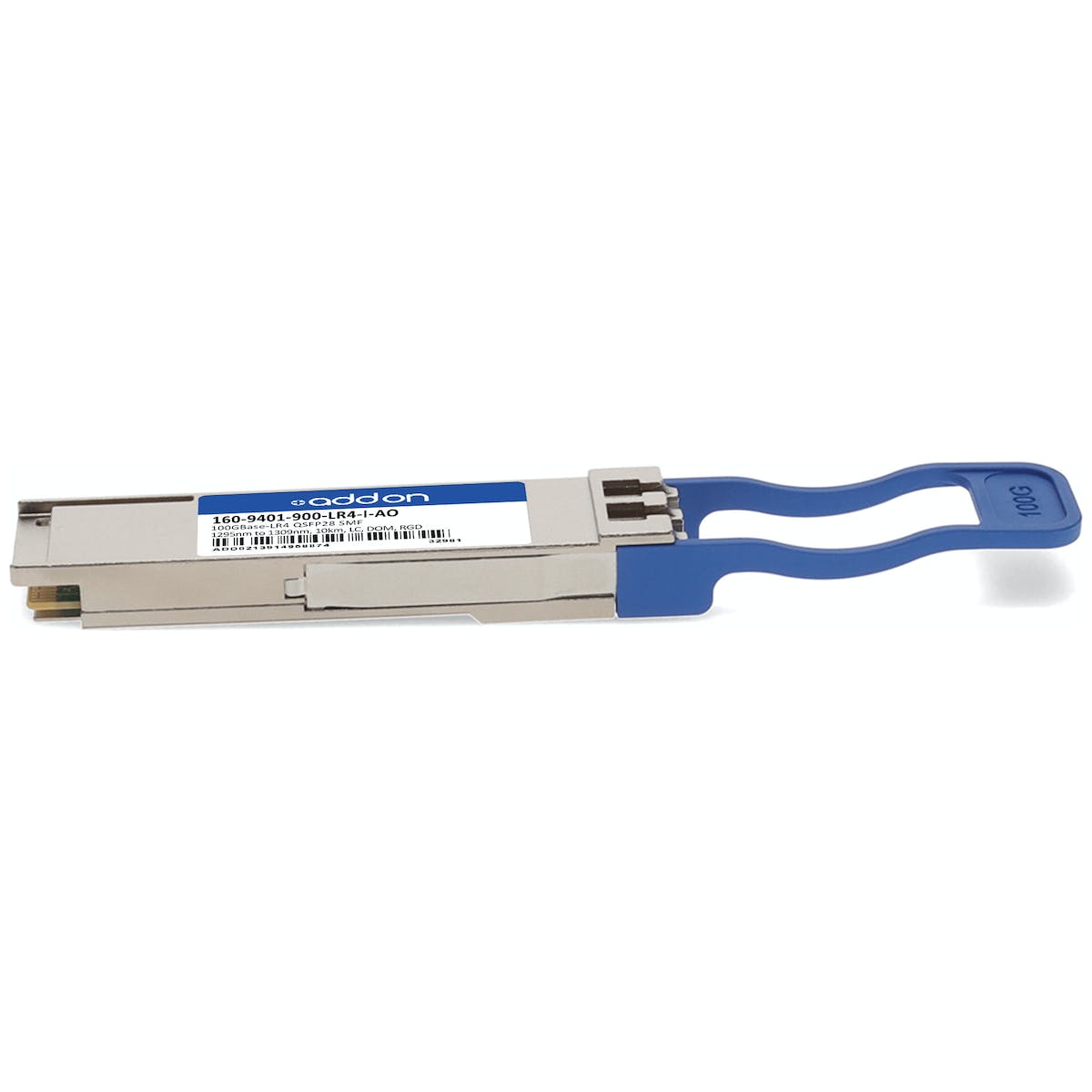

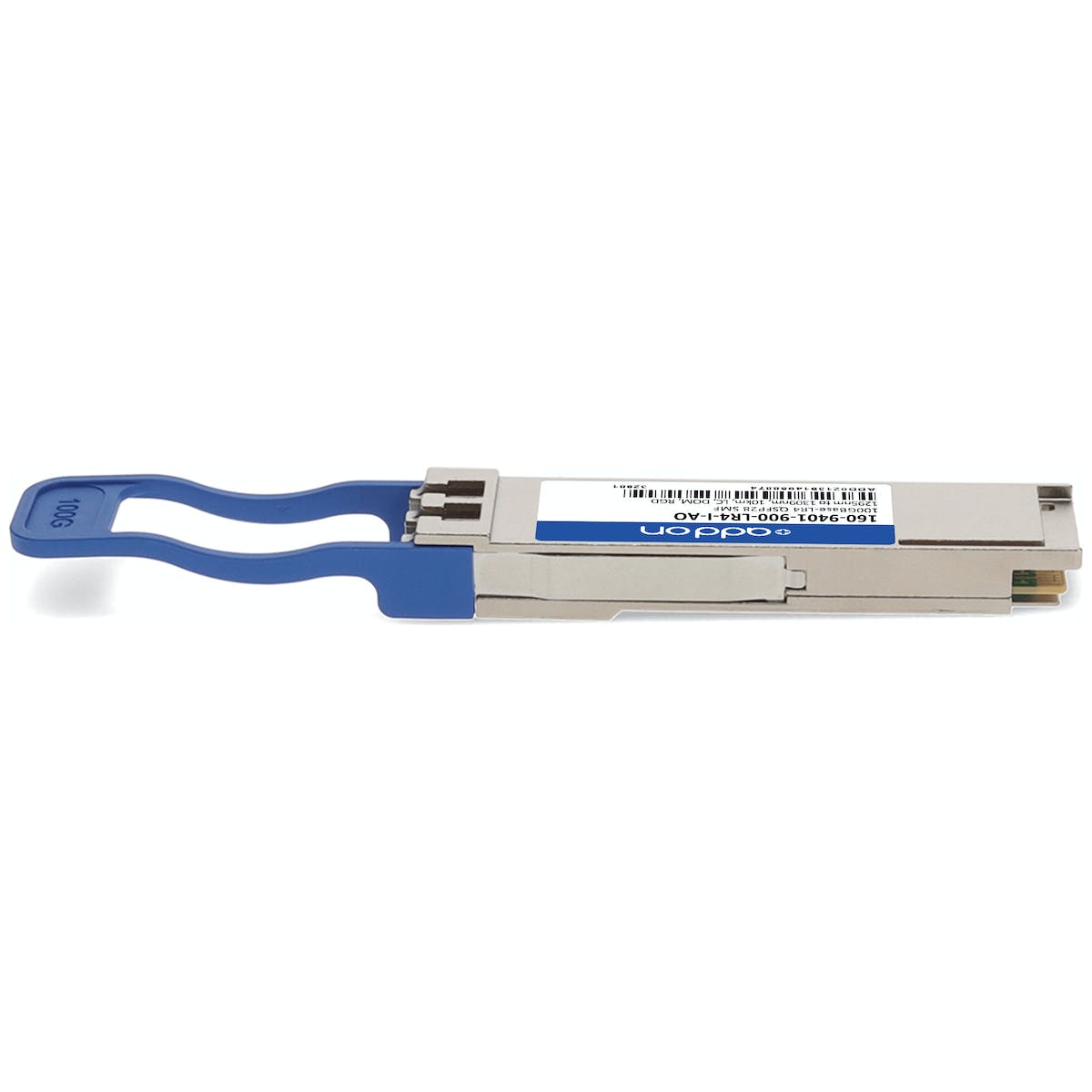

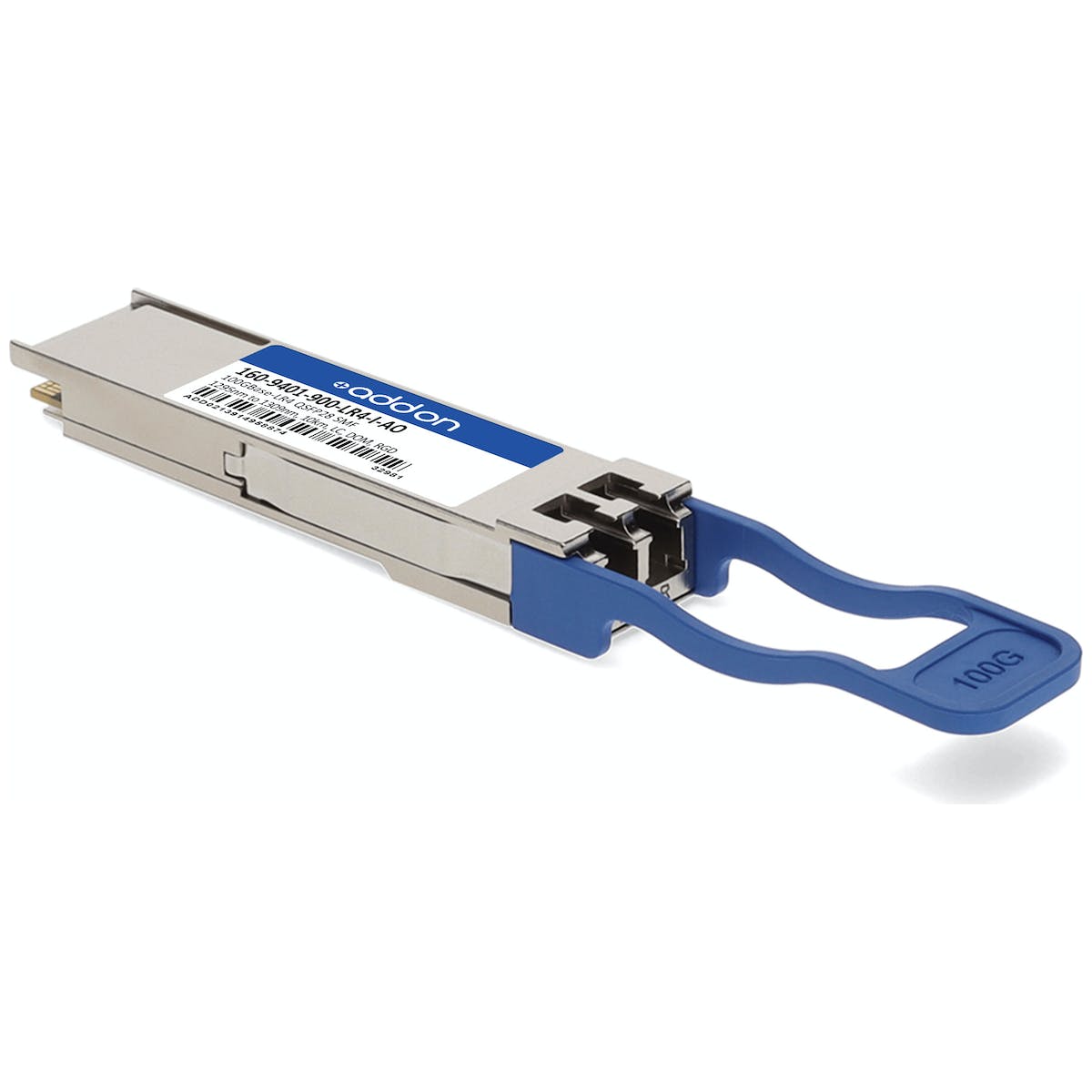

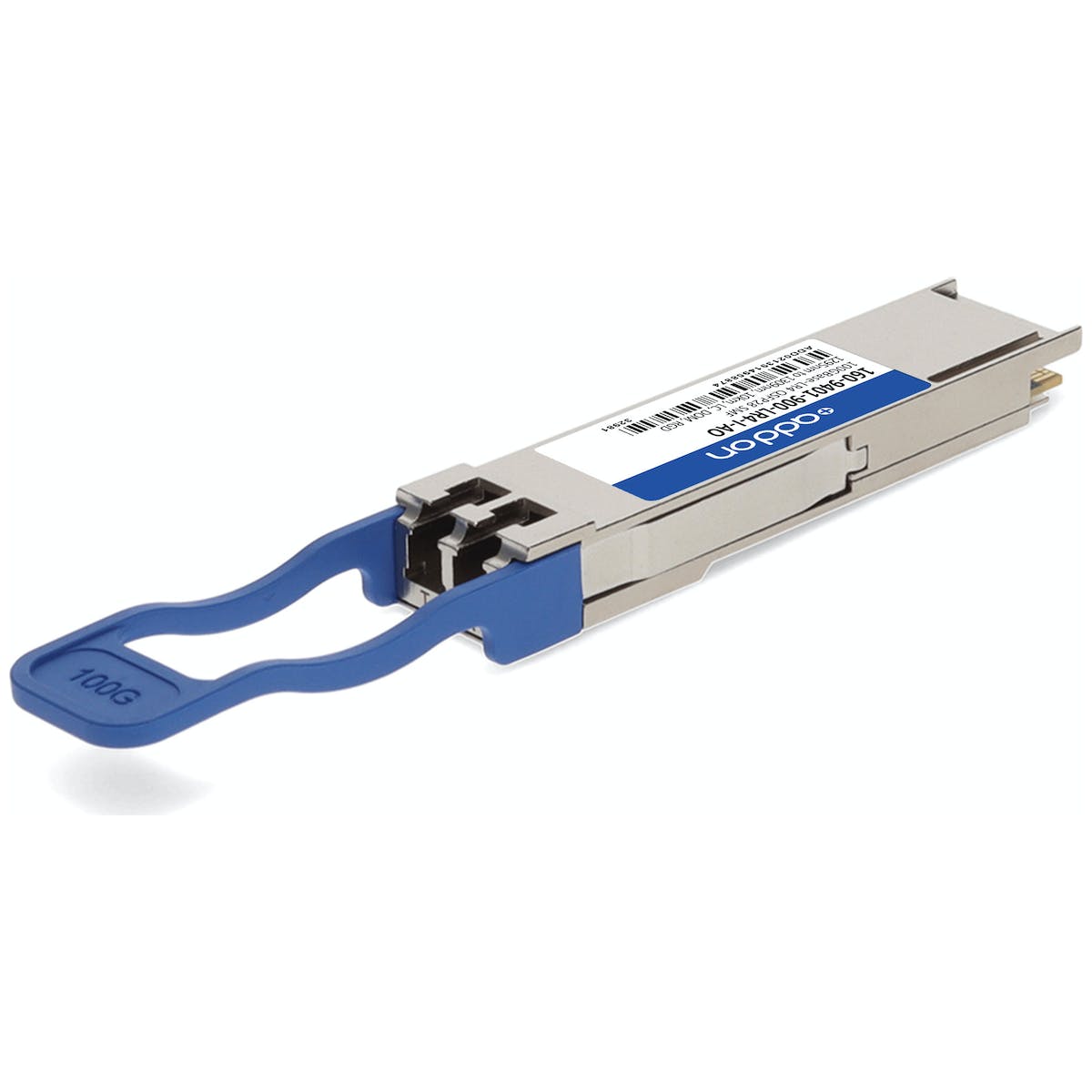

AddOn Networks 160-9401-900-LR4-I-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm

Roll over image to zoom inClick to Open expanded view

AddOn Networks 160-9401-900-LR4-I-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm

Name: AddOn Networks 160-9401-900-LR4-I-AO network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
Brand: AddOn Networks
SKU: 160-9401-900-LR4-I-AO

SKU: 160-9401-900-LR4-I-AO

Log In to View Pricing

ETA 2 days

AddOn Networks 160-9401-900-LR4-I-AO, Fiber optic, 100000 Mbit/s, QSFP28, LC, LR4, 10000 m

ETA 2 days

Add to compare

Product Properties

Manufacturer
AddOn Networks

Warranty
Lifetime

SKU
160-9401-900-LR4-I-AO

EAN
195285200365

Certificates

Certification
ISO, RoHS, CE, WEEE, NEBS, BBB, sixsigma

Compliance certificates
CE, RoHS, WEEE

Features

Brand compatibility
Ciena

Compatible products
160-9401-900-LR4-I

Easy to install
Yes

Hot-swap
Yes

Product colour
Silver

Logistics data

Country of origin
United States

Operational conditions

Maximum operating temperature
85 °C

Minimum operating temperature
-40 °C

Operating temperature (T-T)
-40 - 85 °C

Packaging content

Quantity per pack
1 pc(s)

Performance

Digital Diagnostics Monitoring (DDM)
Yes

Ethernet interface type
100 Gigabit Ethernet

Fiber ethernet cabling technology
100GBASE

Fiber optic connector
LC

Interface type
QSFP28

Maximum data transfer rate
100000 Mbit/s

Maximum transfer distance
10000 m

SFP transceiver standard
LR4

SFP transceiver type
Fiber optic

Single-mode fiber (SMF) supported
Yes

Tx wavelength (max)
1309 nm

Tx wavelength (min)
1295 nm

Wavelength
1309 nm

Weight & dimensions

Depth
120.7 mm

Height
30.5 mm

Weight
181.437 g

Width
69.8 mm

Description

AddOn Networks 160-9401-900-LR4-I-AO. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP28. Product colour: Silver, Brand compatibility: Ciena, Compatible products: 160-9401-900-LR4-I. Compliance certificates: CE, RoHS, WEEE, Certification: ISO, RoHS, CE, WEEE, NEBS, BBB, sixsigma. Width: 69.8 mm, Depth: 120.7 mm, Height: 30.5 mm. Quantity per pack: 1 pc(s)

QSFP28 Fiber optic 100000 Mbit/s
100 Gigabit Ethernet Wavelength: 1309 nm
Hot-swap
