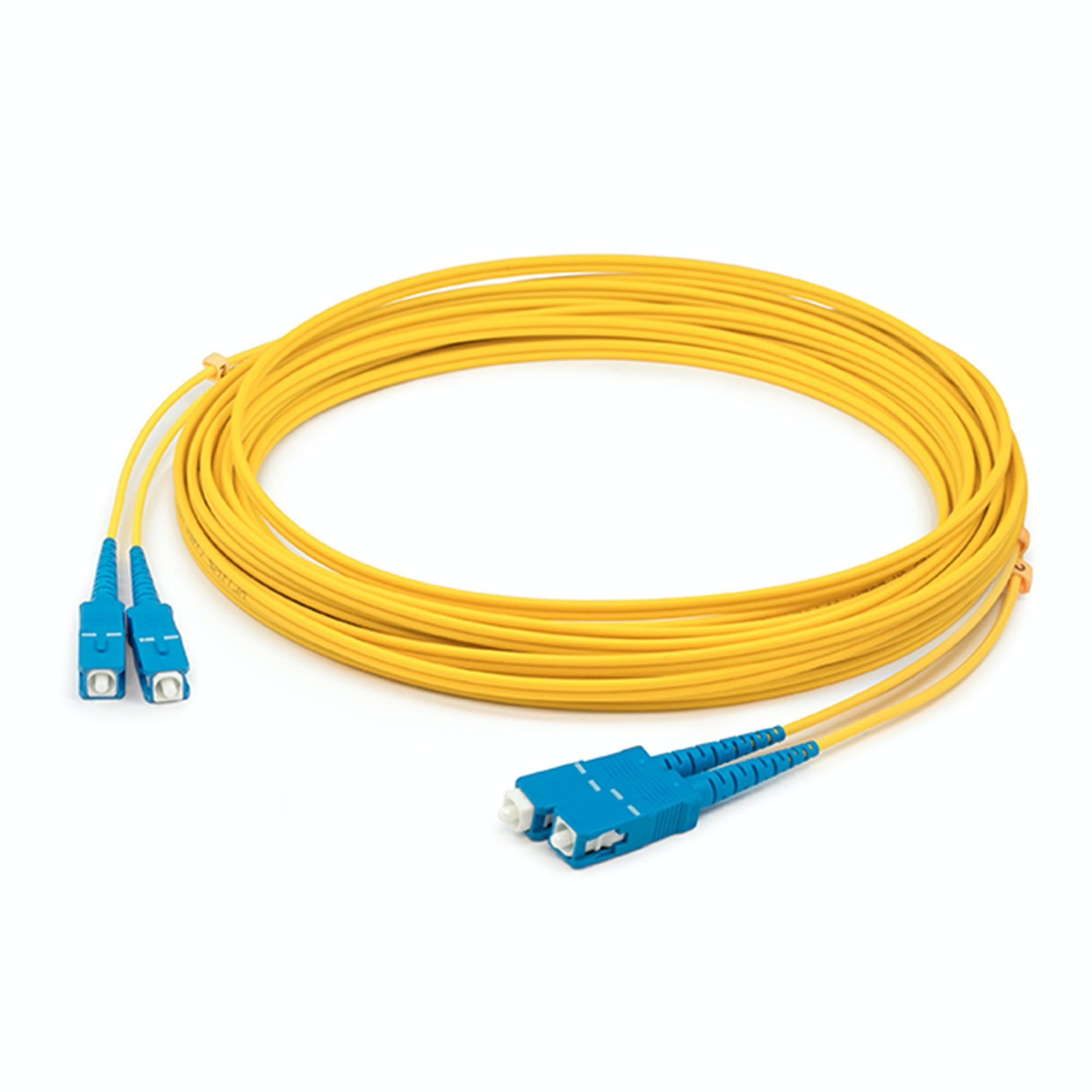

AddOn Networks ADD-ASC-SC-5MS9SMFLZ InfiniBand/fibre optic cable 5 m OFNP Yellow

Roll over image to zoom inClick to Open expanded view

AddOn Networks ADD-ASC-SC-5MS9SMFLZ InfiniBand/fibre optic cable 5 m OFNP Yellow

Name: AddOn Networks ADD-ASC-SC-5MS9SMFLZ InfiniBand/fibre optic cable 5 m OFNP Yellow
Brand: AddOn Networks
SKU: ADD-ASC-SC-5MS9SMFLZ

SKU: ADD-ASC-SC-5MS9SMFLZ

Log In to View Pricing

ETA 2 days

AddOn Networks ADD-ASC-SC-5MS9SMFLZ, 5 m, OFNP, OS2, SC, SC

ETA 2 days

Add to compare

Product Properties

Manufacturer
AddOn Networks

Warranty
Lifetime

SKU
ADD-ASC-SC-5MS9SMFLZ

EAN
195285985958

Certificates

Certification
CE, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596

Compliance certificates
RoHS

Features

Cable length
5 m

Cable type
OFNP

Cladding diameter
125 µm

Compressive strength
10

Connector 1
SC

Connector 1 gender
Male

Connector 2
SC

Connector 2 gender
Male

Connector material
Ceramic

Core diameter
9 µm

Data transfer rate
100 Gbit/s

Ethernet interface type
10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet

Fiber mode structure
Single-mode

Fibre optic type
OS2

Full duplex
Yes

Insertion loss
0.35 dB

Jacket material
Low smoke zero halogen (LSZH)

Product colour
Yellow

Return loss
30 dB

Wavelengths supported
1310,1550 nm

Operational conditions

Operating temperature (T-T)
0 - 60 °C

Storage temperature (T-T)
-10 - 70 °C

Packaging content

Quantity per pack
1 pc(s)

Sustainability

Doesn't contain
Halogen

Weight & dimensions

Cable diameter
1.6 mm

Description

AddOn Networks ADD-ASC-SC-5MS9SMFLZ. Cable length: 5 m, Cable type: OFNP, Fibre optic type: OS2, Connector 1: SC, Connector 2: SC, Core diameter: 9 µm, Full duplex

OFNP OS2
5 m
SC Male
SC Male
Jacket material: Low smoke zero halogen (LSZH)
100 Gbit/s
Full duplex Single-mode
Yellow
