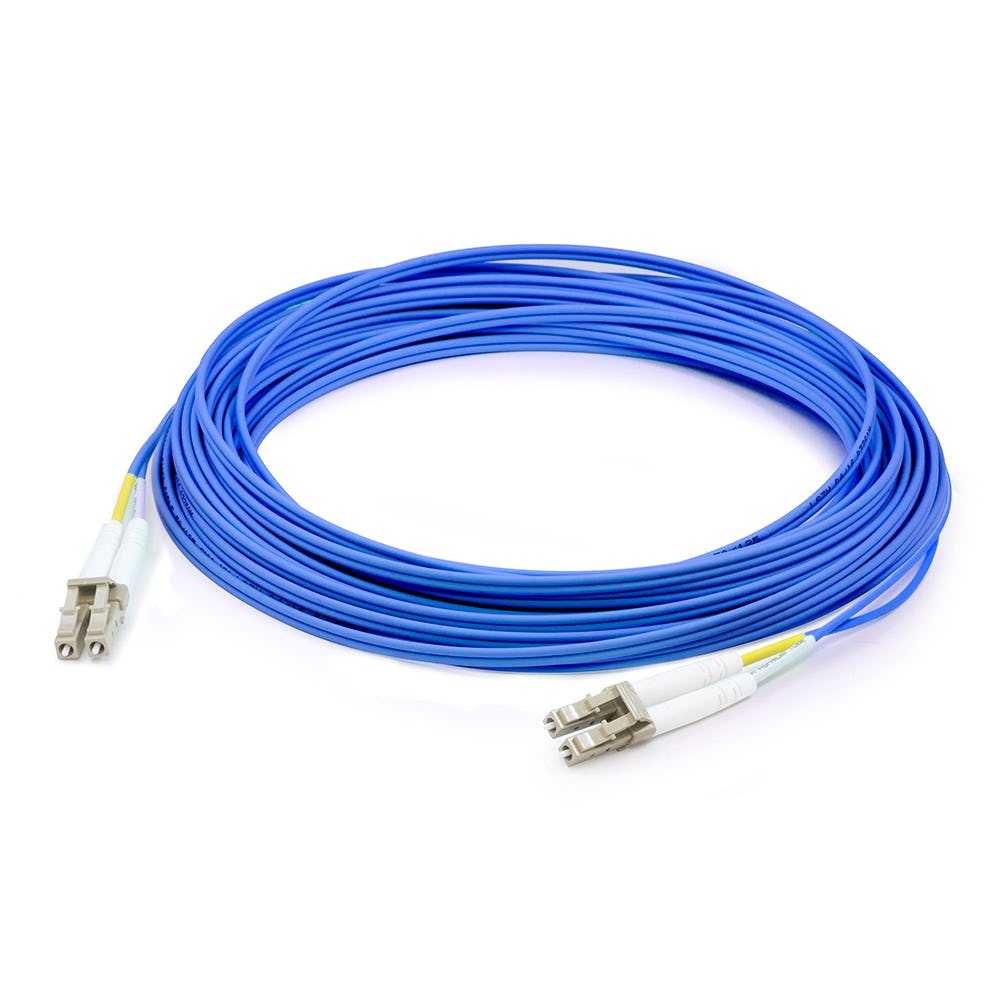

AddOn Networks ADD-LC-LC-10M5OM2P InfiniBand/fibre optic cable 10 m OFNP Blue

Roll over image to zoom inClick to Open expanded view

AddOn Networks ADD-LC-LC-10M5OM2P InfiniBand/fibre optic cable 10 m OFNP Blue

Name: AddOn Networks ADD-LC-LC-10M5OM2P InfiniBand/fibre optic cable 10 m OFNP Blue
Brand: AddOn Networks
SKU: ADD-LC-LC-10M5OM2P

SKU: ADD-LC-LC-10M5OM2P

Log In to View Pricing

AddOn Networks ADD-LC-LC-10M5OM2P, 10 m, OFNP, OM2, LC, LC

Add to compare

Product Properties

Manufacturer
AddOn Networks

Warranty
Lifetime

SKU
ADD-LC-LC-10M5OM2P

EAN
821455686706

Certificates

Certification
CE, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596

Compliance certificates
RoHS

Features

Cable length
10 m

Cable type
OFNP

Cladding diameter
125 µm

Compressive strength
10

Connector 1
LC

Connector 1 gender
Male

Connector 2
LC

Connector 2 gender
Male

Connector material
Ceramic

Core diameter
50 µm

Data transfer rate
10 Gbit/s

Fiber mode structure
Multi-mode

Fibre optic type
OM2

Full duplex
Yes

Insertion loss
0.35 dB

Product colour
Blue

Return loss
30 dB

Wavelengths supported
1310,1550 nm

Operational conditions

Operating temperature (T-T)
0 - 60 °C

Storage temperature (T-T)
-10 - 70 °C

Packaging content

Quantity per pack
1 pc(s)

Sustainability

Doesn't contain
Halogen

Weight & dimensions

Cable diameter
1.6 mm

Description

AddOn Networks ADD-LC-LC-10M5OM2P. Cable length: 10 m, Cable type: OFNP, Fibre optic type: OM2, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex

OFNP OM2
10 m
LC Male
LC Male
10 Gbit/s
Full duplex Multi-mode
Blue
