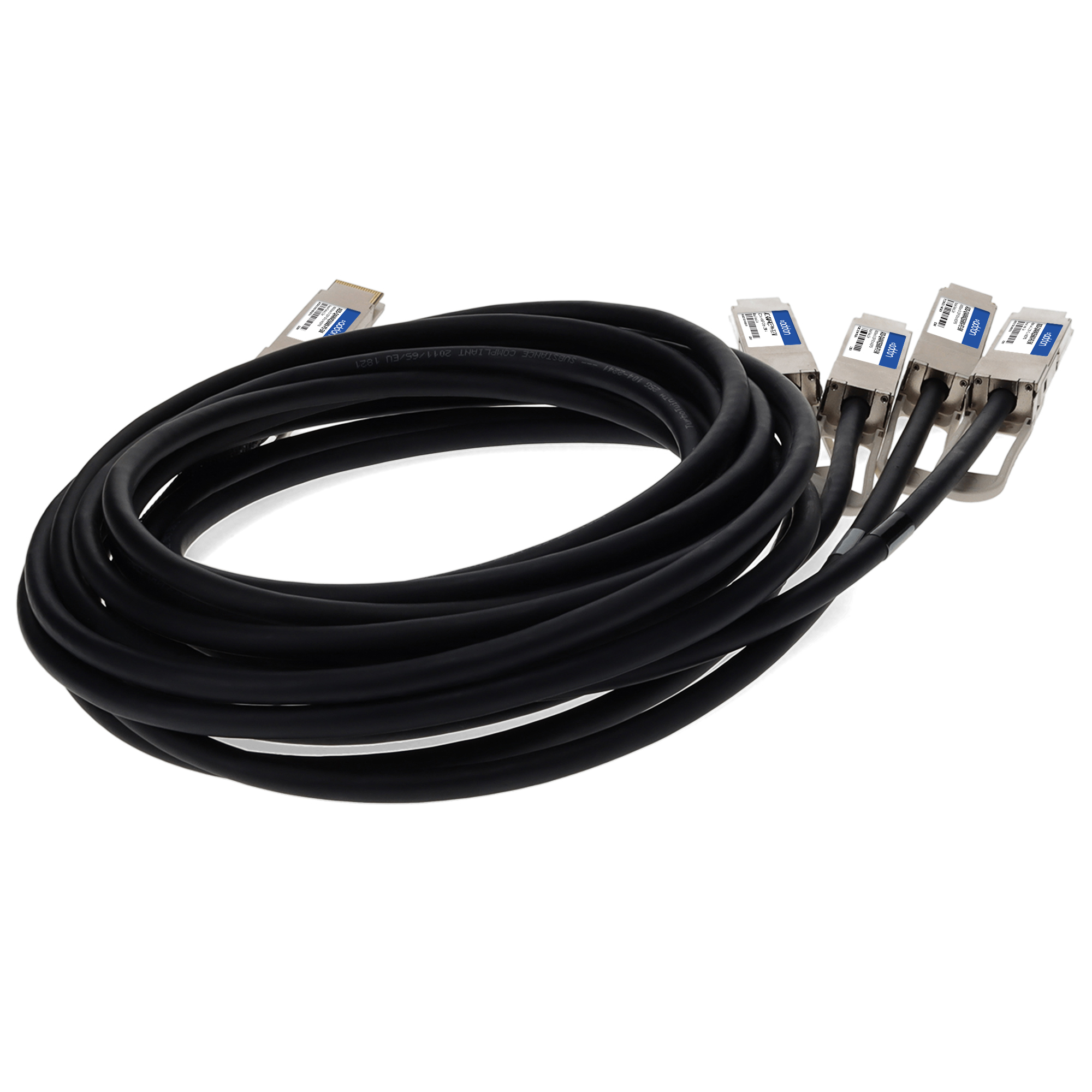

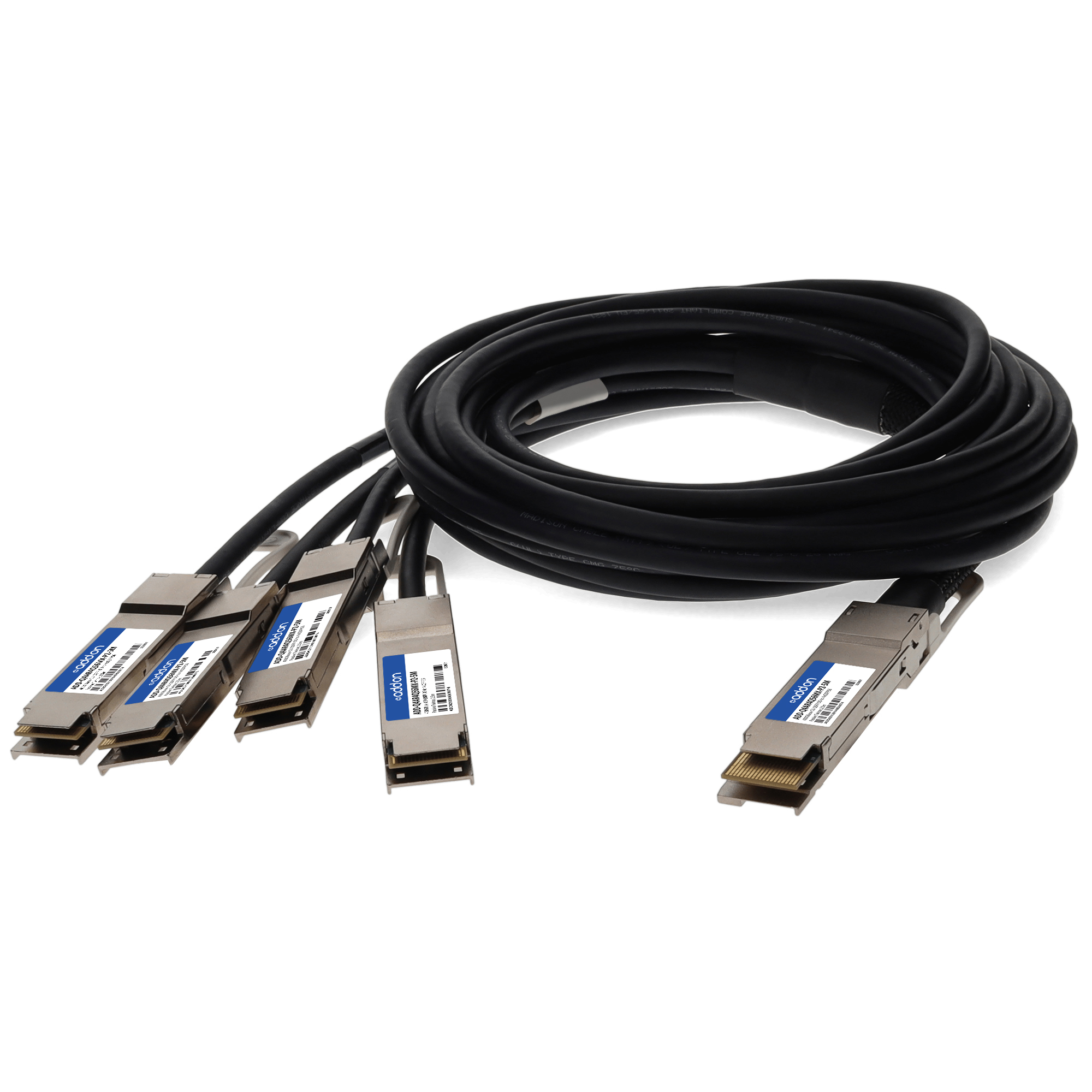

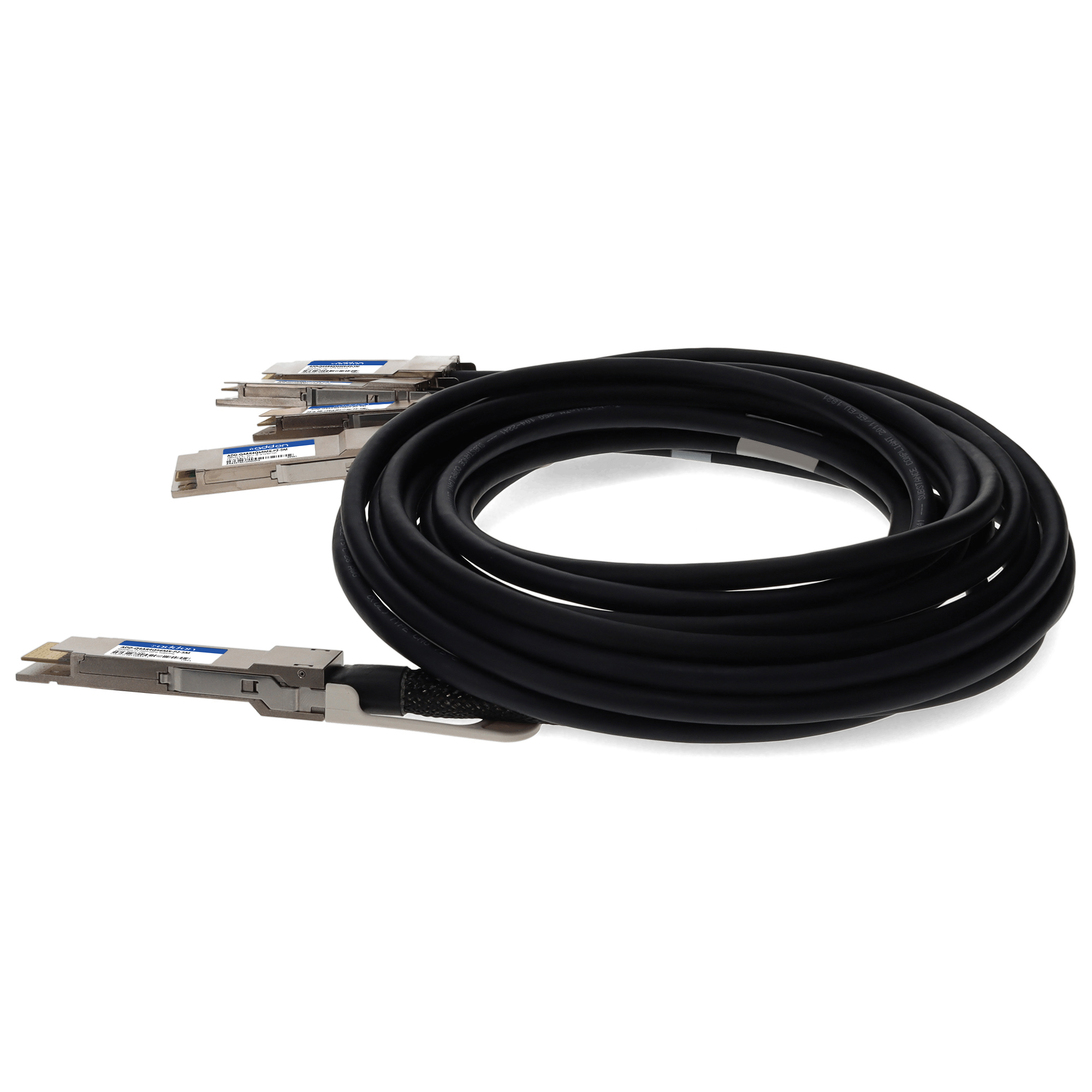

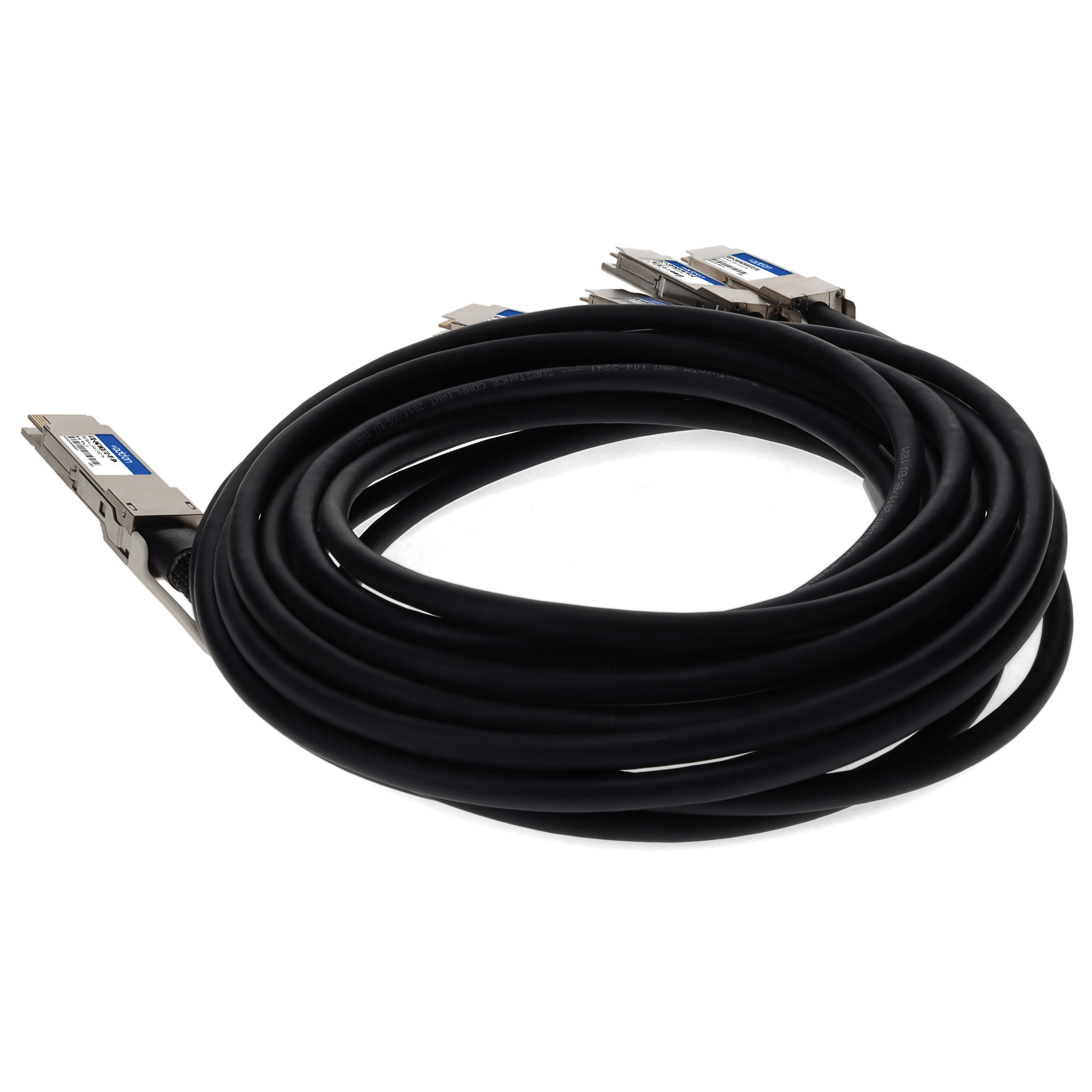

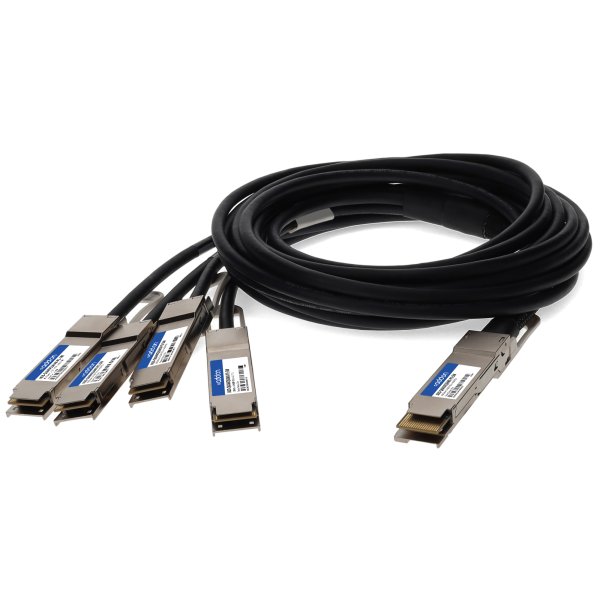

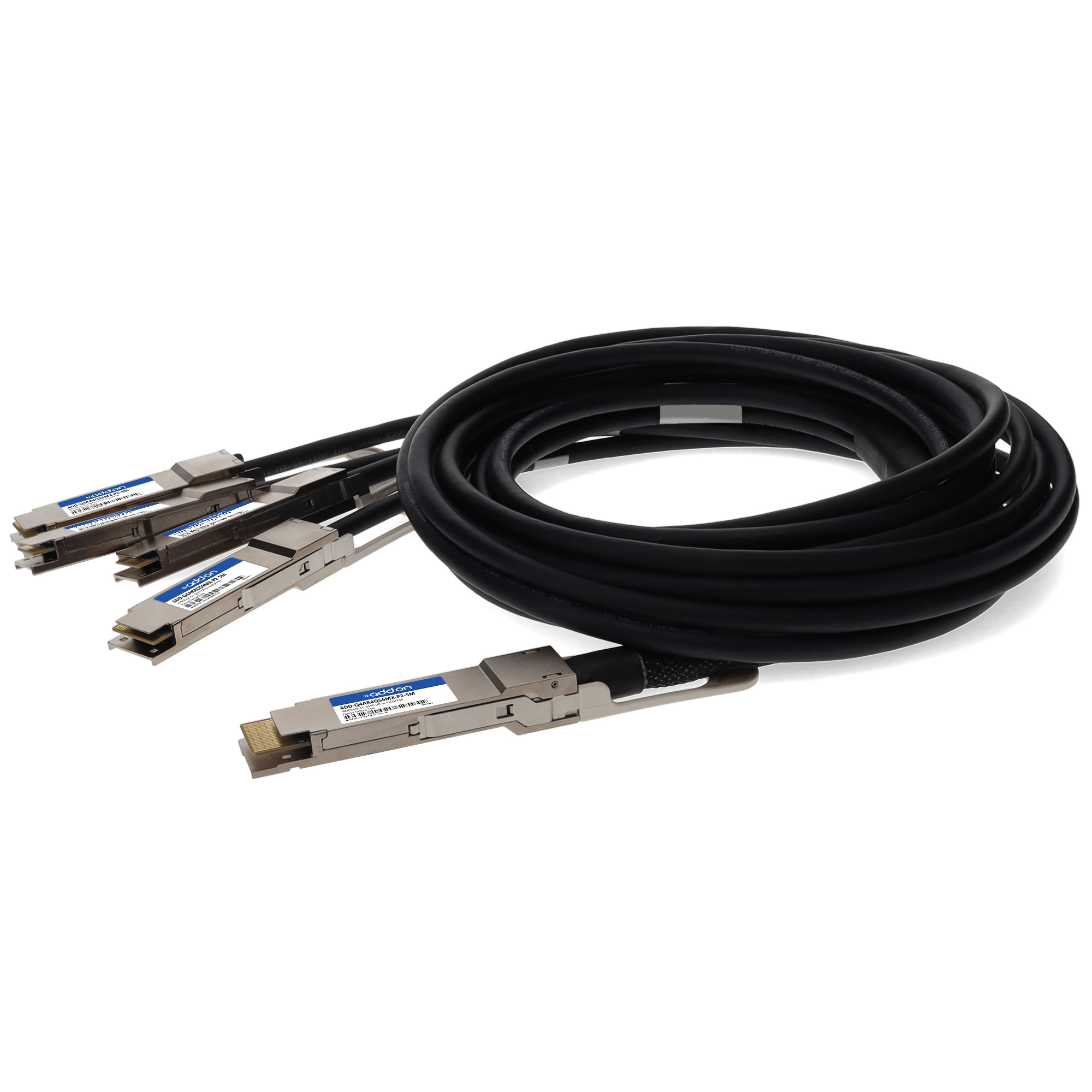

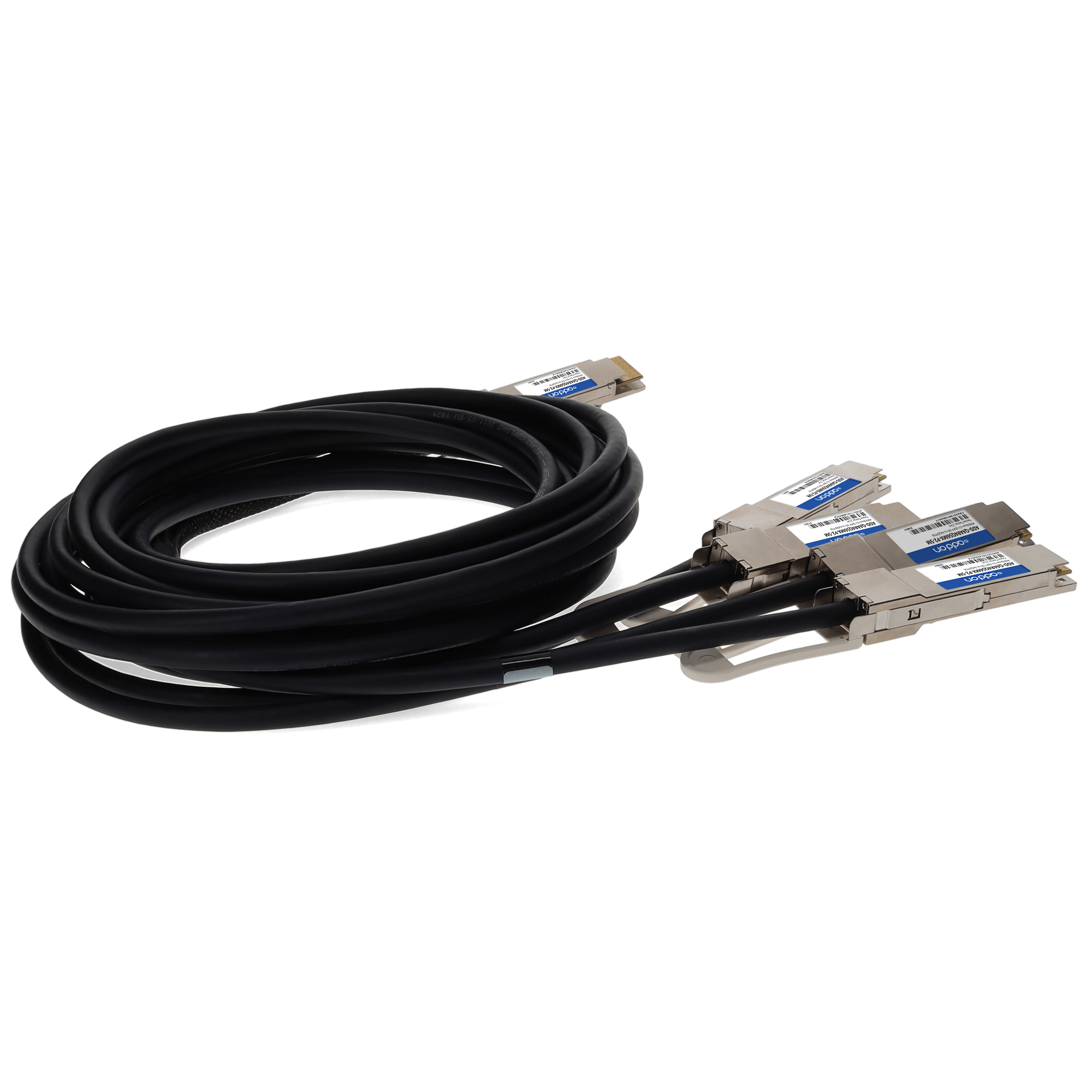

AddOn Networks ADD-Q4AR4Q56MX-P2-5M InfiniBand/fibre optic cable 2.5 m QSFP-DD 4x QSFP56 DAC Black

Roll over image to zoom inClick to Open expanded view

AddOn Networks ADD-Q4AR4Q56MX-P2-5M InfiniBand/fibre optic cable 2.5 m QSFP-DD 4x QSFP56 DAC Black

Name: AddOn Networks ADD-Q4AR4Q56MX-P2-5M InfiniBand/fibre optic cable 2.5 m QSFP-DD 4x QSFP56 DAC Black
Brand: AddOn Networks
SKU: ADD-Q4AR4Q56MX-P2-5M

SKU: ADD-Q4AR4Q56MX-P2-5M

Log In to View Pricing

AddOn Networks ADD-Q4AR4Q56MX-P2-5M, 2.5 m, DAC, QSFP-DD, 4x QSFP56

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
AddOn Networks

Warranty
Lifetime

SKU
ADD-Q4AR4Q56MX-P2-5M

EAN
195285825353

Bullet points

Point
Advantage dual side pre-solder automated assembly technologies

Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd

Compliant with QSFP-DD MSA Specification Rev 3.4

Excellent EMI/EMC performance 360-degree cable shield termination

I2C for EEPROM communication

Low loss, stronger mechanical features, more flexible

Pull-to-release slide latch design

RoHS Compliant and Lead-Free

SFF-8636 management interface support

SFF-8679 electrical interface compliant

Supports aggregate data rates of 100 and 400Gbps

Certificates

Certification
MSA

Compliance certificates
RoHS, Trade Agreements Act (TAA)

Features

Brand compatibility
Arista Networks

Cable length
2.5 m

Cable shape
Round

Cable type
DAC

Conductor material
Copper

Connector 1
QSFP-DD

Connector 1 gender
Male

Connector 2
4x QSFP56

Connector 2 gender
Male

Data transfer rate
400 Gbit/s

Ethernet interface type
400 Gigabit Ethernet

Export Control Classification Number (ECCN)
5A991

InfiniBand protocol
Yes

Plug and Play
Yes

Product colour
Black

Logistics data

Country of origin
United Kingdom, United States

Operational conditions

Operating temperature (T-T)
-10 - 55 °C

Storage temperature (T-T)
-10 - 55 °C

Packaging content

Quantity per pack
1 pc(s)

Sustainability

Doesn't contain
Lead

Description

AddOn Networks ADD-Q4AR4Q56MX-P2-5M. Cable length: 2.5 m, Cable type: DAC, Connector 1: QSFP-DD, Connector 2: 4x QSFP56

DAC
2.5 m
QSFP-DD Male
4x QSFP56 Male
400 Gbit/s
Black
Compliant with QSFP-DD MSA Specification Rev 3.4
SFF-8636 management interface support
SFF-8679 electrical interface compliant
Supports aggregate data rates of 100 and 400Gbps
I2C for EEPROM communication
Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
Excellent EMI/EMC performance 360-degree cable shield termination
Pull-to-release slide latch design
Low loss, stronger mechanical features, more flexible
Advantage dual side pre-solder automated assembly technologies
RoHS Compliant and Lead-Free
