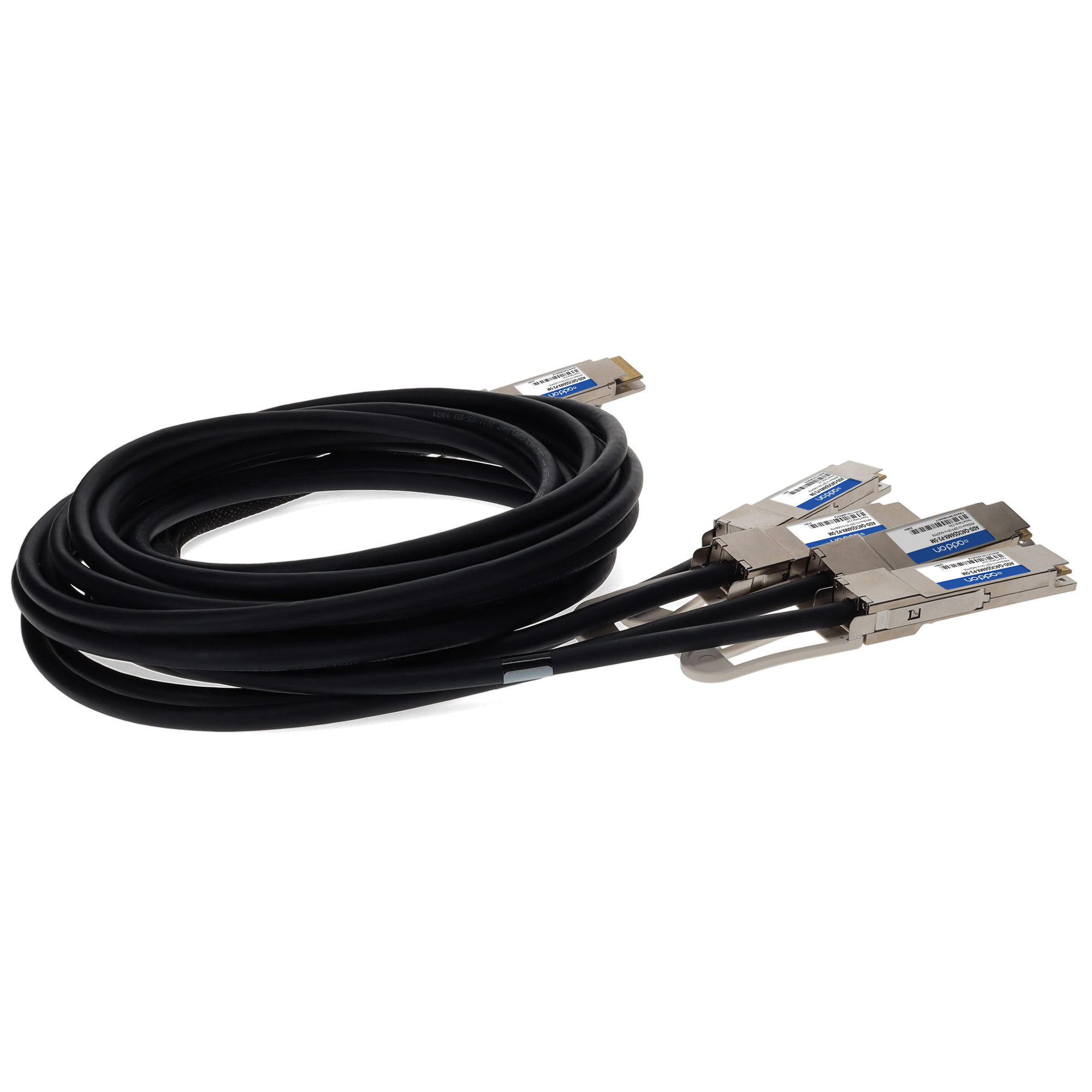

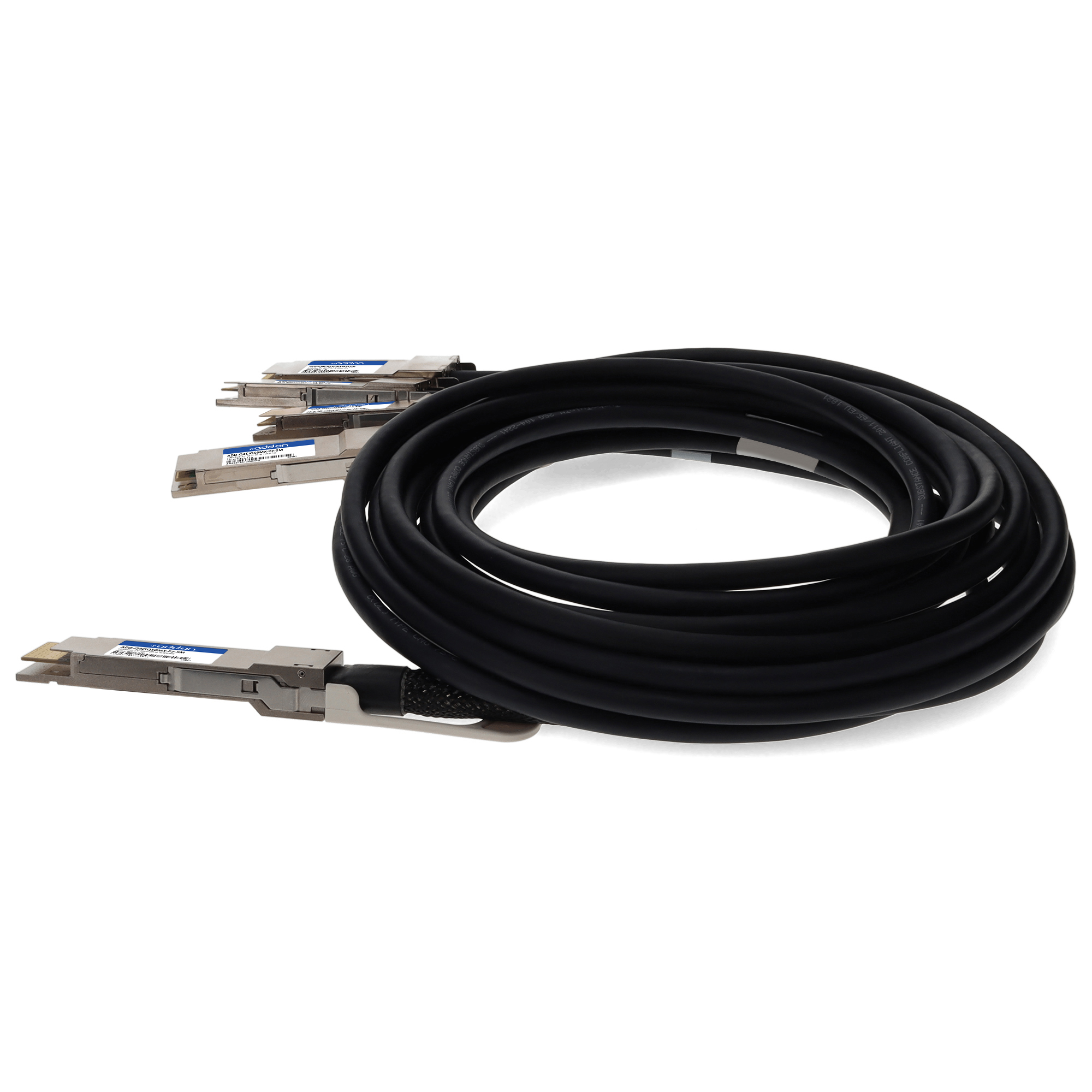

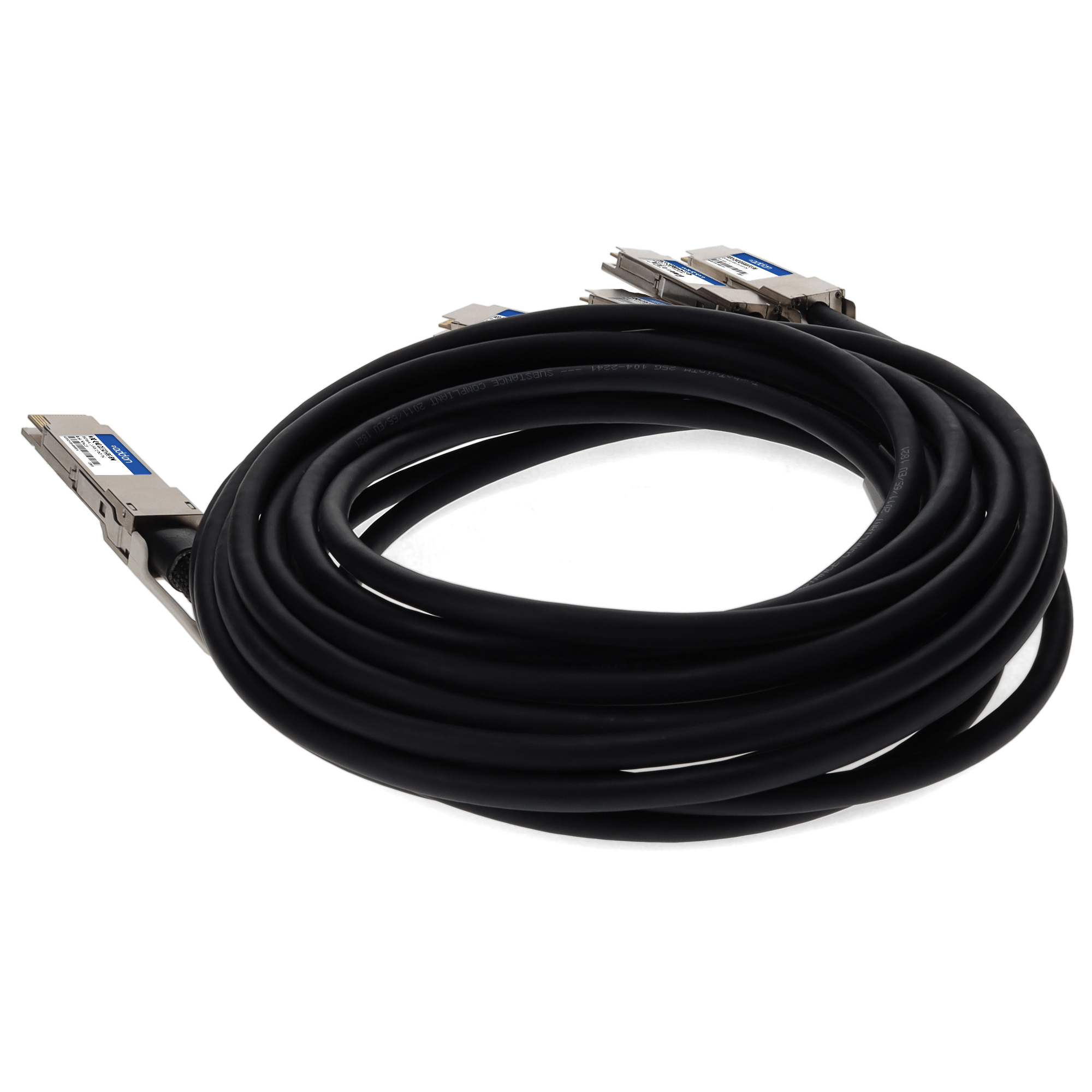

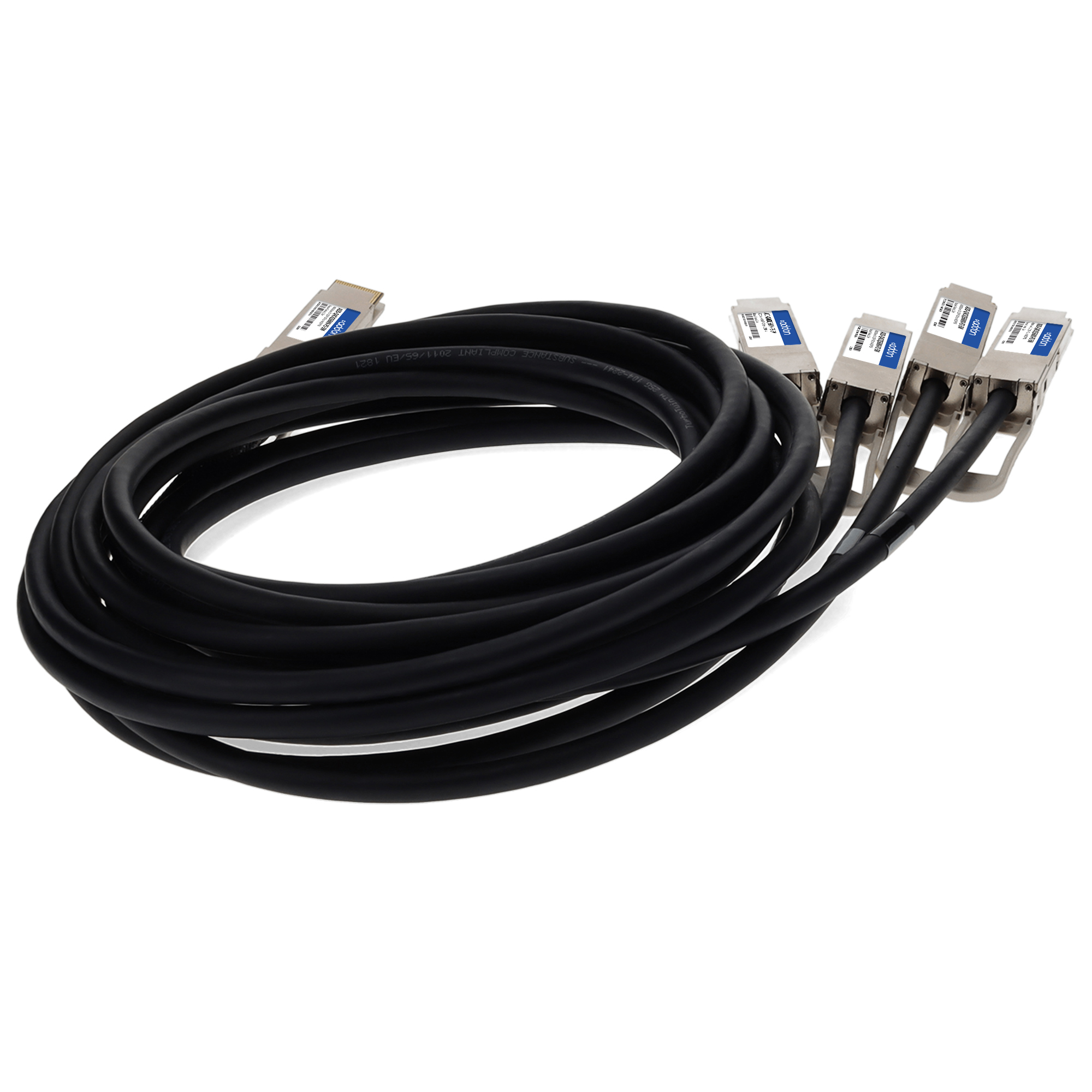

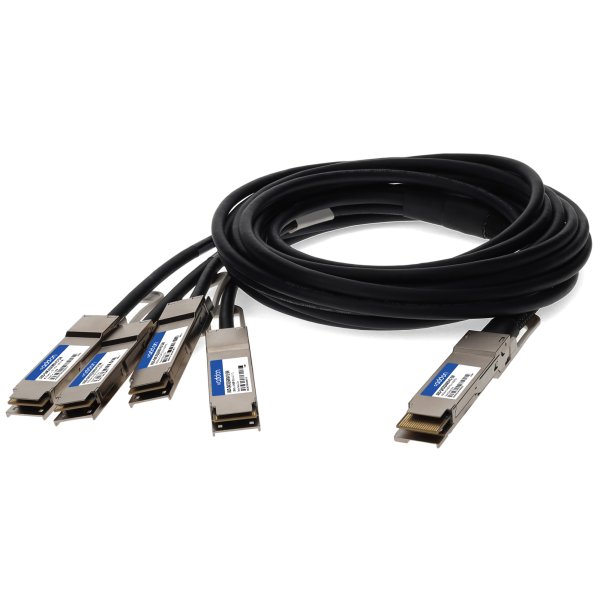

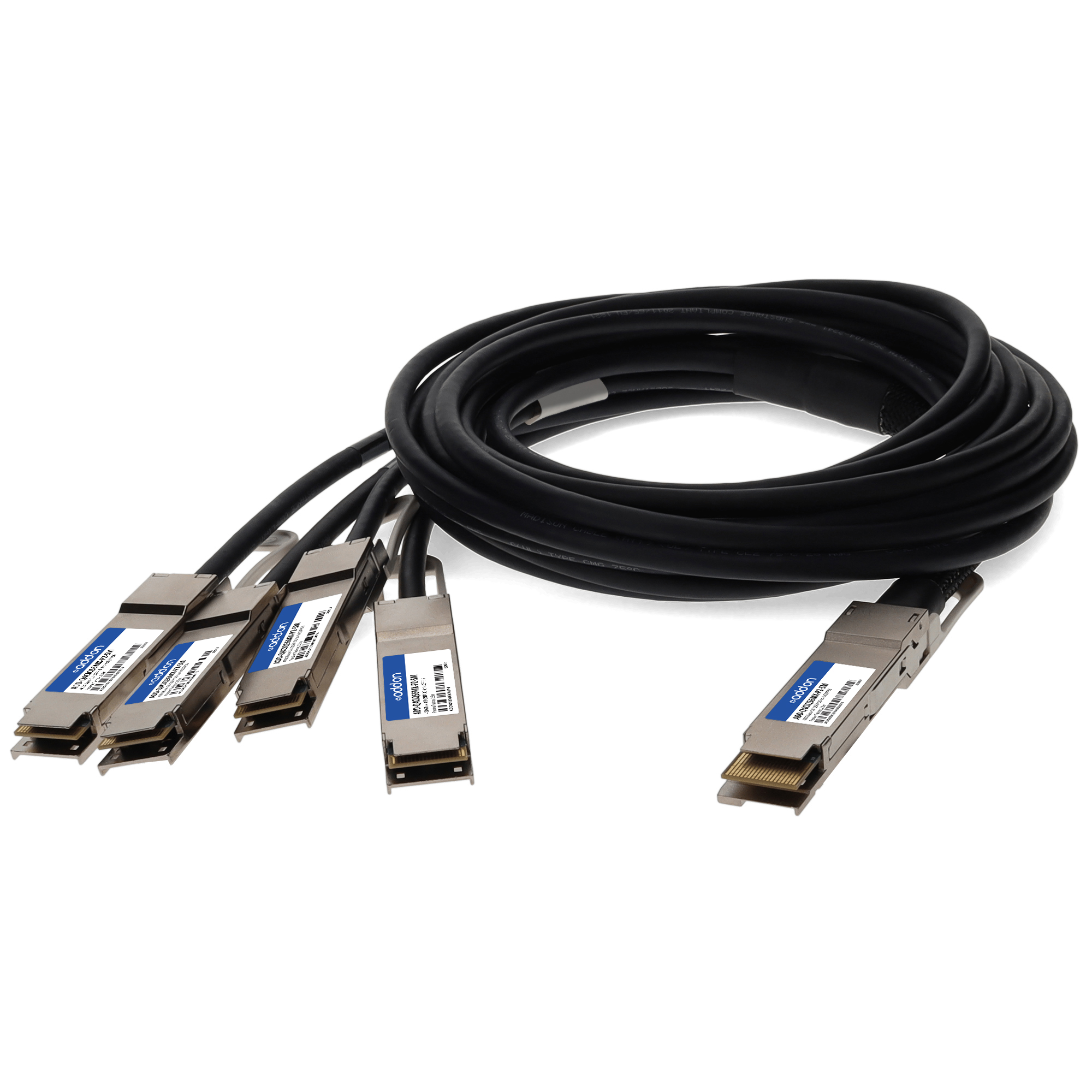

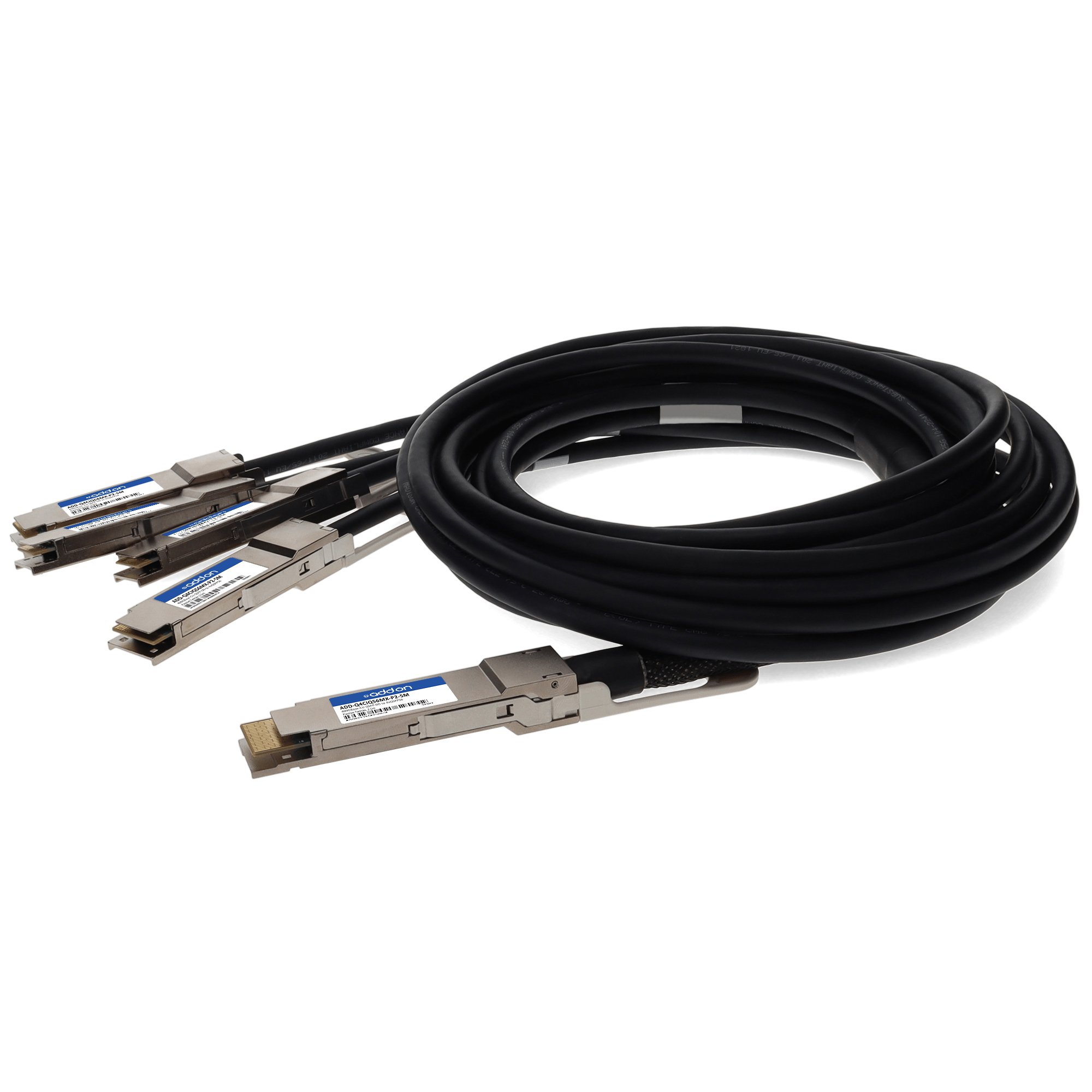

AddOn Networks ADD-Q4CIQ56MX-P2-5M InfiniBand/fibre optic cable 2.5 m QSFP-DD 4x QSFP56 DAC Black

Roll over image to zoom inClick to Open expanded view

AddOn Networks ADD-Q4CIQ56MX-P2-5M InfiniBand/fibre optic cable 2.5 m QSFP-DD 4x QSFP56 DAC Black

Name: AddOn Networks ADD-Q4CIQ56MX-P2-5M InfiniBand/fibre optic cable 2.5 m QSFP-DD 4x QSFP56 DAC Black
Brand: AddOn Networks
SKU: ADD-Q4CIQ56MX-P2-5M

SKU: ADD-Q4CIQ56MX-P2-5M

Log In to View Pricing

ETA 2 days

AddOn Networks ADD-Q4CIQ56MX-P2-5M, 2.5 m, DAC, QSFP-DD, 4x QSFP56

ETA 2 days

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
AddOn Networks

Warranty
Lifetime

SKU
ADD-Q4CIQ56MX-P2-5M

EAN
195285803078

Bullet points

Point
technologies

termination

• Advantage dual side pre-solder automated assembly

• Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd

• Compliant with QSFP-DD MSA Specification Rev 3.4

• Excellent EMI/EMC performance 360-degree cable shield

• I2C for EEPROM communication

• Low loss, stronger mechanical features, more flexible

• Pull-to-release slide latch design

• RoHS Compliant and Lead-Free

• SFF-8636 management interface support

• SFF-8679 electrical interface compliant

• Supports aggregate data rates of 100 and 400Gbps

Certificates

Compliance certificates
RoHS, Trade Agreements Act (TAA)

Features

Brand compatibility
Cisco

Cable length
2.5 m

Cable shape
Round

Cable type
DAC

Conductor material
Copper

Connector 1
QSFP-DD

Connector 1 gender
Male

Connector 2
4x QSFP56

Connector 2 gender
Male

Data transfer rate
400 Gbit/s

Ethernet interface type
100 Gigabit Ethernet, 400 Gigabit Ethernet

Export Control Classification Number (ECCN)
5A991

Jacket material
Polyvinyl chloride (PVC)

Plug and Play
Yes

Product colour
Black

Logistics data

Harmonized System (HS) code
85176200, 8517.62.0090

Operational conditions

Operating temperature (T-T)
-10 - 55 °C

Storage temperature (T-T)
-10 - 55 °C

Other features

Networking standards
IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd

UNSPSC-code
26121609

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package depth
305 mm

Package height
38 mm

Package width
229 mm

Sustainability

Doesn't contain
Cadmium, Lead, Mercury

Description

AddOn Networks ADD-Q4CIQ56MX-P2-5M. Cable length: 2.5 m, Cable type: DAC, Connector 1: QSFP-DD, Connector 2: 4x QSFP56

DAC
2.5 m
QSFP-DD Male
4x QSFP56 Male
Jacket material: Polyvinyl chloride (PVC)
400 Gbit/s
Black
• Compliant with QSFP-DD MSA Specification Rev 3.4
• SFF-8636 management interface support
• SFF-8679 electrical interface compliant
• Supports aggregate data rates of 100 and 400Gbps
• I2C for EEPROM communication
• Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
• Excellent EMI/EMC performance 360-degree cable shield
termination
• Pull-to-release slide latch design
• Low loss, stronger mechanical features, more flexible
• Advantage dual side pre-solder automated assembly
technologies
• RoHS Compliant and Lead-Free

pdf

Datasheets (Download)
