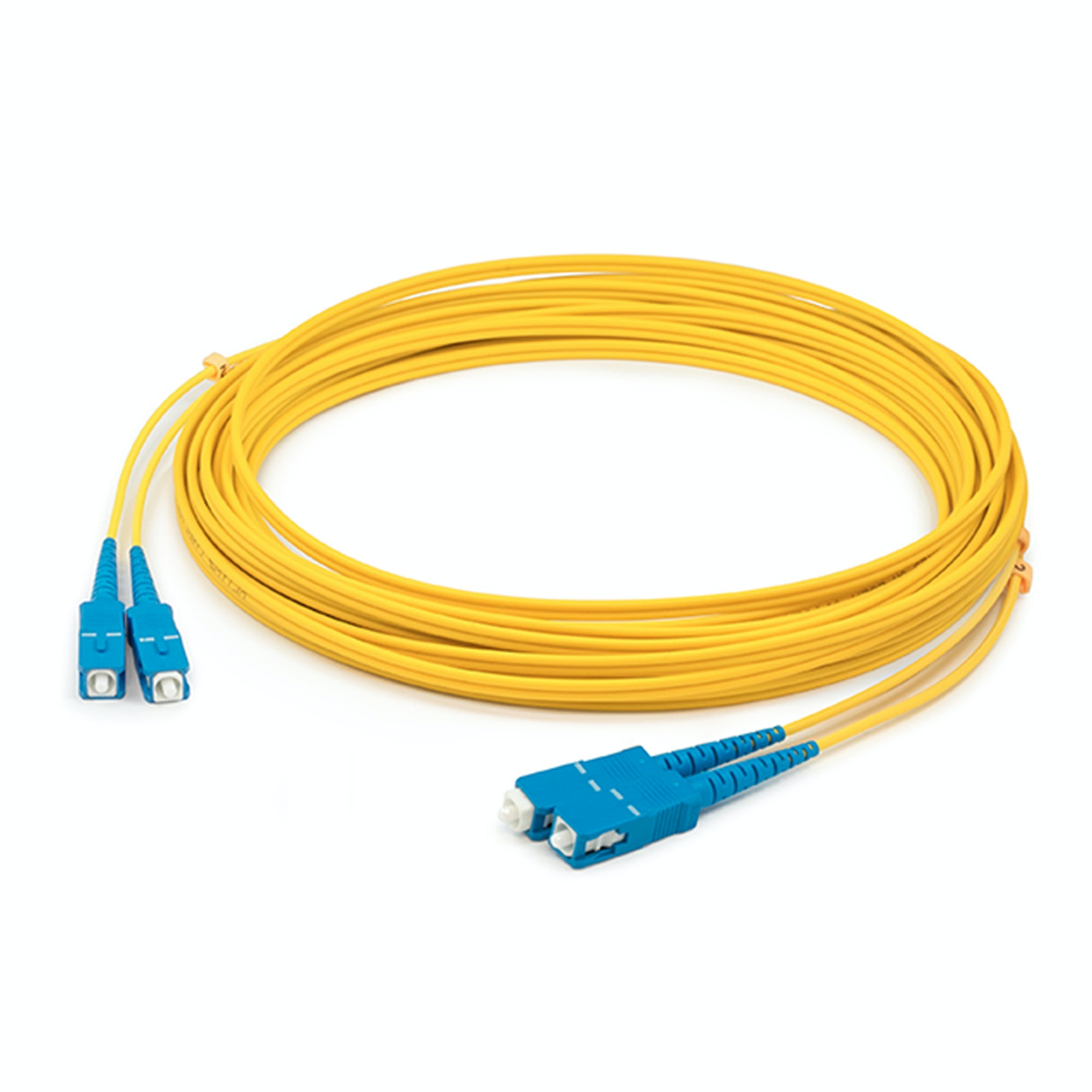

AddOn Networks ADD-SC-SC-92M9SMF InfiniBand/fibre optic cable 92 m Yellow

Roll over image to zoom inClick to Open expanded view

AddOn Networks ADD-SC-SC-92M9SMF InfiniBand/fibre optic cable 92 m Yellow

Name: AddOn Networks ADD-SC-SC-92M9SMF InfiniBand/fibre optic cable 92 m Yellow
Brand: AddOn Networks
SKU: ADD-SC-SC-92M9SMF

SKU: ADD-SC-SC-92M9SMF

AddOn Networks ADD-SC-SC-92M9SMF, 92 m, OS2, SC, SC

Add to compare

Product Properties

Manufacturer
AddOn Networks

Warranty
Limited Lifetime

SKU
ADD-SC-SC-92M9SMF

Features

Cable length
92 m

Certification
CE, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596

Cladding diameter
125 µm

Compressive strength
10

Connector 1
SC

Connector 1 gender
Male

Connector 2
SC

Connector 2 gender
Male

Connector material
Ceramic

Core diameter
9 µm

Data transfer rate
100 Gbit/s

Ethernet interface type
10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet

Fiber mode structure
Single-mode

Fibre optic type
OS2

Full duplex
Yes

Insertion loss
0.35 dB

Jacket material
Low smoke zero halogen (LSZH)

Product colour
Yellow

Return loss
30 dB

Wavelengths supported
1310,1550 nm

Operational conditions

Operating temperature (T-T)
0 - 60 °C

Storage temperature (T-T)
-10 - 70 °C

Packaging data

Quantity per pack
1 pc(s)

Technical details

Compliance certificates
RoHS

Doesn't contain
Halogen

Weight & dimensions

Cable diameter
1.6 mm

Description

AddOn Networks ADD-SC-SC-92M9SMF. Cable length: 92 m, Fibre optic type: OS2, Connector 1: SC, Connector 2: SC, Core diameter: 9 µm, Full duplex

OS2
92 m
SC Male
SC Male
Jacket material: Low smoke zero halogen (LSZH)
100 Gbit/s
Full duplex Single-mode
Yellow
