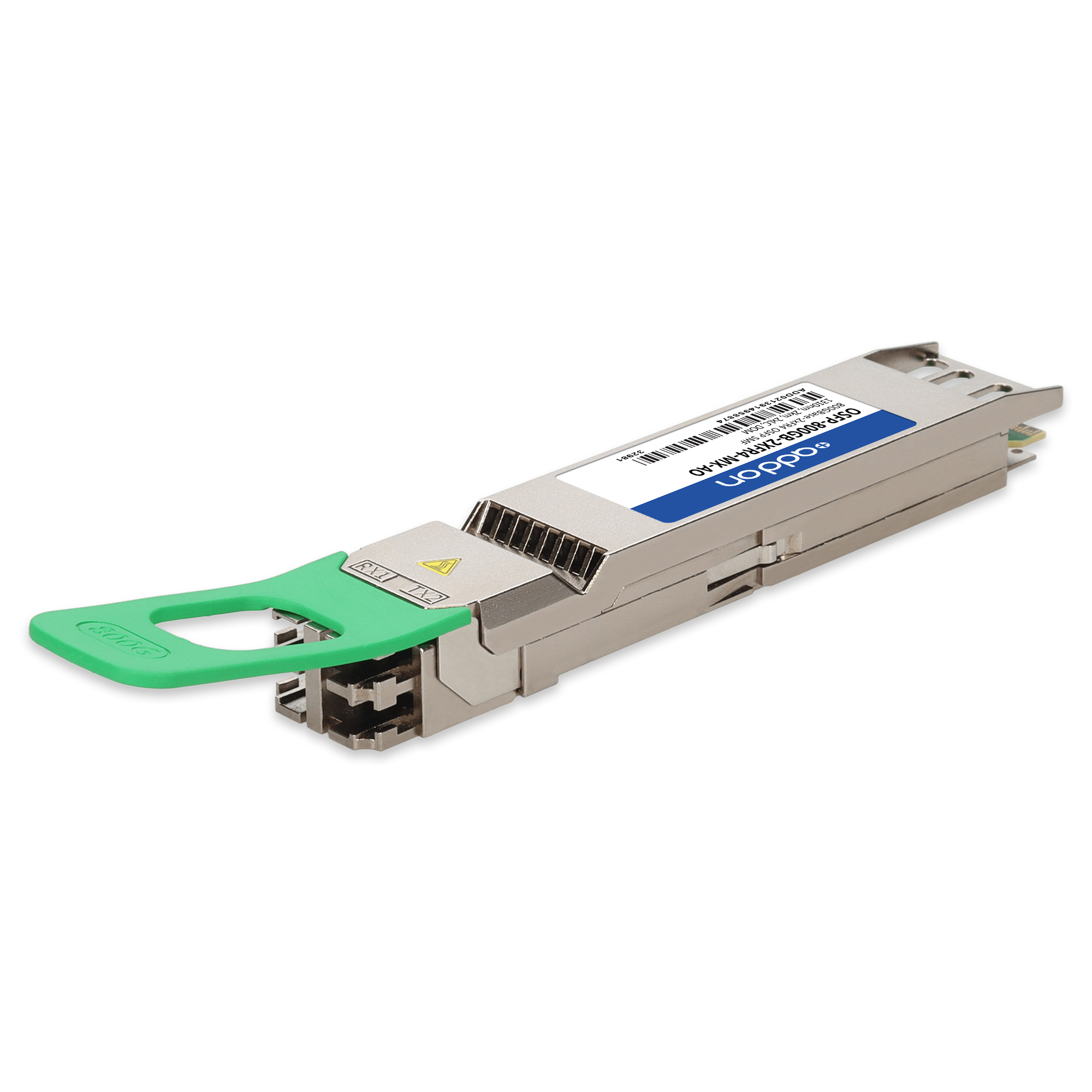

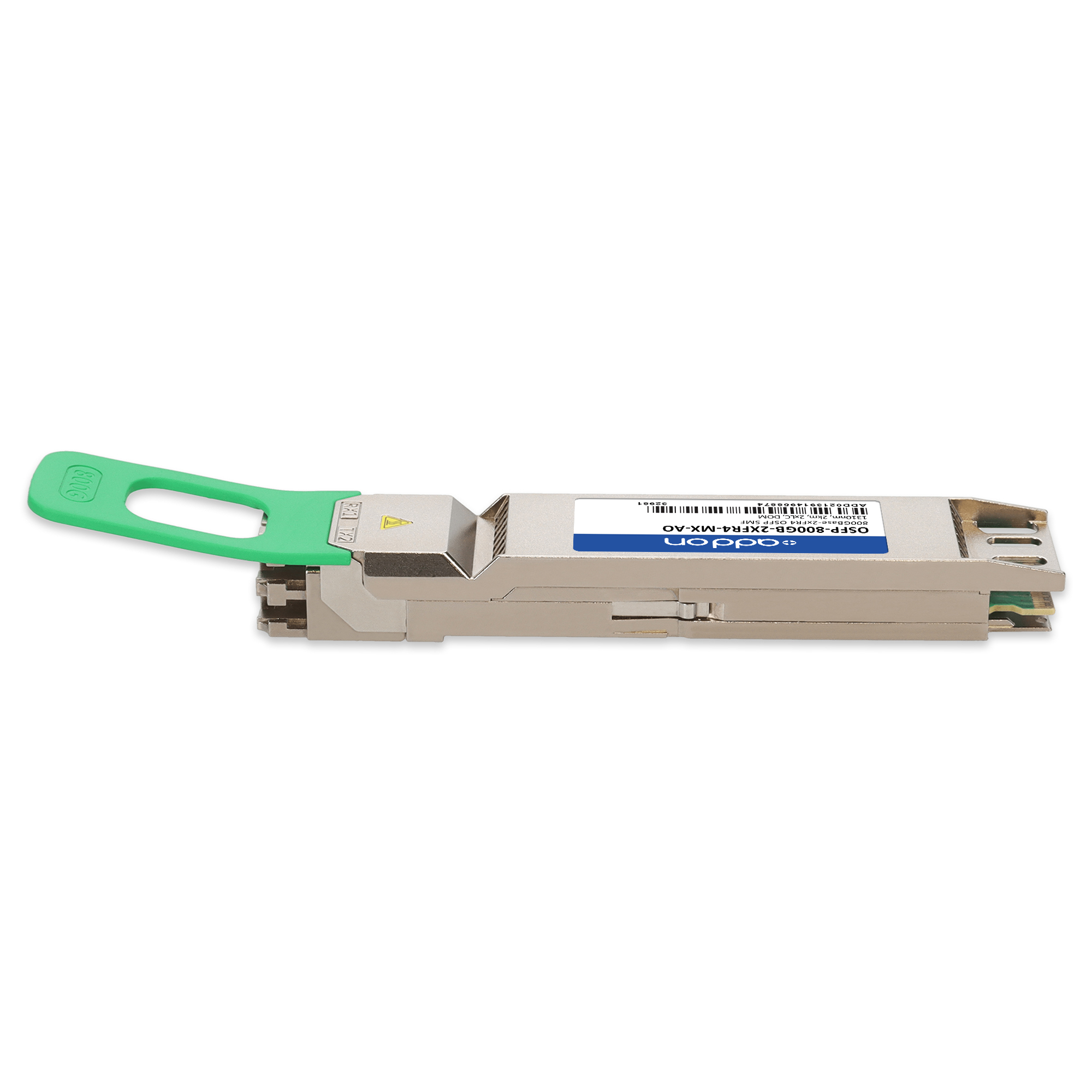

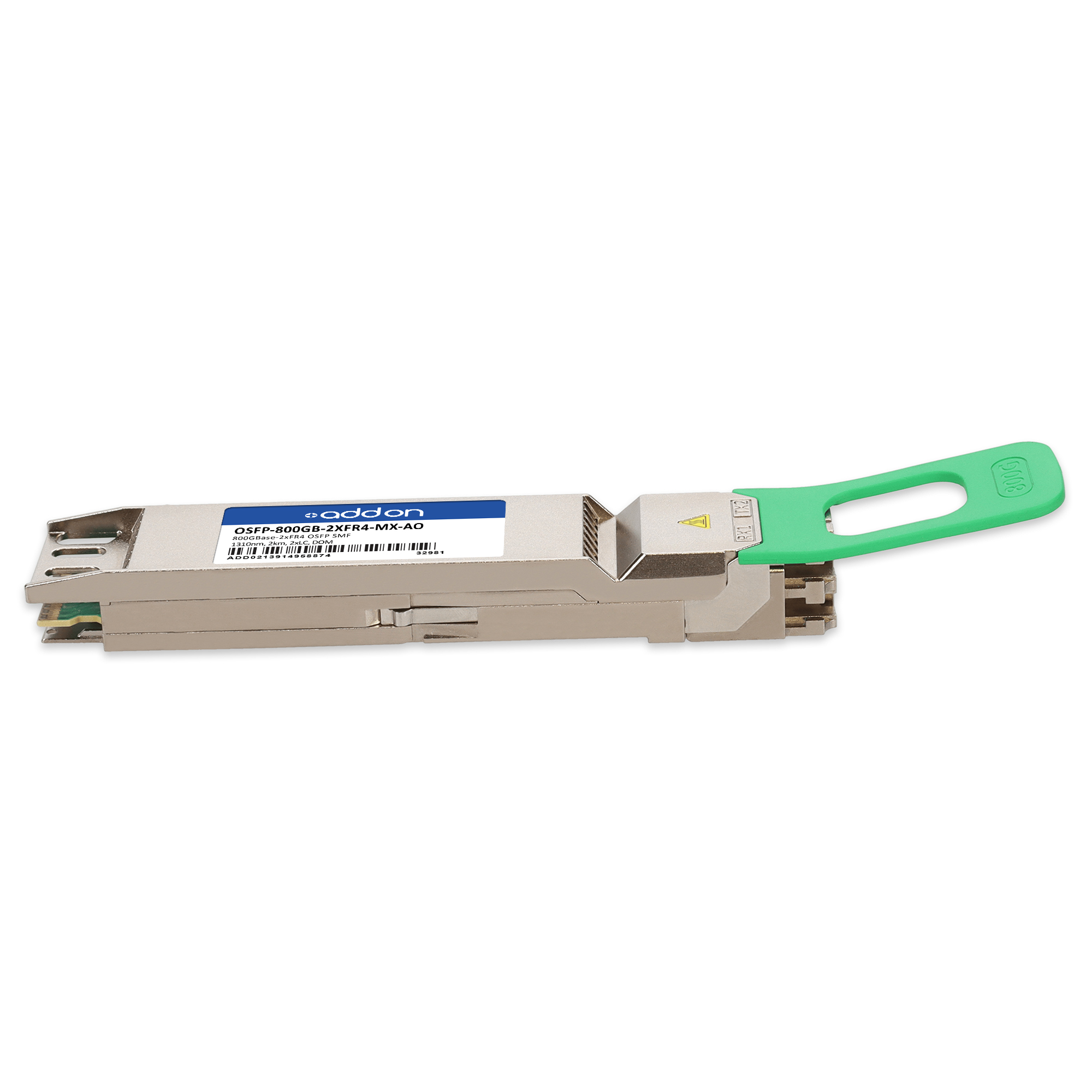

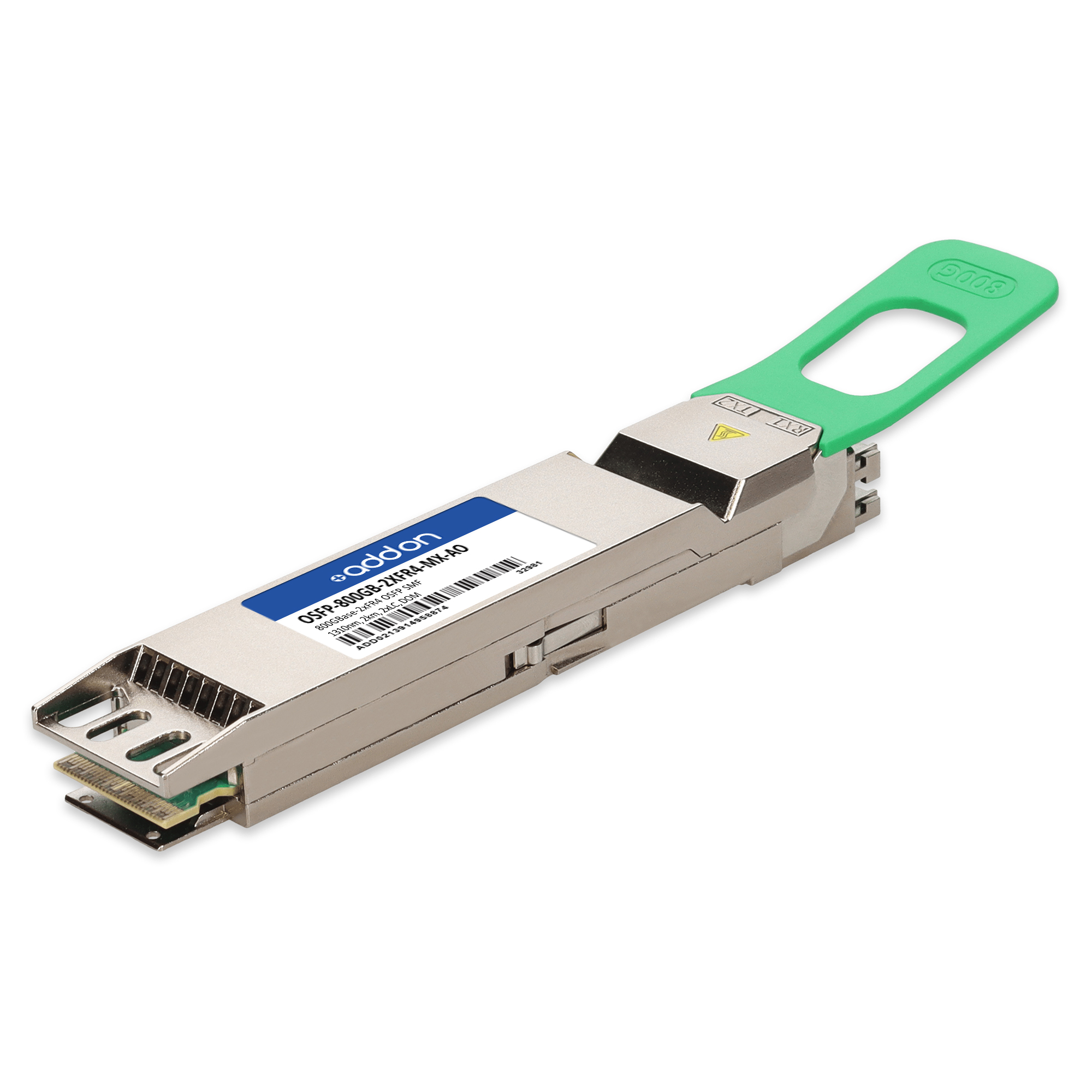

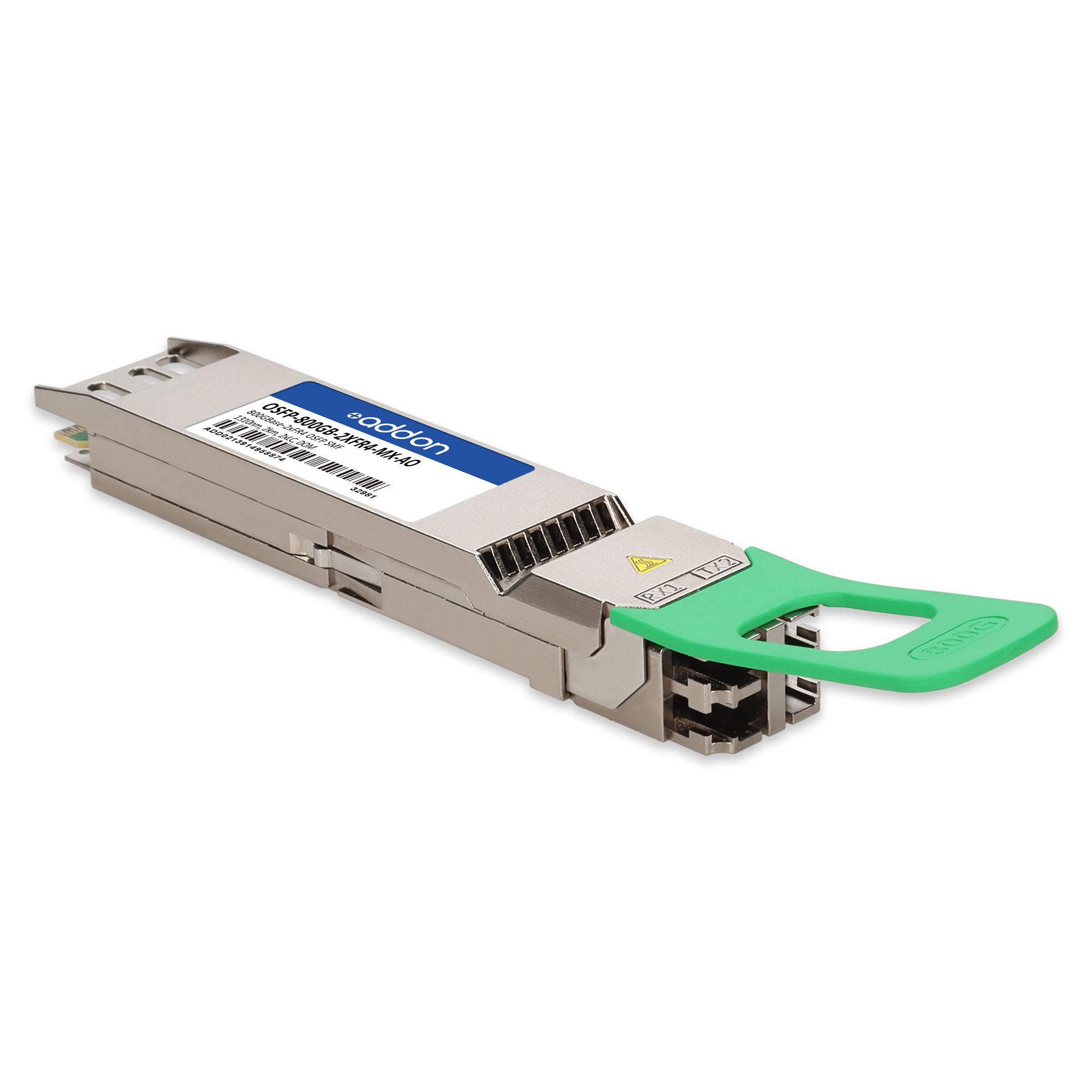

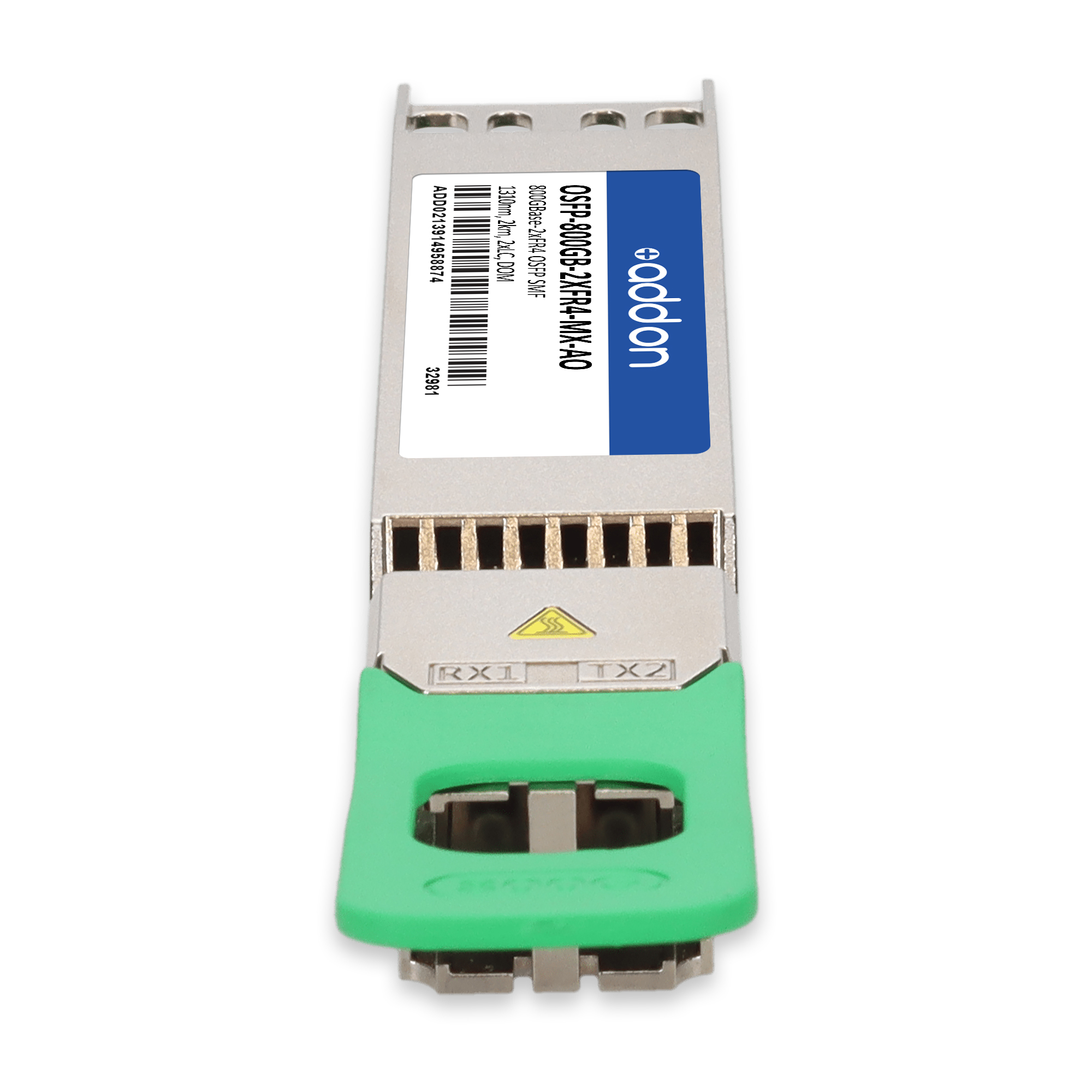

AddOn Networks OSFP-800GB-2XFR4-MX-AO network transceiver module Fiber optic 800000 Mbit/s 1310 nm
Roll over image to zoom inClick to Open expanded view
AddOn Networks OSFP-800GB-2XFR4-MX-AO network transceiver module Fiber optic 800000 Mbit/s 1310 nm
AddOn Networks OSFP-800GB-2XFR4-MX-AO network transceiver module Fiber optic 800000 Mbit/s 1310 nm
AddOn Networks OSFP-800GB-2XFR4-MX-AO network transceiver module Fiber optic 800000 Mbit/s 1310 nm
AddOn Networks OSFP-800GB-2XFR4-MX-AO network transceiver module Fiber optic 800000 Mbit/s 1310 nm
AddOn Networks OSFP-800GB-2XFR4-MX-AO network transceiver module Fiber optic 800000 Mbit/s 1310 nm
AddOn Networks OSFP-800GB-2XFR4-MX-AO network transceiver module Fiber optic 800000 Mbit/s 1310 nm

AddOn Networks OSFP-800GB-2XFR4-MX-AO network transceiver module Fiber optic 800000 Mbit/s 1310 nm

SKU: OSFP-800GB-2XFR4-MX-AO
AddOn Networks OSFP-800GB-2XFR4-MX-AO, Fiber optic, 800000 Mbit/s, OSFP, LC, FR4, 2000 m
Specifications
More Information
PDF

Product Properties

  • Warranty
  • Lifetime
  • SKU
  • OSFP-800GB-2XFR4-MX-AO
  • EAN
  • 199278010573
  • Bullet points
  • Certificates
  • Features
  • Logistics data
  • Operational conditions
  • Packaging content
  • Packaging data
  • Performance
  • Export Control Classification Number (ECCN)
  • 5A991
  • Fiber optic connector
  • LC
  • SFP transceiver standard
  • FR4
  • Single-mode fiber (SMF) supported
  • Yes
  • Power
  • Sustainability

Description

AddOn Networks OSFP-800GB-2XFR4-MX-AO. SFP transceiver type: Fiber optic, Maximum data transfer rate: 800000 Mbit/s, Interface type: OSFP. Product colour: Silver, Form factor: OSFP, Brand compatibility: Mellanox. Input voltage: 3.3 V, Maximum voltage: 3.46 V. Compliance certificates: RoHS, Trade Agreements Act (TAA). Doesn't contain: Lead
  • OSFP Fiber optic 800000 Mbit/s
  • 800 Gigabit Ethernet Wavelength: 1310 nm
  • OSFP Hot-swap Hot-Plug support
  • Input voltage: 3.3 V
  • Supports Both Ethernet and InfiniBand NDR
  • 2x400GBASE-FR4 Optical Interface
  • 2x400GAUI-4 C2M Electrical Interface
  • InfiniBand NDR Electrical and Optical Interface
  • Type 2 Housing with Dual LC Connector
  • Support 850Gbps Aggregate Bit Rate
  • I2C Management Interface Compliant to CMIS Rev5.0
  • Class 1 Laser Certified
  • Operating Temperature: 0 to 70 Celsius
  • Hot-Pluggable OSFP Form Factor
  • RoHS Compliant and Lead-Free
