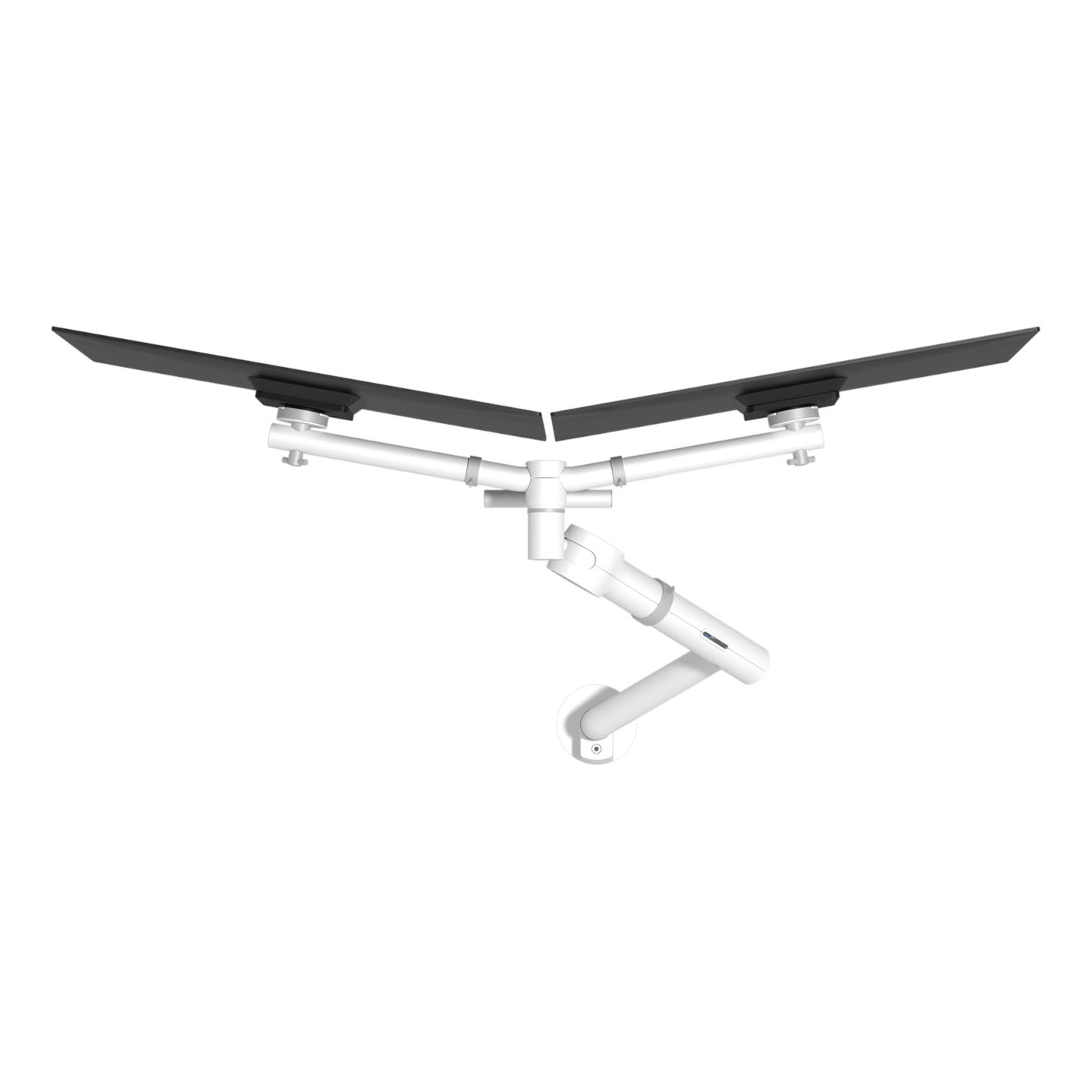

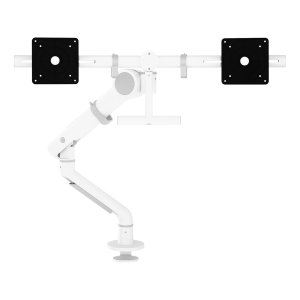

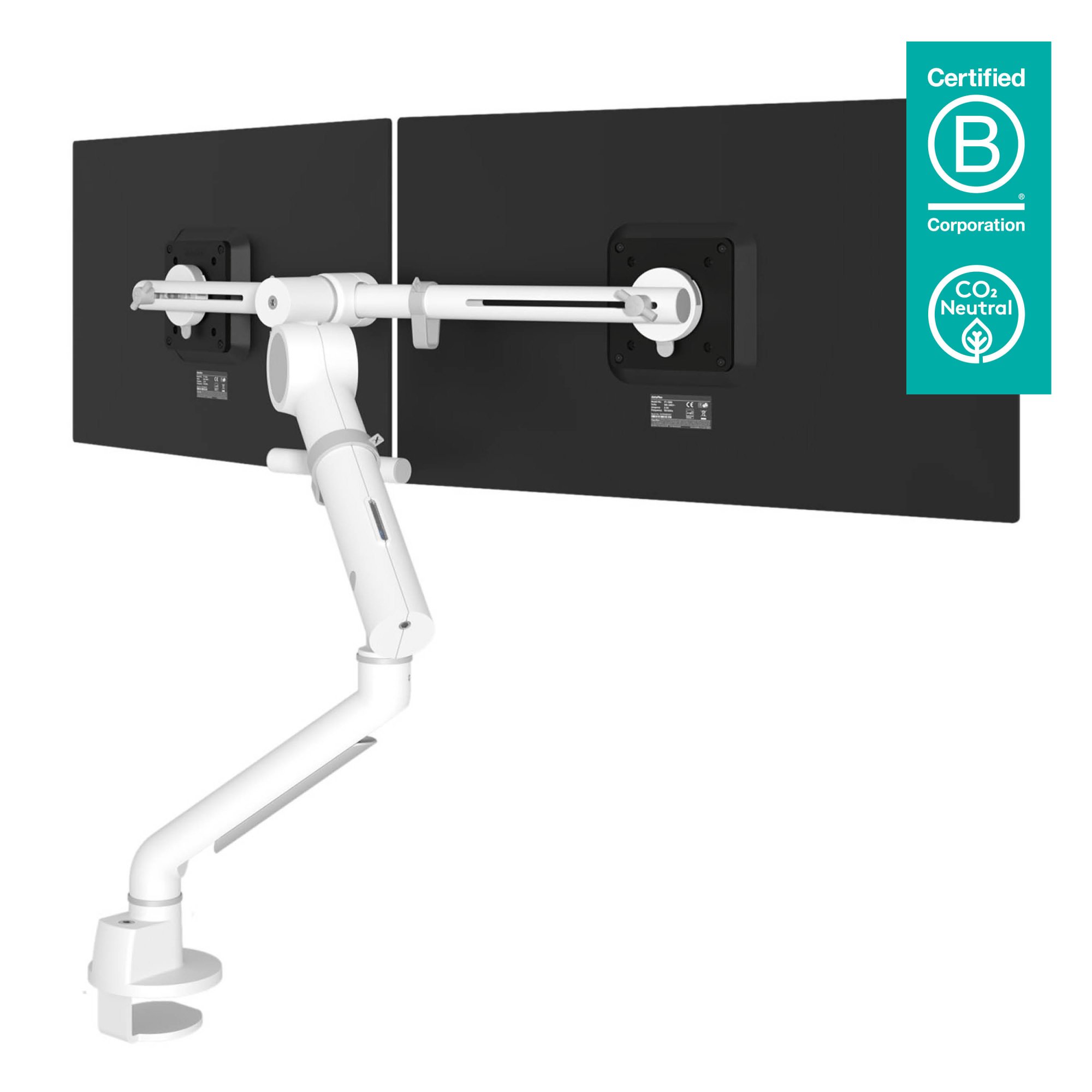

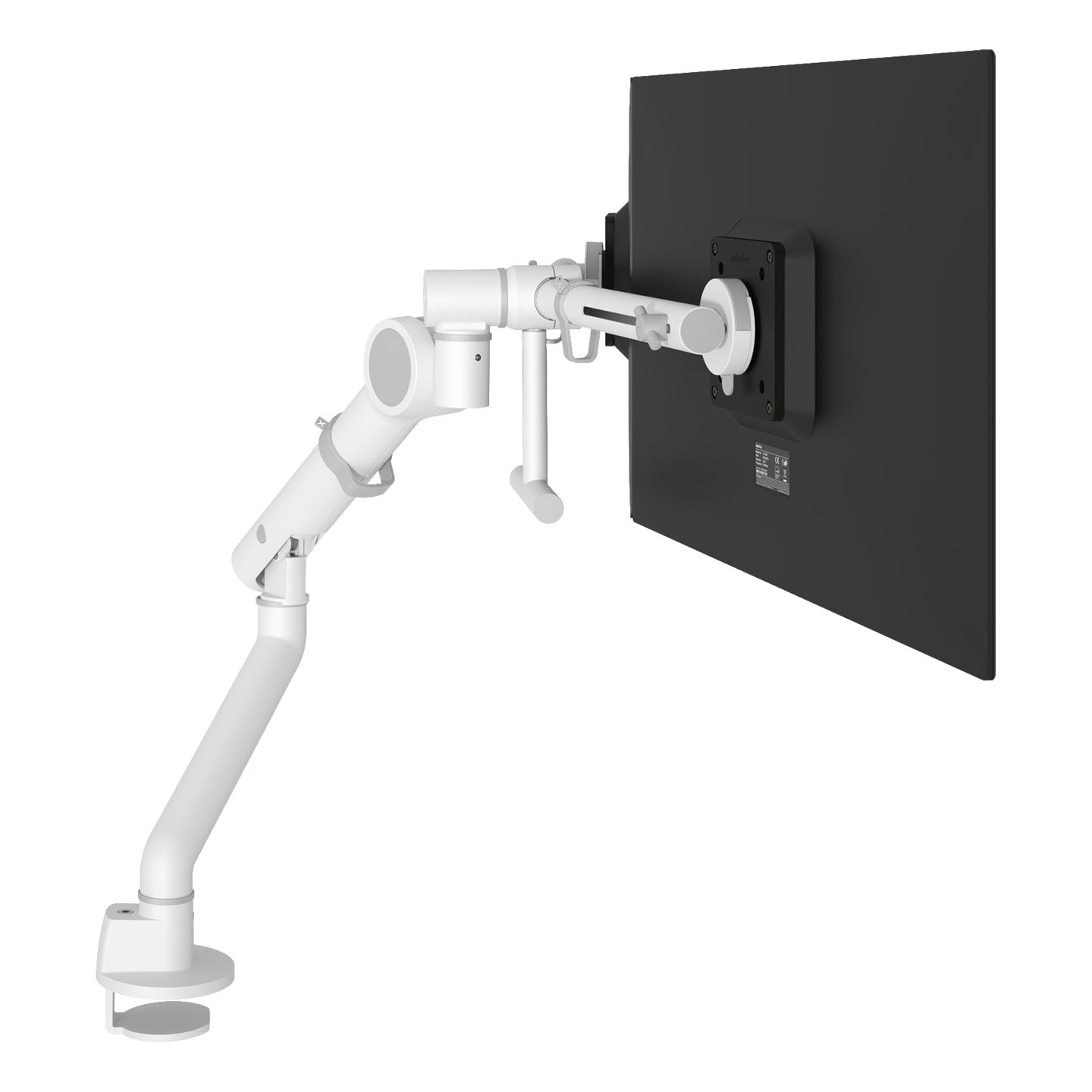

Dataflex Viewgo pro HD Desk White

Name: Dataflex Viewgo pro HD Desk White
Brand: Dataflex
SKU: ATP7553

SKU: ATP7553

Log In to View Pricing

11 In Stock

11

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	11	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

Dataflex Viewgo pro HD, Clamp/Grommet, 11 kg, 75 x 75 mm, 100 x 100 mm, Height adjustment, White

11 In Stock

11

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	11	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

hypertec

Product manual (Download)

Datasheets (Download)

Ecosheet (Download)

Add to compare

Product Properties

Manufacturer
Dataflex

Warranty
15 Years

SKU
ATP7553

EAN
805410488406

Design

Easy to install
Yes

Housing material
Aluminium

Orientation
Landscape/Portrait

Product colour
White

Ergonomics

Adjustable depth
Yes

Angle of rotation
90°

Height adjustment
Yes

Height adjustment type
Manual

Rotating
Yes

Swivel angle range
-90 - 90°

Swivelling
Yes

Tilt adjustment
Yes

Tilt angle range
-15 - 90°

Mounting

Desk thickness (max)
4 cm

Desk thickness (min)
1.4 cm

Grommet mount desk thickness (max)
6 cm

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
11 kg

Maximum weight capacity (per display)
5.5 kg

Minimum VESA mount
75 x 75 mm

Mounting

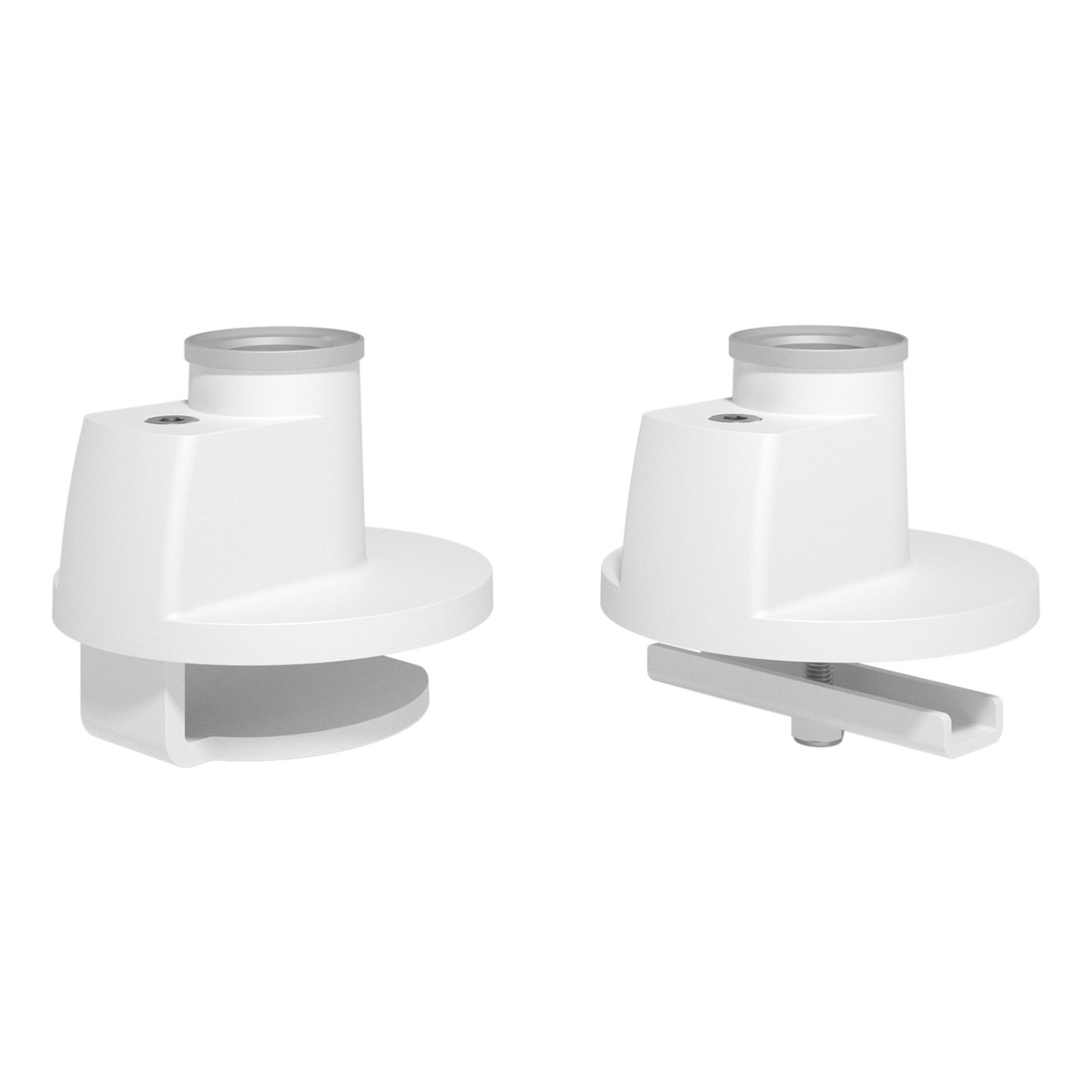

Clamp/Grommet

Mounting type
Desk

Number of displays supported
2

Panel mounting interface
75 x 75,100 x 100 mm

Packaging content

Clamp included
Yes

Manual
Yes

Packaging data

Package weight
7.1 kg

Quantity per pack
1 pc(s)

Description

Dataflex Viewgo pro HD. Mounting: Clamp/Grommet, Maximum weight capacity: 11 kg, Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -15 - 90°. Product colour: White

Maximum weight capacity: 11 kg
Number of displays supported: 2
Clamp/Grommet Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Manual Height adjustment Tilt adjustment
Easy to install
Aluminium White
