Black Box LGC215A-R2. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 10GBase-TX, 1000Base-T, Converter output interface: 1000Base-X. Maximum transfer distance: 120000 m, Fiber mode structure: Multi-mode, Single-mode, Fiber cable diameters supported (core/cladding): 50/125,62.5/125,9/125 µm. LED indicators: Power, Link, Activity, Speed, PoE, Product colour: Black. Connectivity technology: Wired. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Output voltage: 48 V
- Wired
- 1000 Mbit/s 120000 m
- 10BASE-T, 100BASE-TX, 1000BASE-T
- 1000BASE-X
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Multi-mode, Single-mode Fiber ports quantity: 1 50/125,62.5/125,9/125 µm
- Black
- Compliant to EN62368
- Converts 10/100/1000BASE-T to 1000BASE-X 802.3af/at Ethernet

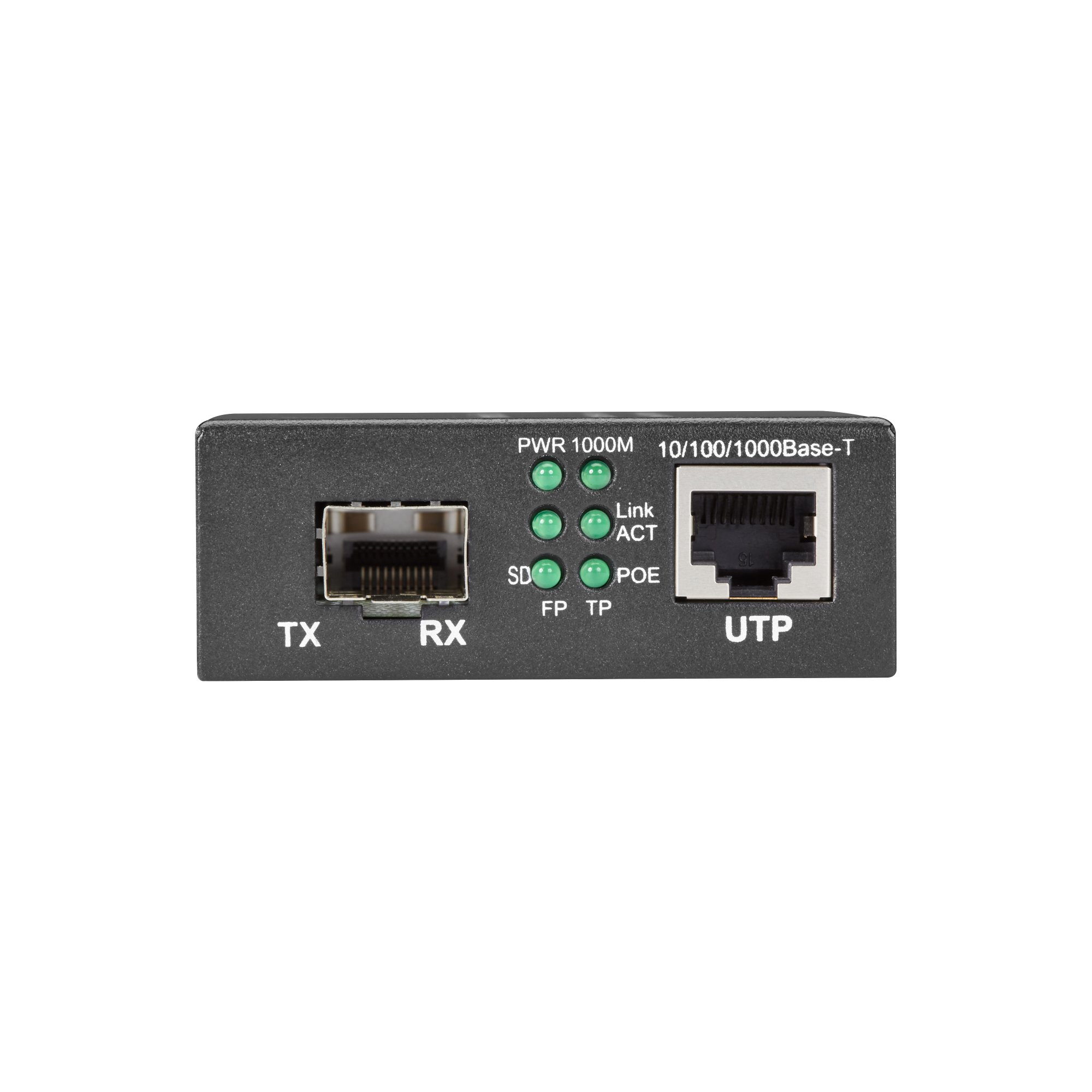

- One RJ45 twisted-pair jack, one fiber-optic connector and four LED indicators
- Link fault pass-through functionality
- PoE function
- Link Loss Carry Forward and Link Loss Return functionality
- Standalone media converter (not to be used with chassis)
|
