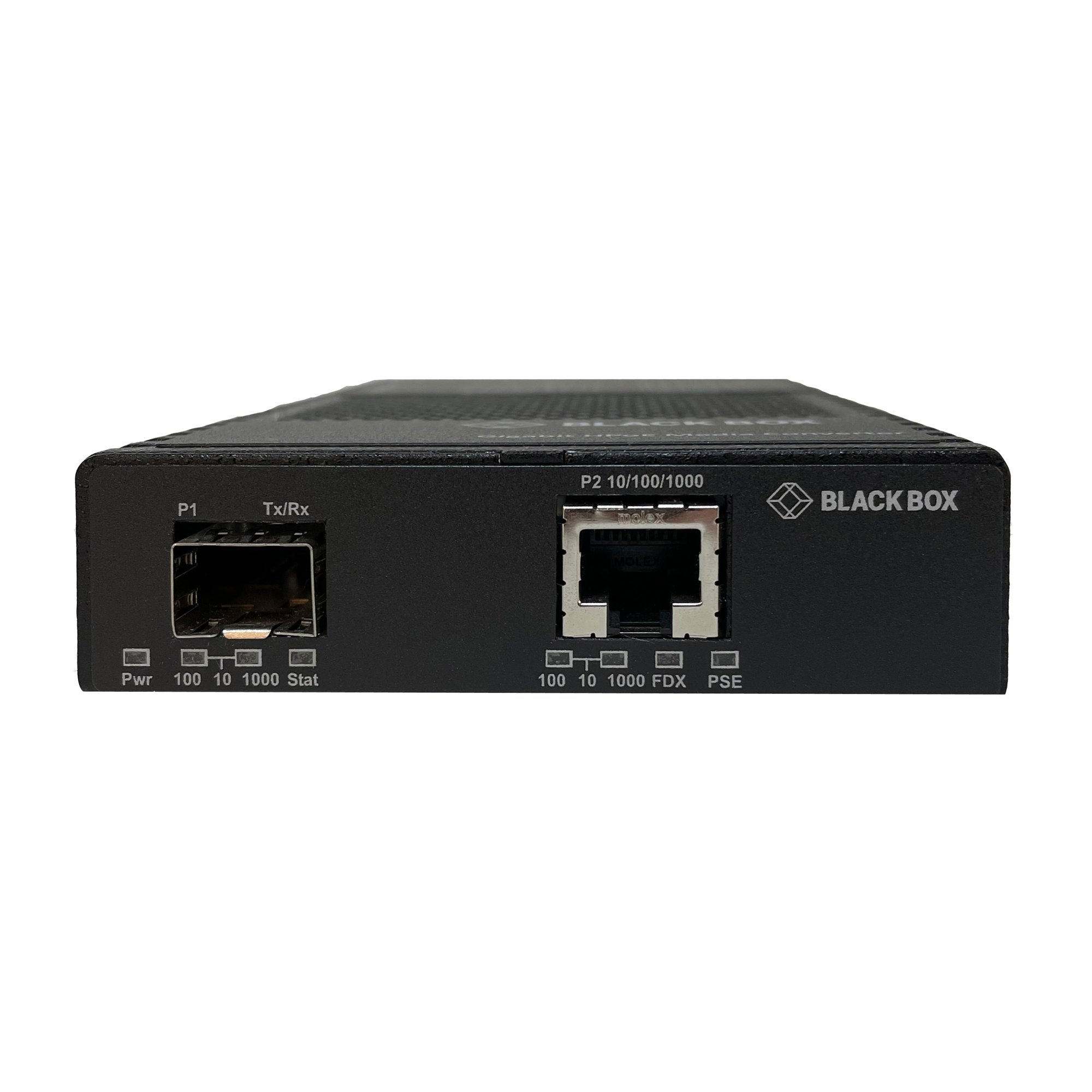

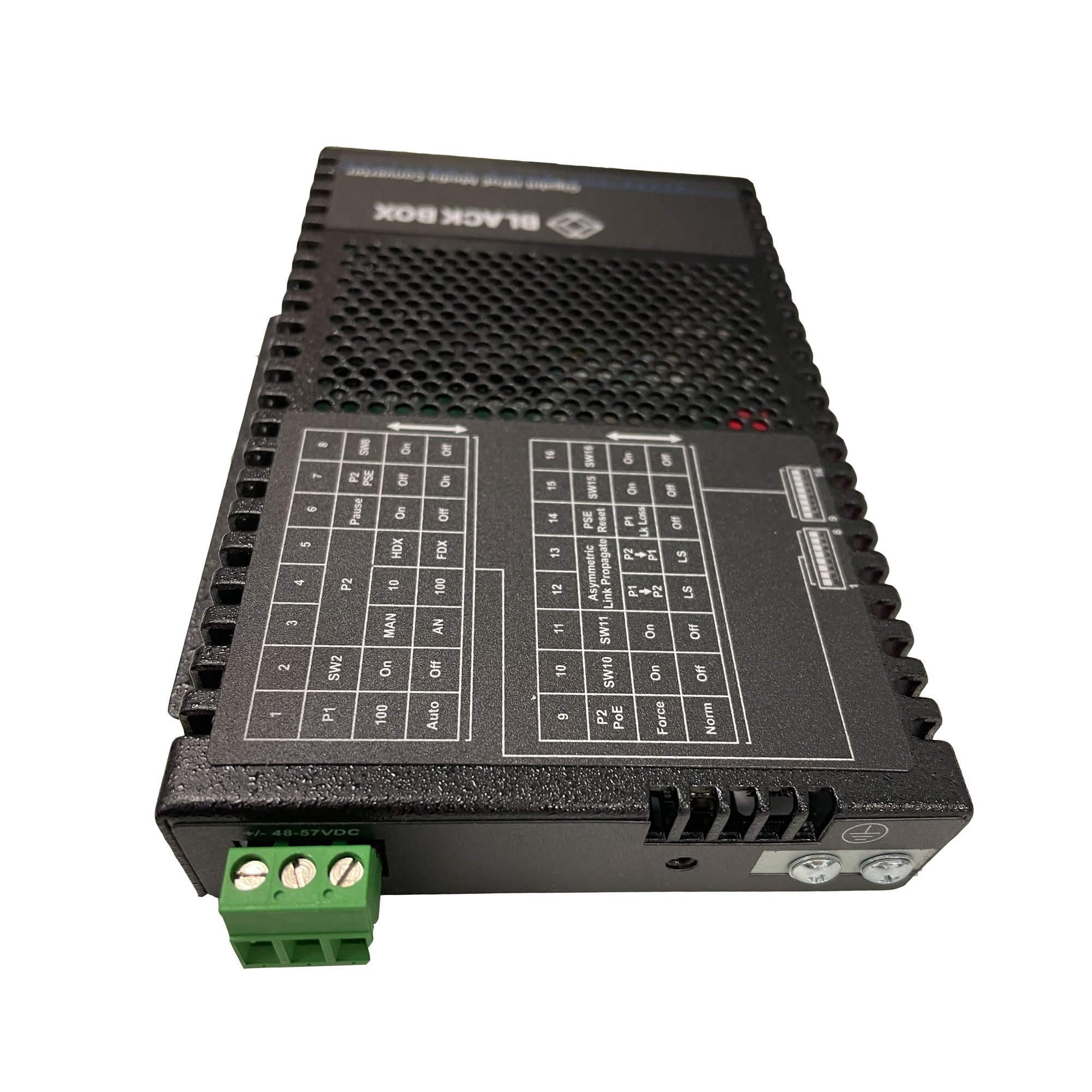

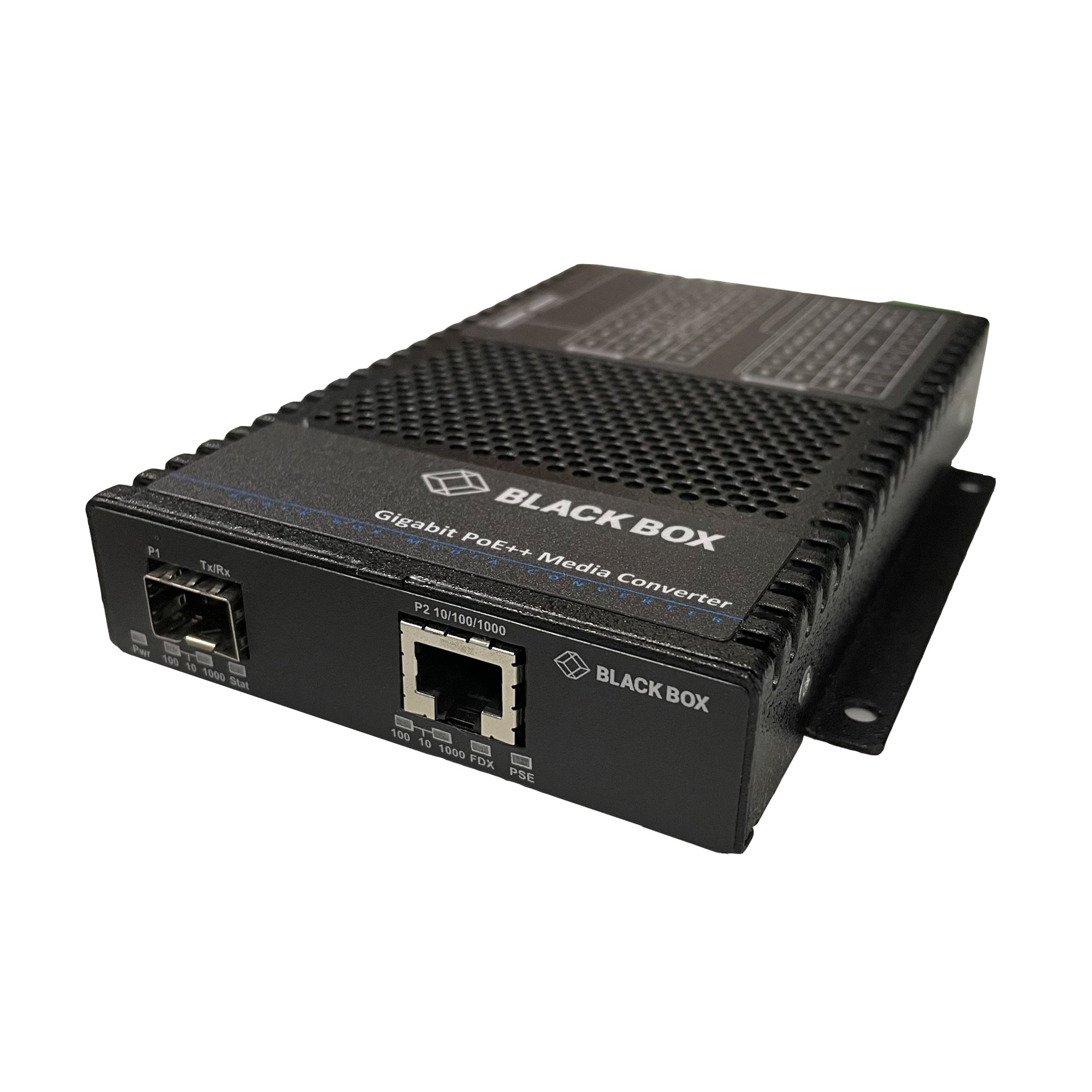

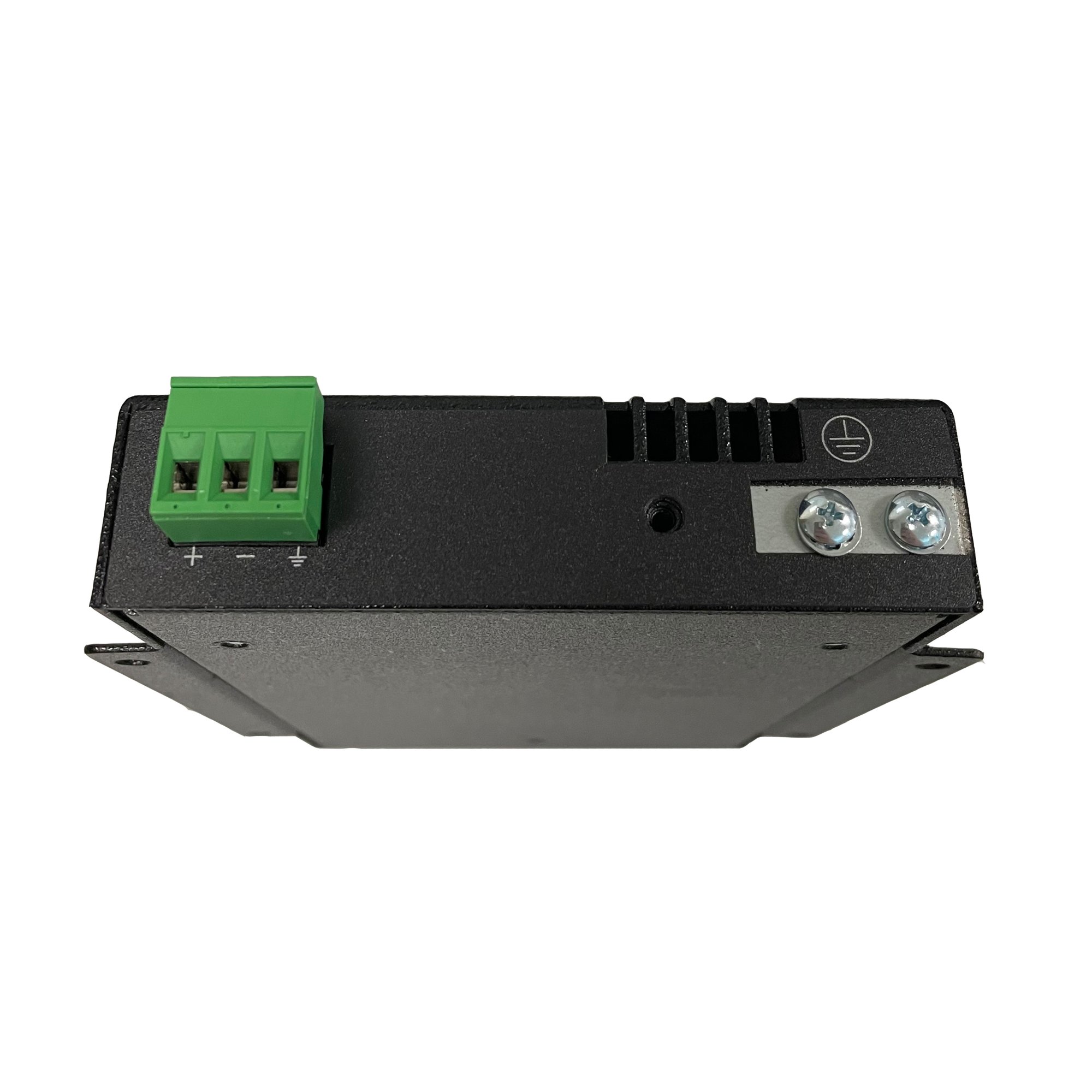

Black Box LGC5700A network media converter 1000 Mbit/s Single-mode, Multi-mode
Roll over image to zoom inClick to Open expanded view
Black Box LGC5700A network media converter 1000 Mbit/s Single-mode, Multi-mode
Black Box LGC5700A network media converter 1000 Mbit/s Single-mode, Multi-mode
Black Box LGC5700A network media converter 1000 Mbit/s Single-mode, Multi-mode
Black Box LGC5700A network media converter 1000 Mbit/s Single-mode, Multi-mode

Black Box LGC5700A network media converter 1000 Mbit/s Single-mode, Multi-mode

SKU: LGC5700A
 ETA 7 days
Black Box LGC5700A, 1000 Mbit/s, 10Base-T, 100Base-TX, 1000Base-T, 100Base-X, 1000Base-X, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Gigabit Ethernet, 10,100,1000 Mbit/s
 ETA 7 days
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • LGC5700A
  • EAN
  • 0822088149897
  • Bullet points
  • Certificates
  • Waste Electrical and Electronic Equipment (WEEE) compliance
  • Yes
  • Features
  • Network
  • Flow control support
  • Yes
  • Jumbo frames support
  • Yes
  • Link Fault Pass-through (LFP)
  • Yes
  • Operational conditions
  • Packaging content
  • AC adapter included
  • No
  • Performance
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • Fiber optic connector
  • SFP
  • Fiber ports quantity
  • 1
  • Power over Ethernet (PoE) ports quantity
  • 1
  • Power
  • External power adapter
  • Yes
  • Power over Ethernet (PoE)
  • Yes
  • Total Power over Ethernet (PoE) budget
  • 60 W
  • Technical details
  • Suitable for rail mounting
  • Yes
  • Wall/direct mounting
  • Yes
  • Weight & dimensions

Description

Black Box LGC5700A. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 100Base-X, 1000Base-X. Fiber mode structure: Single-mode, Multi-mode, Mean time between failures (MTBF): 474000 h. LED indicators: Activity, Link, Power, PoE, Speed, Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 44 - 57 V, Input current: 1.16 A, Total Power over Ethernet (PoE) budget: 60 W
  • Wired
  • 1000 Mbit/s
  • 100BASE-X, 1000BASE-X
  • Ethernet LAN (RJ-45) ports: 1
  • Single-mode, Multi-mode Fiber ports quantity: 1 SFP
  • DIN rail mounting
  • Black
  • 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber media converter
  • IEEE 802.3bt compliant, 60-W PoE++
  • Backwards compatible with 802.3af and 802.3at
  • Supports 100BASE-X or 1000BASE-X SFP transceivers
  • Supports frame sizes up to 10,240 bytes
  • Configurable PoE power reset
  • Industrial (-40 to 75ºC) operating temperature
