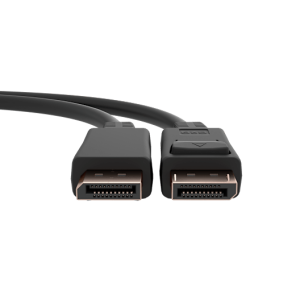

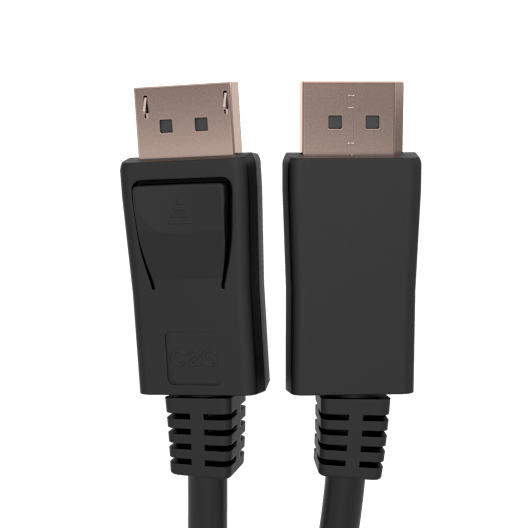

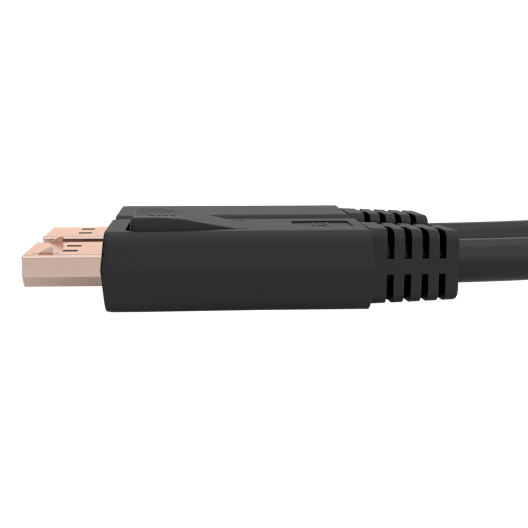

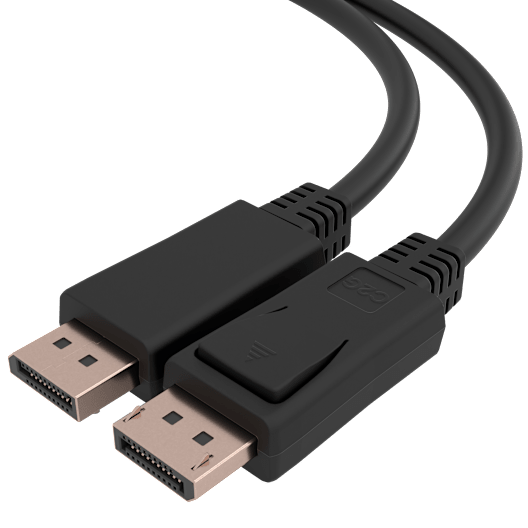

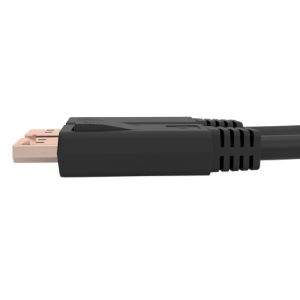

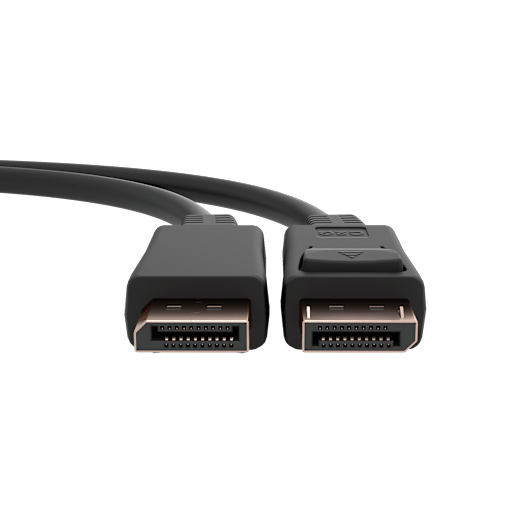

C2G C2G50112 DisplayPort cable 0.91 m Black

Roll over image to zoom inClick to Open expanded view

C2G C2G50112 DisplayPort cable 0.91 m Black

Name: C2G C2G50112 DisplayPort cable 0.91 m Black
Brand: C2G
SKU: C2G50112

SKU: C2G50112

C2G C2G50112, 0.91 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
C2G

Warranty
Lifetime

SKU
C2G50112

EAN
757120501121

Bullet points

Point
Backed by a Lifetime Warranty for peace of mind

Cable jacket rating VW-1 and compliant with UL standards, making it suitable for basic applications

Fully compliant with the DisplayPort 1.4 specification

Supports data bandwidth up to 32.4Gbps. This cable transmits uncompressed audio and deep color depth

Supports video resolutions up to 8K@30Hz without DSC

Supports video resolutions up to 8K@60Hz UHD (7680 x 4320) with DSC only

TAA compliant

Certificates

Compliance certificates
CE, RoHS, Trade Agreements Act (TAA), UKCA, UL

Features

AWG wire size
28

Cable length
0.91 m

Connector 1
DisplayPort

Connector 1 form factor
Straight

Connector 1 gender
Male

Connector 2
DisplayPort

Connector 2 form factor
Straight

Connector 2 gender
Male

Connector housing material
Plastic

Data transfer rate
32.4 Gbit/s

Display Stream Compression (DSC)
Yes

DisplayPort version
1.4

HBR3 support
Yes

Jacket material
Polyvinyl chloride (PVC)

Maximum refresh rate
60 Hz

Maximum resolution
7680 x 4320 pixels

Product colour
Black

Supported graphics resolutions
7680 x 4320

Operational conditions

Operating temperature (T-T)
-20 - 80 °C

Storage temperature (T-T)
-10 - 55 °C

Packaging content

Quantity per pack
1 pc(s)

Weight & dimensions

Bend radius (min)
4.64 cm

Cable diameter
5.8 mm

Weight
130 g

Description

C2G C2G50112. Cable length: 0.91 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: CE, RoHS, Trade Agreements Act (TAA), UKCA, UL. Cable diameter: 5.8 mm, Weight: 130 g, Bend radius (min): 4.64 cm. Quantity per pack: 1 pc(s)

0.91 m
DisplayPort Straight Male
DisplayPort Straight Male
DisplayPort version: 1.4
7680 x 4320 pixels 60 Hz 32.4 Gbit/s
Display Stream Compression (DSC)
Black
TAA Compliant
Fully compliant with the DisplayPort 1.4 specification
Supports video resolutions up to 8K@60Hz UHD (7680 x 4320) with DSC only
Supports video resolutions up to 8K@30Hz without DSC
Supports data bandwidth up to 32.4Gbps. This cable transmits uncompressed audio and deep color depth
Cable jacket rating VW-1 and compliant with UL standards, making it suitable for basic applications
Backed by a Lifetime Warranty for peace of mind
