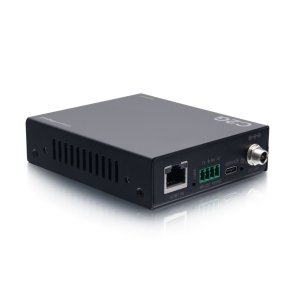

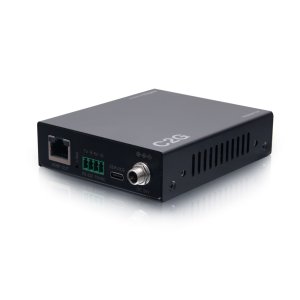

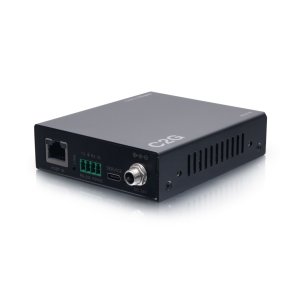

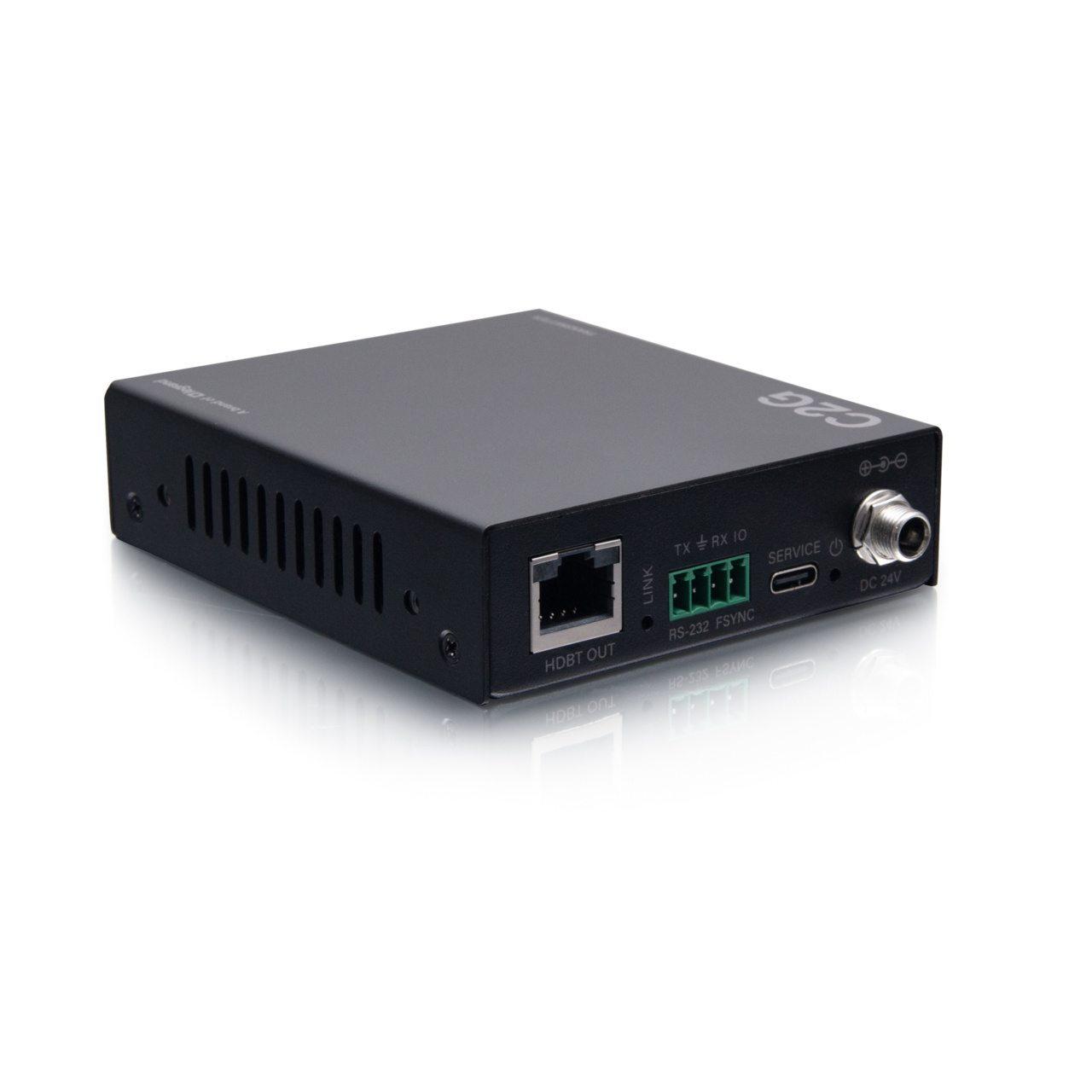

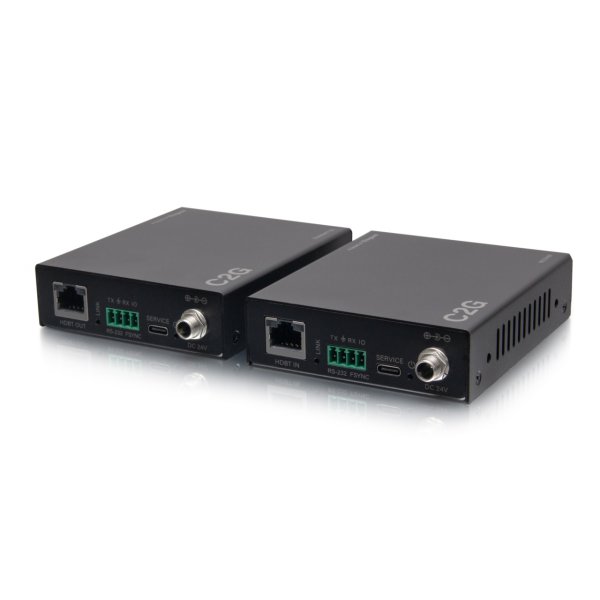

C2G Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)

Roll over image to zoom inClick to Open expanded view

C2G Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)

Name: C2G Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
Brand: C2G
SKU: C2G54265

SKU: C2G54265

C2G Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps), AV transmitter & receiver, 100 m, Wired, Grey

hypertec

Datasheets (Download)

Product manual (Download)

Superbooster Brochure (Download)

Superbooster Selection Guide (Download)

Superbooster Test Results (Download)

Add to compare

Product Properties

Manufacturer
C2G

Warranty
Lifetime

SKU
C2G54265

EAN
7.57121E+11

Bullet points

Features

Cable types supported
Cat6a

LED indicators
Yes

Material
Metal

Maximum transfer distance
100 m

Product colour
Grey

Type
AV transmitter & receiver

Operational conditions

Operating relative humidity (H-H)
20 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 60 °C

Ports & interfaces

Connectivity technology
Wired

DC-in jack
Yes

Ethernet LAN
Yes

RJ-45 input ports
1

RJ-45 output ports
1

RS-232 input ports
1

RS-232 output ports
1

Serial interface type
USB C

Serial ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB connector type
USB Type-A, USB Type-B

USB ports quantity
5

USB version
3.2 Gen 1 (3.1 Gen 1)

Power

Power source type
DC

Technical details

Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Warranty period
5 year(s)

Weight & dimensions

Receiver dimensions (WxDxH)
85 x 100 x 25.5 mm

Transmitter dimensions (WxDxH)
85 x 100 x 25.5 mm

Description

C2G Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps). Type: AV transmitter & receiver, Cable types supported: Cat6a, Maximum transfer distance: 100 m. Connectivity technology: Wired, USB version: 3.2 Gen 1 (3.1 Gen 1), USB connector type: USB Type-A, USB Type-B. Power source type: DC. Receiver dimensions (WxDxH): 85 x 100 x 25.5 mm, Transmitter dimensions (WxDxH): 85 x 100 x 25.5 mm

AV transmitter & receiver Grey
Maximum transfer distance: 100 m
Wired Ethernet LAN DC-in jack
Power source type: DC
Extension of USB 3.2 data up to 328 ft (100m)over Cat6a cable
USB 3.2 connectivity with data transfer rateup to 5Gbps
Backwards compatible with USB 2.0 and 1.1
