Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD
Roll over image to zoom inClick to Open expanded view
Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD
Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD
Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD
Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD
Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD
Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD

Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD

SKU: DONN34G
 ETA 7 days
Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, IEEE 802.3ab
 ETA 7 days
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • DONN34G
  • EAN
  • 4015867243992
  • Bullet points
  • Logistics data
  • Master (outer) case gross weight
  • 8.9 kg
  • Network
  • Ethernet LAN (RJ-45) ports
  • 1
  • Operational conditions
  • Other features
  • Packaging content
  • Packaging data
  • Performance
  • Card reader integrated
  • No
  • Ports & interfaces
  • Combo headphone/mic port
  • Yes
  • DisplayPort version
  • 1.4
  • DisplayPorts quantity
  • 1
  • Headphone outputs
  • 1
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 4
  • USB Power Delivery (USB PD)
  • Yes
  • USB Power Delivery revision
  • 3.0
  • Power
  • Software
  • Mac operating systems supported
  • Yes
  • Windows operating systems supported
  • Yes
  • Technical details
  • Weight & dimensions

Description

Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3ab. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 8K Ultra HD. USB cable length: 0.2 m. Other operating systems supported: ChromeOS
  • Wired
  • Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
  • USB Power Delivery (USB PD)
  • Ethernet LAN 10,100,1000 Mbit/s Wake-on-LAN ready
  • Plug and Play
  • Video output: HDMI and DisplayPort support resolutions up to 4K 60Hz and 8K 30Hz
  • Display mode: Supports dual extended displays (MST on Windows)
  • Ethernet: Gigabit Ethernet port up to 1000 Mbps

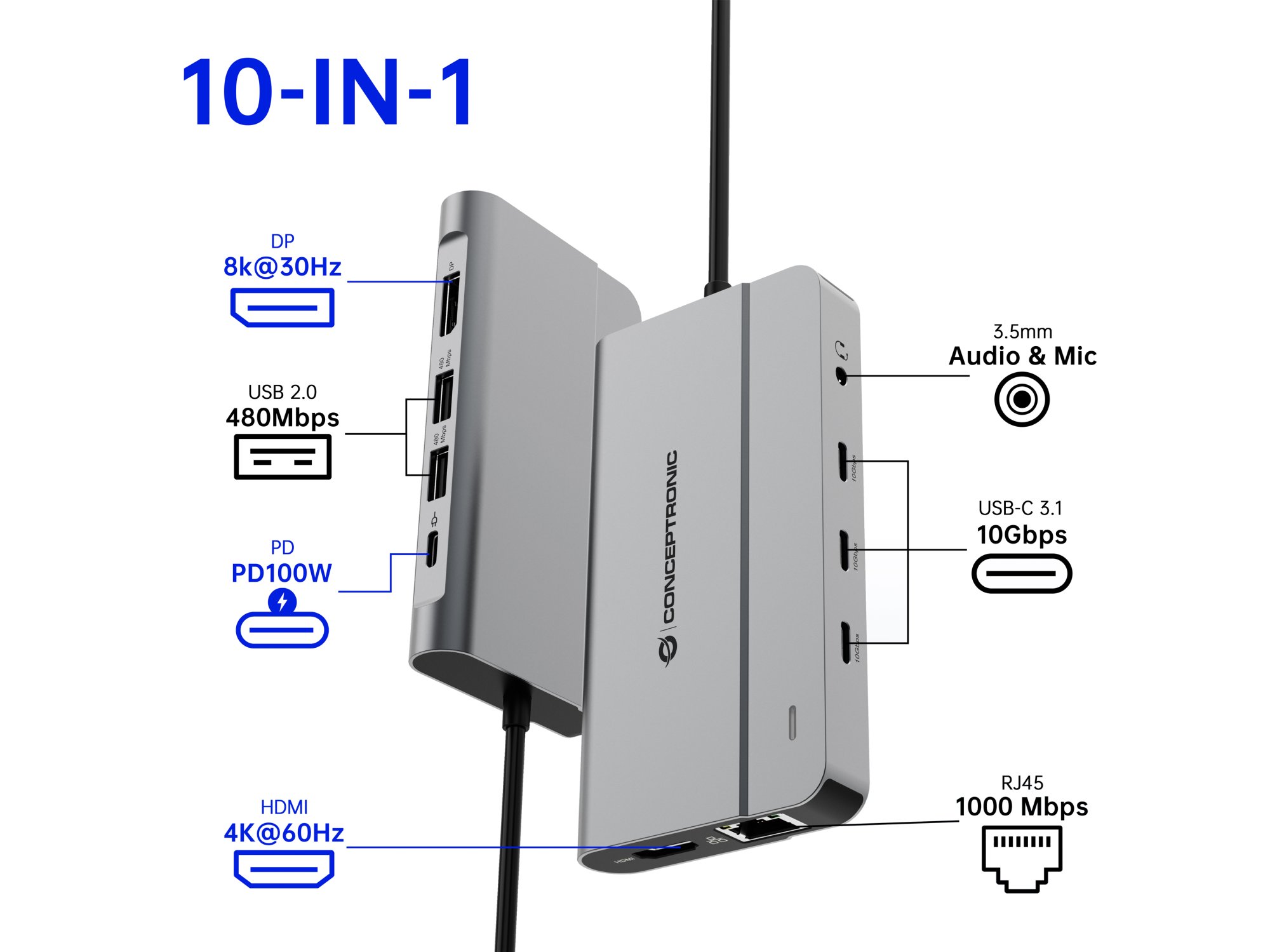

  • USB ports: 3× USB-C (10Gbps), 2× USB-A (480Mbps)
  • Power delivery: USB-C PD pass-through up to 100W
  • Audio: 3.5 mm combo jack for headphones and microphone
  • Compatibility: Windows, macOS, ChromeOS
  • Installation: Simple Plug and Play
  • Build: Aluminum casing for heat dissipation
