Dataflex Viewgo computer holder - desk 183

Roll over image to zoom inClick to Open expanded view

Dataflex Viewgo computer holder - desk 183

Name: Dataflex Viewgo computer holder - desk 183
Brand: Dataflex
SKU: 32.183

SKU: 32.183

Log In to View Pricing

17 In Stock

17

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	17	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

Dataflex Viewgo computer holder - desk 183, Desk-mounted CPU holder, Desktop, 35 kg, Black, Steel, Horizontal/Vertical

17 In Stock

17

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	17	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Dataflex

Warranty
1 Year

SKU
32.183

EAN
805410321833

Bullet points

Features

Adjustable width
Yes

Height adjustment
Yes

Material
Steel

Maximum weight capacity
35 kg

Placement supported
Horizontal/Vertical

Product colour
Black

Recommended chassis type
Desktop

Type
Desk-mounted CPU holder

Logistics data

Harmonized System (HS) code
84733080

Packaging content

Quantity
1

System requirements

Computer height supported (horizontal) (max)
31 cm

Computer height supported (horizontal) (min)
15.5 cm

Computer height supported (vertical) (max)
46 cm

Computer height supported (vertical) (min)
34 cm

Computer width supported (horizontal) (max)
60 cm

Computer width supported (horizontal) (min)
35 cm

Computer width supported (vertical) (max)
25 cm

Computer width supported (vertical) (min)
15 cm

Weight & dimensions

Depth
53 mm

Package dimensions (WxDxH)
410 x 195 x 70 mm

Package weight
2.25 kg

Description

Dataflex Viewgo computer holder - desk 183. Type: Desk-mounted CPU holder, Recommended chassis type: Desktop, Maximum weight capacity: 35 kg. Computer width supported (horizontal) (min): 35 cm, Computer width supported (horizontal) (max): 60 cm, Computer height supported (horizontal) (min): 15.5 cm. Depth: 53 mm, Package dimensions (WxDxH): 410 x 195 x 70 mm, Package weight: 2.25 kg

Desk-mounted CPU holder Desktop 35 kg
Placement supported: Horizontal/Vertical
Black
Material: Steel
Adjustable width Height adjustment

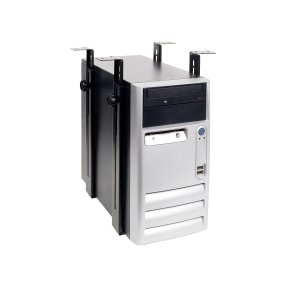

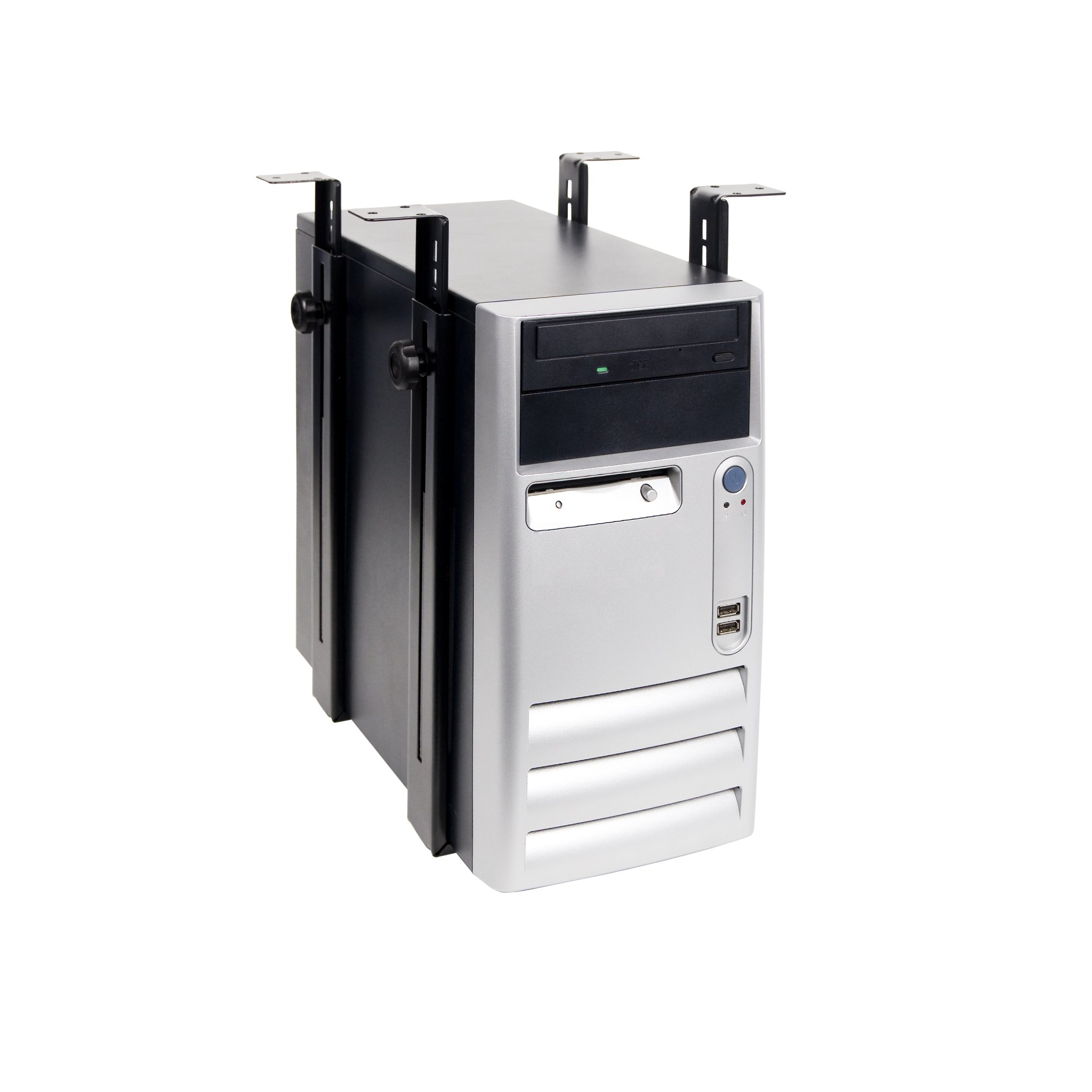

Mounts underneath desktop
Supports both horizontal and vertical mounting
Height and width adjustable

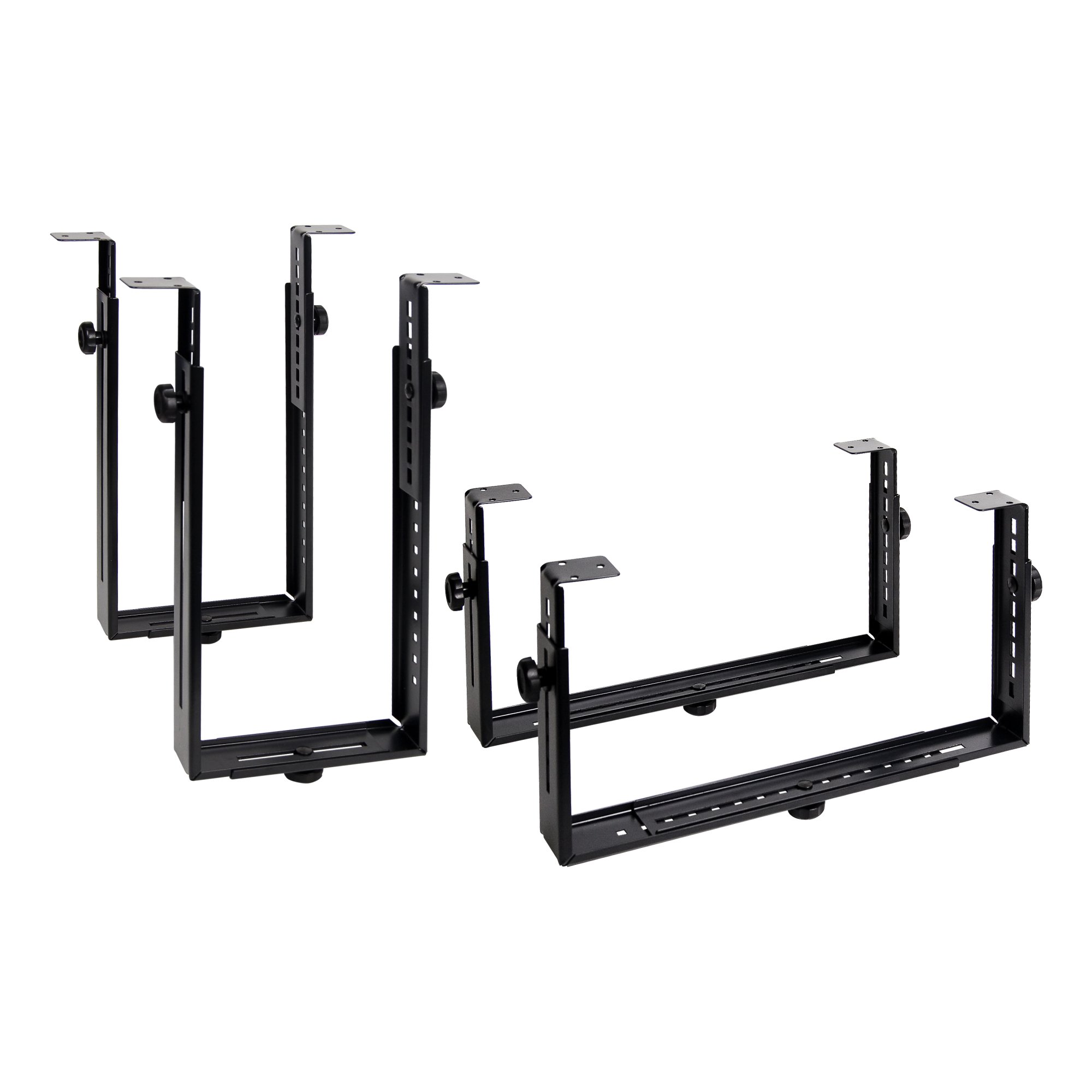

Consists of two brackets
Max. weight capacity of 35 kg (77,2 lb)
Made of steel
Max. dimensions CPU vertically between 150 - 250 mm (5,9" - 9,8") wide and 340 - 460 mm (13,4" - 18,1") high
Max. dimensions CPU horizontally between 350 - 600 mm (13,8" - 23,6") wide and 155 - 310 mm (6,1" - 12,2") high
