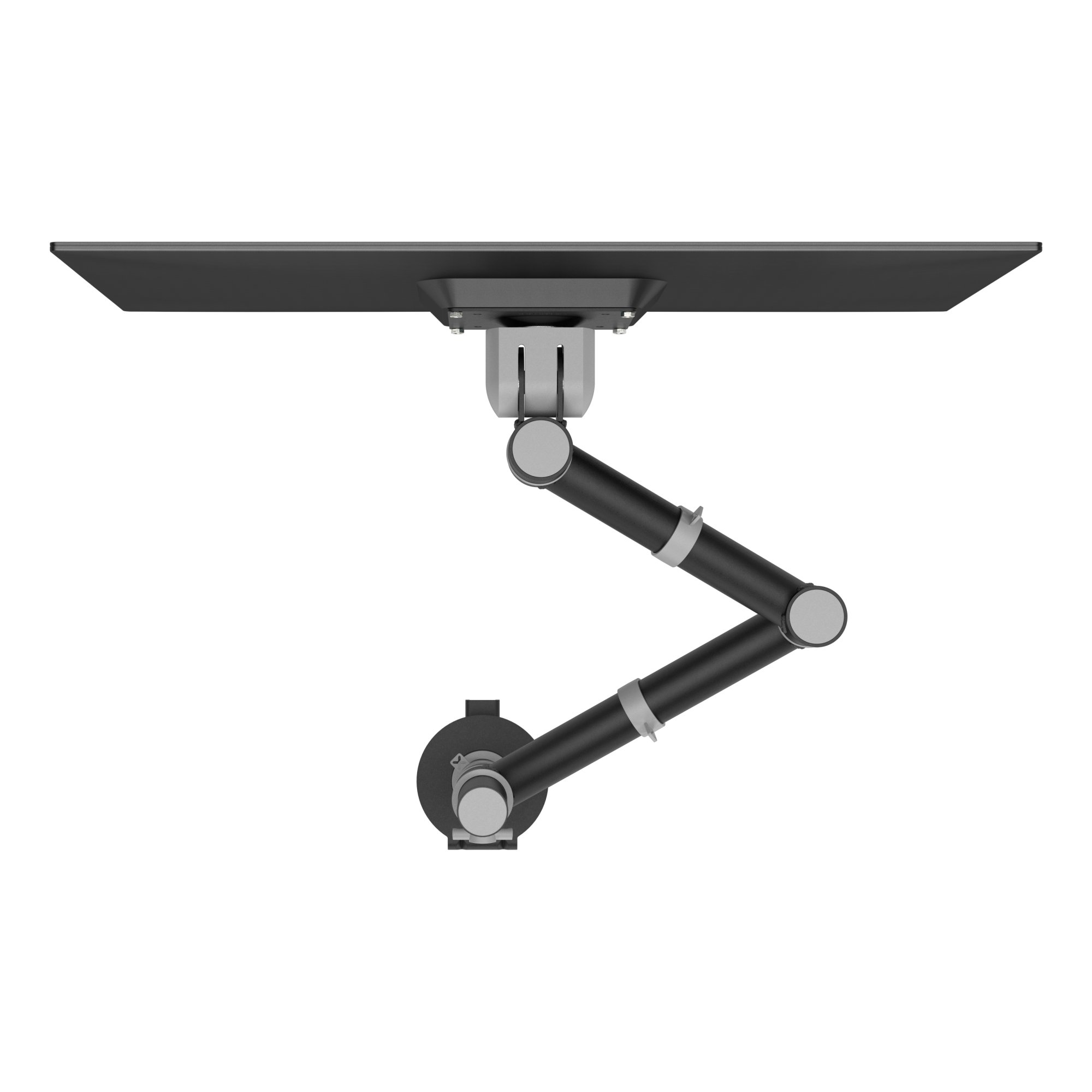

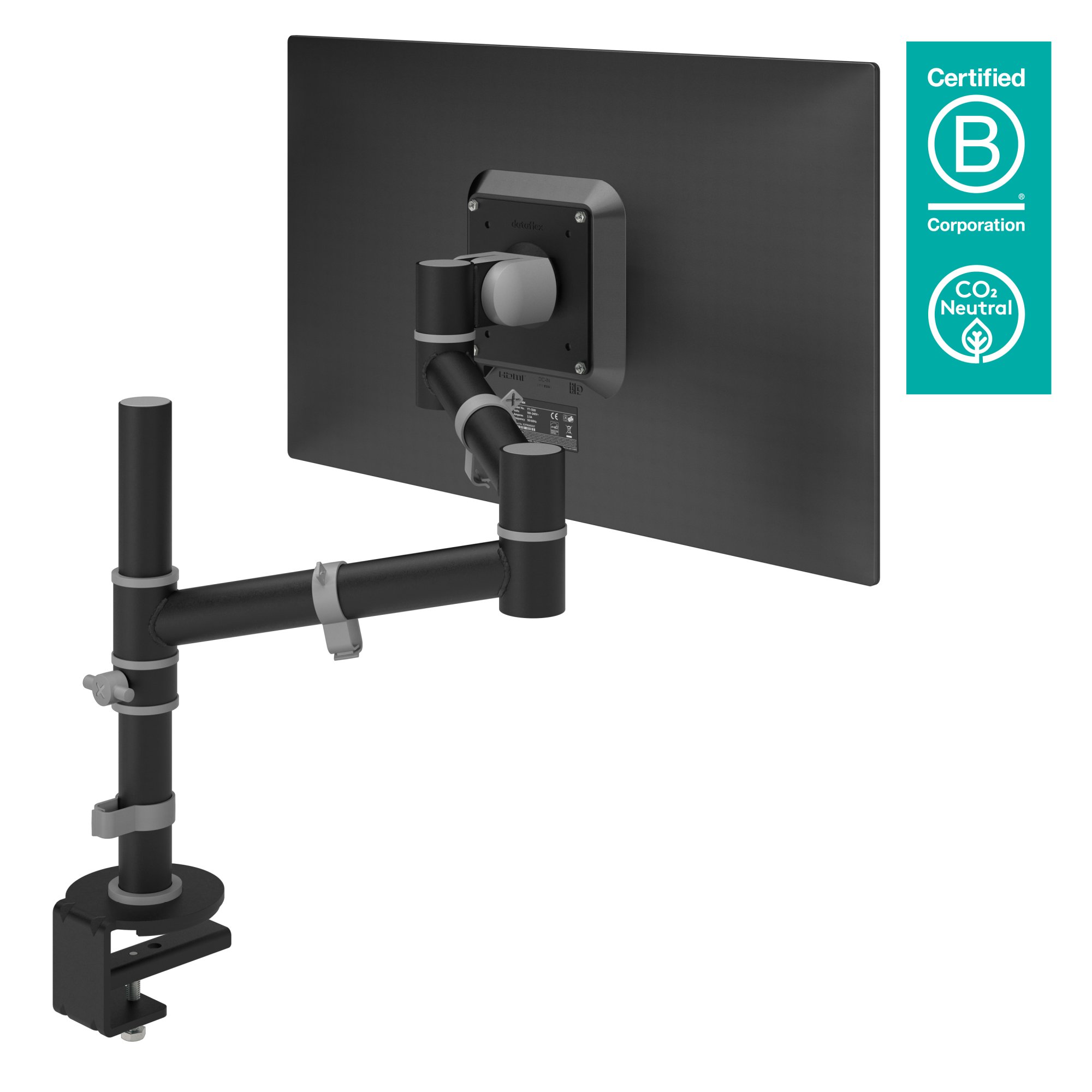

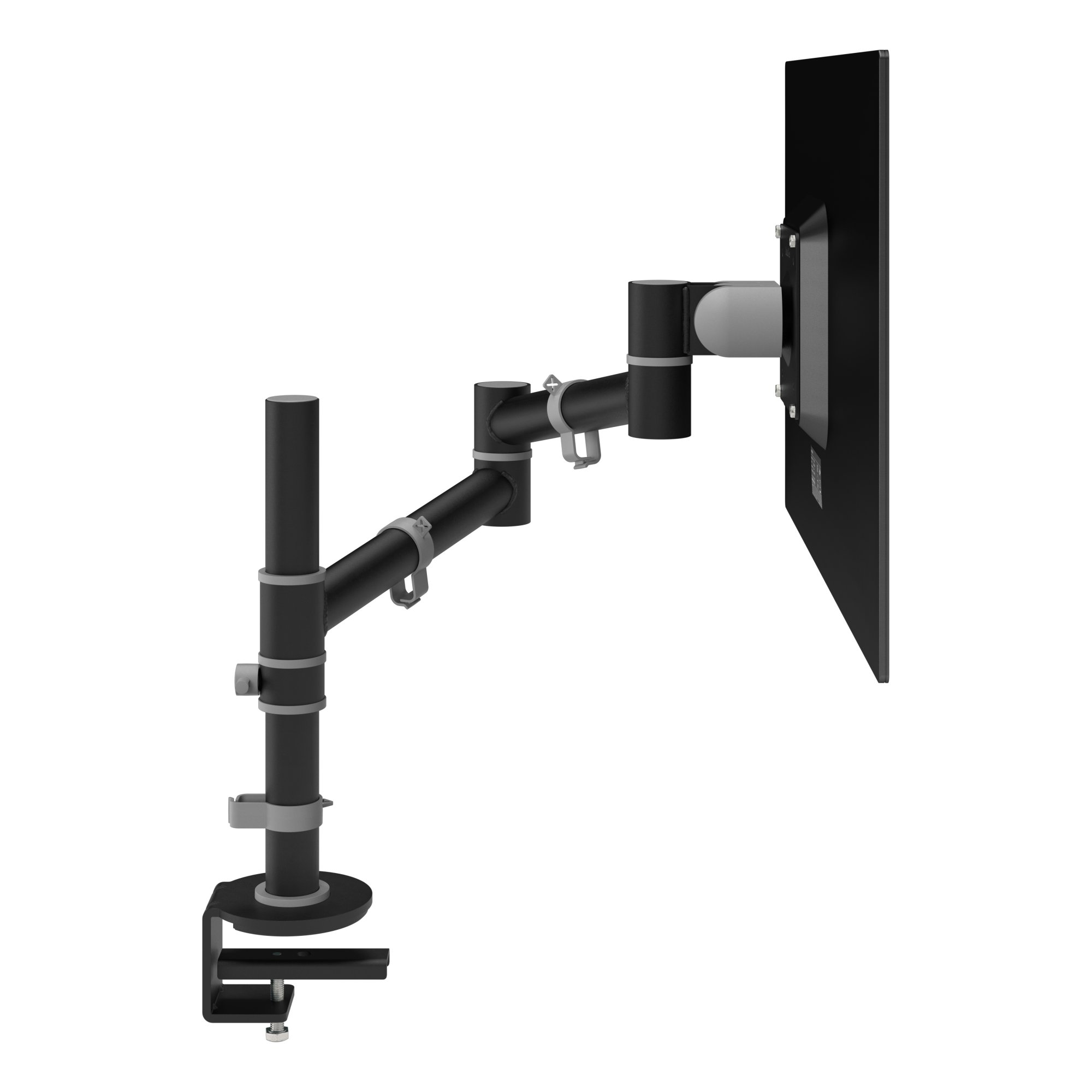

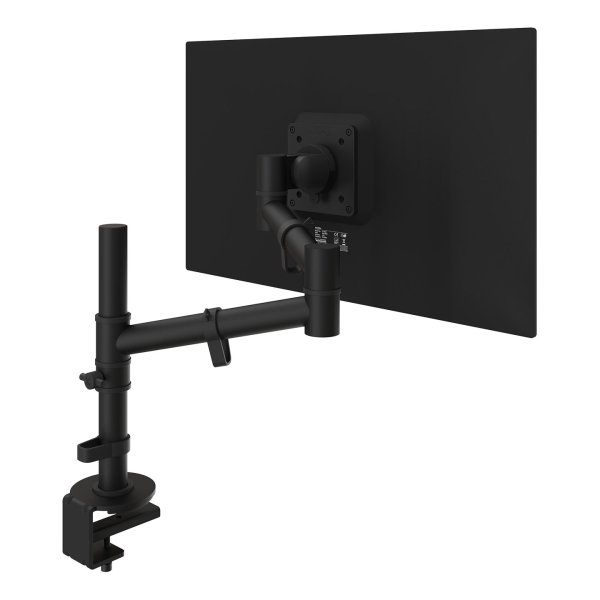

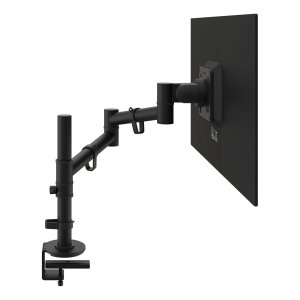

Dataflex Viewgo monitor arm - desk 123
Roll over image to zoom inClick to Open expanded view
Dataflex Viewgo monitor arm - desk 123
Dataflex Viewgo monitor arm - desk 123
Dataflex Viewgo monitor arm - desk 123
Dataflex Viewgo monitor arm - desk 123
Dataflex Viewgo monitor arm - desk 123

Dataflex Viewgo monitor arm - desk 123

SKU: 48.123
 ETA 10 days
Dataflex Viewgo monitor arm - desk 123, Clamp/Bolt-through, 8 kg, 0 mm (0"), 68.6 cm (27"), 100 x 100 mm, Black
 ETA 10 days
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • 48.123
  • EAN
  • 805410481230
  • Bullet points
  • Design
  • Ergonomics
  • Number of pivot points
  • 3
  • Logistics data
  • Mounting
  • Maximum weight capacity
  • 8 kg
  • Number of displays supported
  • 1
  • Packaging content
  • Packaging data
  • Technical details

Description

Dataflex Viewgo monitor arm - desk 123. Mounting: Clamp/Bolt-through, Maximum weight capacity: 8 kg, Minimum screen size: 0 mm (0"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -50 - 90°. Product colour: Black
  • Maximum weight capacity: 8 kg
  • Maximum screen size: 68.6 cm (27")
  • Number of displays supported: 1
  • Clamp/Bolt-through Mounting type: Desk
  • Maximum VESA mount: 100 x 100 mm
  • Height adjustment
  • Cable management Easy to install
  • Foam, Steel Black

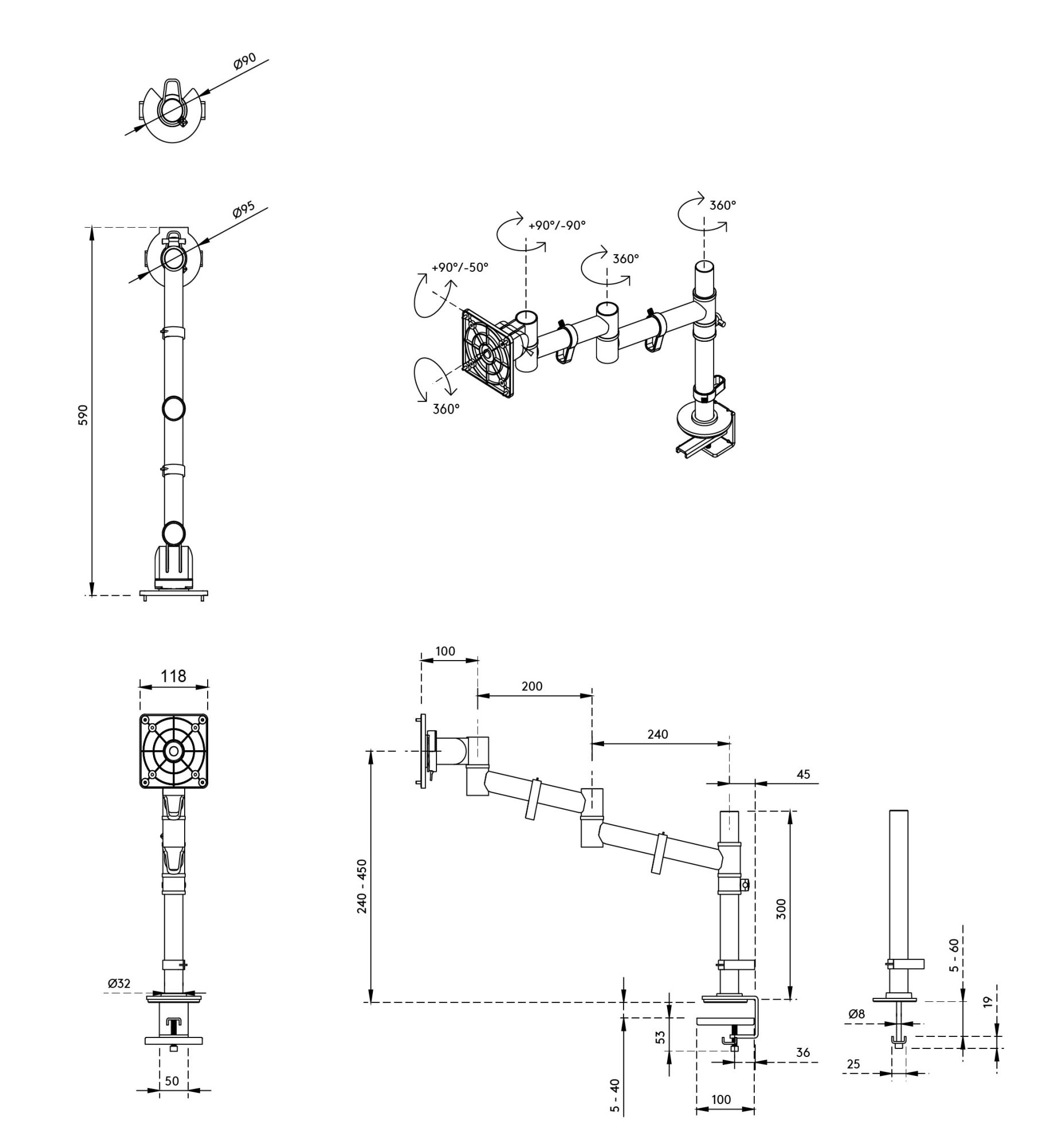

  • Static height adjustment range of 210 mm (8,3")
  • Independent depth adjustment

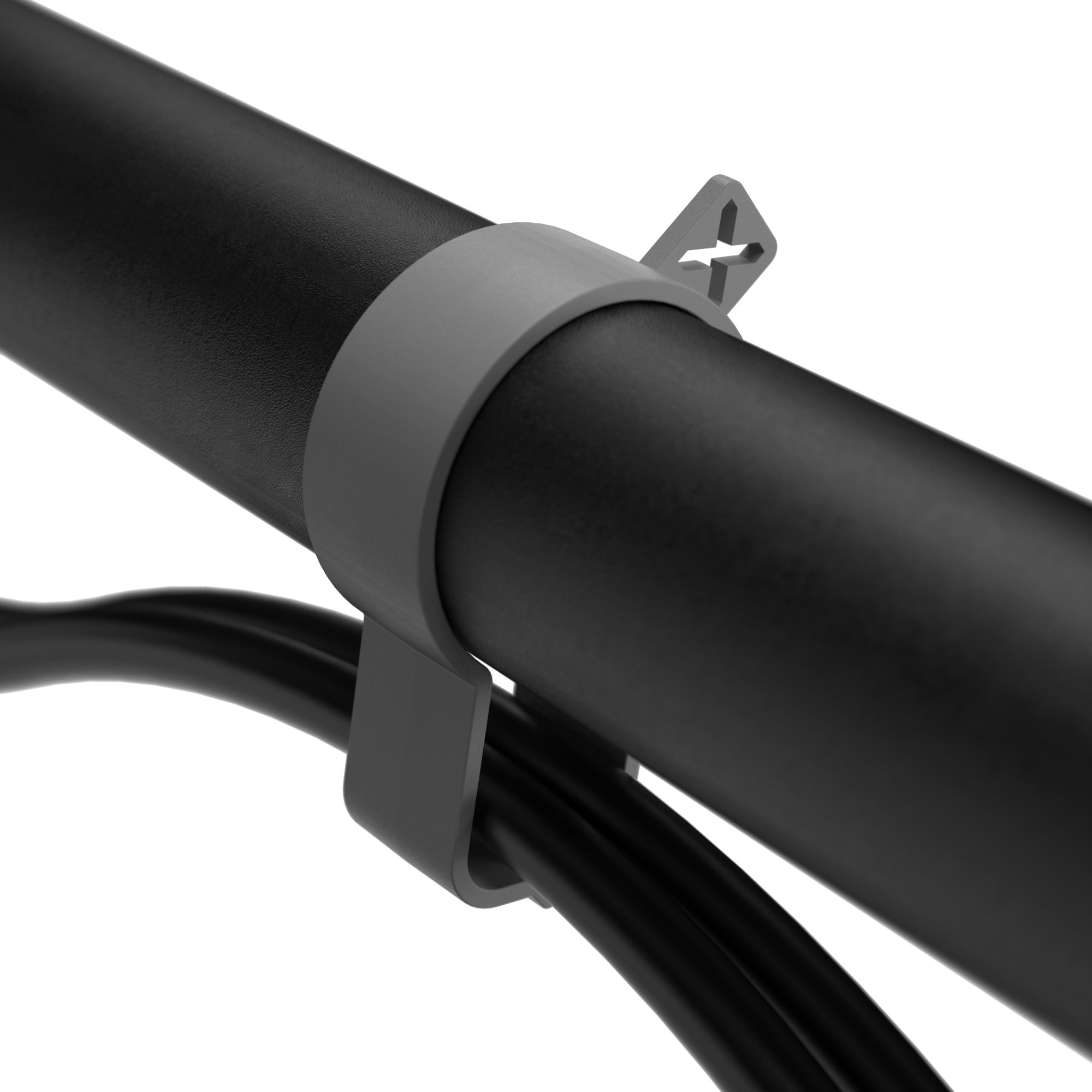

  • Fitted with cable clips to guide cables tidily
  • Main components made of steel

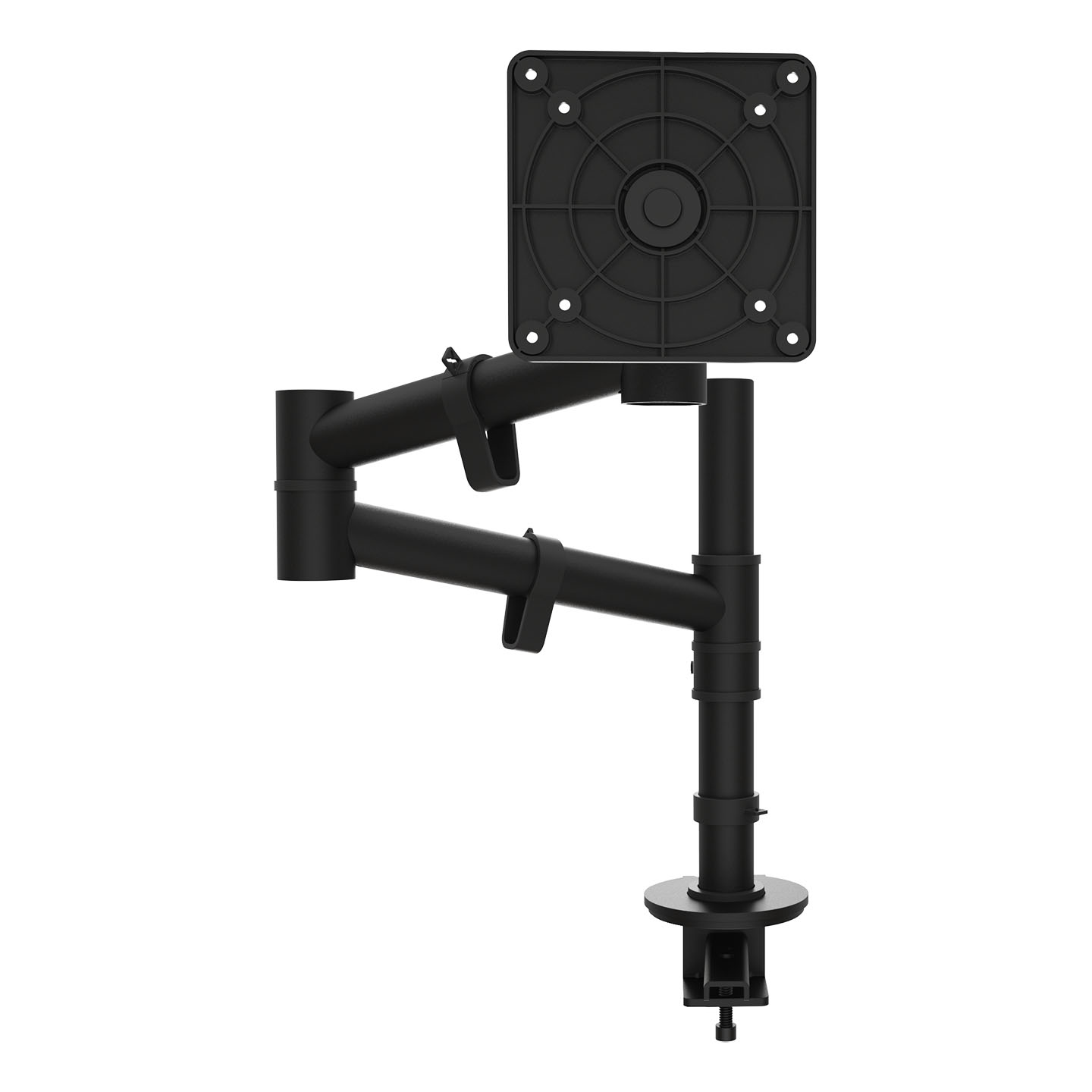

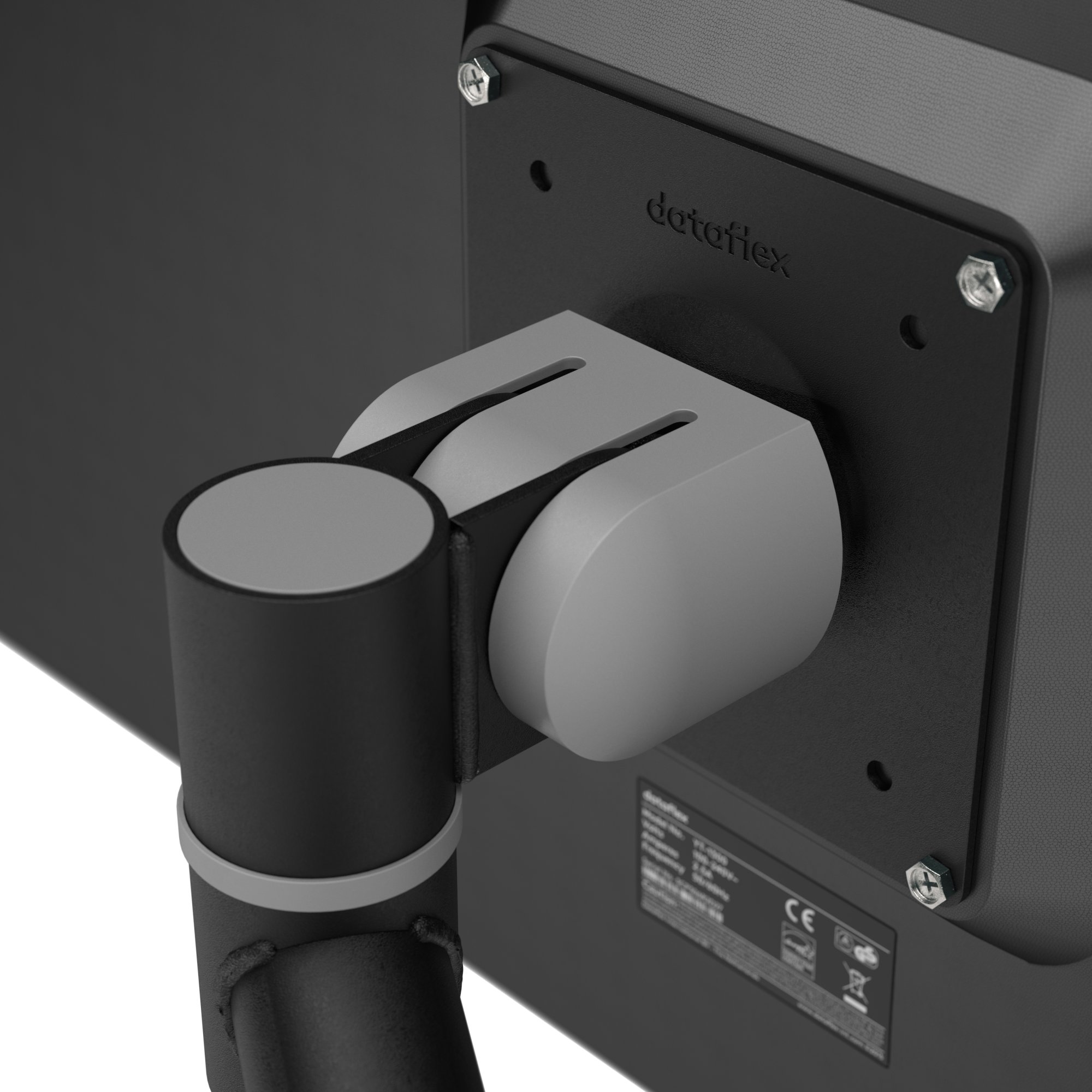

  • VESA MIS-D 75 x 75/100 x 100 mm compatible
  • Monitor: tilt +90°/-50°, swivel +90°/-90°, rotate 360°
  • Arm: swivel 360°
  • Weight capacity max. 8 kg (17,6 lb) per monitor
  • Comes with a desk clamp mount and bolt-through desk mount
  • Suitable for desktop thicknesses of 5 up to 40 mm (0,2" - 1,6") (clamp) or 60 mm (2,4") (bolt through)
  • Monitor size limit: height 900 mm (35,4")

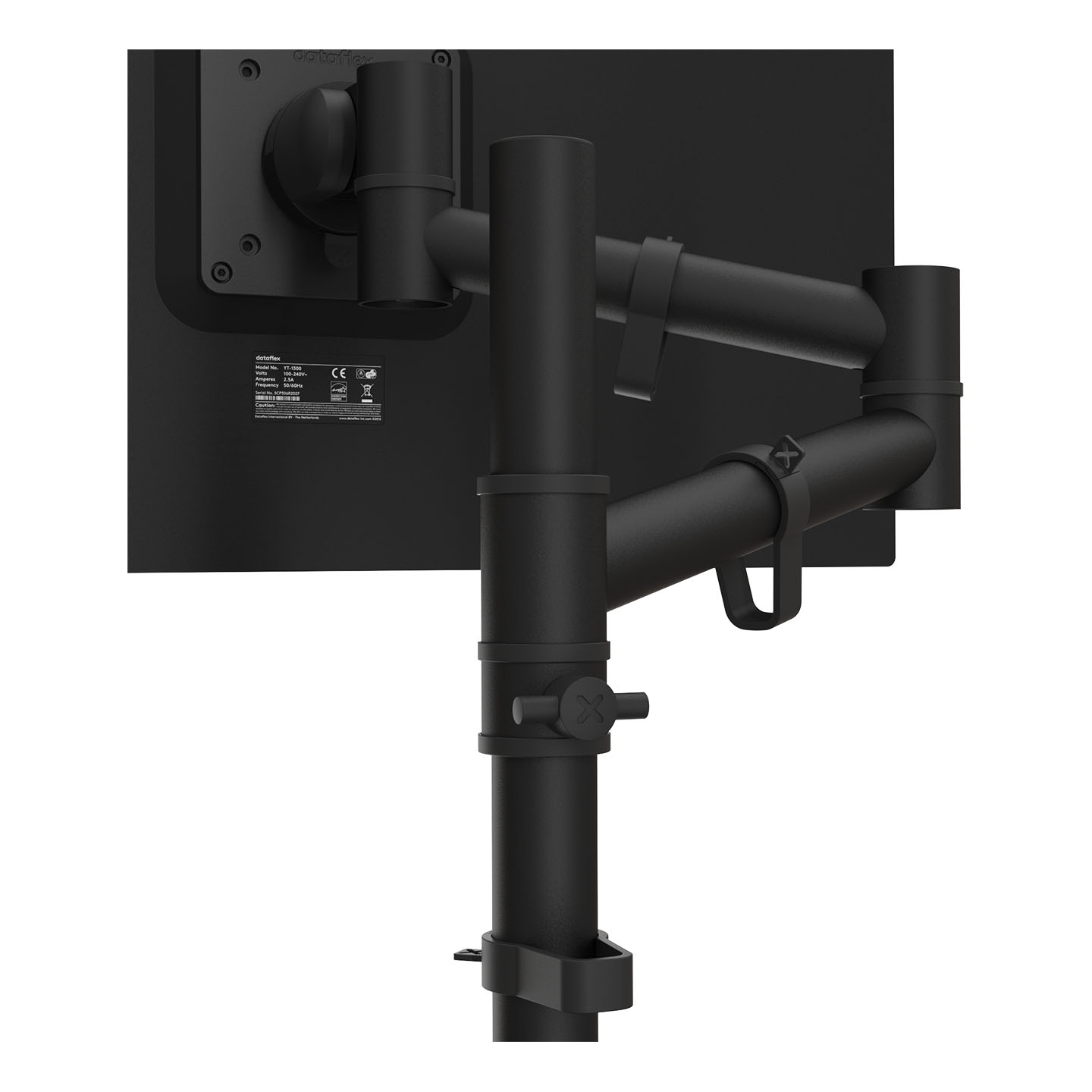

  • Simple height adjustment using a tightening knob
  • Installs firmly on any surface without a scratch thanks to protective non-slip foam layer
  • Hassle-free installation using just one supplied tool
