Equip 37"-70" Floor-to-Ceiling TV Bracket

Roll over image to zoom inClick to Open expanded view

Equip 37"-70" Floor-to-Ceiling TV Bracket

Name: Equip 37"-70" Floor-to-Ceiling TV Bracket
Brand: Equip
SKU: 650621

SKU: 650621

ETA 7 days

Equip 37"-70" Floor-to-Ceiling TV Bracket, 177.8 cm (70"), 200 x 200 mm, 600 x 400 mm, -180 - 180°, Aluminium, Plastic, Stainless steel, Black, Stainless steel

ETA 7 days

hypertec

Declaration of Conformity (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
2 Years

SKU
650621

EAN
4.01587E+12

Bullet points

Point
"Max. loading capacity: 30kg

360° Flexible Swiveling Ability makes it easy to rotate smoothly

Build-in Cable management"

Detachable Design: enables convenient disassembly and assembly

Equipment Shelf: provides more storage space for accessories

Free-tilting design for multiple monitor viewing angles

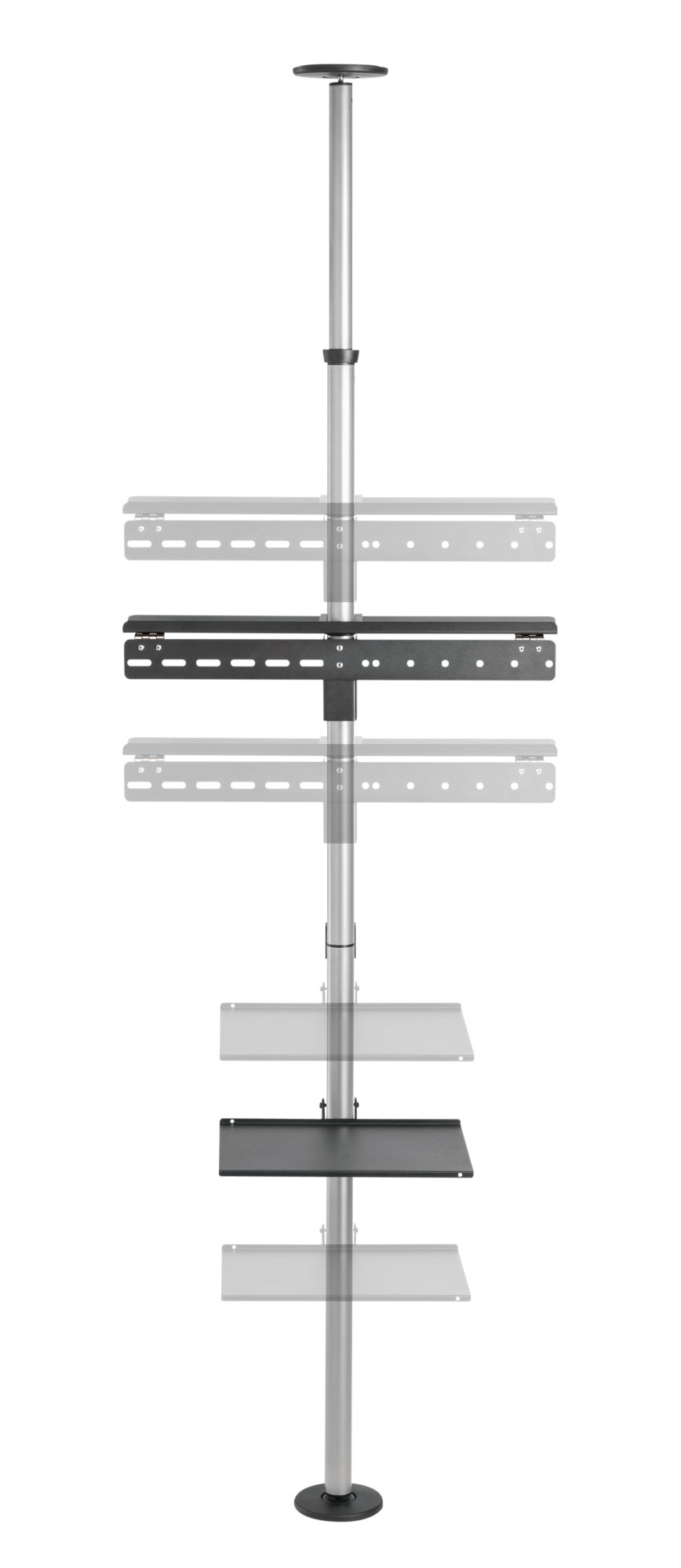

Vertical Height Ajustment: for proper positioning

VESA standards compliant

VESA support Max. 600 x 400

Design

Adjustable shelves
Yes

Housing material
Aluminium, Plastic, Stainless steel

Included number of shelves
1

Product colour
Black, Stainless steel

Ergonomics

Cable management
Yes

Height adjustment
Yes

Swivel angle
360°

Swivel angle range
-180 - 180°

Swivelling
Yes

Logistics data

Master (outer) case gross weight
10.6 kg

Master (outer) case height
1155 mm

Master (outer) case length
95 mm

Master (outer) case width
400 mm

Products per master (outer) case
1 pc(s)

Mounting

Maximum screen size
177.8 cm (70")

Maximum VESA mount
600 x 400 mm

Maximum weight capacity
30 kg

Minimum screen size
94 cm (37")

Minimum VESA mount
200 x 200 mm

Mounting type
Floor-to-ceiling

Number of displays supported
1

Panel mounting interface
200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400

Packaging content

Screws included
Yes

Packaging data

Package depth
95 mm

Package height
1155 mm

Package type
Box

Package weight
10.6 kg

Package width
400 mm

Technical details

Compliance certificates
REACH, RoHS

Country of origin
China

Sustainability compliance
Yes

Weight & dimensions

Depth (max)
34 cm

Height
2700 mm

Weight
8.28 kg

Width
625 mm

Description

Equip 37"-70" Floor-to-Ceiling TV Bracket. Maximum weight capacity: 30 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Swivel angle range: -180 - 180°. Product colour: Black, Stainless steel

Maximum weight capacity: 30 kg
Minimum screen size: 94 cm (37") Maximum screen size: 177.8 cm (70") Floor-to-ceiling
Minimum VESA mount: 200 x 200 mm Maximum VESA mount: 600 x 400 mm
Number of displays supported: 1
Height adjustment
Cable management
Aluminium, Plastic, Stainless steel Black, Stainless steel
"Max. loading capacity: 30kg
VESA support Max. 600 x 400
Free-tilting design for multiple monitor viewing angles
360° Flexible Swiveling Ability makes it easy to rotate smoothly
Vertical Height Ajustment: for proper positioning
Equipment Shelf: provides more storage space for accessories
Detachable Design: enables convenient disassembly and assembly
VESA standards compliant
Build-in cable management"
