Equip 37"-86" No Drilling TV Wall Mount Bracket

Roll over image to zoom inClick to Open expanded view

Equip 37"-86" No Drilling TV Wall Mount Bracket

Name: Equip 37"-86" No Drilling TV Wall Mount Bracket
Brand: Equip
SKU: 650364

SKU: 650364

Log In to View Pricing

ETA 7 days

Equip 37"-86" No Drilling TV Wall Mount Bracket, 94 cm (37"), 2.18 m (86"), 200 x 200 mm, 600 x 400 mm, Plastic, Stainless steel, Black

ETA 7 days

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
1 Year

SKU
650364

EAN
4015867243886

Bullet points

Point

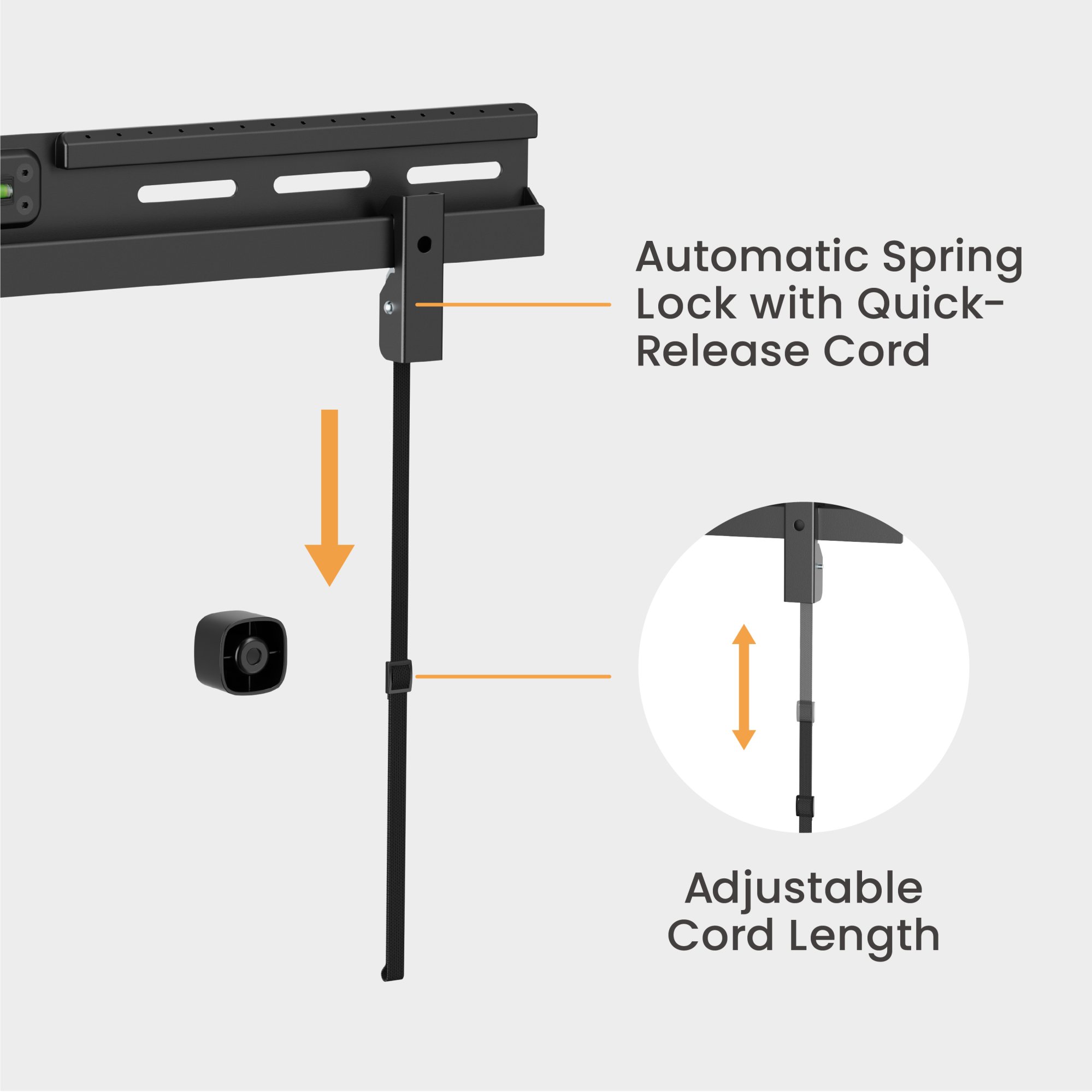

Adjustable Cord Length: draw in the cord when not in use for tidiness

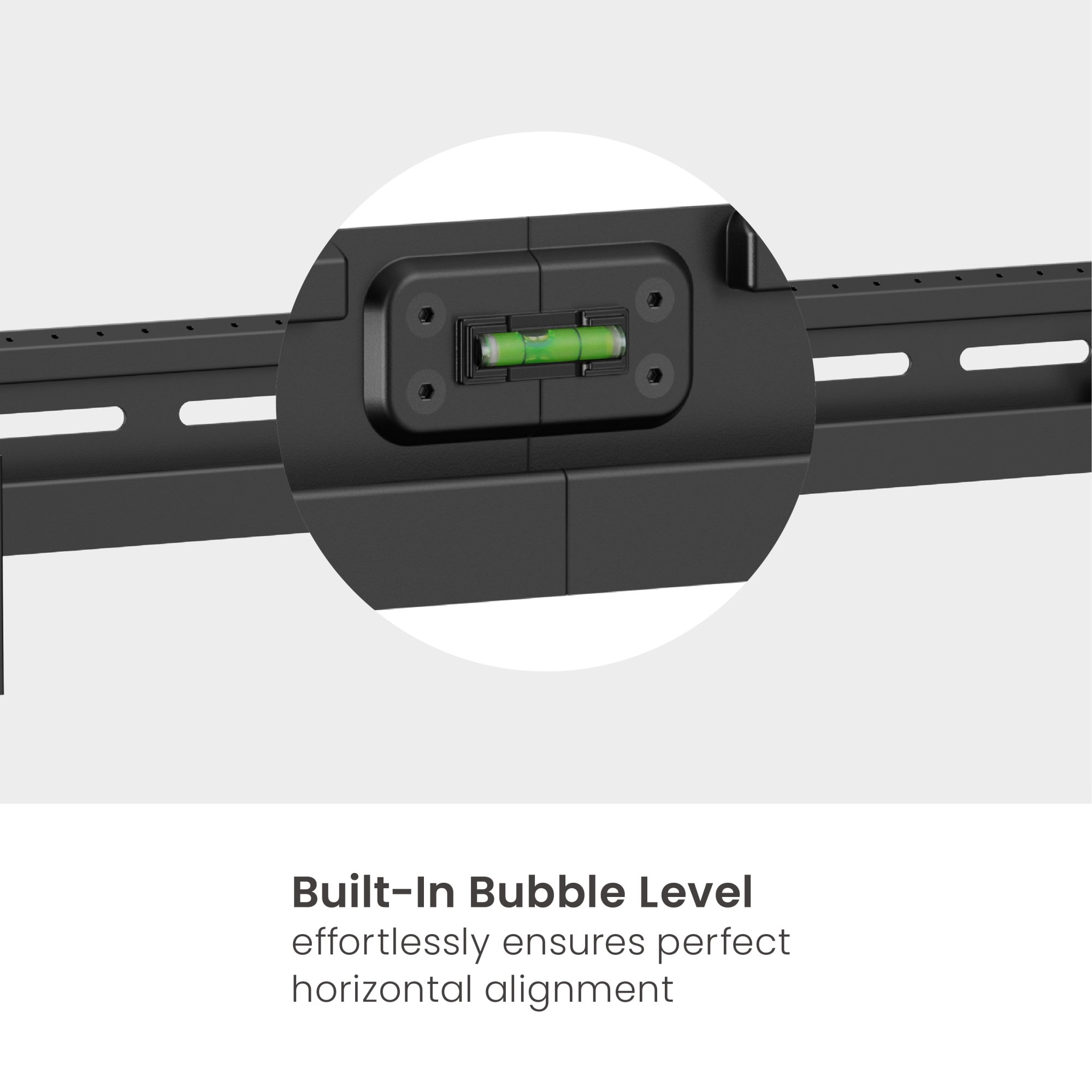

Leveling: Built-in bubble level for precise alignment

Mounting: Picture Hanging Style: for a quick and easy installation

Strong load capacity: Rated to hold TVs up to 60 kg.

VESA compliant: Supports mounting patterns up to 600 × 400.

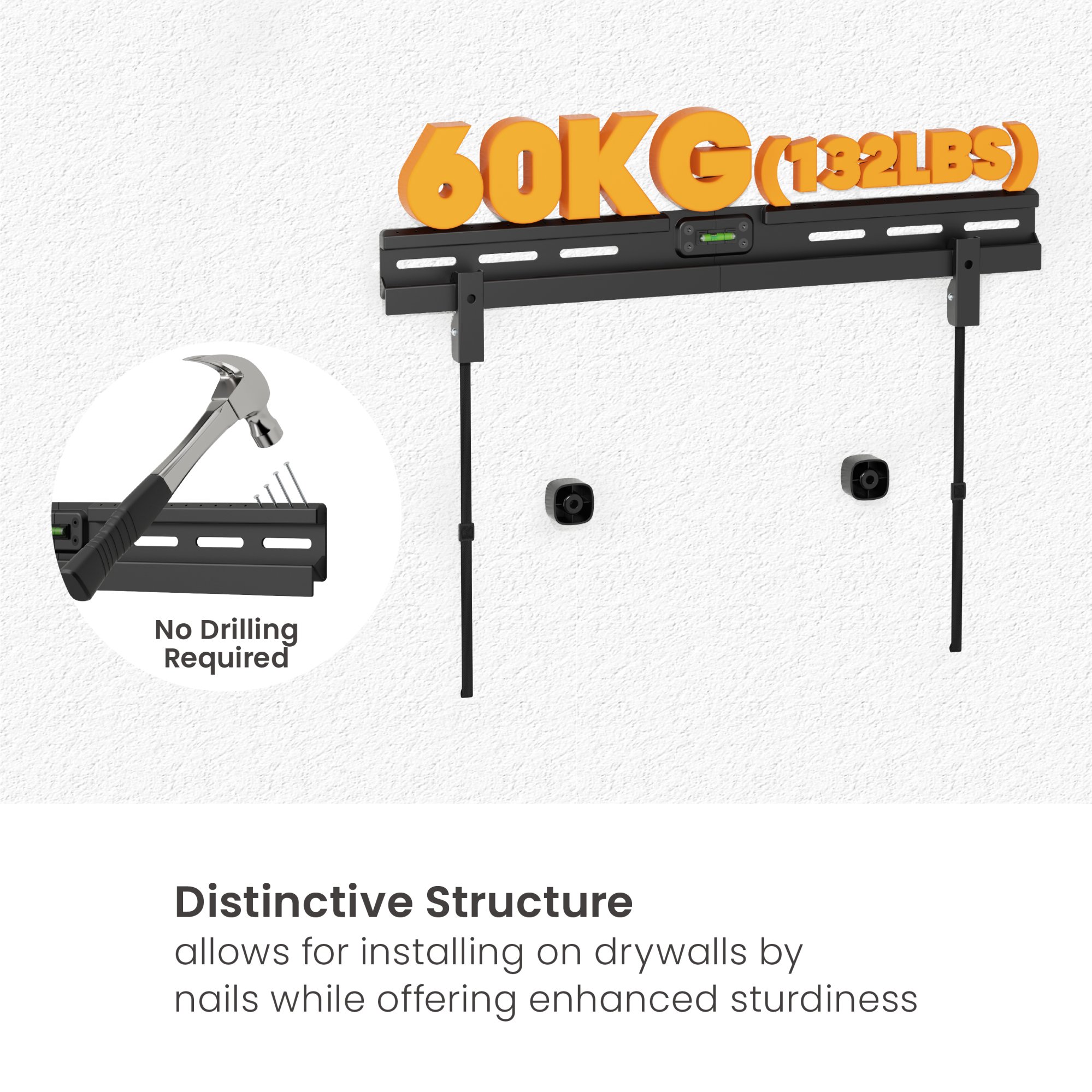

Walls: Drywalls: no drilling required

Design

Anti-theft function
No

Housing material
Plastic, Stainless steel

Product colour
Black

Ergonomics

Built-in spirit level
Yes

Cable management
No

Suitable for curved screen
No

Logistics data

Customs product code (TARIC)
8529909600

Master (outer) case gross weight
19.7 kg

Master (outer) case height
280 mm

Master (outer) case length
275 mm

Master (outer) case width
350 mm

Products per master (outer) case
12 pc(s)

Mounting

Maximum screen size
2.18 m (86")

Maximum VESA mount
600 x 400 mm

Maximum weight capacity
60 kg

Maximum weight capacity (per display)
60 kg

Minimum screen size
94 cm (37")

Minimum VESA mount
200 x 200 mm

Mounting type
Wall

Number of displays supported
1

Panel mounting interface
200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400

Packaging content

Manual
Yes

Screw nuts included
Yes

Packaging data

Package depth
65 mm

Package height
335 mm

Package weight
1.6 kg

Package width
86 mm

Technical details

Compliance certificates
REACH, RoHS

Country of origin
China

Weight & dimensions

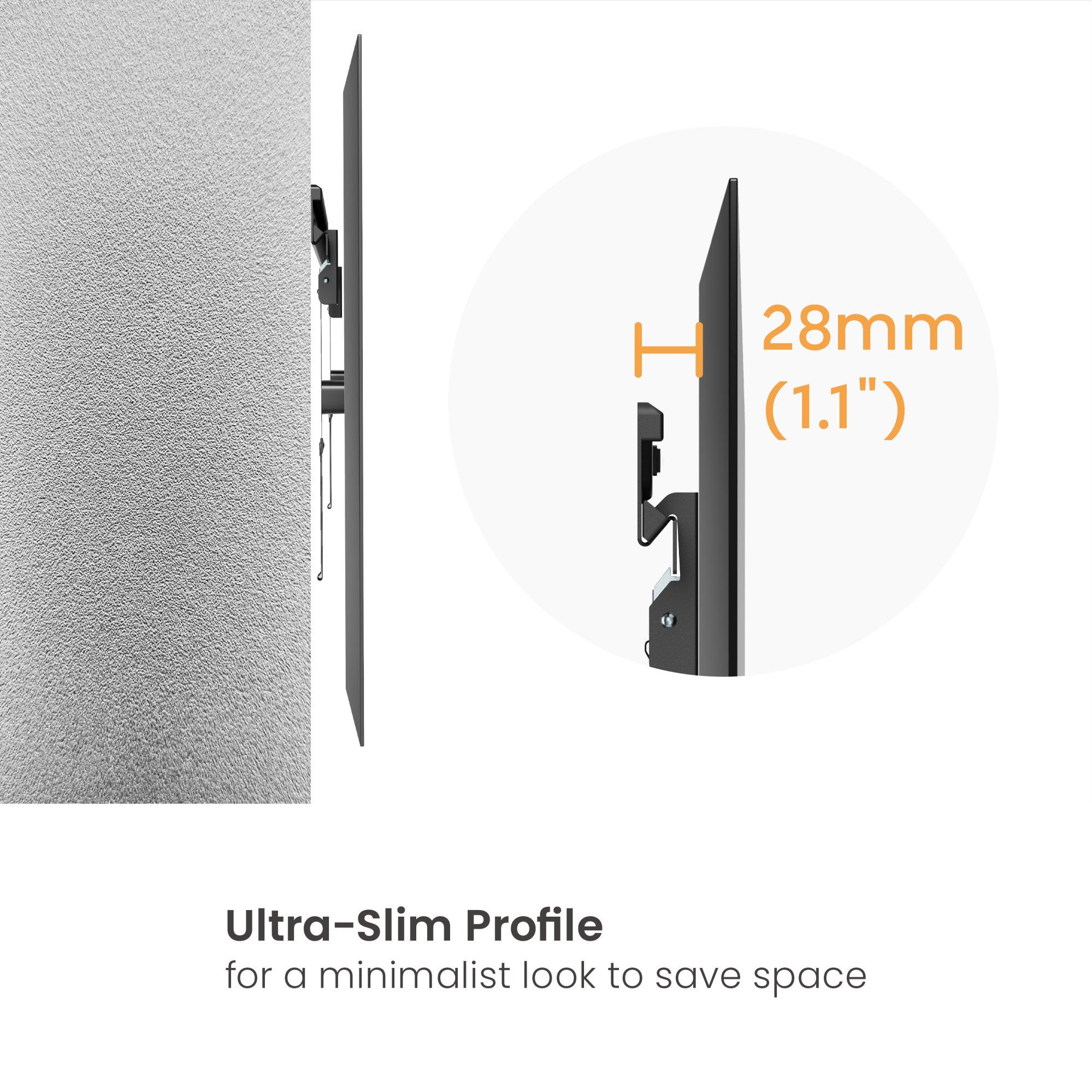

Depth (max)
2.8 cm

Height
126 mm

Weight
1.5 kg

Width
660 mm

Description

Equip 37"-86" No Drilling TV Wall Mount Bracket. Maximum weight capacity: 60 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Product colour: Black

Maximum weight capacity: 60 kg
Minimum screen size: 94 cm (37") Maximum screen size: 2.18 m (86") Wall
Minimum VESA mount: 200 x 200 mm Maximum VESA mount: 600 x 400 mm
Number of displays supported: 1
Plastic, Stainless steel Black
VESA compliant: Supports mounting patterns up to 600 × 400.
Strong load capacity: Rated to hold TVs up to 60 kg.
Mounting: Picture Hanging Style: for a quick and easy installation
Adjustable Cord Length: draw in the cord when not in use for tidiness
Leveling: Built-in bubble level for precise alignment
Walls: Drywalls: no drilling required
