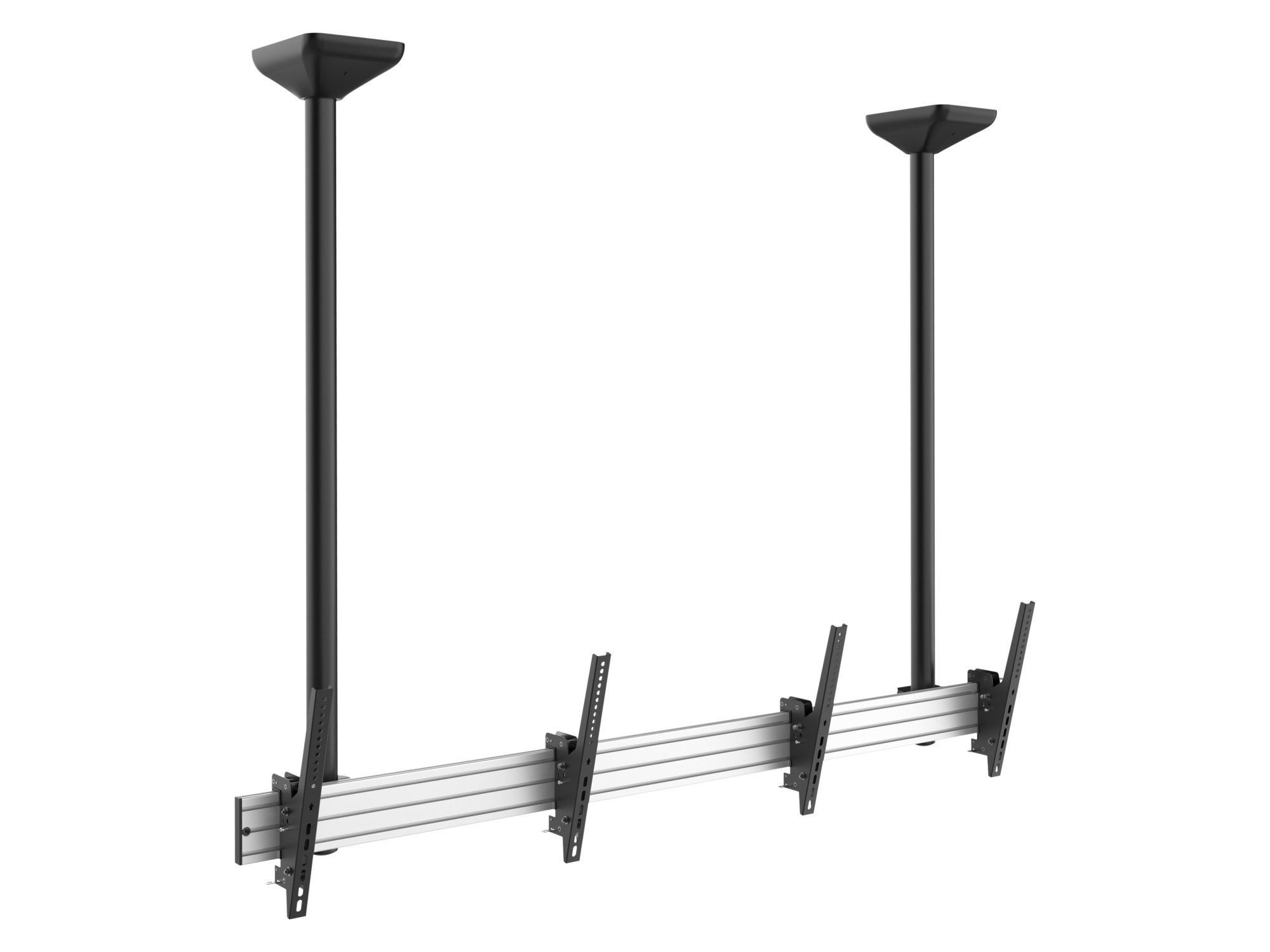

Equip 45"-55" Dual Screen Ceiling Mount

Name: Equip 45"-55" Dual Screen Ceiling Mount
Brand: Equip
SKU: 650373

SKU: 650373

ETA 7 days

Equip 45"-55" Dual Screen Ceiling Mount, 139.7 cm (55"), 200 x 200 mm, 600 x 400 mm, 0 - -20°, Aluminium, Plastic, Steel, Black, Silver

ETA 7 days

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
2 Years

SKU
650373

EAN
4015867222997

Bullet points

Point
"Max. Load Capacity: 50Kg (per screen)

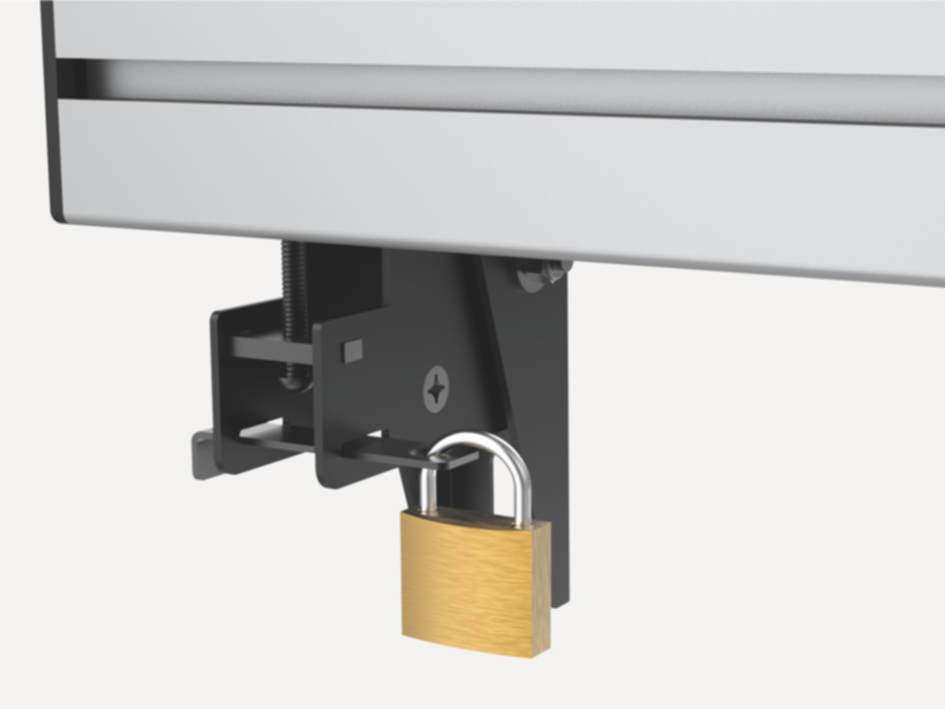

Anti-Theft Locking Hole: for additional security preventing"

Free-tilting & Swiveling Design

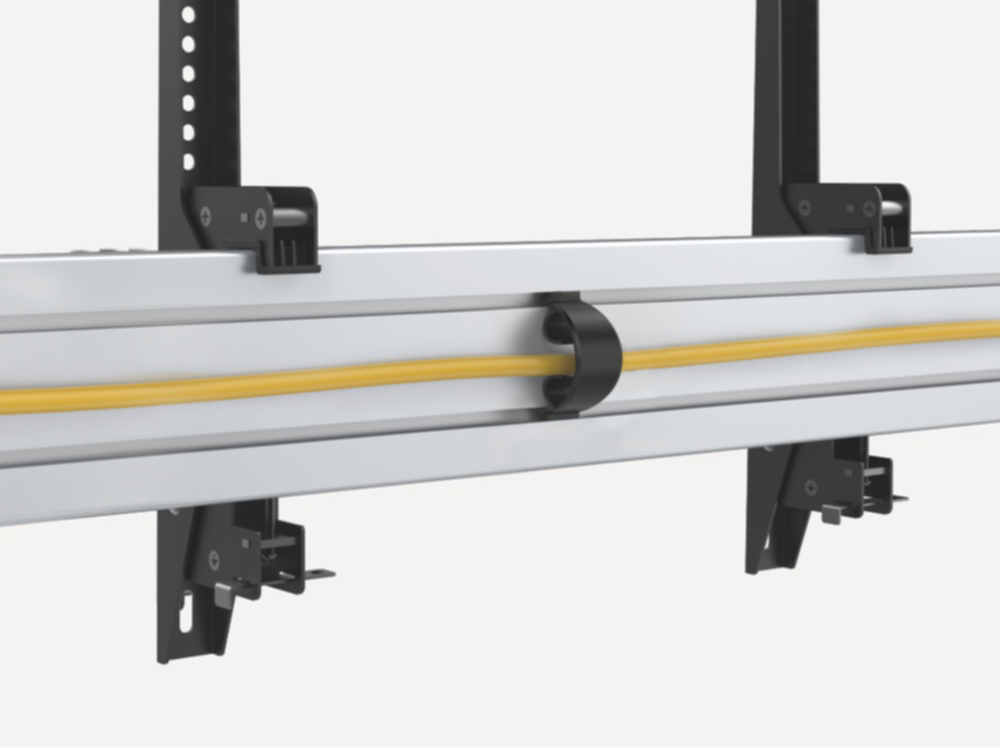

Integrated cable management system

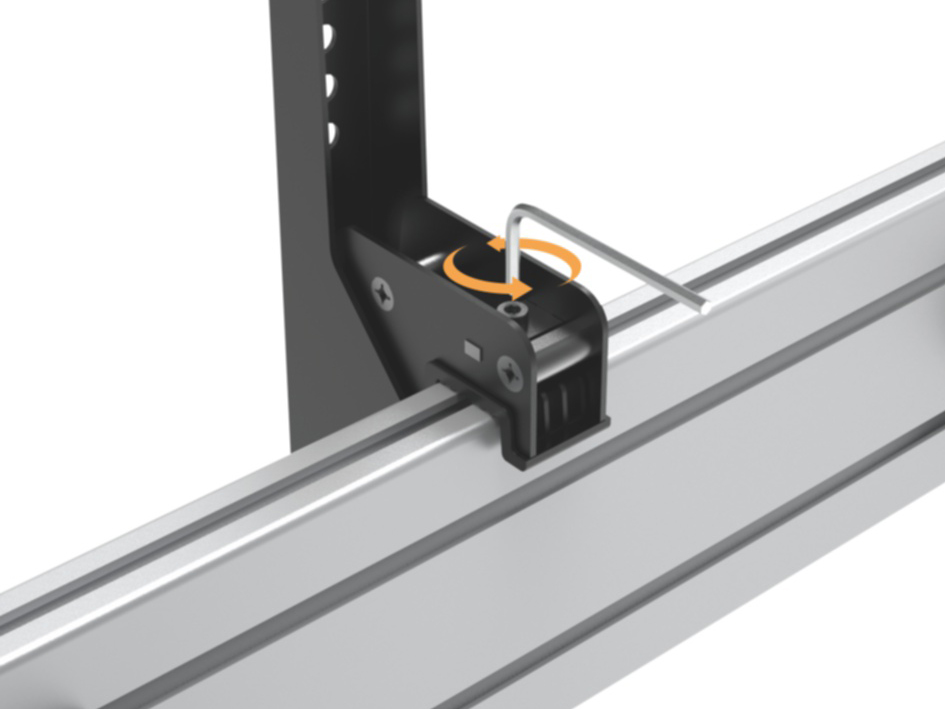

Level adjustment ensures perfect positioning

Max. VESA: 600x400

Sturdy and lightweight aluminum construction

Design

Anti-theft function
Yes

Housing material
Aluminium, Plastic, Steel

Product colour
Black, Silver

Ergonomics

Cable management
Yes

Distance to the wall (max)
158 cm

Tilt adjustment
Yes

Tilt angle range
0 - -20°

Logistics data

Harmonized System (HS) code
85299097

Master (outer) case gross weight
30.3 kg

Master (outer) case height
2145 mm

Master (outer) case length
230 mm

Master (outer) case width
240 mm

Products per master (outer) case
1 pc(s)

Mounting

Maximum screen size
139.7 cm (55")

Maximum VESA mount
600 x 400 mm

Maximum weight capacity
100 kg

Minimum screen size
114.3 cm (45")

Minimum VESA mount
200 x 200 mm

Mounting type
Ceiling

Number of displays supported
2

Panel mounting interface
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400

Packaging content

Manual
Yes

Screws included
Yes

Packaging data

Package depth
230 mm

Package height
2145 mm

Package type
Box

Package weight
30.3 kg

Package width
240 mm

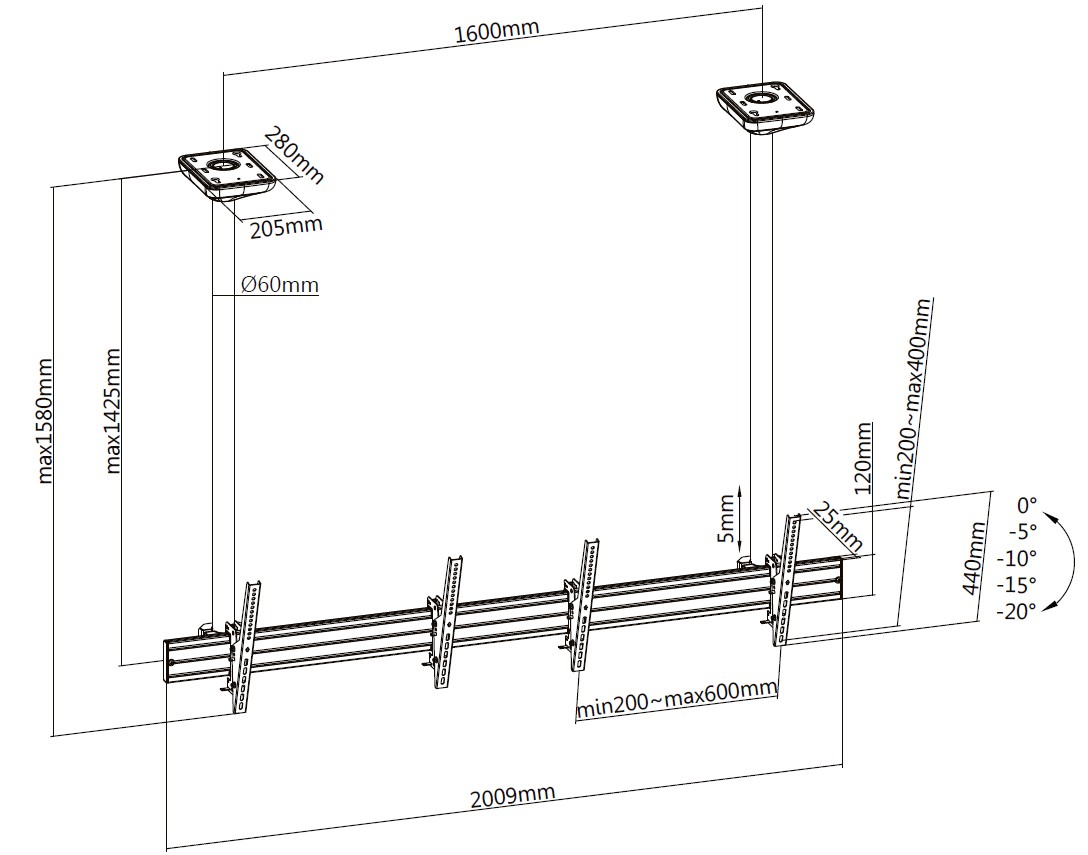

Technical details

Country of origin
China

Weight & dimensions

Depth (max)
28 cm

Height
1080 mm

Weight
25.9 kg

Width
2009 mm

Description

Equip 45"-55" Dual Screen Ceiling Mount. Maximum weight capacity: 100 kg, Minimum screen size: 114.3 cm (45"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - -20°, Distance to the wall (max): 158 cm. Product colour: Black, Silver

Maximum weight capacity: 100 kg
Minimum screen size: 114.3 cm (45") Maximum screen size: 139.7 cm (55") Ceiling
Minimum VESA mount: 200 x 200 mm Maximum VESA mount: 600 x 400 mm
Number of displays supported: 2
Tilt adjustment
Cable management
Aluminium, Plastic, Steel Black, Silver
"Max. Load Capacity: 50Kg (per screen)
Max. VESA: 600x400
Free-tilting & Swiveling Design
Sturdy and lightweight aluminum construction
Level adjustment ensures perfect positioning
Integrated cable management system
Anti-Theft Locking Hole: for additional security preventing"
