Equip Basic Flex 19' Cabinet, 42U, 800X1000MM, Perforated Front Door, RAL7035 Grey

Roll over image to zoom inClick to Open expanded view

Equip Basic Flex 19' Cabinet, 42U, 800X1000MM, Perforated Front Door, RAL7035 Grey

Name: Equip Basic Flex 19' Cabinet, 42U, 800X1000MM, Perforated Front Door, RAL7035 Grey
Brand: Equip
SKU: EBF-42-8010-G-CCAA

SKU: EBF-42-8010-G-CCAA

Log In to View Pricing

ETA 7 days

Equip Basic Flex 19' Cabinet, 42U, 800X1000MM, Perforated Front Door, RAL7035 Grey, Freestanding rack, 42U, 600 kg, Key lock, Rack rails, Adjustable feet

ETA 7 days

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
1 Year

SKU
EBF-42-8010-G-CCAA

EAN
4015867232064

Bullet points

Features

Adjustable depth
No

Adjustable feet
Yes

Adjustable stand
No

Assembly required
No

Back door construction
Steel/Perforated

Back door key lock
Yes

Built-in UPS
No

Cable management
No

Castor wheels
No

Cooling type
Passive

Door opening angle
200°

Feet adjustment
3 cm

Frame type
Closed

Front door key lock
Yes

Key lock
Yes

Main PDU
No

Material
Steel

Maximum weight capacity
600 kg

Maximum weight capacity (rolling)
600 kg

Monitoring
No

Number of stabilising foot screws
4 pc(s)

Preassembled
Yes

Product colour
Light grey

Product design
4-post

Rack capacity
42U

Rack rail thickness
1.5 mm

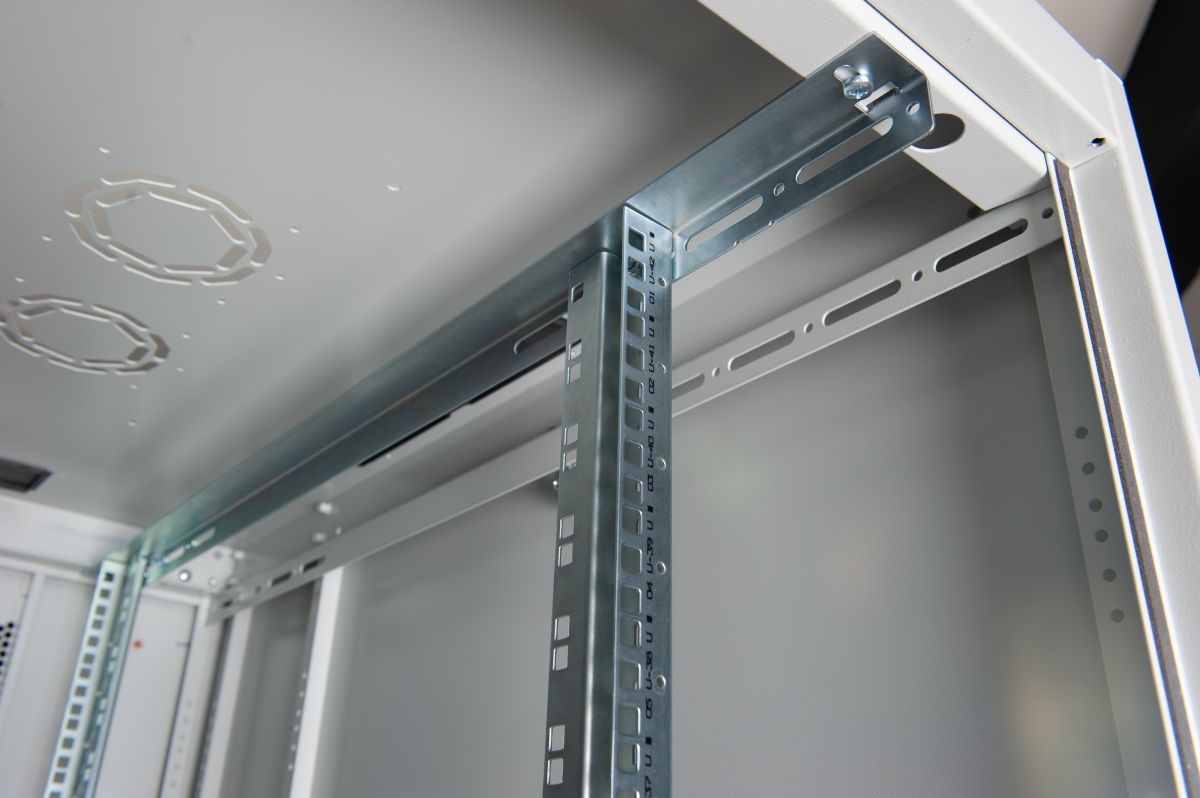

Rack rails
Yes

Removable back door
No

Removable front door
Yes

Removable side panels
Yes

Side panel construction
Steel

Side panel key lock
Yes

Side panels included
Yes

Soundproof
No

Stabilising foot screw
Yes

Type
Freestanding rack

Logistics data

Country of origin
Turkey

Harmonized System (HS) code
853710980019

Products per master (outer) case
1 pc(s)

Packaging data

Grounding kit
Yes

Manual
Yes

Mounting kit
No

Nuts included
No

Package depth
1080 mm

Package height
2150 mm

Package width
880 mm

Plinth panel
No

Quick installation guide
No

Screws included
No

Temperature sensor
No

Wall mounting kit
No

Technical details

Pallet gross weight
132.5 kg

Pallet net height
15 cm

Pallet net length
108 cm

Pallet net weight
14.2 kg

Pallet net width
88 cm

Total carbon footprint (kg of CO2e)
19.4598

Weight & dimensions

Depth
1000 mm

Height
2010 mm

Inner depth
99.5 cm

Inner height
186.7 cm

Inner width
79.5 cm

Mounting depth (max)
95 cm

Mounting depth (min)
63 cm

Size (imperial)
77 cm (30.3")

Weight
113.8 kg

Width
800 mm

Description

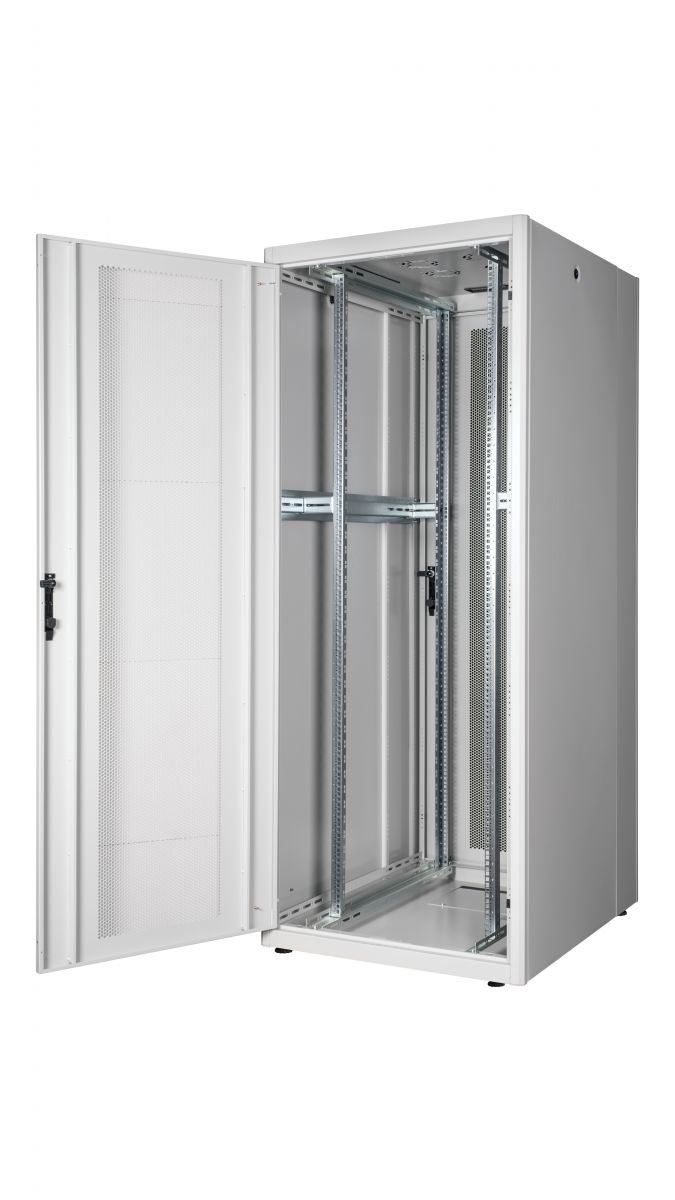

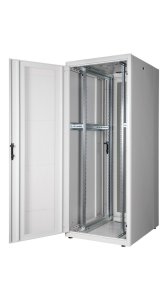

Equip Basic Flex 19' Cabinet, 42U, 800X1000MM, Perforated Front Door, RAL7035 Grey. Type: Freestanding rack, Rack capacity: 42U, Maximum weight capacity: 600 kg, Key lock, Adjustable feet, Rack rails. Weight: 113.8 kg. Product colour: Light grey

42U Freestanding rack 600 kg
Frame type: Closed 4-post
Removable front door Removable side panels
Steel
Light grey
42U cabinet, designed for optimal performance in every space
800X1000MM Server Cabinet
Ships preassembled for easy setup at your location

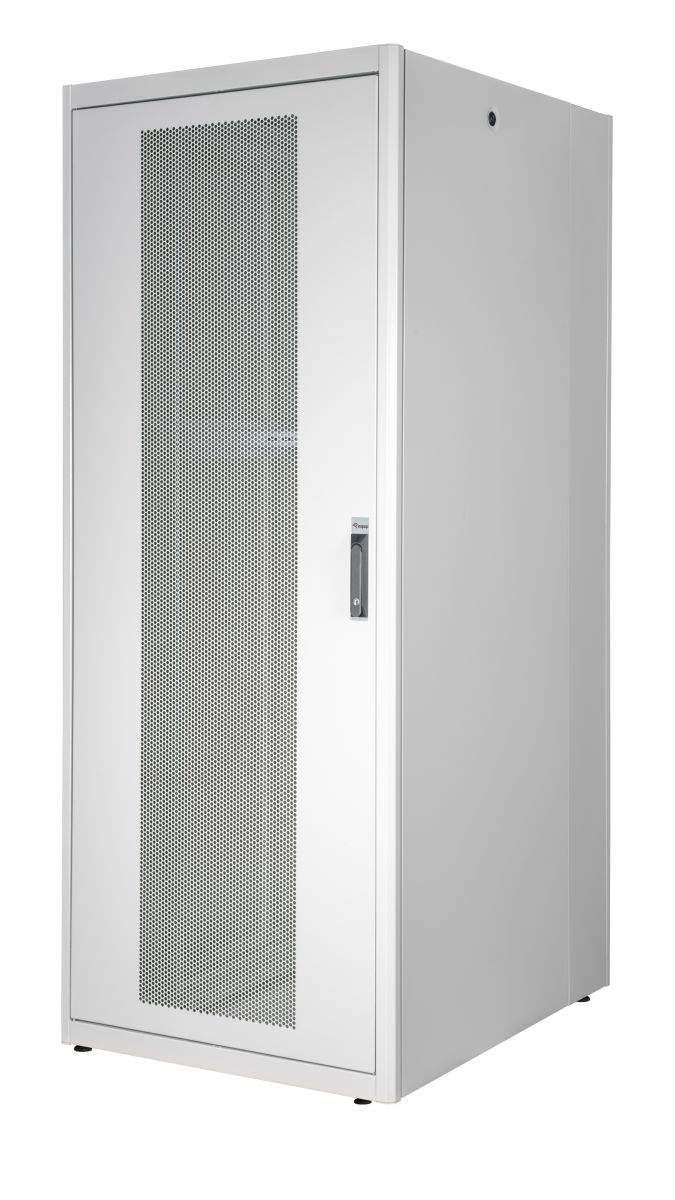

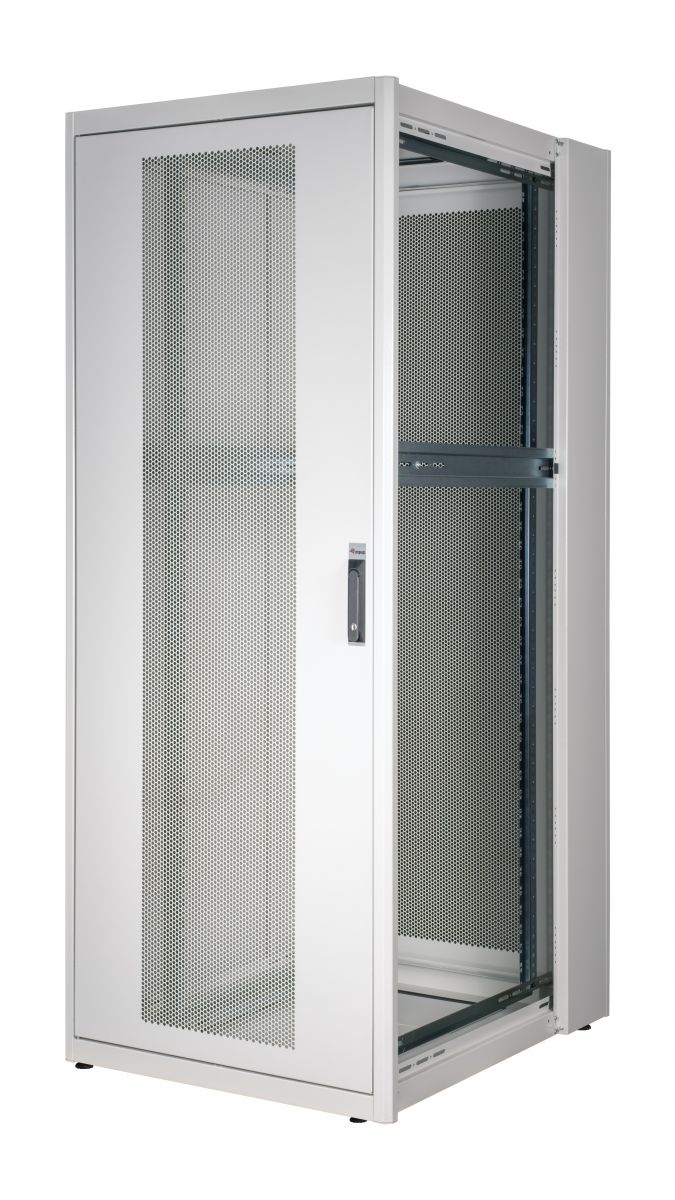

The cabinet comes with a steel/perforated frontdoor to combine durability with optimal cooling efficiency
Sidepanels are removable and lockable
Backpanel is removable
