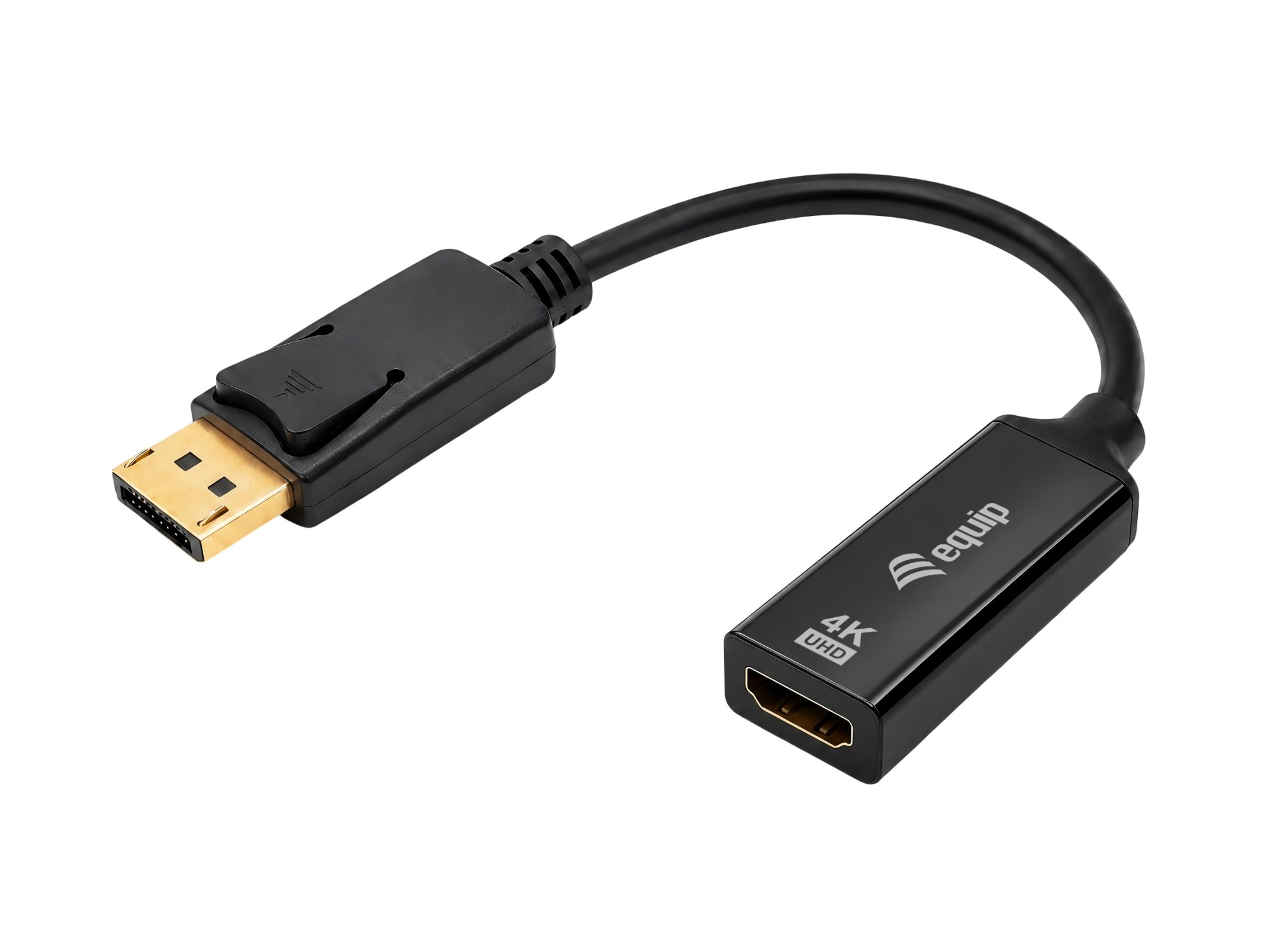

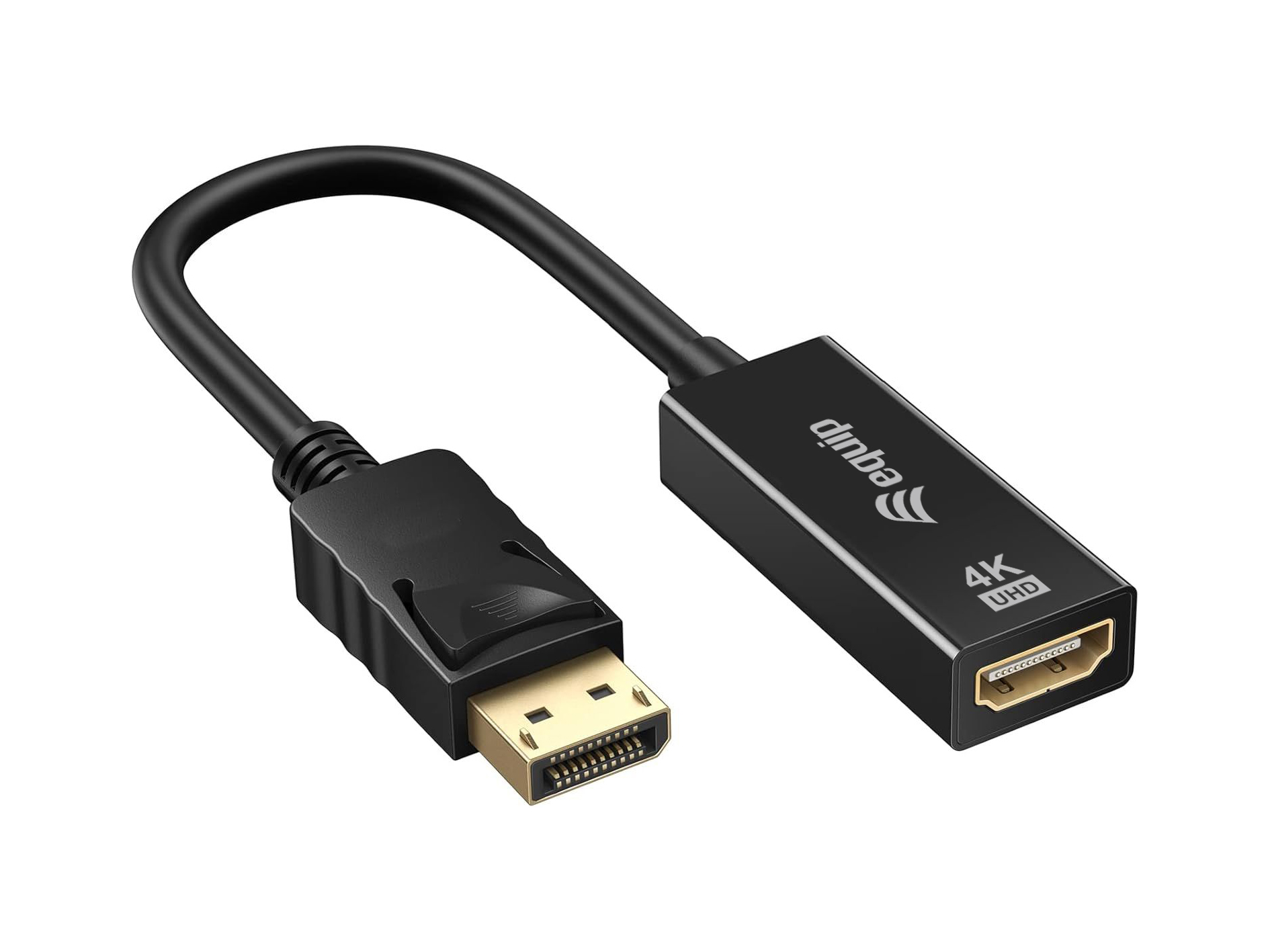

Equip DisplayPort 1.2 to HDMI Active Adapter, 4K 60Hz

Roll over image to zoom inClick to Open expanded view

Equip DisplayPort 1.2 to HDMI Active Adapter, 4K 60Hz

Name: Equip DisplayPort 1.2 to HDMI Active Adapter, 4K 60Hz
Brand: Equip
SKU: 133448

SKU: 133448

Log In to View Pricing

ETA 7 days

Equip DisplayPort 1.2 to HDMI Active Adapter, 4K 60Hz, DisplayPort, HDMI, 0.15 m, Black

ETA 7 days

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
1 Year

SKU
133448

EAN
4015867245514

Bullet points

Point
Active converter, for graphics cards with DP and DP++ output

Bandwidth: Up to 18Gbps for smooth, stable UHD playback.

Build quality: ABS casing with gold-plated connectors.

Cable length: 15cm compact pigtail adapter.

Connector: DisplayPort 1.2 Male to HDMI 2.0 Female with Active chip

Max resolution: Supports up to 4K (3840 x 2160) at 60Hz.

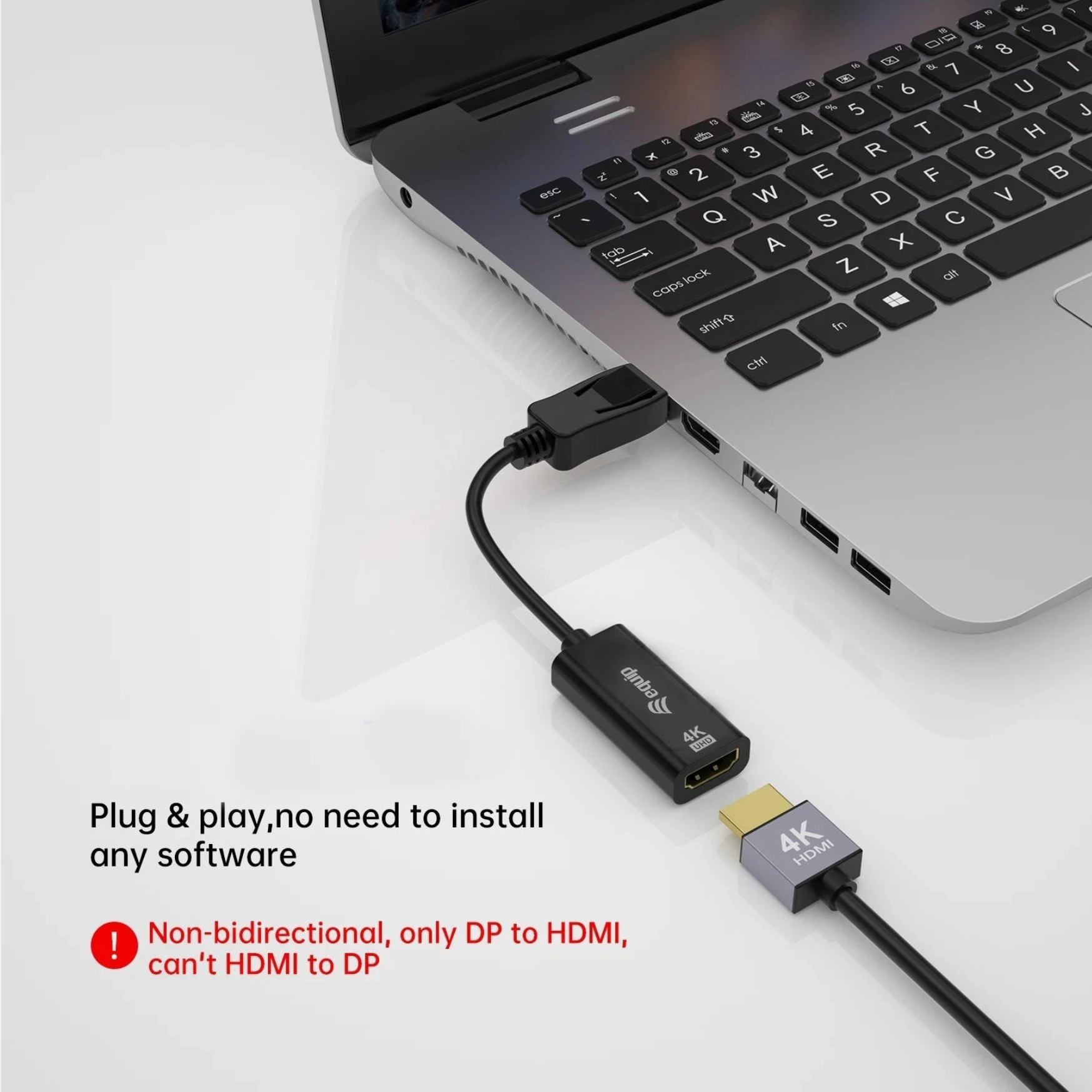

Plug-and-play setup: Works instantly with no extra steps.

Video features: Supports HDR and HDCP 1.4/2.2 for protected 4K content.

Certificates

Compliance certificates
RoHS, REACH

Logistics data

Country of origin
China

Customs product code (TARIC)
8471800000

Harmonized System (HS) code
854442

Operational conditions

Operating temperature (T-T)
0 - 45 °C

Packaging data

Package depth
27 mm

Package height
215 mm

Package type
Box

Package weight
40 g

Package width
105 mm

Performance

Data transfer rate
18 Gbit/s

HDCP
Yes

Housing material
Plastic

Maximum refresh rate
60 Hz

Maximum resolution
3840 x 2160 pixels

Plug and Play
Yes

Product colour
Black

Supported video modes
1080p, 2160p

Ports & interfaces

Cable length
0.15 m

Connector 1
DisplayPort

Connector 1 form factor
Straight

Connector 1 gender
Male

Connector 2
HDMI

Connector 2 form factor
Straight

Connector 2 gender
Female

Connector contacts plating
Gold

DisplayPort version
1.2

Weight & dimensions

Depth
15 mm

Height
150 mm

Weight
25 g

Width
22 mm

Description

Equip DisplayPort 1.2 to HDMI Active Adapter, 4K 60Hz. Connector 1: DisplayPort, Connector 2: HDMI, Cable length: 0.15 m, Connector contacts plating: Gold. Product colour: Black

0.15 m
DisplayPort Straight Male
HDMI Straight Female
Connector contacts plating: Gold
DisplayPort version: 1.2 18 Gbit/s 3840 x 2160 pixels
Housing material: Plastic
Black
Connector: DisplayPort 1.2 Male to HDMI 2.0 Female with Active chip
Max resolution: Supports up to 4K (3840 x 2160) at 60Hz.
Video features: Supports HDR and HDCP 1.4/2.2 for protected 4K content.
Bandwidth: Up to 18Gbps for smooth, stable UHD playback.
Cable length: 15cm compact pigtail adapter.
Build quality: ABS casing with gold-plated connectors.
Plug-and-play setup: Works instantly with no extra steps.

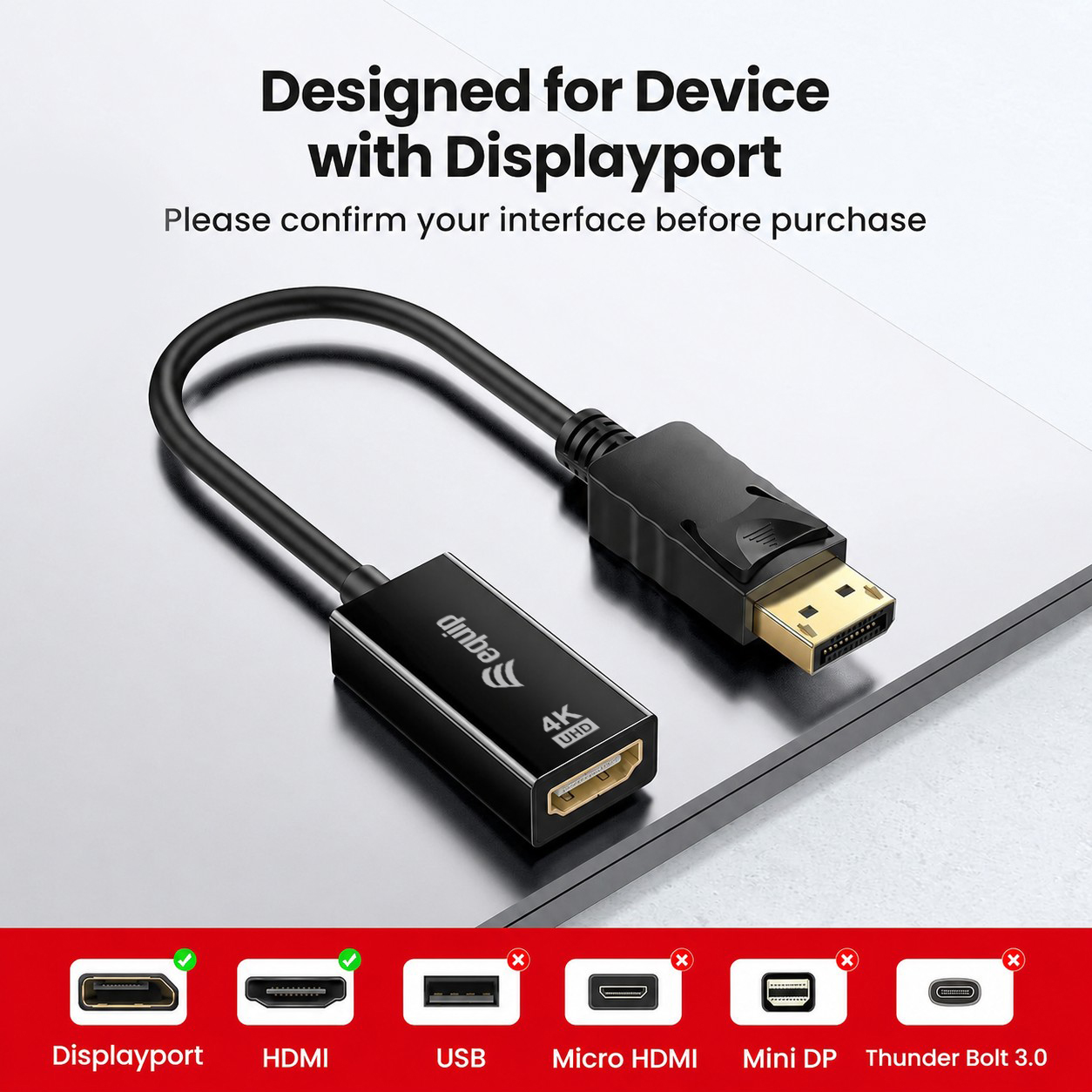

Active converter, for graphics cards with DP and DP++ output
