Equip Dynamic Flex 19' Cabinet, 22U, 600X800MM, RAL7035 Grey

Roll over image to zoom inClick to Open expanded view

Equip Dynamic Flex 19' Cabinet, 22U, 600X800MM, RAL7035 Grey

Name: Equip Dynamic Flex 19' Cabinet, 22U, 600X800MM, RAL7035 Grey
Brand: Equip
SKU: EDF-22-6080-G-BMAA

SKU: EDF-22-6080-G-BMAA

Log In to View Pricing

ETA 7 days

Equip Dynamic Flex 19' Cabinet, 22U, 600X800MM, RAL7035 Grey, Freestanding rack, 22U, 600 kg, Key lock, Rack rails, Adjustable feet

ETA 7 days

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
1 Year

SKU
EDF-22-6080-G-BMAA

EAN
4015867232859

Bullet points

Point
22U cabinet, designed for optimal performance in every space

600X800MM Server Cabinet

Backpanel is removable

Ships preassembled for easy setup at your location

Sidepanels are removable and lockable

Features

Adjustable depth
No

Adjustable feet
Yes

Adjustable stand
No

Assembly required
No

Back door construction
Steel

Back door key lock
No

Built-in UPS
No

Cable management
No

Castor wheels
No

Cooling type
Passive

Door opening angle
120°

Feet adjustment
3 cm

Frame type
Closed

Front door construction
Tempered glass

Front door key lock
Yes

Key lock
Yes

Main PDU
No

Material
Steel

Maximum weight capacity
600 kg

Maximum weight capacity (rolling)
600 kg

Monitoring
No

Number of stabilising foot screws
4 pc(s)

Preassembled
Yes

Product colour
Light grey

Product design
4-post

Rack capacity
22U

Rack rail thickness
1.5 mm

Rack rails
Yes

Removable back door
Yes

Removable front door
Yes

Removable side panels
Yes

Side panel construction
Steel

Side panel key lock
Yes

Side panels included
Yes

Soundproof
No

Stabilising foot screw
Yes

Type
Freestanding rack

Logistics data

Country of origin
Turkey

Harmonized System (HS) code
853710980019

Products per master (outer) case
1 pc(s)

Packaging data

Grounding kit
Yes

Manual
Yes

Mounting kit
No

Number of nuts
28

Number of screws
28

Nuts included
Yes

Package depth
680 mm

Package height
1305 mm

Package width
880 mm

Plinth panel
No

Quick installation guide
No

Screws included
Yes

Temperature sensor
No

Wall mounting kit
No

Technical details

Pallet net height
15 cm

Pallet net length
88 cm

Pallet net weight
8 kg

Pallet net width
68 cm

Weight & dimensions

Depth
800 mm

Height
1164 mm

Inner depth
79 cm

Inner height
97.8 cm

Inner width
59.5 cm

Mounting depth (max)
74 cm

Mounting depth (min)
56 cm

Size (imperial)
56.9 cm (22.4")

Weight
58.6 kg

Width
600 mm

Description

Equip Dynamic Flex 19' Cabinet, 22U, 600X800MM, RAL7035 Grey. Type: Freestanding rack, Rack capacity: 22U, Maximum weight capacity: 600 kg, Key lock, Adjustable feet, Rack rails. Weight: 58.6 kg. Product colour: Light grey

22U Freestanding rack 600 kg
Frame type: Closed 4-post
Removable back door Removable front door Removable side panels
Steel
Light grey
22U cabinet, designed for optimal performance in every space
600X800MM Server Cabinet
Ships preassembled for easy setup at your location

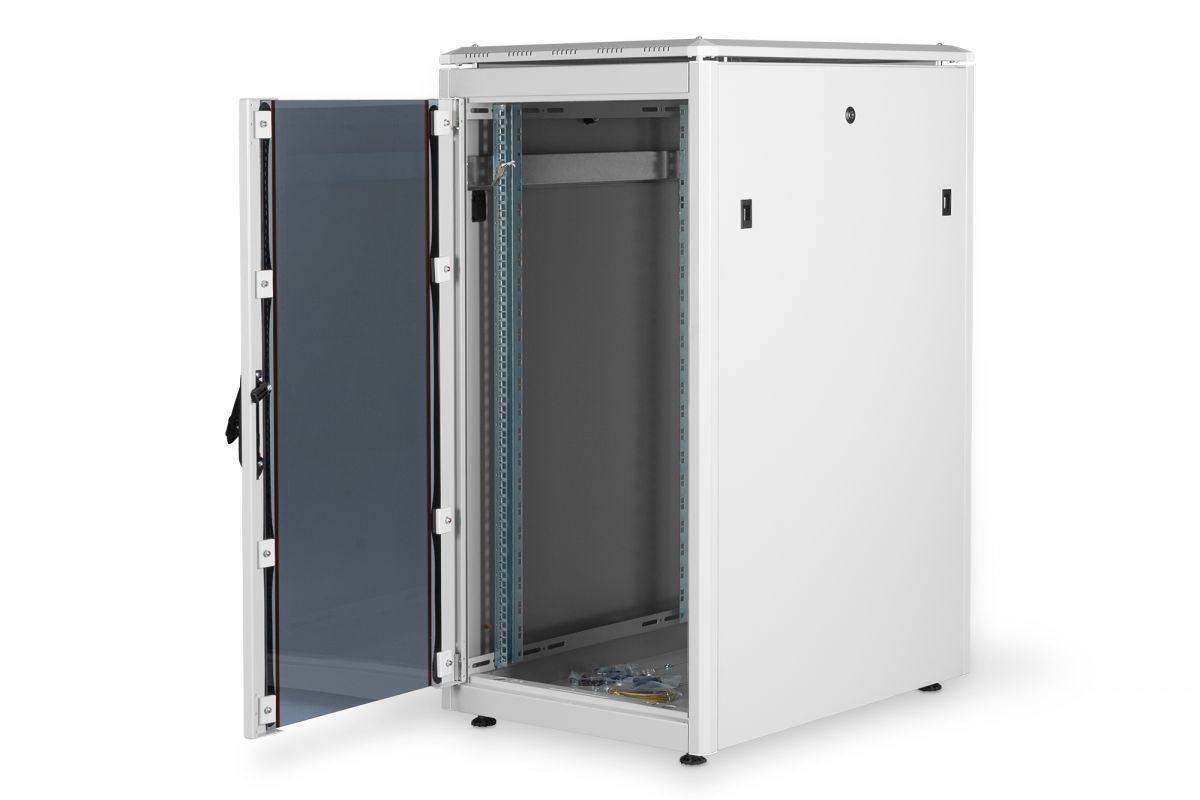

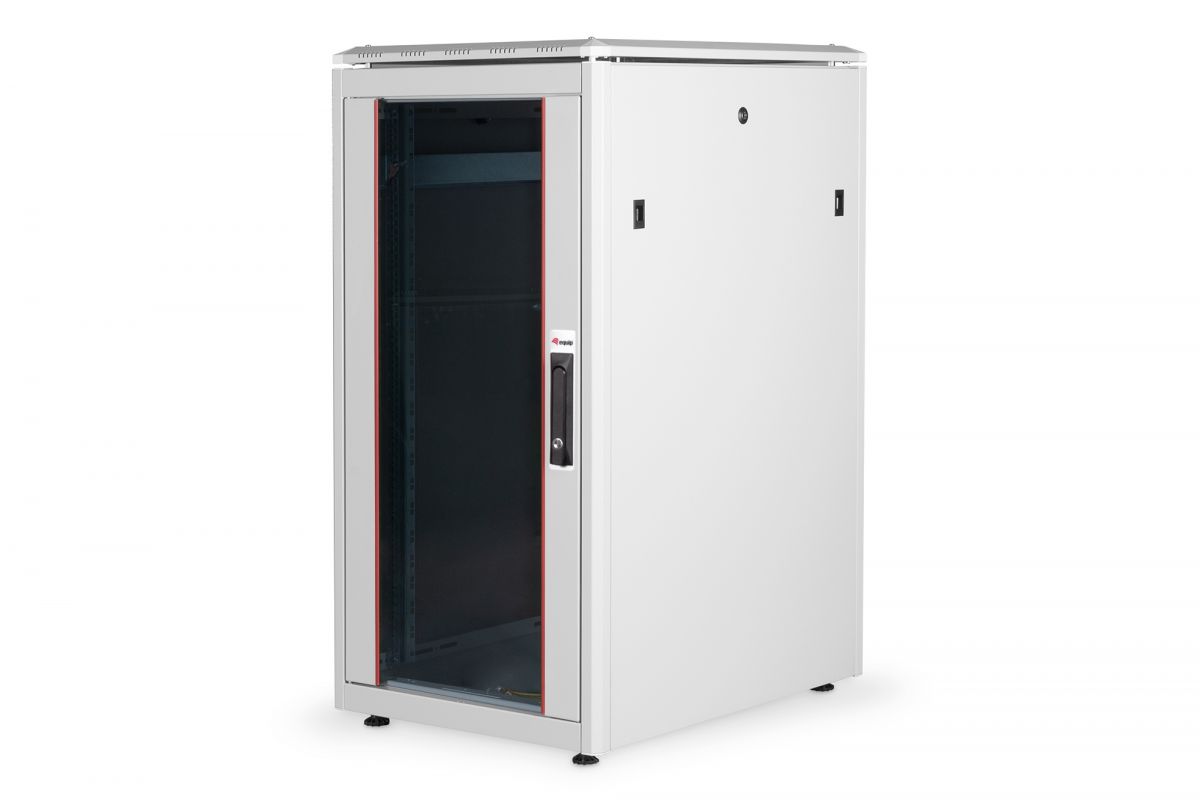

The cabinet comes with a tempered glass frontdoor to provide unmatched strength while maintaining clear visibility
Sidepanels are removable and lockable
Backpanel is removable
