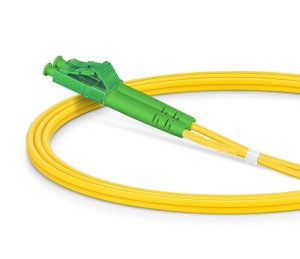

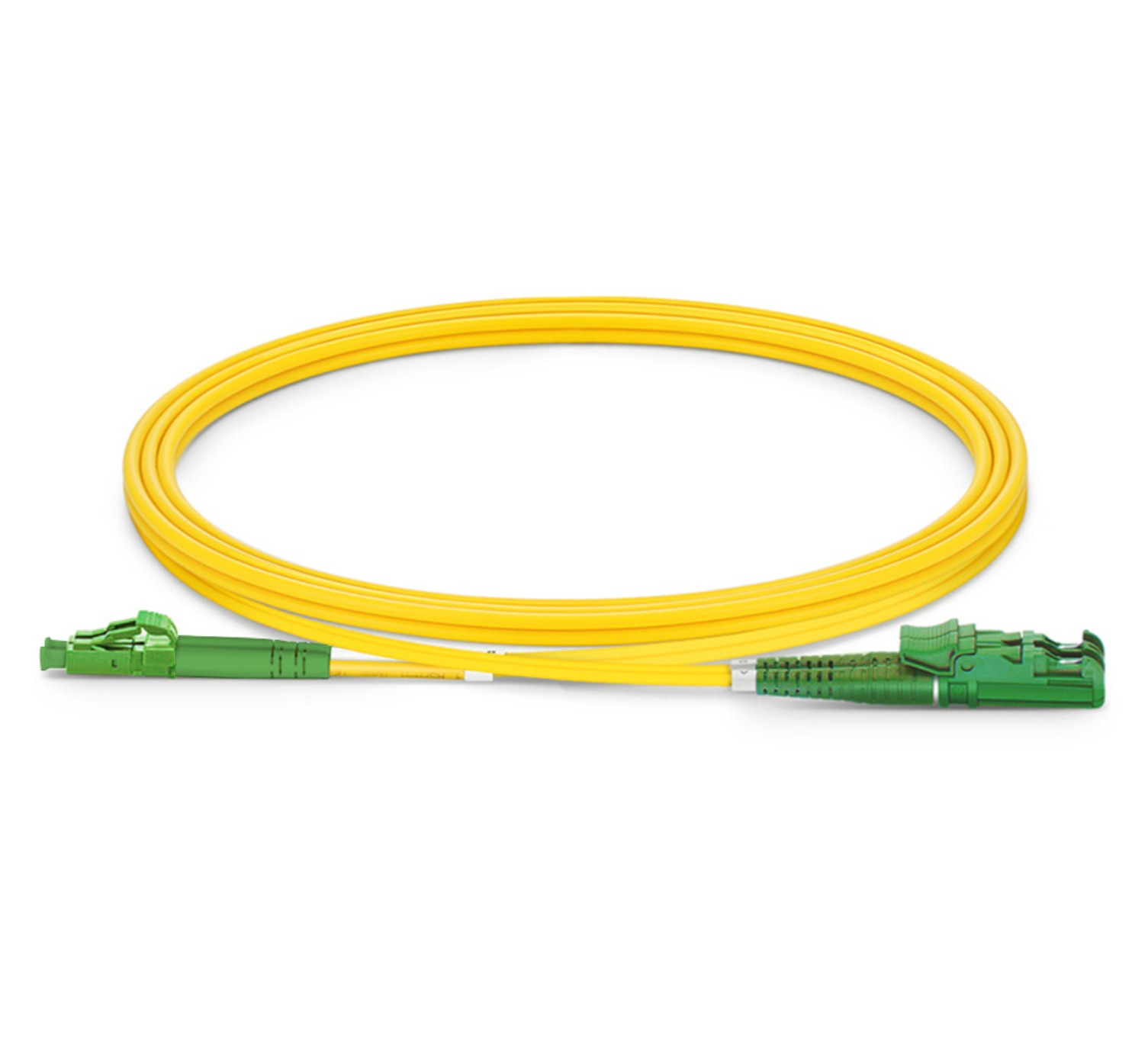

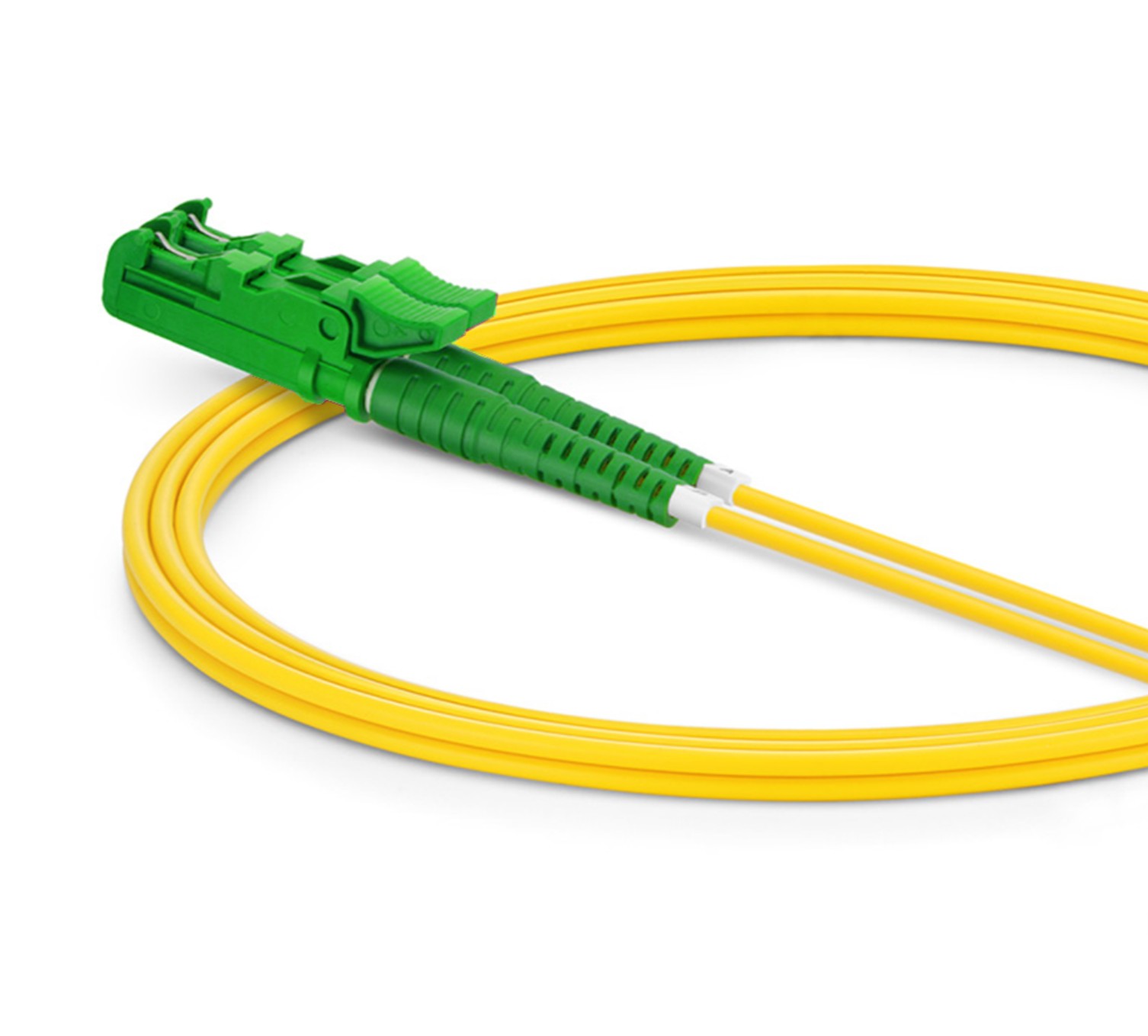

Equip E2000/APC to LC/APC Fiber Cable, SM, Duplex, 10m

Roll over image to zoom inClick to Open expanded view

Equip E2000/APC to LC/APC Fiber Cable, SM, Duplex, 10m

Name: Equip E2000/APC to LC/APC Fiber Cable, SM, Duplex, 10m
Brand: Equip
SKU: 255106

SKU: 255106

Log In to View Pricing

ETA 7 days

Equip E2000/APC to LC/APC Fiber Cable, SM, Duplex, 10m, 10 m, OS2, E-2000, LC

ETA 7 days

hypertec

EU Declaration of Conformity (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
1 Year

SKU
255106

EAN
4015867243442

Bullet points

Certificates

Compliance certificates
REACH, RoHS

Features

Cable length
10 m

Cable shape
Round

Cladding diameter
125 µm

Connector 1
E-2000

Connector 1 gender
Male

Connector 2
LC

Connector 2 gender
Male

Core diameter
9 µm

Fiber mode structure
Single-mode

Fibre optic type
OS2

Full duplex
Yes

Jacket material
Low smoke zero halogen (LSZH)

Product colour
Yellow

Logistics data

Country of origin
China

Customs product code (TARIC)
8544700000

Master (outer) case gross weight
13.2 kg

Master (outer) case height
400 mm

Master (outer) case length
300 mm

Master (outer) case width
400 mm

Products per master (outer) case
100 pc(s)

Packaging data

Package depth
25 mm

Package height
200 mm

Package weight
110 g

Package width
330 mm

Weight & dimensions

Weight
98 g

Description

Equip E2000/APC to LC/APC Fiber Cable, SM, Duplex, 10m. Cable length: 10 m, Fibre optic type: OS2, Connector 1: E-2000, Connector 2: LC, Core diameter: 9 µm, Full duplex

OS2
10 m
E-2000 Male
LC Male
Jacket material: Low smoke zero halogen (LSZH)
Full duplex Single-mode
Yellow
Duplex Single-mode fiber optic cable

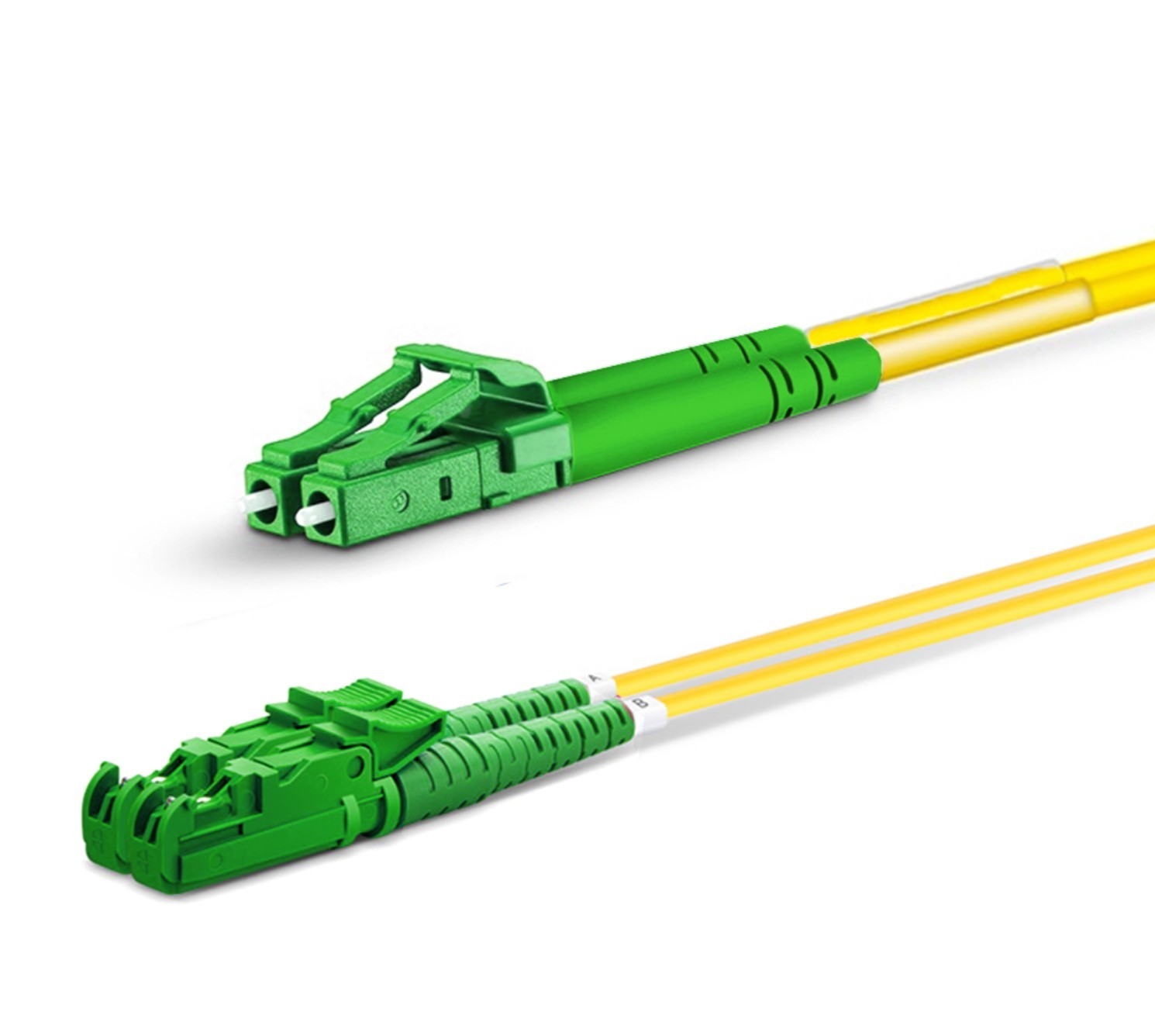

Connector: E2000/APC to LC/APC
OS2 = 9/125mμ
Low Smoke Zero Halogen (LSZH/LSOH)
Cable jacket color:Yellow
