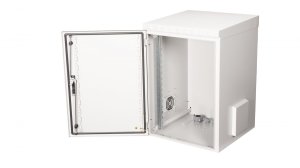

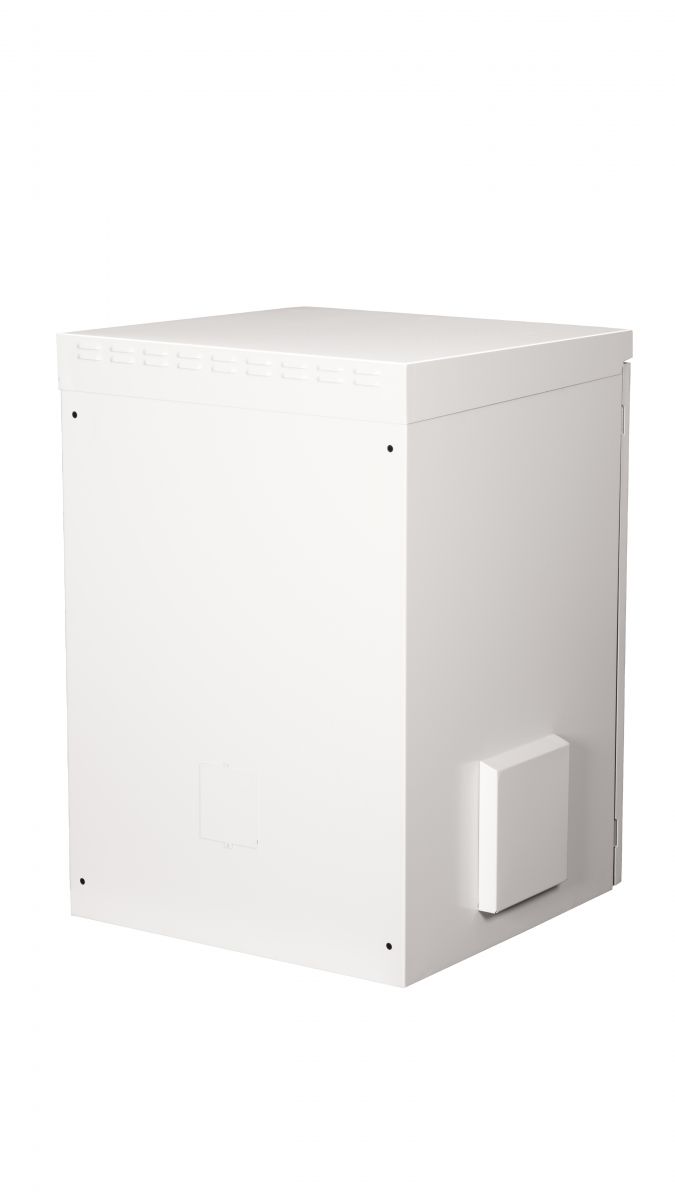

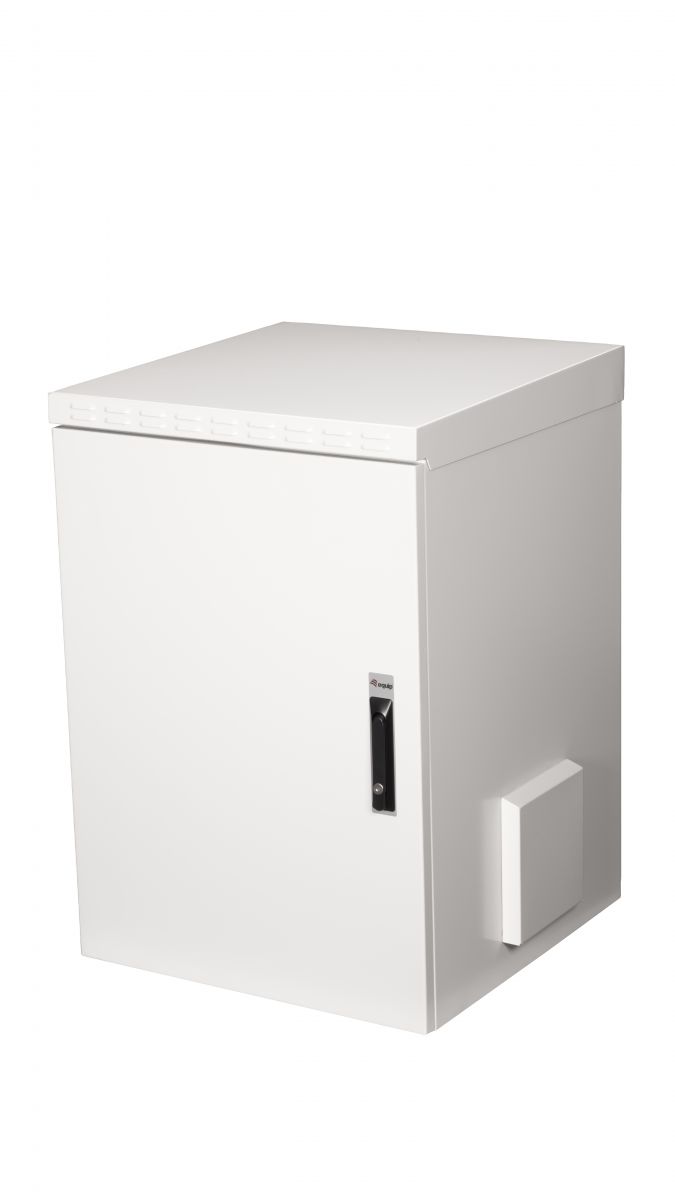

Equip Safe Outdoor 19' Cabinet, 16U, 600X600MM, RAL7035 Grey

Roll over image to zoom inClick to Open expanded view

Equip Safe Outdoor 19' Cabinet, 16U, 600X600MM, RAL7035 Grey

Name: Equip Safe Outdoor 19' Cabinet, 16U, 600X600MM, RAL7035 Grey
Brand: Equip
SKU: ESO-16-6060-G

SKU: ESO-16-6060-G

Log In to View Pricing

ETA 7 days

Equip Safe Outdoor 19' Cabinet, 16U, 600X600MM, RAL7035 Grey, Wall mounted rack, 16U, Key lock, 49 kg, Light grey

ETA 7 days

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Equip

Warranty
1 Year

SKU
ESO-16-6060-G

EAN
4015867232439

Bullet points

Point
16U cabinet, designed for optimal performance in every space

600X600MM Outdoor Cabinet

Ships preassembled for easy setup at your location

The cabinet comes with a robust steel frontdoor to prioritize security and long-lasting durability

Features

Adjustable depth
No

Adjustable feet
No

Adjustable stand
Yes

Assembly required
No

Back door construction
Steel

Back door key lock
No

Built-in UPS
No

Cable management
No

Castor wheels
No

Cooling type
Passive

Door opening angle
140°

Frame type
Closed

Front door construction
Steel

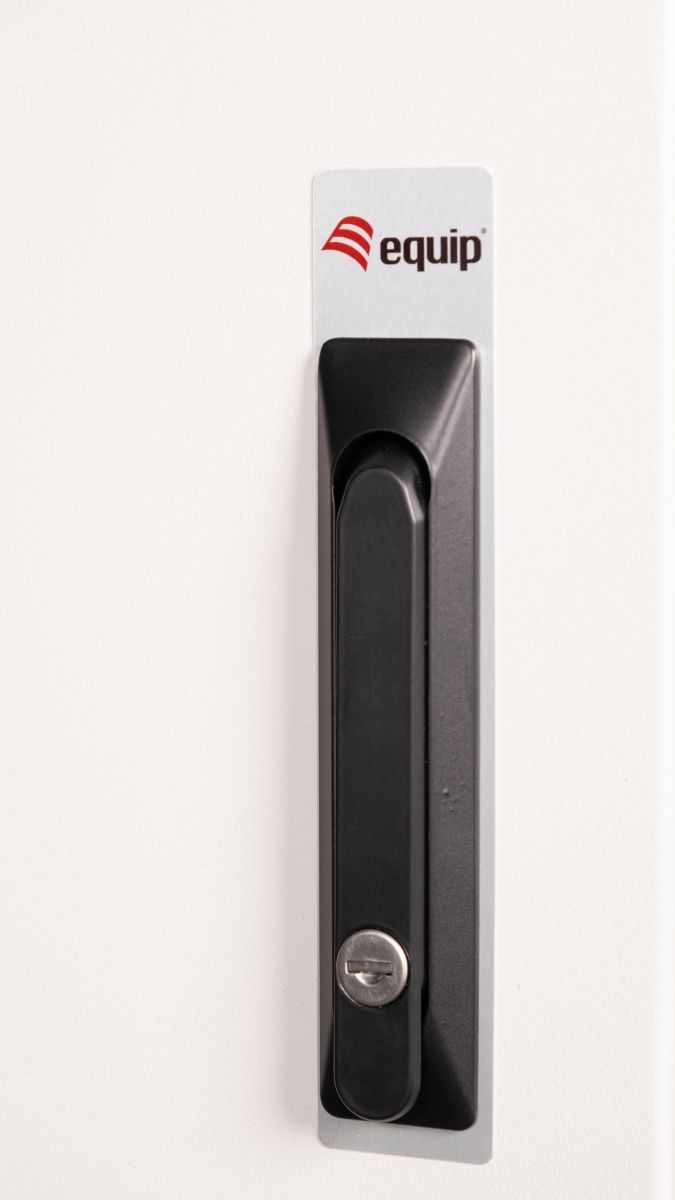

Front door key lock
Yes

International Protection (IP) code
IP55

Key lock
Yes

Main PDU
No

Material
Steel

Monitoring
No

Mounting hole shape
Square

Preassembled
Yes

Product colour
Light grey

Product design
2-post

Rack capacity
16U

Rack rail thickness
1.5 mm

Rack rails
No

Removable back door
No

Removable front door
Yes

Removable side panels
No

Side panel construction
Steel

Side panel key lock
No

Side panels included
No

Soundproof
No

Stabilising foot screw
No

Type
Wall mounted rack

Logistics data

Country of origin
Turkey

Harmonized System (HS) code
853710980019

Products per master (outer) case
1 pc(s)

Other features

Layers per pallet
2 pc(s)

Master (outer) cases per pallet
8 pc(s)

Packaging data

Grounding kit
Yes

Manual
No

Mounting kit
No

Number of nuts
1

Nuts included
Yes

Package depth
630 mm

Package height
910 mm

Package width
690 mm

Plinth panel
No

Quick installation guide
No

Screws included
No

Temperature sensor
No

Wall mounting kit
Yes

Technical details

Pallet gross weight
434 kg

Pallet net height
2 m

Pallet net length
130 cm

Pallet net weight
18 kg

Pallet net width
130 cm

Total carbon footprint (kg of CO2e)
8.379

Weight & dimensions

Depth
600 mm

Height
891 mm

Inner depth
59.5 cm

Inner height
71.1 cm

Inner width
59.5 cm

Mounting depth (max)
53.5 cm

Mounting depth (min)
26 cm

Size (imperial)
49.5 cm (19.5")

Weight
49 kg

Width
600 mm

Description

Equip Safe Outdoor 19' Cabinet, 16U, 600X600MM, RAL7035 Grey. Type: Wall mounted rack, Rack capacity: 16U, Key lock, International Protection (IP) code: IP55. Weight: 49 kg. Product colour: Light grey

16U Wall mounted rack
Frame type: Closed 2-post
Removable front door
Steel
Light grey
16U cabinet, designed for optimal performance in every space
600X600MM Outdoor Cabinet
Ships preassembled for easy setup at your location
The cabinet comes with a robust steel frontdoor to prioritize security and long-lasting durability
