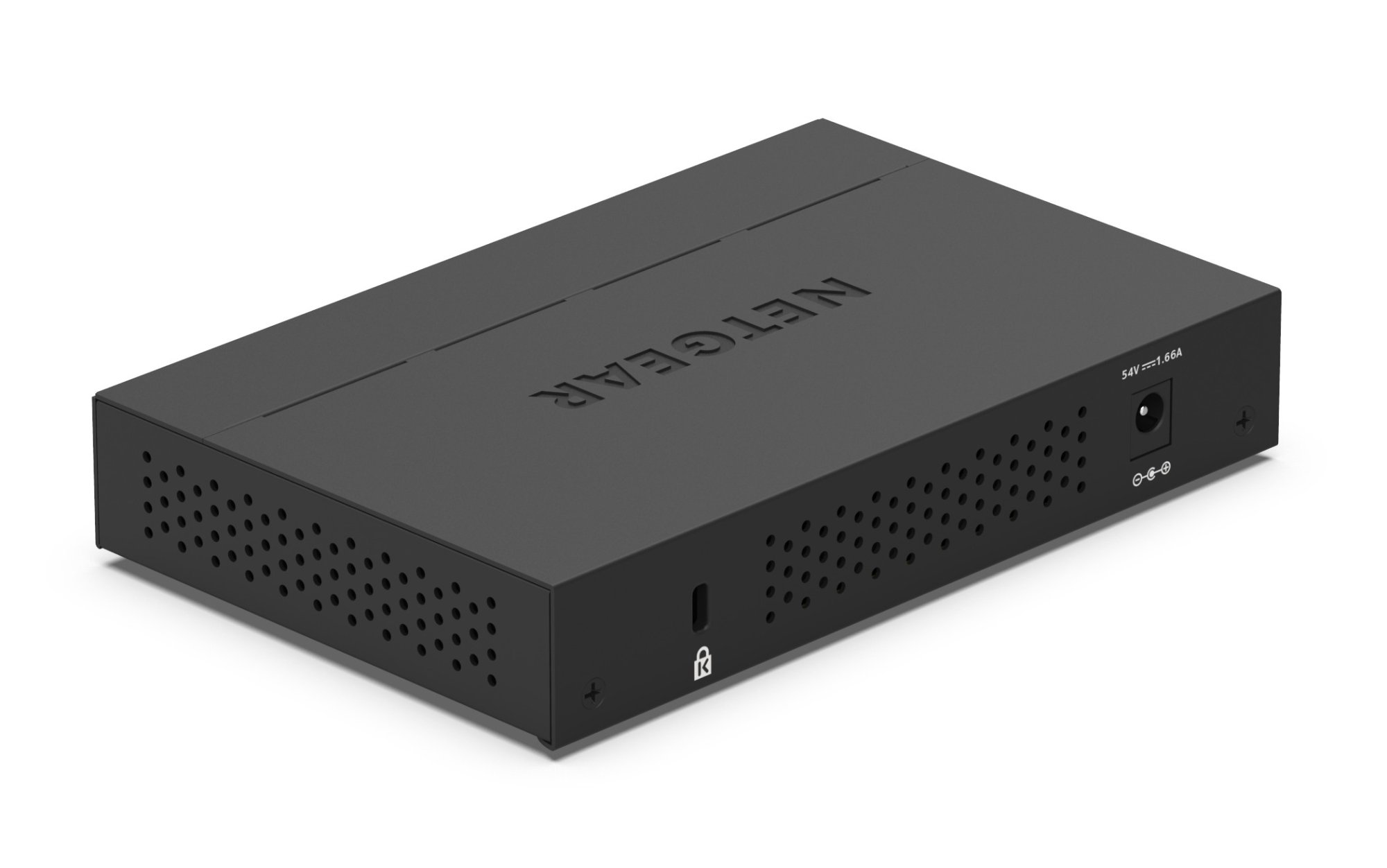

NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Roll over image to zoom inClick to Open expanded view

NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Name: NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Netgear
SKU: GS305PP-300EUS

SKU: GS305PP-300EUS

Log In to View Pricing

NETGEAR GS305PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
Lifetime

SKU
GS305PP-300EUS

EAN
606449164916

Certificates

Certification
CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE VD, CCC

Data transmission

Forwarding rate
1.448 Mpps

Jumbo frames
9216

Jumbo frames support
Yes

Latency (1 Gbps)
2.4 µs

MAC address table
2000 entries

Packet buffer memory
128 MB

Switching capacity
10 Gbit/s

Design

Housing material
Metal

LED indicators
Activity, Link, PoE, Power

Product colour
Black

Rack mounting
No

Reset button
Yes

Wall mountable
Yes

Logistics data

Master (outer) case gross weight
8.52 kg

Master (outer) case height
306 mm

Master (outer) case length
469 mm

Master (outer) case width
237 mm

Products per master (outer) case
6 pc(s)

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Auto-sensing
Yes

Cable length detection
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Full duplex
Yes

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Operational conditions

Heat dissipation
304 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Manual
Yes

Packaging data

Package depth
73 mm

Package height
215 mm

Package weight
1.3 kg

Package width
269 mm

Performance

Mean time between failures (MTBF)
6710127 h

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
5

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Power connector
DC-in jack

Switch Number of Ports
4

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

DC input voltage
54 V

Input current
1.66 A

Power consumption (max)
88.89 W

Power consumption (typical)
2.89 W

Power source
DC

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
4

Total Power over Ethernet (PoE) budget
83 W

Weight & dimensions

Depth
101 mm

Height
29 mm

Weight
410 g

Width
158 mm

Description

NETGEAR GS305PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 4
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 2000 entries Switching capacity: 10 Gbit/s
DC Power over Ethernet (PoE)
