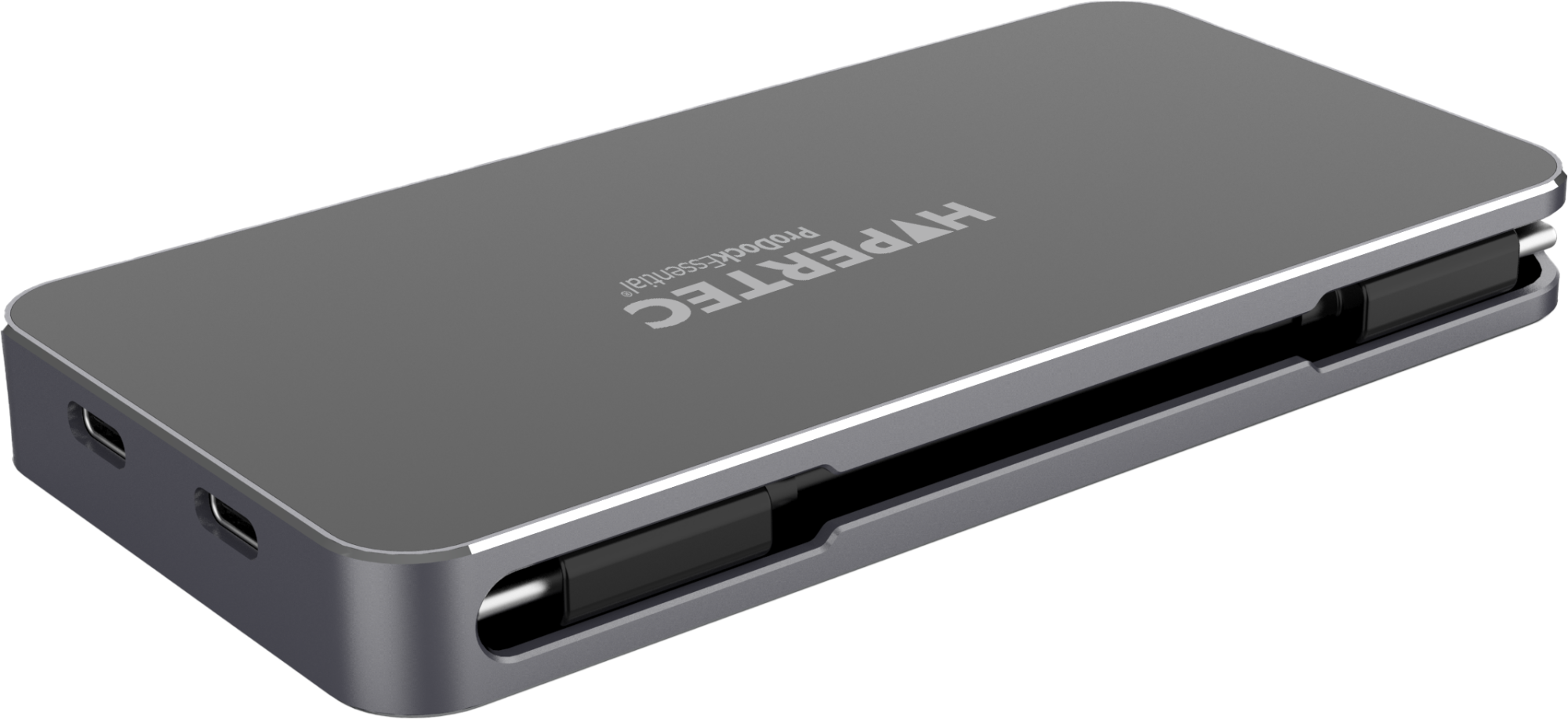

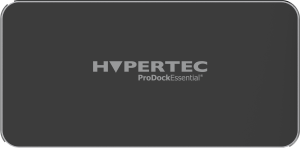

Hypertec ProDock EssentiaI - Universal USB-C Dock with HDMI, DisplayPort and Ethernet

Roll over image to zoom inClick to Open expanded view

Hypertec ProDockEssential 4 - Universal USB-C Dock with HDMI and DisplayPort Dual Screen 4K60 (Mirror and Extension) USB 3.0 Gigabit Ethernet 100W Power Delivery

Name: Hypertec ProDockEssential 4 - Universal USB-C Dock with HDMI and DisplayPort Dual Screen 4K60 (Mirror and Extension) USB 3.0 Gigabit Ethernet 100W Power Delivery
Brand: Hypertec
SKU: HYP-USBCPD-E4

SKU: HYP-USBCPD-E4

Log In to View Pricing

2220 In Stock

2220

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	2220	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

2220 In Stock

2220

Default

Warehouse	Stock	On Order	Lead Time/ETA*
Default	2220	0

Local warehouse items can be delivered in 24h after the order is received. Central Warehouse can be delivered within 5 working days. Configuration units made to order take 1 or 3 weeks dependant on vendor spec.

Lead Time*: Order will be placed with the Vendor once we receive an order.

ETA*: An order has been placed with the Vendor. Date advised is the time required for the order to be delivered to our Warehouse.

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Hypertec

Warranty
1 Year

SKU
HYP-USBCPD-E4

EAN
5050914183714

Audio

Built-in speaker(s)
No

Bullet points

Control unit

Remote control included
No

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Wake-on-LAN ready
Yes

Operational conditions

Operating temperature (T-T)
0 - 70 °C

Storage relative humidity (H-H)
0 - 85%

Storage temperature (T-T)
-10 - 55 °C

Other features

Maximum operating temperature
70 °C

USB data transfer rates
5000 Mbit/s

USB port
Yes

USB ports quantity
5

Packaging content

AC adapter included
No

Cables included
USB Type-C

Packaging data

Package dimensions (WxDxH)
150 x 133 x 20 mm

Quantity per pack
1 pc(s)

Performance

Brand compatibility
Universal

Built-in SSD
No

Cable lock slot
No

Card reader integrated
No

Certification
CE, FCC, RoHS, REACH

Charging function
Yes

Country of origin
China

Display modes
Single, Dual, SST mode, MST mode

Housing material
Plastic, Silicone, Aluminium

Maximum digital resolution
7680 x 4320 pixels

Maximum refresh rate
60 Hz

Number of displays supported
2

NVMe
No

On/off switch
No

Plug and Play
Yes

Product colour
Silver

Reset button
No

SSD enclosure
No

Ports & interfaces

Combo headphone/mic port
No

Connectivity technology
Wired

DC-in jack
No

DisplayPorts quantity
1

Dual antenna pass-through
No

DVI-D ports quantity
0

DVI-I ports quantity
0

eSATA ports quantity
0

eSATA/USB 2.0 ports quantity
0

Fiber ports quantity
0

Firewire (IEEE 1394) ports
0

FireWire 400 ports quantity
0

FireWire 800 ports quantity
0

HDCP
No

HDMI ports
1

Headphone outputs
0

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Micro-USB 2.0 ports quantity
0

Microphone in
No

Mini DisplayPorts quantity
0

Number of USB ports with PowerShare support
0

Parallel ports quantity
0

PCI Express slots quantity
0

PCI Express x16 slots
0

PowerShare
No

PS/2 ports quantity
0

Serial ports quantity
0

Thunderbolt 2 ports quantity
0

Thunderbolt 3 ports quantity
0

Thunderbolt 3 Power Delivery up to
0 W

Thunderbolt 4 ports quantity
0

Thunderbolt 5 ports quantity
0

Thunderbolt ports quantity
0

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0

USB connector type
USB Type-C

USB Power Delivery (USB PD)
Yes

USB Power Delivery up to
85 W

USB Type-C DisplayPort Alternate Mode
No

USB4 ports quantity
0

VGA (D-Sub) ports quantity
0

Power

Power source type
USB

Power supply
100 W

USB cable length
0.1 m

Wireless charging
No

Software

Mac compatibility
Yes

Mac operating systems supported
Yes

Windows operating systems supported
Yes

Technical details

Warranty period
1 year(s)

Weight & dimensions

Depth
127 mm

Height
14 mm

Weight
103 g

Width
63 mm

Description

Hypertec ProDockEssential 4 - Universal USB-C Dock with HDMI and DisplayPort Dual Screen 4K60 (Mirror and Extension) USB 3.0 Gigabit Ethernet 100W Power Delivery.
