Name: Intel Core i5-10505 (12Mo Cache, 3.2GHz), 16Go DDR4-SDRAM, 256Go SSD, DVD±RW, Intel UHD Graphics 630, LAN, Windows 10 Pro 64-bit
Brand: Dell
SKU: GX27H

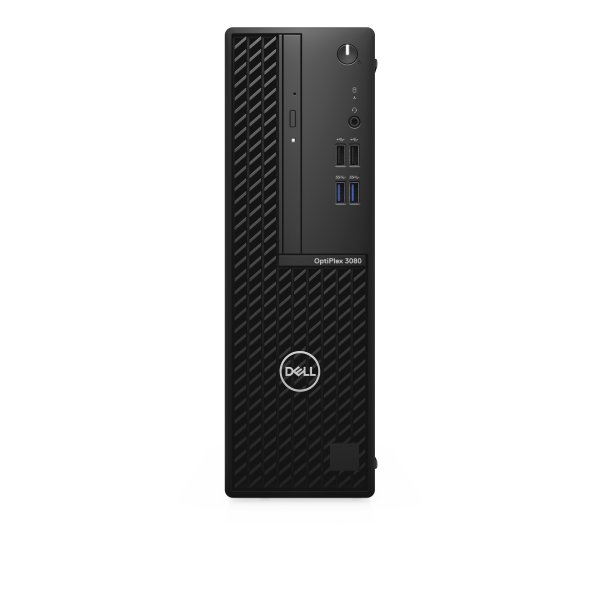

DELL OptiPlex 3080 Intel® Core™ i5 i5-10505 16 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro SFF PC Black

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Dell

Device type
Desktop PC

Bullet points

Design

Chassis type
SFF

Product colour
Black

Filters

Machinecategory
Personal computer

Graphics

Discrete graphics card
No

Discrete graphics card model
Not available

On-board GPU manufacturer
Intel

On-board graphics card
Yes

On-board graphics card model
Intel® UHD Graphics 630

Memory

Internal memory type
DDR4-SDRAM

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory Slot Support
64 GB

Memory slots
2x DIMM

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Operational conditions

Non-operating shock
105 G

Non-operating vibration
1.37 G

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
10 - 35 °C

Operating vibration
0.26 G

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 65 °C

Packaging content

Cables included
AC

Display included
No

Input device model
KB216,MS116

Keyboard included on selected markets only
Yes

Mouse included on selected markets only
Yes

Performance

Audio chip
Realtek ALC3246

Audio system
High Definition Audio

Password protection
Yes

Product type
PC

Trusted Platform Module (TPM)
Yes

Ports & interfaces

Combo headphone/mic port
Yes

DisplayPort version
1.4

DisplayPorts quantity
1

DVI port
No

Ethernet LAN (RJ-45) ports
1

HDMI ports
1

HDMI version
1.4

Line-out
Yes

Microphone in
No

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

Power

Power supply
200 W

Power supply input frequency
47 - 63 Hz

Power supply input voltage
90 - 264 V

Processor

Number of Cores
6

Number of processors installed
1

Processor
i5-10505

Processor boost frequency
4.6 GHz

Processor cache
12 MB

Processor family
Intel® Core™ i5

Processor frequency
3.2 GHz

Processor generation
10th gen Intel® Core™ i5

Processor manufacturer
Intel

Processor special features

CPU configuration (max)
1

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Clear Video Technology
Yes

Intel Software Guard Extensions (Intel SGX)
Yes

Intel Stable Image Platform Program (SIPP)
Yes

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Operating system architecture
64-bit

Operating system installed
Windows 10 Pro

Operating system language
Multilingual

Trial software
Microsoft Office

Storage

Card reader integrated
No

Number of SSDs installed
1

Number of storage drives installed
1

NVMe
Yes

Optical drive type
DVD±RW

SSD capacity
256 GB

SSD form factor
M.2

SSD interface
NVMe, PCI Express

Storage Capacity
256 GB

Storage type
SSD

Total SSDs capacity
256 GB

Weight & dimensions

Depth
292.8 mm

Height
290 mm

Weight
5.02 kg

Width
92.6 mm

Memory

Internal memory type
DDR4-SDRAM

Memory Installed
16 GB

Memory Slot Support
64 GB

Memory slots
2x DIMM

Processor

Processor
i5-10505

Processor generation
10th gen Intel® Core™ i5
