• Bullet points

• Point
• 8 GB DDR4-SDRAM, 256 GB SSD
  Intel Core i5-8400T (1.7 GHz)
  Intel UHD Graphics 630
  Windows 10 Pro 64-bit

• Design

• Chassis type

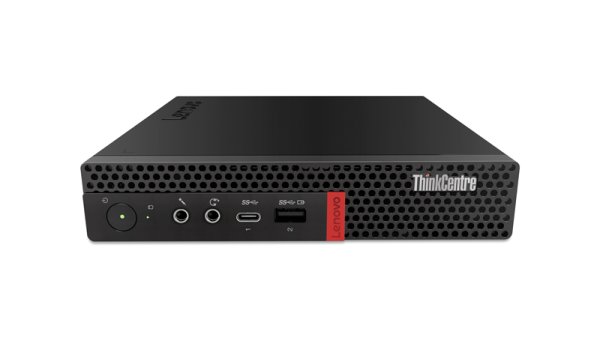

• mini PC

• Housing material
• Metal

• Intel® vPro™ Platform Eligibility
• No

• Placement supported
• Horizontal/Vertical

• Product colour
• Black

• Volume
• 1 L

• Filters

• Machinecategory
• Personal computer

• Graphics

• Discrete graphics card
• No

• Discrete graphics card model
• Not available

• Maximum on-board graphics card memory
• 64 GB

• Number of displays supported (on-board graphics)
• 3

• On-board graphics card
• Yes

• On-board graphics card base frequency
• 350 MHz

• On-board graphics card DirectX version
• 12.0

• On-board graphics card dynamic frequency (max)
• 1050 MHz

• On-board graphics card family
• Intel® UHD Graphics

• On-board graphics card ID
• 0x3E92

• On-board graphics card model
• Intel® UHD Graphics 630

• On-board graphics card OpenGL version
• 4.5

• Memory

• Internal memory type
• DDR4-SDRAM

• Memory channels
• Dual-channel

• Memory Installed
• 8 GB

• Memory layout (slots x size)
• 1 x 8 GB

• Memory Slot Support
• 32 GB

• Memory slots
• 2x SO-DIMM

• Non-ECC
• Yes

• Network

• Bluetooth
• Yes

• Bluetooth version
• 4.2

• Cabling technology
• 10/100/1000Base-T(X)

• Ethernet LAN
• Yes

• Ethernet LAN data rates
• 10,100,1000 Mbit/s

• Top Wi-Fi standard
• Wi-Fi 5 (802.11ac)

• Wi-Fi
• Yes

• Wi-Fi standards
• 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

• Packaging content

• Display included
• No

• Manual
• Yes

• Performance

• Audio chip
• Realtek ALC233VB2

• Motherboard chipset
• Intel® B360

• Password protection
• Yes

• Password protection type
• HDD, Power on, Supervisor

• Product type
• Mini PC

• Trusted Platform Module (TPM)
• Yes

• Ports & interfaces

• Combo headphone/mic port
• Yes

• DisplayPorts quantity
• 1

• DVI port
• No

• Ethernet LAN (RJ-45) ports
• 1

• HDMI ports
• 1

• Headphone outputs
• 1

• Microphone in
• Yes

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
• 3

• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
• 1

• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
• 2

• Power

• Power supply
• 65 W

• Processor

• Bus type
• DMI3

• Configurable TDP-down
• 25 W

• Configurable TDP-down frequency
• 1.2 GHz

• ECC supported by processor
• No

• Maximum internal memory supported by processor
• 64 GB

• Maximum number of PCI Express lanes
• 16

• Memory bandwidth supported by processor (max)
• 41.6 GB/s

• Memory clock speeds supported by processor
• 2666 MHz

• Memory types supported by processor
• DDR4-SDRAM

• Number of Cores
• 6

• Number of processors installed
• 1

• PCI Express configurations
• 1x16, 1x8+2x4, 2x8

• PCI Express slots version
• 3.0

• Processor
• i5-8400T

• Processor boost frequency
• 3.3 GHz

• Processor cache
• 9 MB

• Processor cache type
• Smart Cache

• Processor codename
• Coffee Lake

• Processor family
• Intel® Core™ i5

• Processor frequency
• 1.7 GHz

• Processor generation
• 8th gen Intel® Core™ i5

• Processor lithography
• 14 nm

• Processor manufacturer
• Intel

• Processor operating modes
• 64-bit

• Processor socket
• LGA 1151 (Socket H4)

• Processor threads
• 6

• Stepping
• U0

• System bus rate
• 8 GT/s

• Thermal Design Power (TDP)
• 35 W

• Tjunction
• 100 °C

• Processor special features

• Conflict-Free processor
• Yes

• CPU configuration (max)
• 1

• Embedded options available
• No

• Enhanced Intel SpeedStep Technology
• Yes

• Execute Disable Bit
• Yes

• Idle States
• Yes

• Intel 64
• Yes

• Intel Clear Video Technology
• Yes

• Intel Enhanced Halt State
• Yes

• Intel Identity Protection Technology version
• 1.00

• Intel Secure Key Technology version
• 1.00

• Intel Software Guard Extensions (Intel SGX)
• Yes

• Intel Stable Image Platform Program (SIPP)
• No

• Intel Stable Image Platform Program (SIPP) version
• 0.00

• Intel Trusted Execution Technology
• No

• Intel TSX-NI
• No

• Intel TSX-NI version
• 0.00

• Intel Virtualization Technology (VT-x)
• Yes

• Intel Virtualization Technology for Directed I/O (VT-d)
• Yes

• Intel VT-x with Extended Page Tables (EPT)
• Yes

• Intel® AES New Instructions (Intel® AES-NI)
• Yes

• Intel® Clear Video HD Technology (Intel® CVT HD)
• Yes

• Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
• Yes

• Intel® Hyper Threading Technology (Intel® HT Technology)
• No

• Intel® Identity Protection Technology (Intel® IPT)
• Yes

• Intel® InTru™ 3D Technology
• Yes

• Intel® OS Guard
• Yes

• Intel® Quick Sync Video Technology
• Yes

• Intel® Secure Key
• Yes

• Intel® Turbo Boost Technology
• 2.0

• Processor ARK ID
• 129940

• Processor code
• SR3X6

• Processor package size
• 37.5 x 37.5 mm

• Scalability
• 1S

• Supported instruction sets
• AVX 2.0, SSE4.1, SSE4.2

• Thermal Monitoring Technologies
• Yes

• Thermal solution specification
• PCG 2015A

• Software

• Operating system architecture
• 64-bit

• Operating system installed
• Windows 10 Pro

• Storage

• Card reader integrated
• No

• Number of SSDs installed
• 1

• Optical drive type
• No

• SSD capacity
• 256 GB

• Storage Capacity
• 256 GB

• Storage type
• SSD

• Sustainability

• Sustainability certificates
• RoHS, EPEAT Gold, ENERGY STAR

• Weight & dimensions

• Depth
• 182.9 mm

• Height
• 34.5 mm

• Weight
• 1.32 kg

• Width
• 179 mm
