Name: Intel Core i9-7940X (19.25MB Cache, 3.1GHz), 16GB DDR4-SDRAM, 256GB SSD, DVD-RW, LAN, Windows 10 Pro 64-bit
Brand: HP
SKU: 3MC04ES#ABU

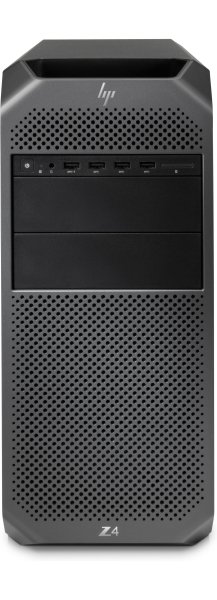

HP Z4 G4 Intel® Core™ i9 X-series i9-7940X 16 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Mini Tower Workstation Black

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
HP

Device type
Workstation

Brand-specific features

HP segment
Business

Bullet points

Design

Cable lock slot
Yes

Chassis type
Mini Tower

Country of origin
China

Placement supported
Vertical

Product colour
Black

Filters

Machinecategory
Workstation

Graphics

Discrete graphics card
No

Discrete graphics card model
Not available

On-board graphics card
No

On-board graphics card model
Not available

Memory

Internal memory type
DDR4-SDRAM

Memory channels
Quad-channel

Memory clock speed
2666 MHz

Memory Installed
16 GB

Memory layout (slots x size)
4 x 4 GB

Memory Slot Support
128 GB

Memory slots
8x DIMM

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Wi-Fi
No

Other features

Optical drives quantity
1

Packaging content

Display included
No

Keyboard included
Yes

Mouse included
Yes

Performance

Product type
Workstation

Ports & interfaces

Combo headphone/mic port
Yes

DVI port
No

Ethernet LAN (RJ-45) ports
1

Line-in
Yes

Line-out
Yes

Microphone in
No

PS/2 ports quantity
2

Processor

Bus type
DMI3

ECC supported by processor
No

Maximum internal memory supported by processor
128 GB

Maximum number of PCI Express lanes
44

Memory clock speeds supported by processor
2666 MHz

Memory types supported by processor
DDR4-SDRAM

Memory voltage supported by processor
1.2 V

Number of Cores
14

Number of processors installed
1

PCI Express slots version
3.0

Processor
i9-7940X

Processor boost frequency
4.3 GHz

Processor cache
19.25 MB

Processor cache type
Smart Cache

Processor codename
Skylake

Processor family
Intel® Core™ i9 X-series

Processor frequency
3.1 GHz

Processor generation
7th gen Intel® Core™ i9

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor socket
LGA 2066 (Socket R4)

Processor threads
28

System bus rate
8 GT/s

Thermal Design Power (TDP)
165 W

Tjunction
102 °C

Processor special features

Conflict-Free processor
Yes

CPU configuration (max)
1

Embedded options available
No

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Intel 64
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
126695

Processor package size
52.5 x 45 mm

Scalability
1S

Supported instruction sets
AVX 2.0, AVX-512, SSE4.1, SSE4.2

Thermal solution specification
PCG 2017X

Software

Operating system architecture
64-bit

Operating system installed
Windows 10 Pro

Storage

Number of SSDs installed
1

Optical drive type
DVD-RW

SSD capacity
256 GB

Storage Capacity
256 GB

Storage type
SSD

Total SSDs capacity
256 GB

Weight & dimensions

Depth
445 mm

Height
386 mm

Weight
10.2 kg

Width
169 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2666 MHz

Memory Installed
16 GB

Memory Slot Support
128 GB

Memory slots
8x DIMM

Processor

Processor
i9-7940X

Processor generation
7th gen Intel® Core™ i9
