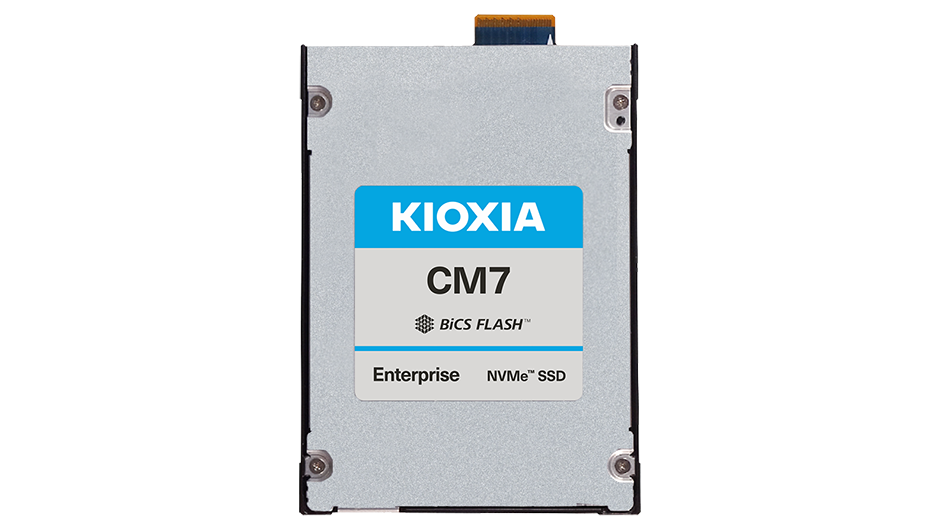

Kioxia CM7-R 1.92 TB E3.S PCI Express 5.0 NVMe BiCS FLASH TLC

Roll over image to zoom inClick to Open expanded view

Kioxia CM7-R 1.92 TB E3.S PCI Express 5.0 NVMe BiCS FLASH TLC

Name: Kioxia CM7-R 1.92 TB E3.S PCI Express 5.0 NVMe BiCS FLASH TLC
Brand: Kioxia
SKU: KCM7XRJE1T92

SKU: KCM7XRJE1T92

Log In to View Pricing

Currently out of Stock

Kioxia CM7-R, 1.92 TB, E3.S, 14000 MB/s

Currently out of Stock

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Kioxia

Warranty
3 Years

SKU
KCM7XRJE1T92

EAN
4582563857599

Bullet points

Point
Dual-port design for high availability applications

Form factor: E3.S, 7.5 mm thickness

High performance with lower power consumption

Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)

PCIe® 5.0, NVMe™ 2.0 specification compliant

Power loss protection (PLP) and end-to-end data protection

Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC

Security options: SIE, SED, FIPS SED

Suited for 24x7 enterprise workloads

Features

Component for
Server/workstation

End-to-End Data Protection
Yes

H/W PLP function
Yes

Interface
PCI Express 5.0

Market segment
Server

Mean time between failures (MTBF)
2500000 h

Memory type
BiCS FLASH TLC

NVMe
Yes

NVMe version
2.0

Random read (4KB)
2000000 IOPS

Random write (4KB)
155000 IOPS

Read speed
14000 MB/s

SSD capacity
1.92 TB

SSD form factor
E3.S

Target workload
Read Intensive (RI)

Use conditions
Server/Enterprise

Write speed
3500 MB/s

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating shock
1 G

Operating temperature (T-T)
0 - 76 °C

Operating vibration
2.17 G

Storage temperature (T-T)
-40 - 85 °C

Power

Operating voltage
12 V

Power consumption (average)
21 W

Power consumption (standby)
5 W

Description

Kioxia CM7-R. SSD capacity: 1.92 TB, SSD form factor: E3.S, Read speed: 14000 MB/s, Write speed: 3500 MB/s, Component for: Server/workstation

1.92 TB E3.S PCI Express 5.0
Read speed: 14000 MB/s 2000000 IOPS
Write speed: 3500 MB/s 155000 IOPS
BiCS FLASH TLC NVMe 2.0
Component for: Server/workstation
PCIe® 5.0, NVMe™ 2.0 specification compliant
Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
Form factor: E3.S, 7.5 mm thickness
Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
Dual-port design for high availability applications
High performance with lower power consumption
Power loss protection (PLP) and end-to-end data protection
Suited for 24x7 enterprise workloads
Security options: SIE, SED, FIPS SED
