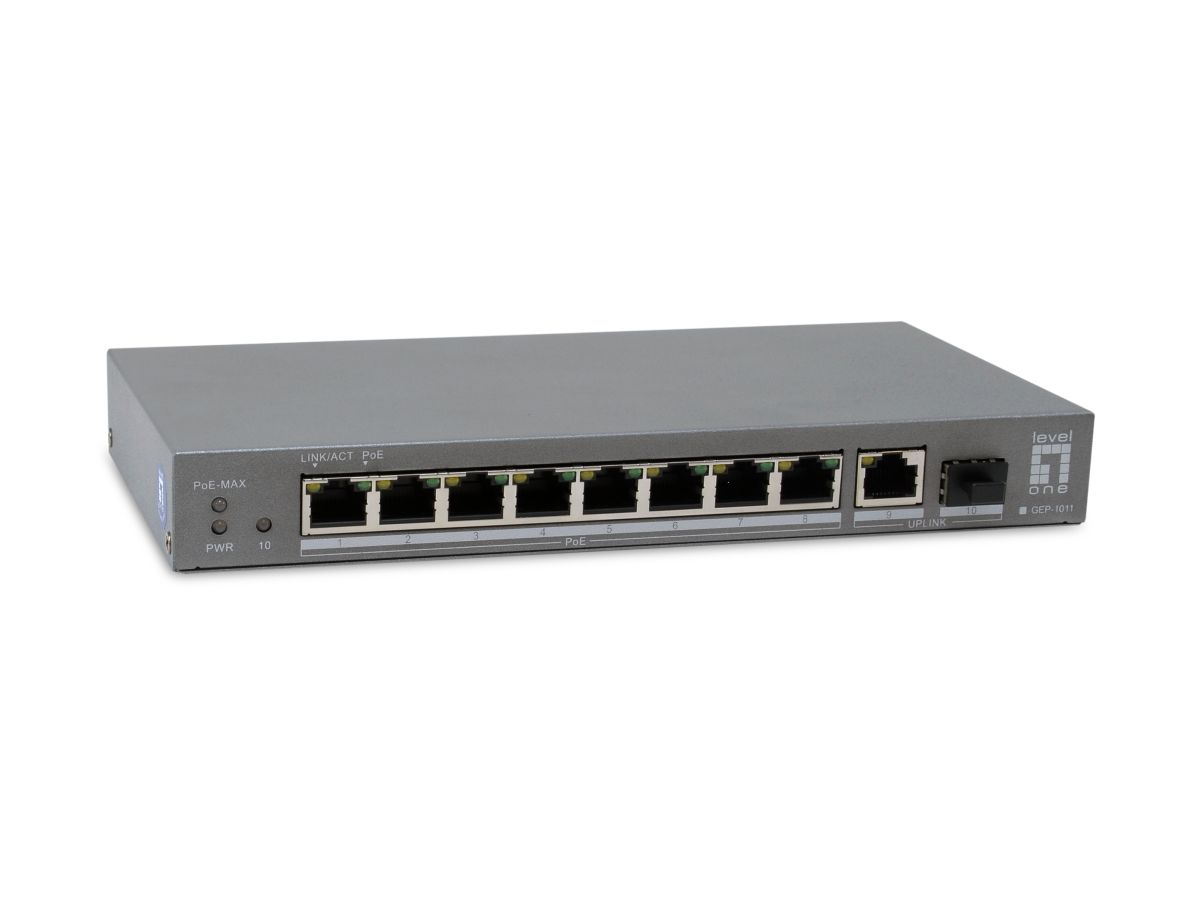

LevelOne 10-Port Gigabit PoE Switch, 802.3af/at PoE, 8 PoE Outputs, 120W Power Budget, 1 x Gigabit SFP, 1 x Gigabit RJ45 Uplink. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. Full duplex. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Form factor: Desktop/Wall-Mounting
- Unmanaged L2
- Basic switching RJ-45 Ethernet ports quantity: 9
- 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-SX, 1000BASE-LX
- MAC address table: 4000 entries Switching capacity: 20 Gbit/s
- Desktop/Wall-Mounting

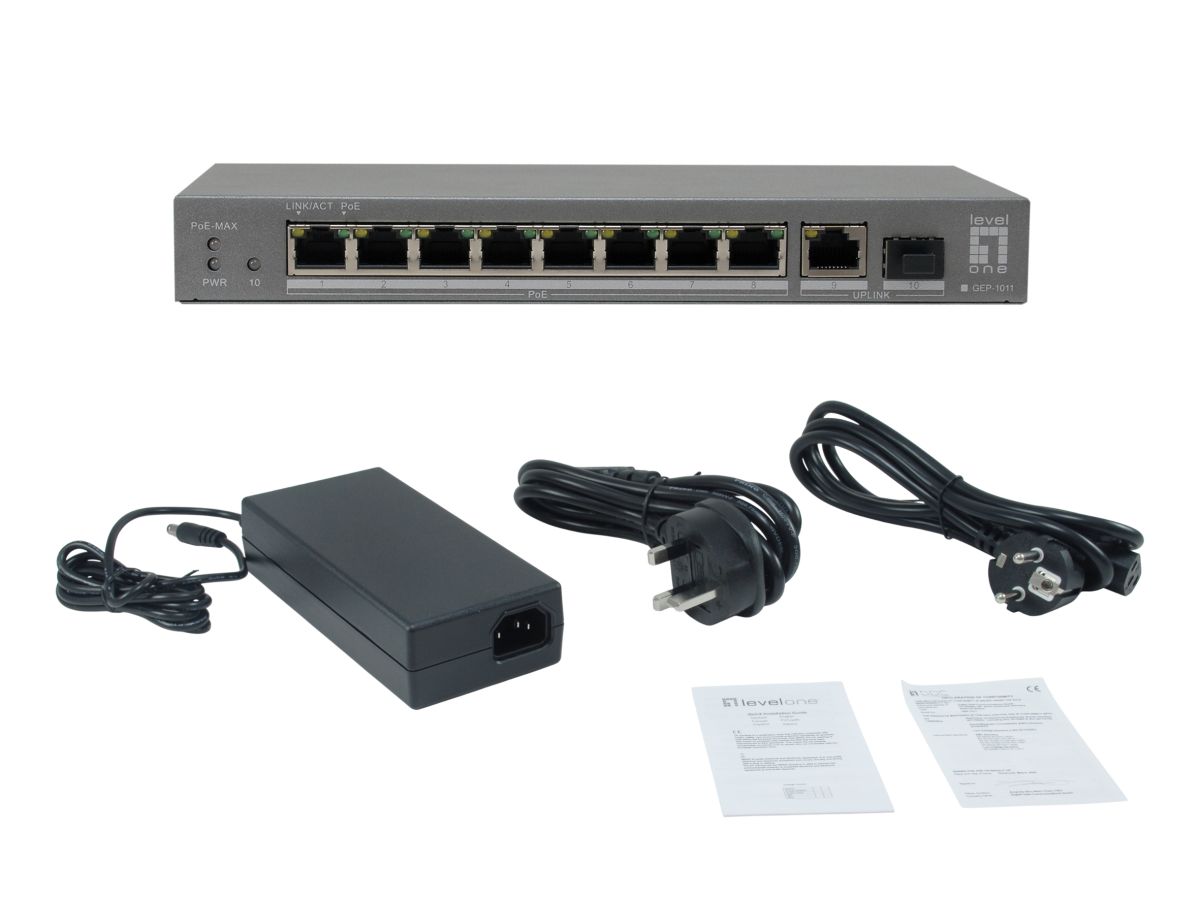

- DC Power supply included Power over Ethernet (PoE)

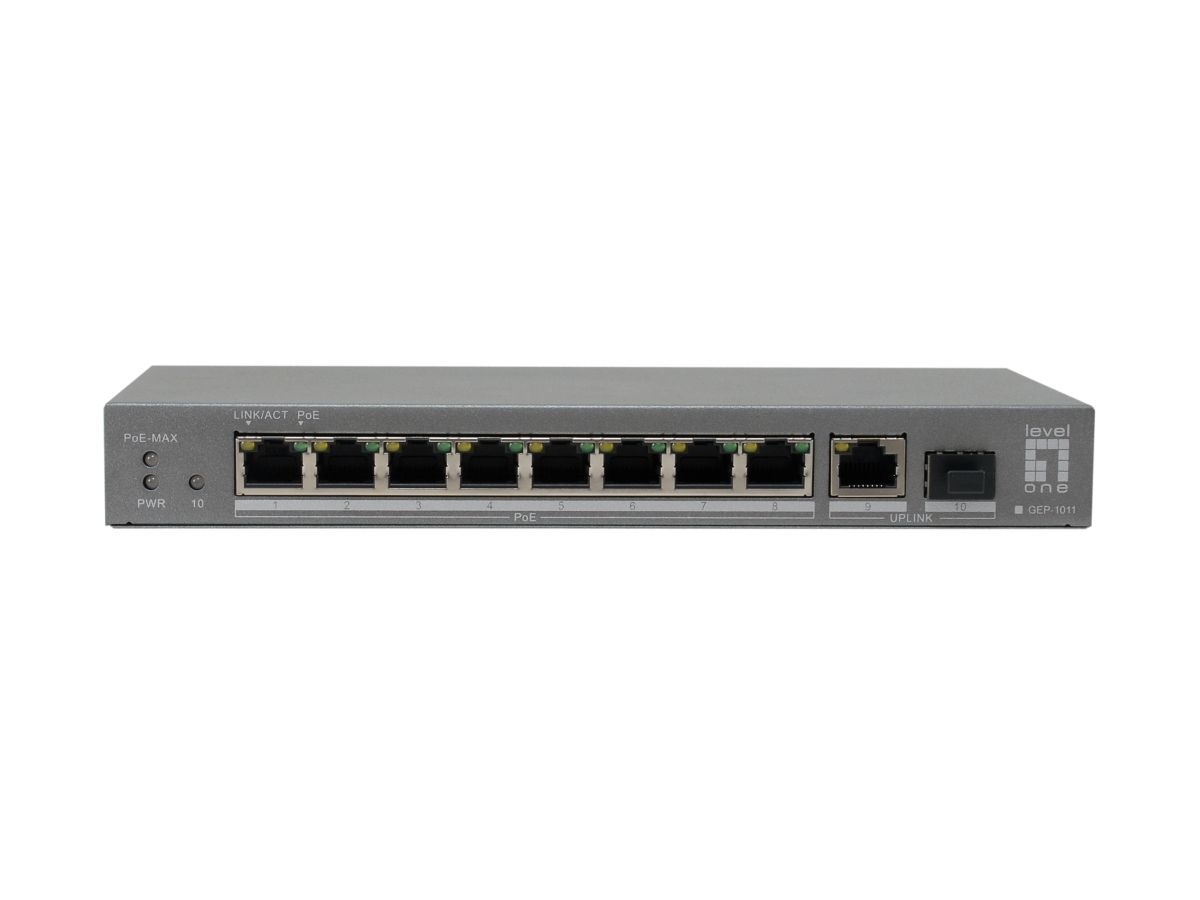

- Versatile Port Layout: 8 x Gigabit PoE ports, 1 x Gigabit RJ45 uplink and 1 x 1000Base-X SFP uplink for flexible network design.
- PoE Standards: IEEE 802.3af/at compliant, delivering data and power over a single Ethernet cable.
- 120W PoE Budget: Total PoE power budget of 120W with up to 30W available per PoE port for IP cameras, APs and VoIP phones.
- Safe Power Delivery: PoE detection and overload protection help prevent damage to non-PoE devices and over-current conditions.
- Fiber Uplink Ready: 1 x 1000Base-X SFP slot for long-distance fiber uplinks to core switches or server rooms.
- Rugged Reliability: 6KV surge protection improves resilience in harsher electrical environments.
- Easy Deployment: Unmanaged, plug-and-play design with auto-negotiation and auto-MDI/MDIX on all copper ports.

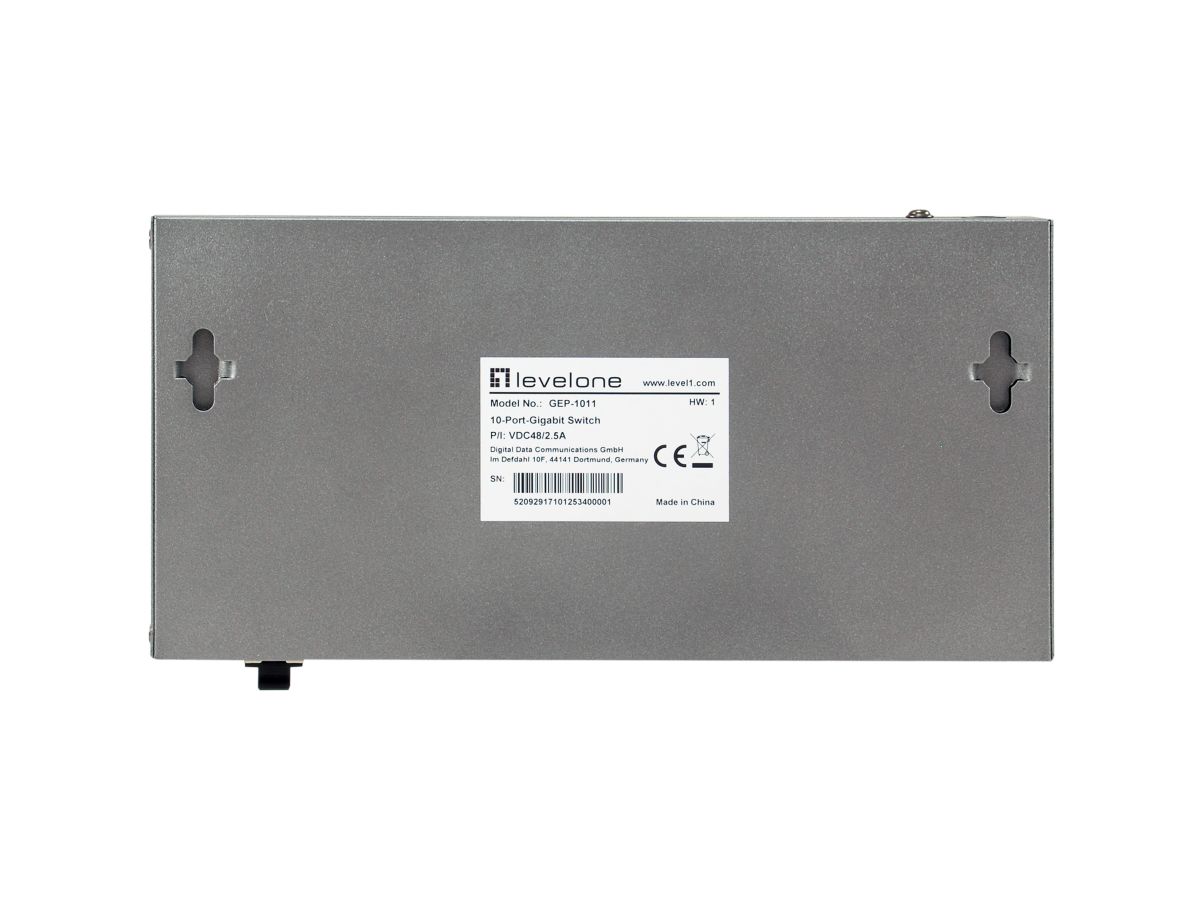

- Flexible Installation: Compact housing with wall-mount support for use in wiring closets, security rooms or small IT spaces.
- Ideal for: SMB surveillance, Wi-Fi coverage and VoIP infrastructures needing a simple PoE edge switch.
|
