LevelOne 5-Port Gigabit PoE Switch, 802.3af/at/bt PoE, 4 PoE Outputs, 60W Power Budget, Long-Range PoE with Watchdog. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 48 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Form factor: Desktop/Wall-Mounting
- Unmanaged L2
- Basic switching RJ-45 Ethernet ports quantity: 5
- 1000BASE-T, 10BASE-T, 100BASE-TX
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s

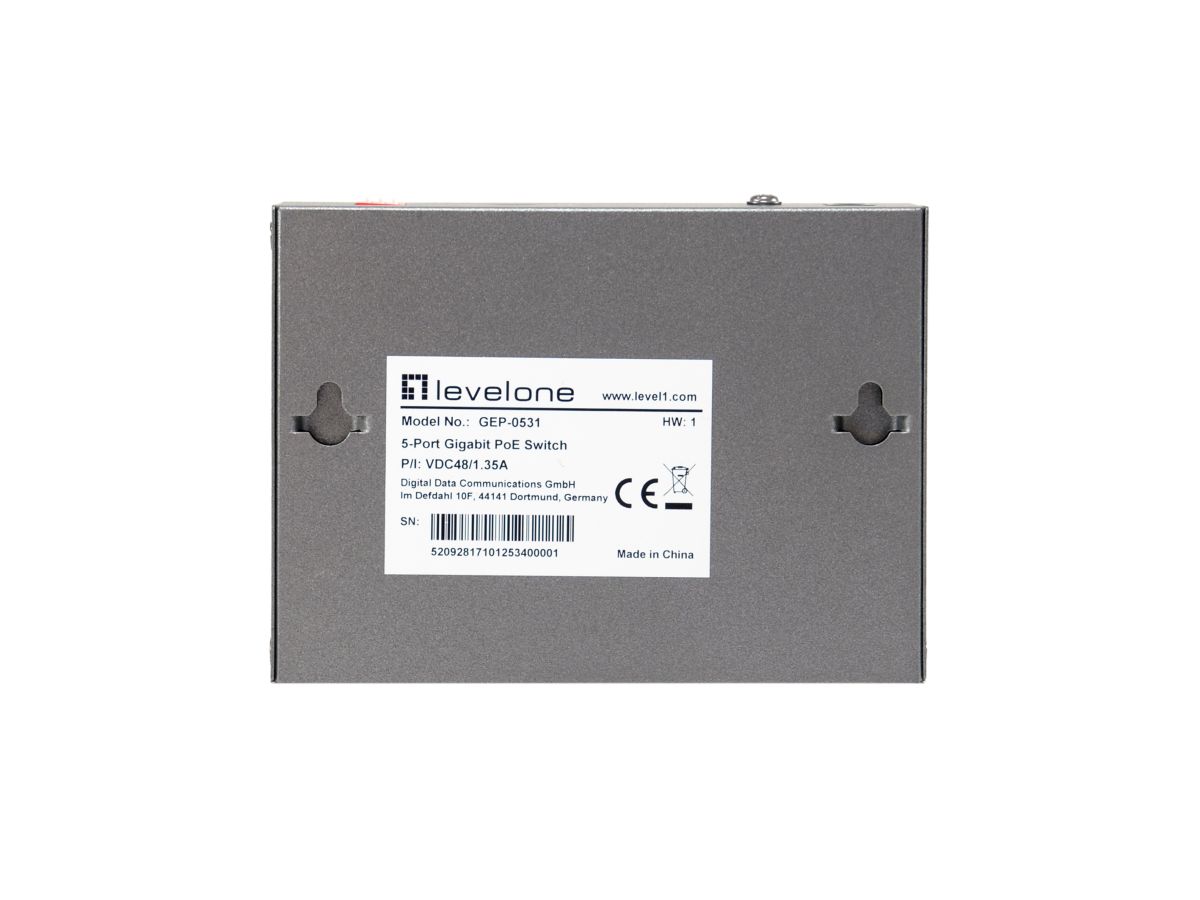

- Desktop/Wall-Mounting

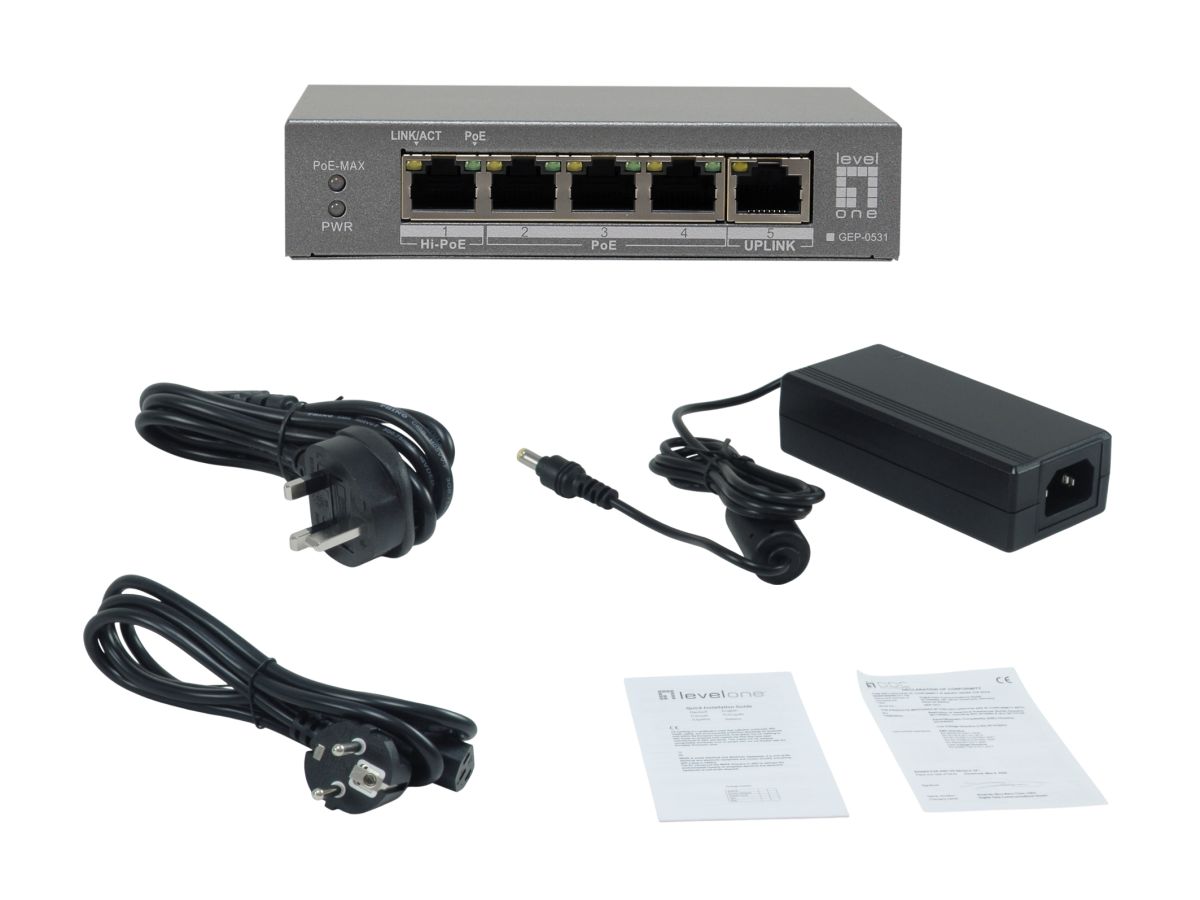

- DC Power supply included Power over Ethernet (PoE)

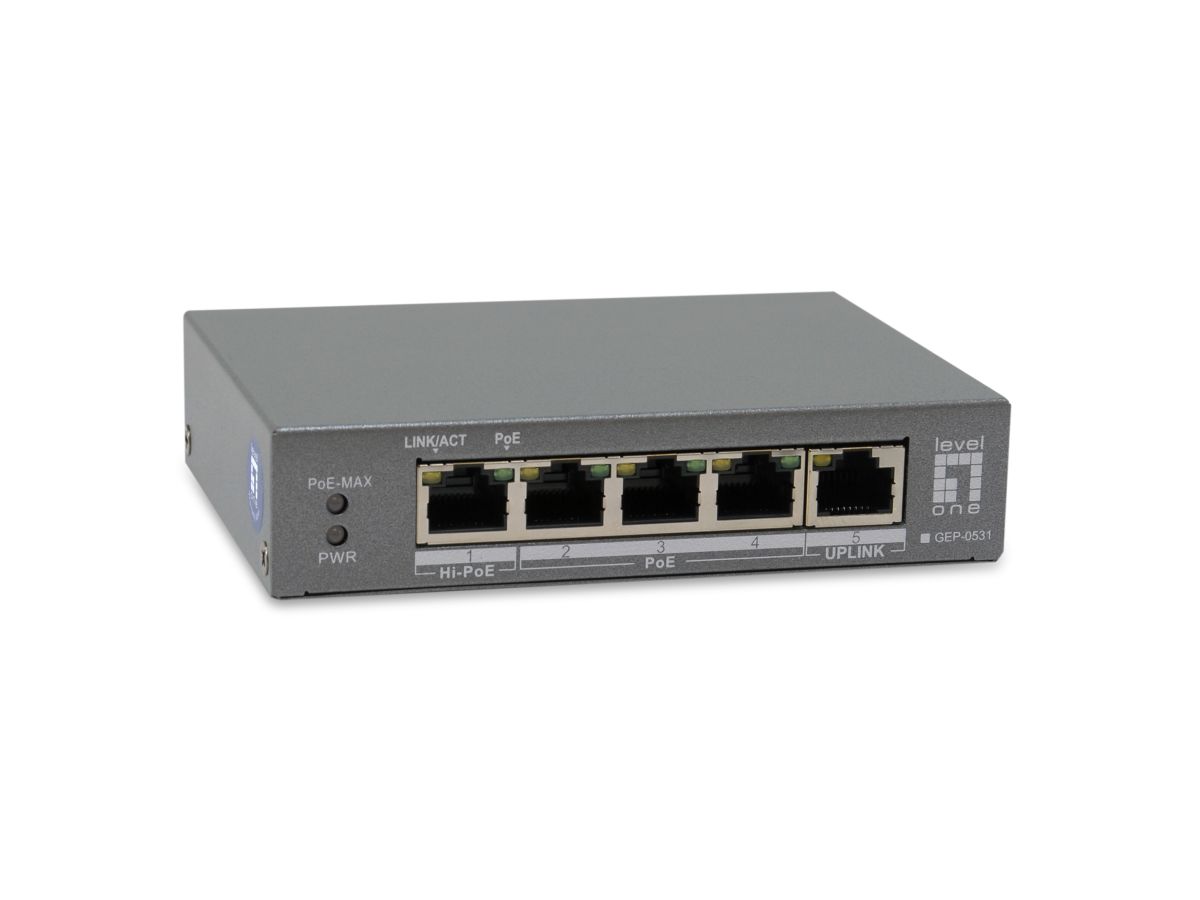

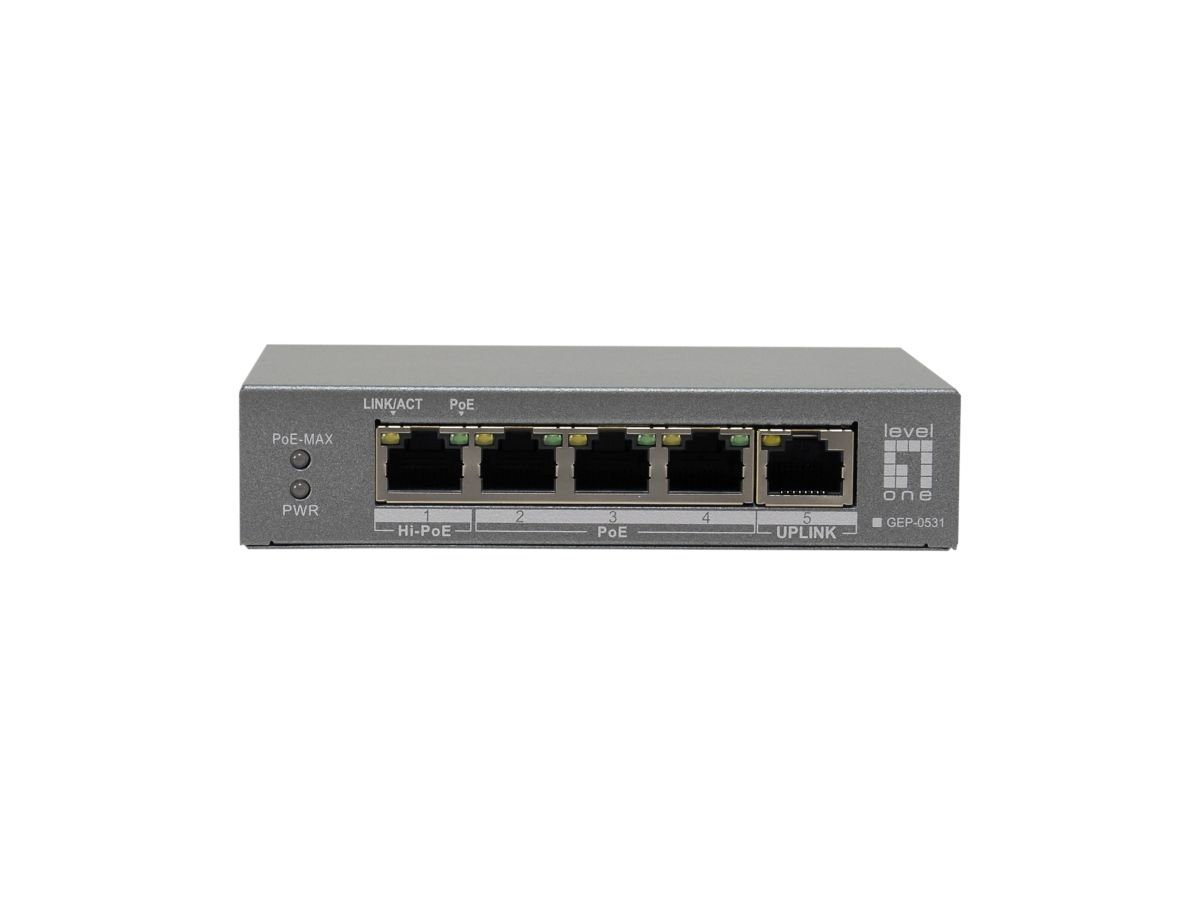

- Flexible Gigabit PoE: 5-port Gigabit desktop switch with 4 PoE ports and 1 uplink port for small office and home deployments.
- High-Power Hi-PoE: IEEE 802.3af/at/bt support with Port 1 delivering up to 60W for PTZ cameras and high-power access points.
- 60W PoE Budget: Total 60W PoE power shared across 4 ports, with up to 30W available on Ports 2–4.

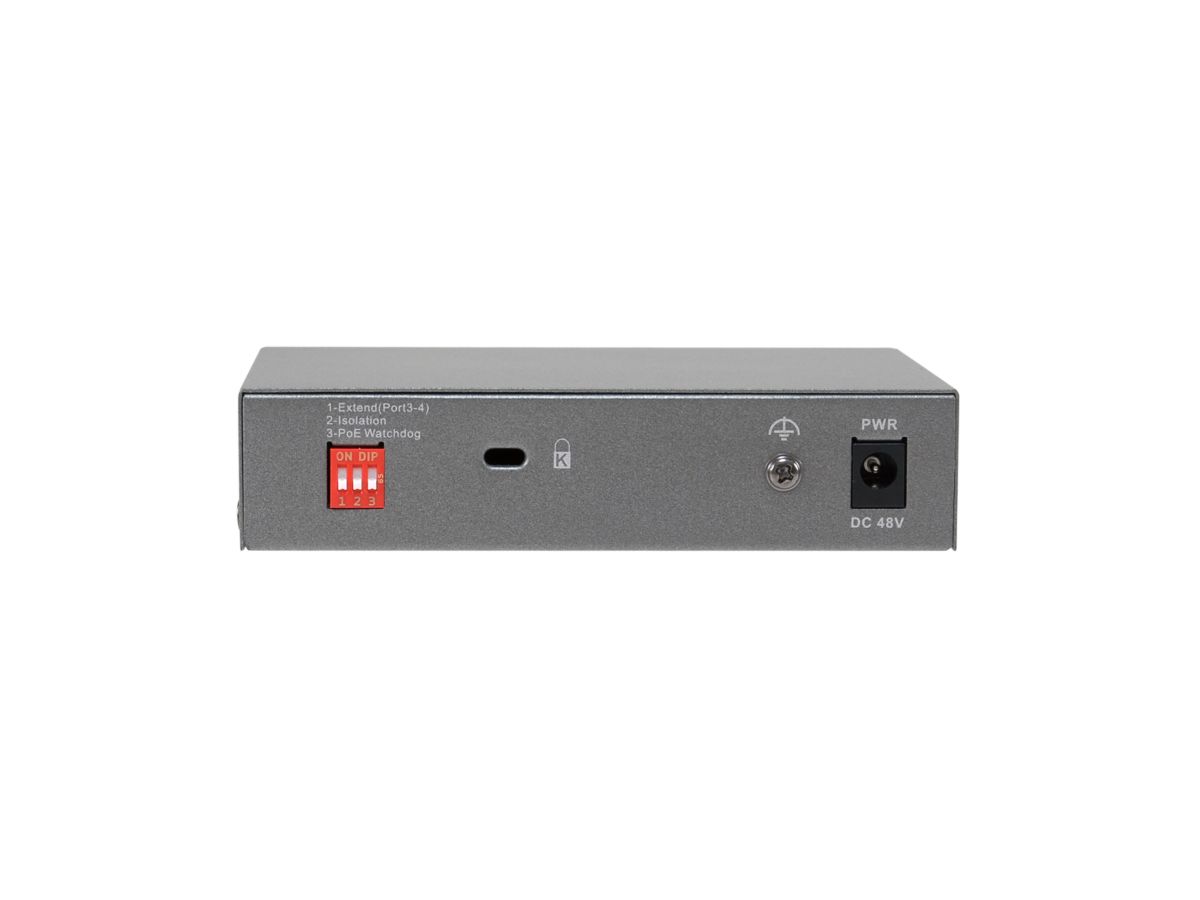

- DIP-Switch Control: Hardware switch enables PoE Watchdog, Isolation and Extension modes without software configuration.
- PoE Watchdog: Automatically detects and reboots unresponsive PoE devices to keep cameras and APs online.
- Long-Range PoE: Extension mode supports PoE transmission up to 300 m at 10 Mbps on Ports 3 and 4 for distant endpoints.
- Enhanced Protection: 6KV surge protection improves reliability in unstable or harsh electrical environments.
- Easy Deployment: Auto-negotiation and auto-MDI/MDIX on all ports with simple plug-and-play installation.
- Ideal for: IP surveillance, wireless coverage and VoIP in small offices, SOHO and remote work setups.
|
