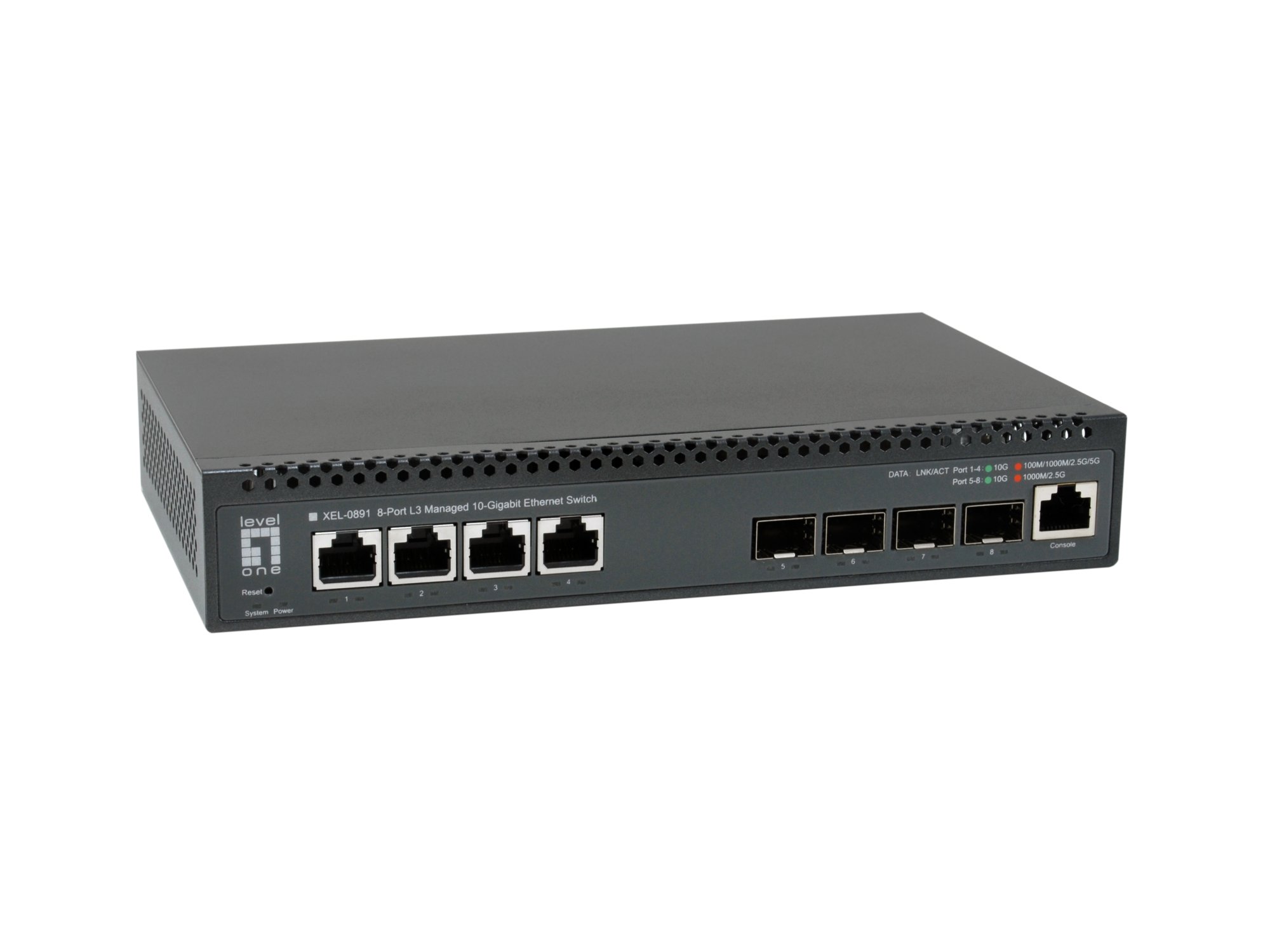

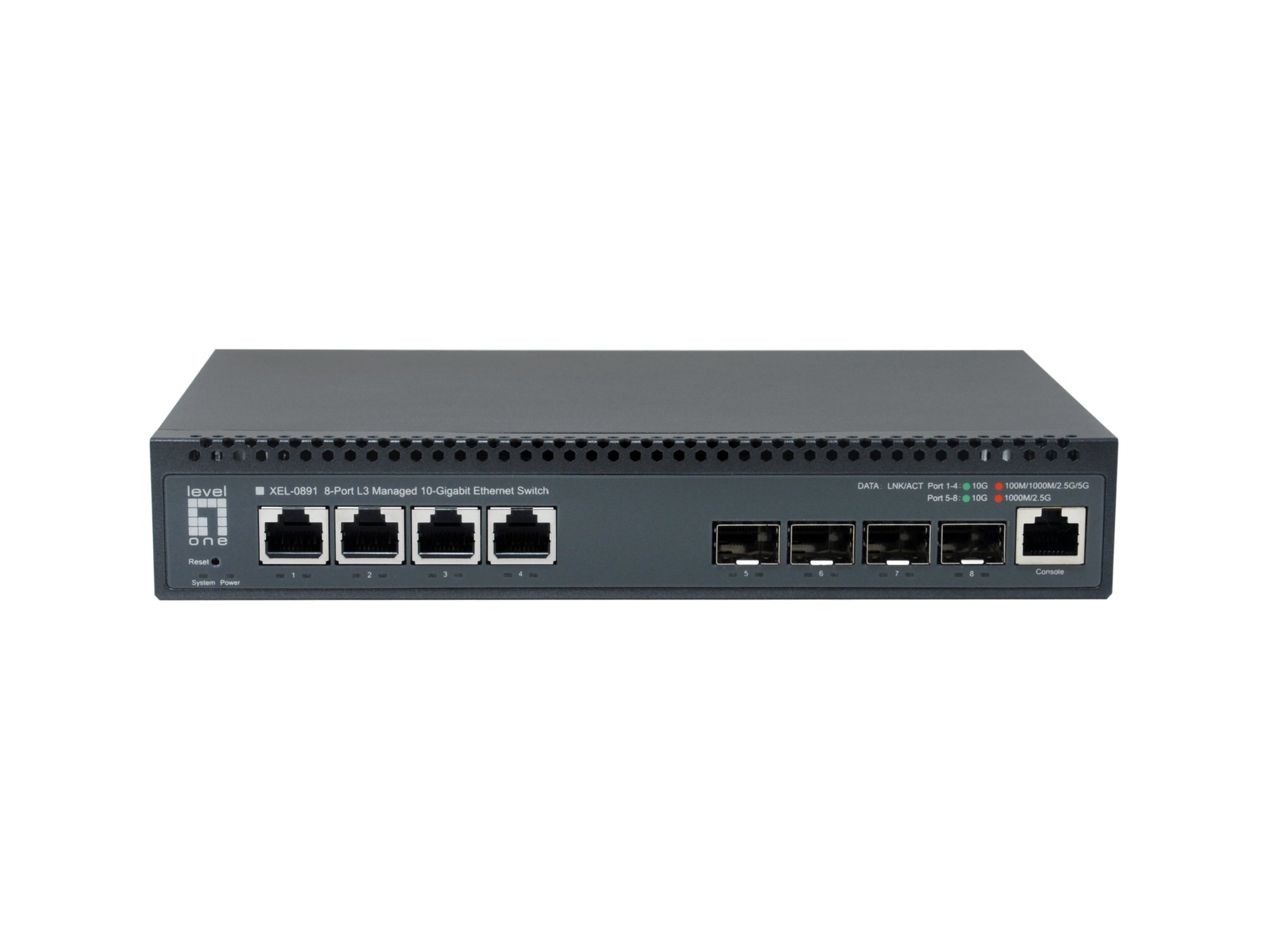

LevelOne 8-Port L3 Managed 10-Gigabit Switch, 4 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ae, IEEE 802.1Q, IEEE.... DC input voltage: 12 V. Power connector: DC-in jack. Form factor: Desktop
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 4 Console port: RJ-45
- 10G support
- MAC address table: 16000 entries Switching capacity: 160 Gbit/s
- Desktop

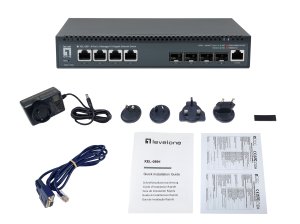

- DC Power supply included
- Multi-Gig 10G Edge: 4 x 100M/1G/2.5G/5G/10G RJ45 and 4 x 1G/2.5G/10G SFP+ ports for flexible copper and fiber access or uplinks
- High Throughput: 160 Gbps non-blocking switching capacity and 119.04 Mpps forwarding for true wire-speed on all ports
- Advanced L3 Routing: Supports IPv4/IPv6 static routes, RIP v1/v2, OSPF v2 and BGP-4 for dynamic, scalable inter-VLAN and WAN routing
- Granular Segmentation: Up to 4K 802.1Q VLANs with QinQ, private, voice, guest and subnet-based VLAN options for fine-grained traffic separation
- Enterprise-Grade Security: 802.1X authentication, ACLs, MAC/port limiting and DoS protection to defend against unauthorized access and attacks
- Service-Aware QoS: Eight hardware queues per port with SP, WRR and WDRR scheduling to prioritize voice, video and business-critical traffic
- Resilient Uplinks: LACP/static link aggregation, MSTP and ERPS ring support deliver load balancing and sub-second failover
- Comprehensive Management: Web GUI, console/Telnet/SSH, HTTPS/SSL, SNMP v1/v2c/v3, Syslog and FTP/TFTP for easy deployment and monitoring
- Ideal For: SMB cores, high-performance workgroups and edge aggregation needing cost-effective 10G Layer 3 switching
|
