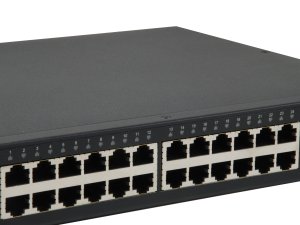

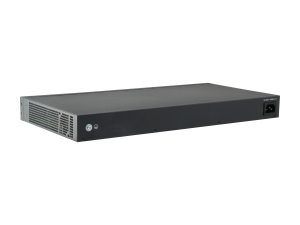

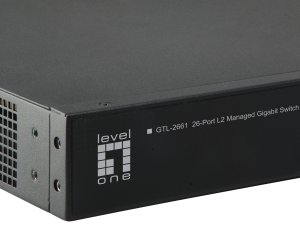

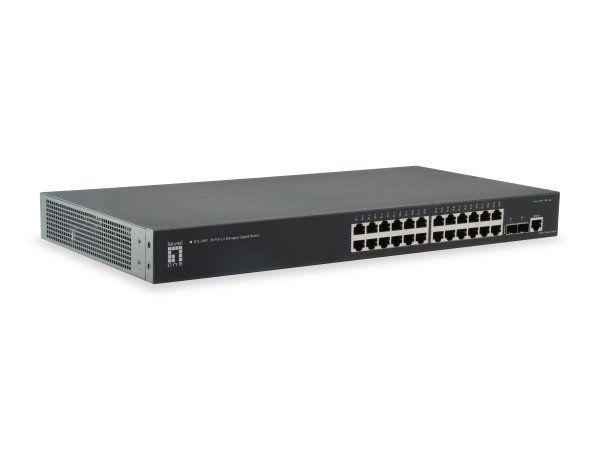

LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+

Roll over image to zoom inClick to Open expanded view

LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+

Name: LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+
Brand: LevelOne
SKU: GTL-2661

SKU: GTL-2661

Log In to View Pricing

ETA 7 days

LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting

ETA 7 days

hypertec

Product manual (Download)

EU Declaration of Conformity (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
GTL-2661

EAN
4015867203057

Bullet points

Certificates

Certification
CE class A, FCC, VCCI, BSMI

Data transmission

Forwarding rate
65.5 Mpps

Jumbo frames
10000

Jumbo frames support
Yes

MAC address table
16000 entries

Number of queues
8

Packet buffer memory
12 MB

Static route
Yes

Store-and-forward
Yes

Switching capacity
88 Gbit/s

Design

LED indicators
Activity, Link, Power

Product colour
Black

Rack mounting
Yes

Reset button
Yes

Safety
UL

Logistics data

Country of origin
China

Harmonized System (HS) code
85176990

Master (outer) case gross weight
11 kg

Master (outer) case height
435 mm

Master (outer) case length
600 mm

Master (outer) case width
340 mm

Products per master (outer) case
4 pc(s)

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

System event log
Yes

Traffic classification
Yes

Web-based management
Yes

Network

10G support
Yes

Broadcast storm control
Yes

Cable length detection
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Flow control support
Yes

Link aggregation
Yes

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
Tagged VLAN, MAC address-based VLAN, Port-based VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
68.242 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Quick start guide
Yes

Rack mount kit
Yes

Packaging data

Package depth
580 mm

Package height
80 mm

Package type
Box

Package weight
3.02 kg

Package width
405 mm

Resource CD
Yes

Performance

Fanless
Yes

Firmware upgradeable
Yes

Internal memory
32 MB

Mean time between failures (MTBF)
636219 h

Telnet
Yes

Ports & interfaces

Console port
RJ-45

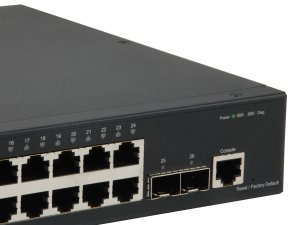

SFP+ module slots quantity
2

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

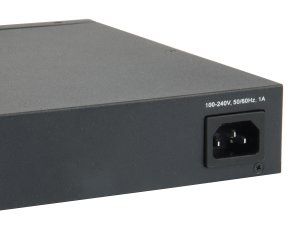

AC input voltage
100 - 240 V

Power consumption (typical)
20 W

Power source
AC

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

Management protocols
MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, TFTP

Supported network protocols
IPv4/IPv6

Security

Access Control List (ACL)
Yes

BPDU filtering/protection
Yes

DHCP features
DHCP snooping, DHCP relay, DHCPv6 snooping, DHCP client

DoS attack prevention
Yes

Password protection
Yes

SSH/SSL support
Yes

Static port security
Yes

Weight & dimensions

Depth
440 mm

Height
44 mm

Weight
2.29 kg

Width
220 mm

Description

LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 88 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting

Managed L2 Web-based management MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, TFTP
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
10G support 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 16000 entries Switching capacity: 88 Gbit/s
Access Control List (ACL)
Rack mounting
AC
24 Gigabit Ethernet ports and 2 10-Gigabit SFP+ slots
IEEE 802.3ad LACP for auto port aggregation
IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
Provides QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management
MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
Dynamic ARP Inspection (DAI) protects switches against ARP spoofing
Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Supports IPv4/IPv6 network operation
