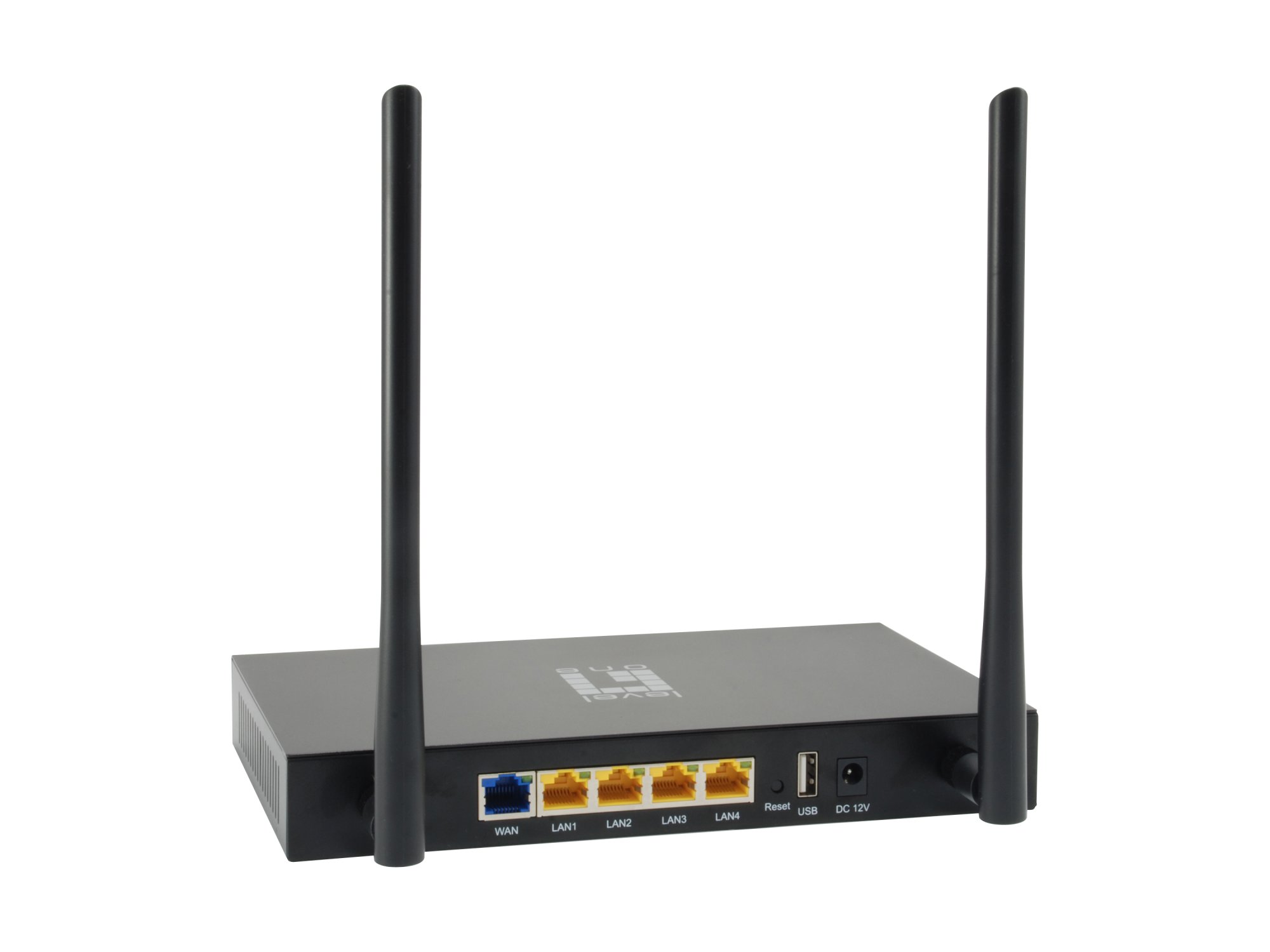

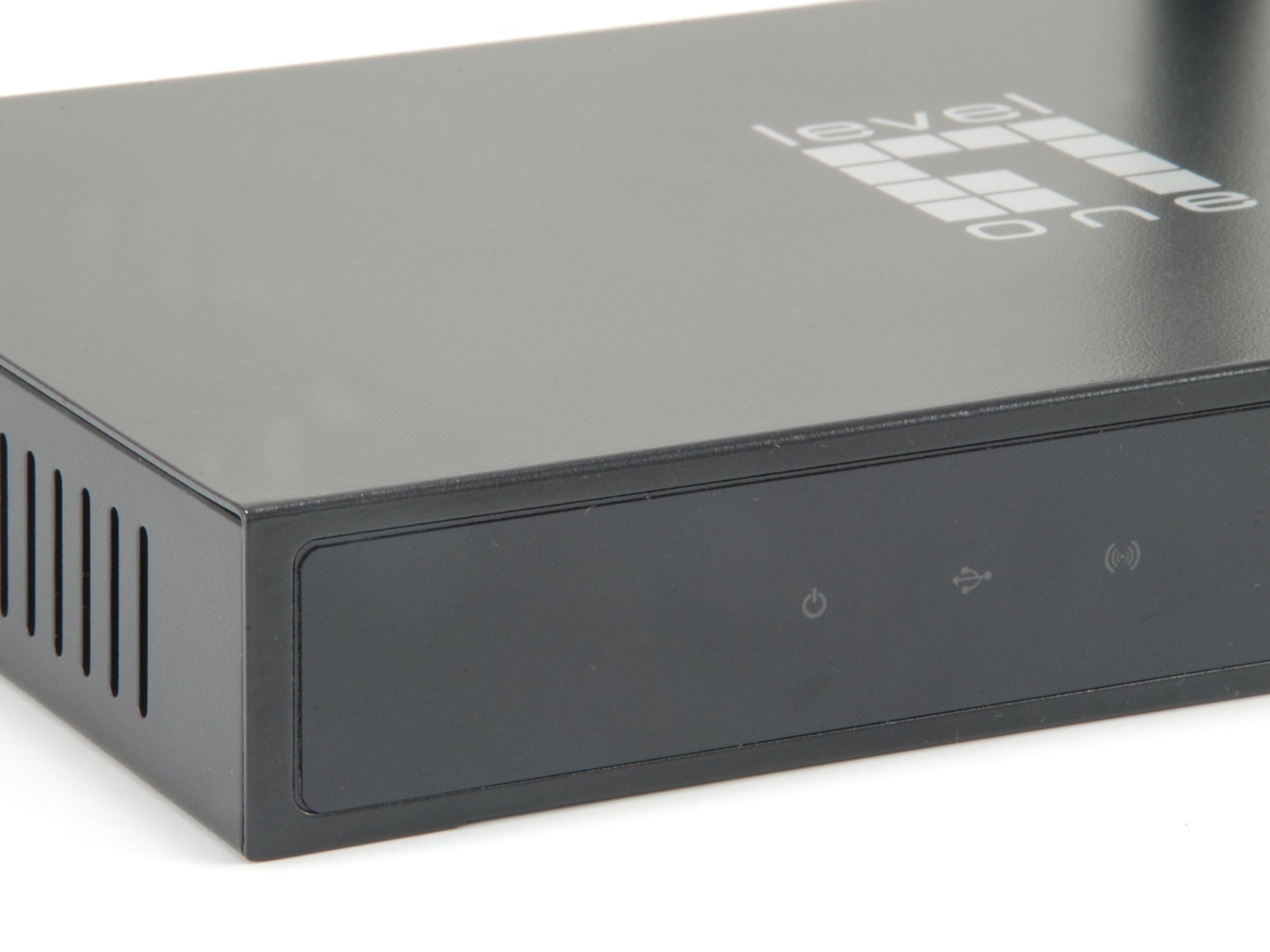

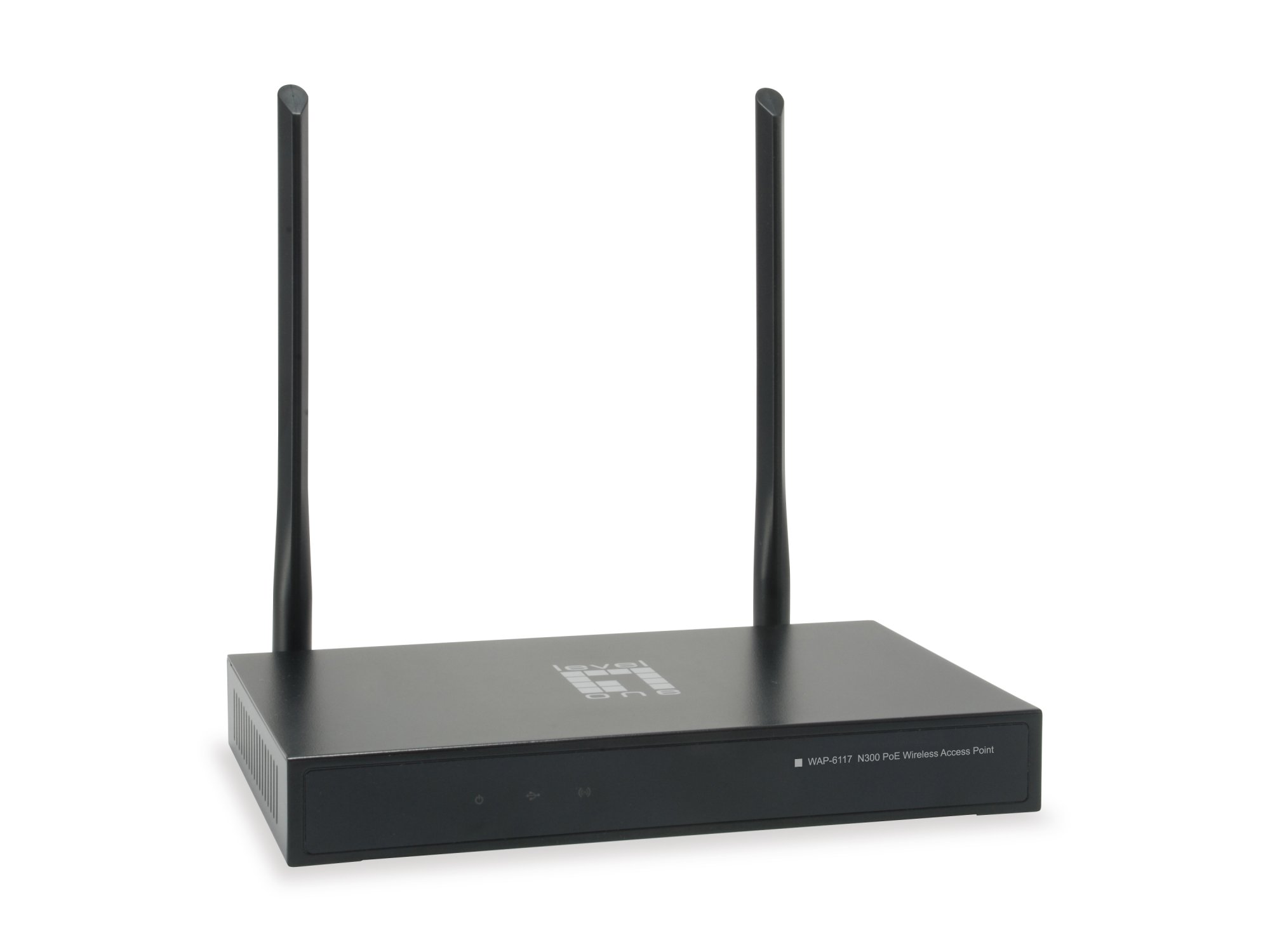

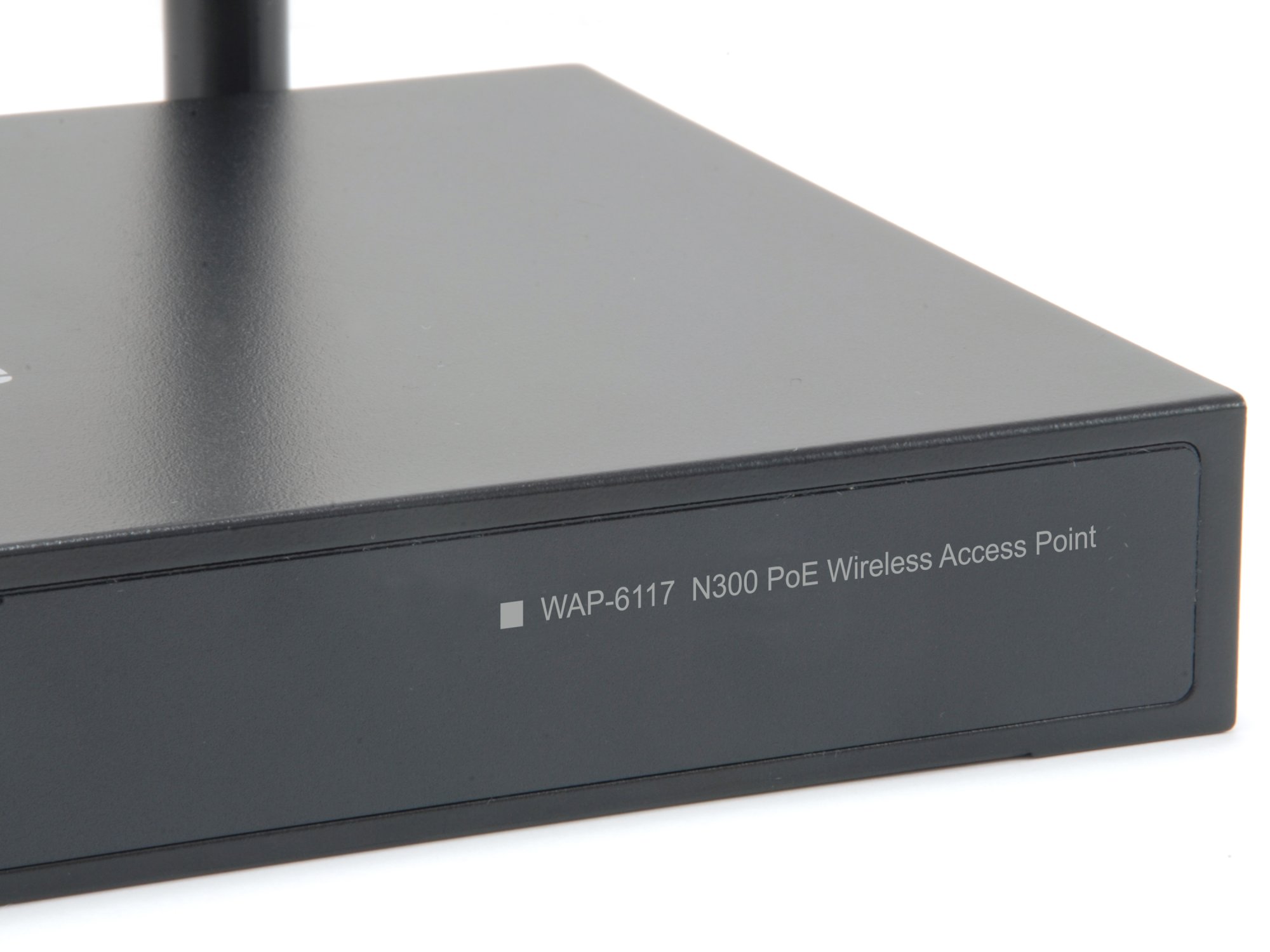

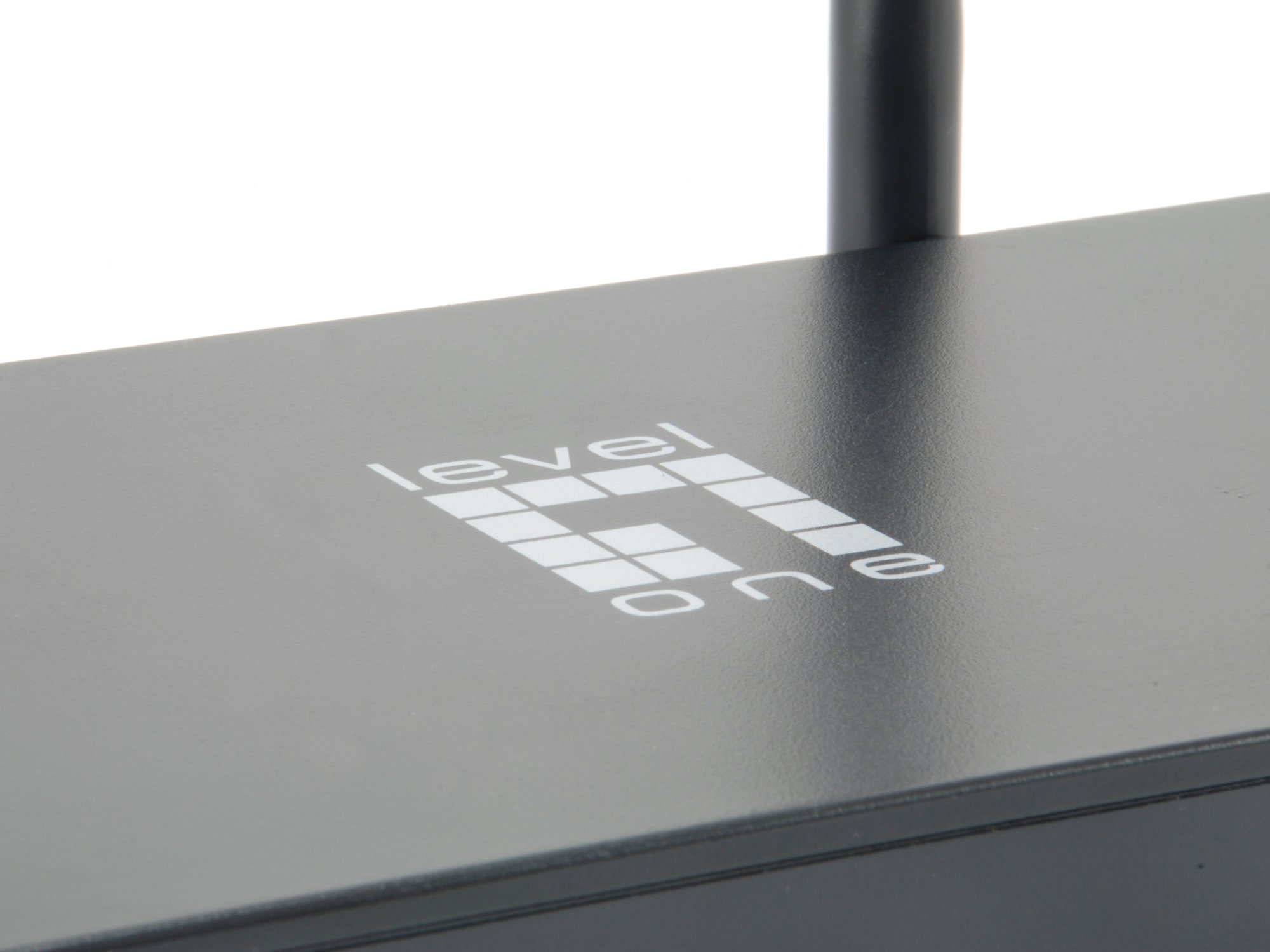

LevelOne N300 PoE Wireless Access Point, Desktop, Controller Managed

Roll over image to zoom inClick to Open expanded view

LevelOne N300 PoE Wireless Access Point, Desktop, Controller Managed

Name: LevelOne N300 PoE Wireless Access Point, Desktop, Controller Managed
Brand: LevelOne
SKU: WAP-6117

SKU: WAP-6117

Log In to View Pricing

ETA 7 days

LevelOne N300 PoE Wireless Access Point, Desktop, Controller Managed, 2.4 GHz, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2, 10,100 Mbit/s

ETA 7 days

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
WAP-6117

EAN
4015867203996

Antenna

Antenna features
Detachable antenna

Antenna gain level (max)
5 dBi

Antennas quantity
2

Bullet points

Certificates

Certification
CE

Design

Internal
No

LED indicators
Power, WLAN

Placement
Table

Product colour
Black

WPS push button
Yes

Features

2.4 GHz
Yes

5 GHz
No

Channels quantity
13 channels

Ethernet LAN data rates
10,100 Mbit/s

Frequency band
2.4 - 2.4835 GHz

Maximum data transfer rate
300 Mbit/s

Modulation
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK

Networking standards
IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x

Number of users
40 user(s)

Operating modes
Access Point (AP),Gateway,Repeater,WISP

Quality of Service (QoS) support
Yes

Receiver sensitivity
802.11n: -68 dBm 802.11g:6Mbps: (-90) dBm 802.11g:54Mbps: (-72) dBm 802.11b:1Mbps: (-95) dBm 802.11b:11Mbps: (-90) dBm

Wi-Fi data rate (max)
300 Mbit/s

Wi-Fi Multimedia (WMM)/(WME)
Yes

Logistics data

Country of origin
China

Harmonized System (HS) code
85176990

Master (outer) case gross weight
23 kg

Master (outer) case height
233 mm

Master (outer) case length
655 mm

Master (outer) case width
260 mm

Products per master (outer) case
20 pc(s)

Management features

Firmware upgradeable
Yes

Web-based management
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 55 °C

Storage temperature (T-T)
-40 - 75 °C

Packaging content

Cables included
LAN (RJ-45)

Packaging data

CD manual
Yes

CD quick installation guide
Yes

Package depth
260 mm

Package height
50 mm

Package weight
1.1 kg

Package width
217 mm

Ports & interfaces

DC-in jack
Yes

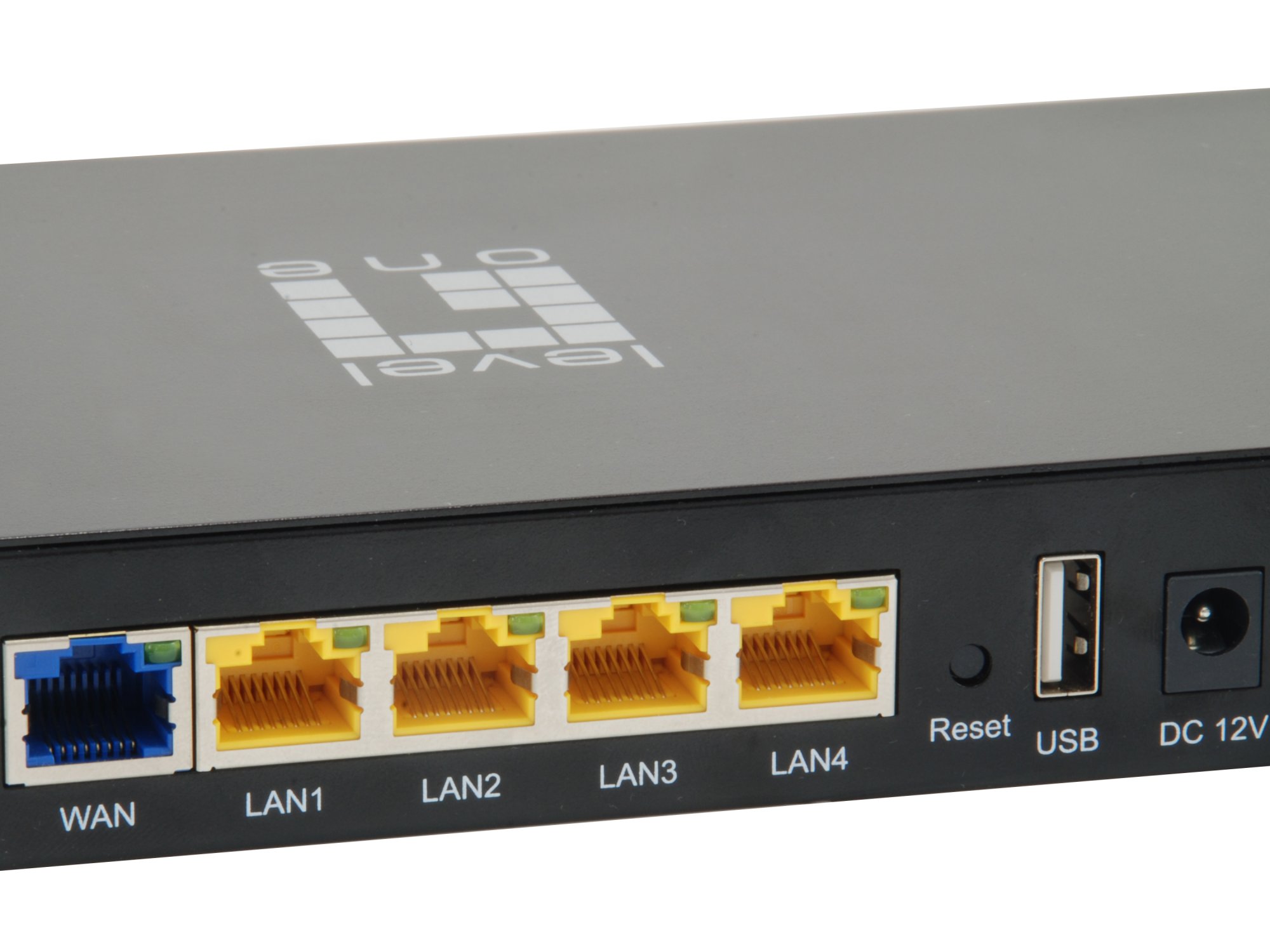

Ethernet LAN (RJ-45) ports
4

USB 2.0 ports quantity
1

WAN connection
Ethernet (RJ-45)

Power

AC input voltage
12 V

Input current
1.5 A

Power consumption (typical)
12 W

Power over Ethernet (PoE)
Yes

Security

Number of SSID supported
4

Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2

Service Set Identifier (SSID) features
SSID broadcast on/off

Weight & dimensions

Depth
220 mm

Height
30 mm

Weight
700 g

Width
135 mm

Description

LevelOne N300 PoE Wireless Access Point, Desktop, Controller Managed. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: Black

2.4 GHz
Maximum data transfer rate: 300 Mbit/s
IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2
Power over Ethernet (PoE)
Antennas quantity: 2 Detachable antenna
Share your wireless network up to 300Mbps
Compatible with IEEE 802.11b/g/n wireless standards
Provides up to 4 SSIDs to separate network traffic and enhance security
Multi-operation modes to suit different wireless applications
Supports WEP, WPA and WPA2 encryption with IEEE 802.1x for high level security
