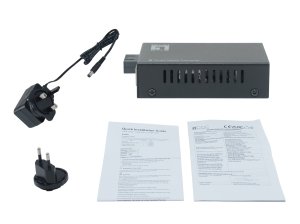

LevelOne Smart Gigabit RJ45-SC Media Converter, Multi-Mode Fiber, 850nm, 500M, Compatible with 19-inch rack-mountable chassis. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u. Maximum transfer distance: 500 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 2 A, Power consumption (typical): 19 W
- Wired
- 1000 Mbit/s 500 m 850 nm
- 10BASE-T, 100BASE-T, 1000BASE-T
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode Fiber ports quantity: 1 SC
- Black
- 1 × 10/100/1000BASE-T RJ45 port and 1 × Gigabit SC fiber port
- Multi-mode fiber with SC connector for transmission of up to 500m
- Supports QoS, ERPS, IGMP, VLAN, ACL functions
- Fully compatible with 19-inch rack-mountable chassis for easy integration
- Provides 6 kV surge protection and 6 kV contact / 8 kV air ESD protection
- Supports management via Web browser and SNMP
|
