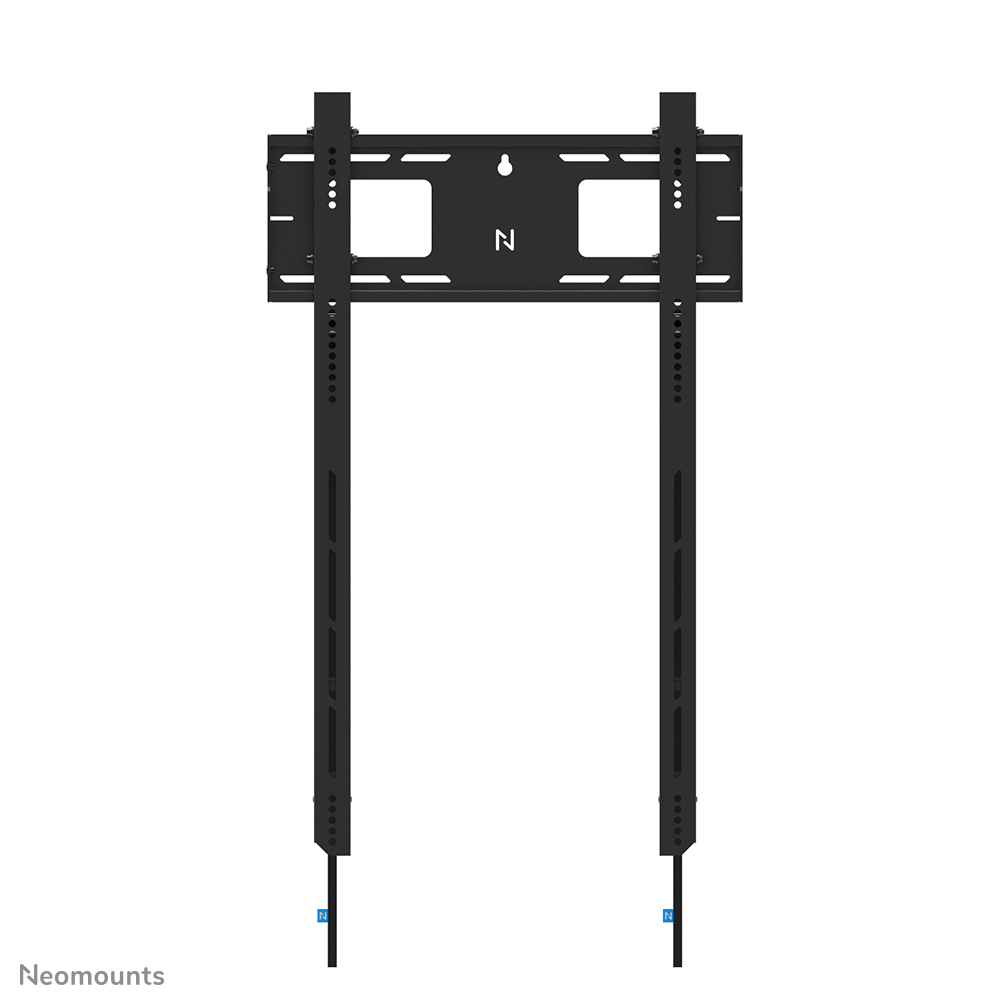

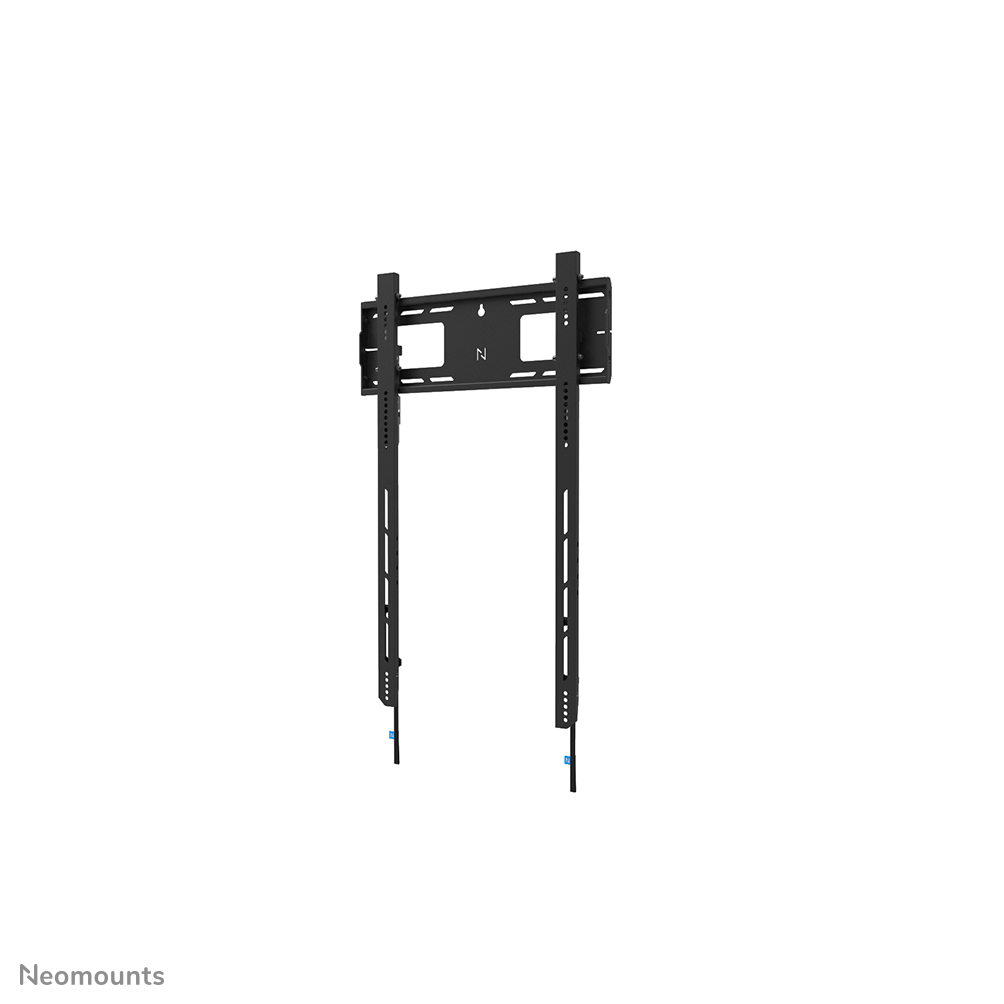

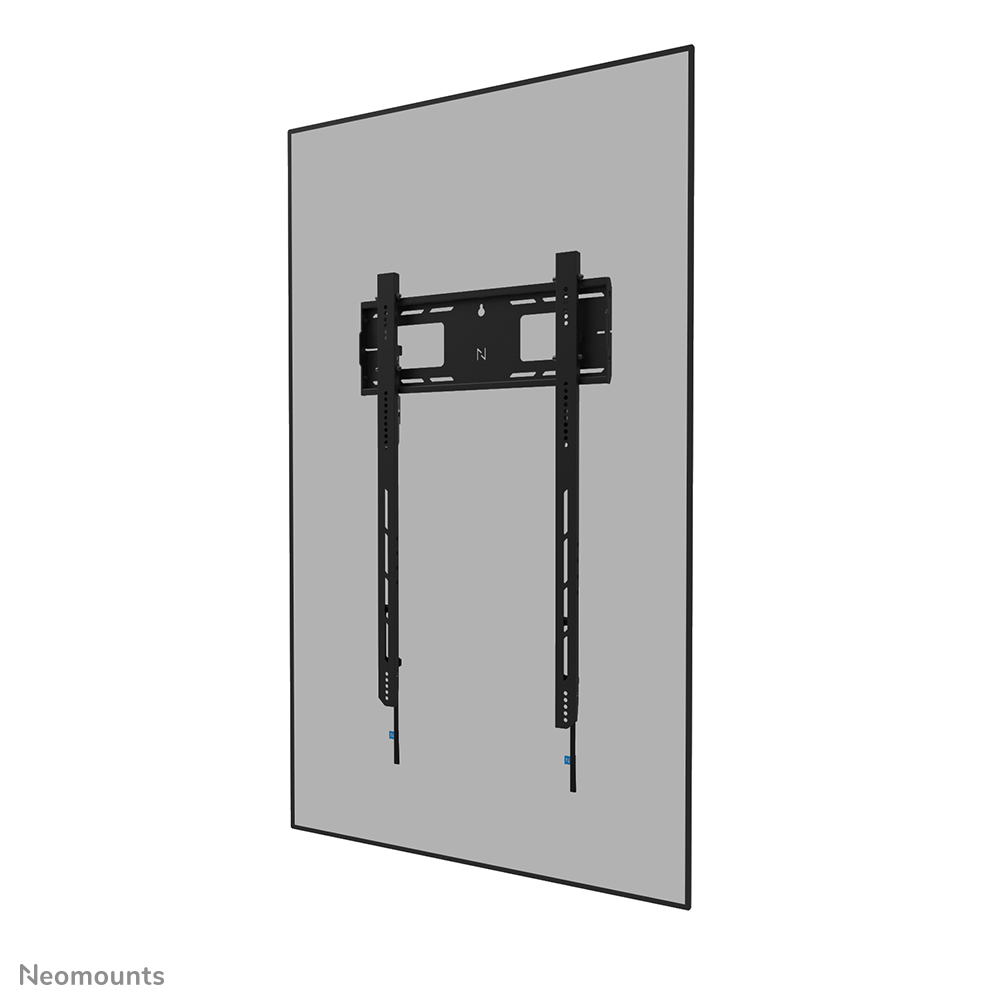

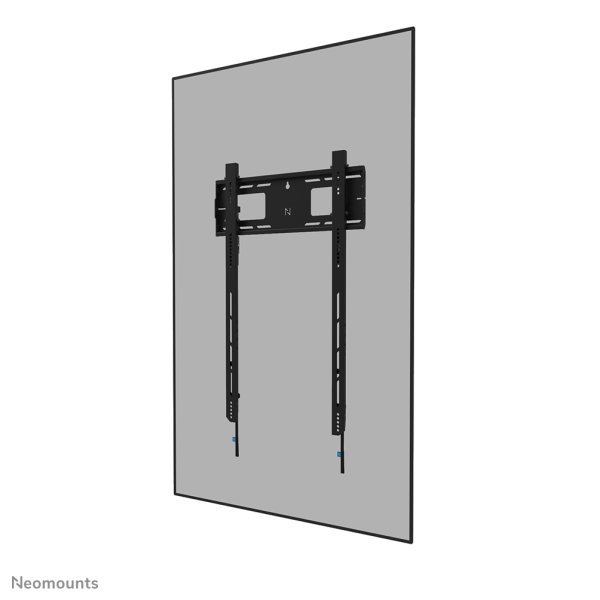

Neomounts WL30-750BL18P Heavy duty wall mount 50-98" - fixed - lockable - portrait - fast installation - TÜV

Roll over image to zoom inClick to Open expanded view

Neomounts WL30-750BL18P Heavy duty wall mount 50-98" - fixed - lockable - portrait - fast installation - TÜV

Name: Neomounts WL30-750BL18P Heavy duty wall mount 50-98" - fixed - lockable - portrait - fast installation - TÜV
Brand: Neomounts
SKU: WL30-750BL18P

SKU: WL30-750BL18P

Log In to View Pricing

ETA 6 days

Neomounts WL30-750BL18P Heavy duty wall mount 50-98" - fixed - lockable - portrait - fast installation - TÜV, 127 cm (50"), 2.49 m (98"), 100 x 100 mm, 500 x 800 mm, Steel, Black

ETA 6 days

hypertec

Safety information (Download)

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Neomounts

Warranty
5 Years

SKU
WL30-750BL18P

EAN
8717371443290

Design

Housing material
Steel

Product colour
Black

Ergonomics

Cable management
Yes

Distance to the wall (max)
4.2 cm

Height adjustment
Yes

Height adjustment range
0 - 10 mm

Type
Fixed

Logistics data

Harmonized System (HS) code
7326909890

Master (outer) case gross weight
21 kg

Master (outer) case height
288 mm

Master (outer) case length
227 mm

Master (outer) case net weight
15.3 kg

Master (outer) case width
951 mm

Products per master (outer) case
3 pc(s)

Products per pallet (EU)
54 pc(s)

Mounting

Maximum screen size
2.49 m (98")

Maximum VESA mount
500 x 800 mm

Maximum weight capacity
100 kg

Maximum weight capacity (per display)
100 kg

Minimum screen size
127 cm (50")

Minimum VESA mount
100 x 100 mm

Mounting type
Wall

Number of displays supported
1

Panel mounting interface
500 x 400 mm

Packaging data

Package depth
90 mm

Package height
209 mm

Package weight
6.7 kg

Package width
933 mm

Technical details

Country of origin
China

Lockable
Padlock not included

Weight & dimensions

Depth
42 mm

Height
684 mm

Weight
5.1 kg

Width
550 mm

Description

Neomounts WL30-750BL18P Heavy duty wall mount 50-98" - fixed - lockable - portrait - fast installation - TÜV. Maximum weight capacity: 100 kg, Minimum screen size: 127 cm (50"), Maximum screen size: 2.49 m (98"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 500 x 800 mm. Height adjustment range: 0 - 10 mm, Distance to the wall (max): 4.2 cm. Product colour: Black

Maximum weight capacity: 100 kg
Minimum screen size: 127 cm (50") Maximum screen size: 2.49 m (98") Wall
Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 500 x 800 mm
Number of displays supported: 1
Height adjustment
Cable management
Steel Black
