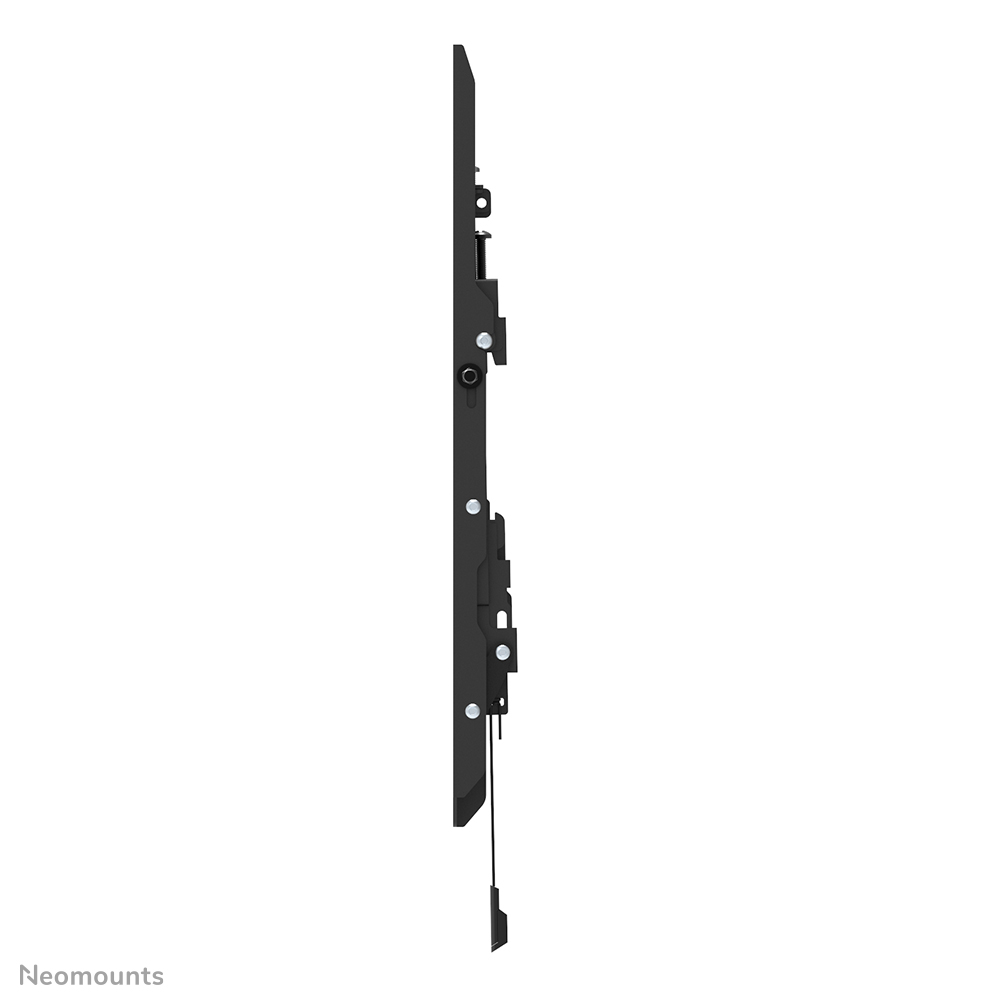

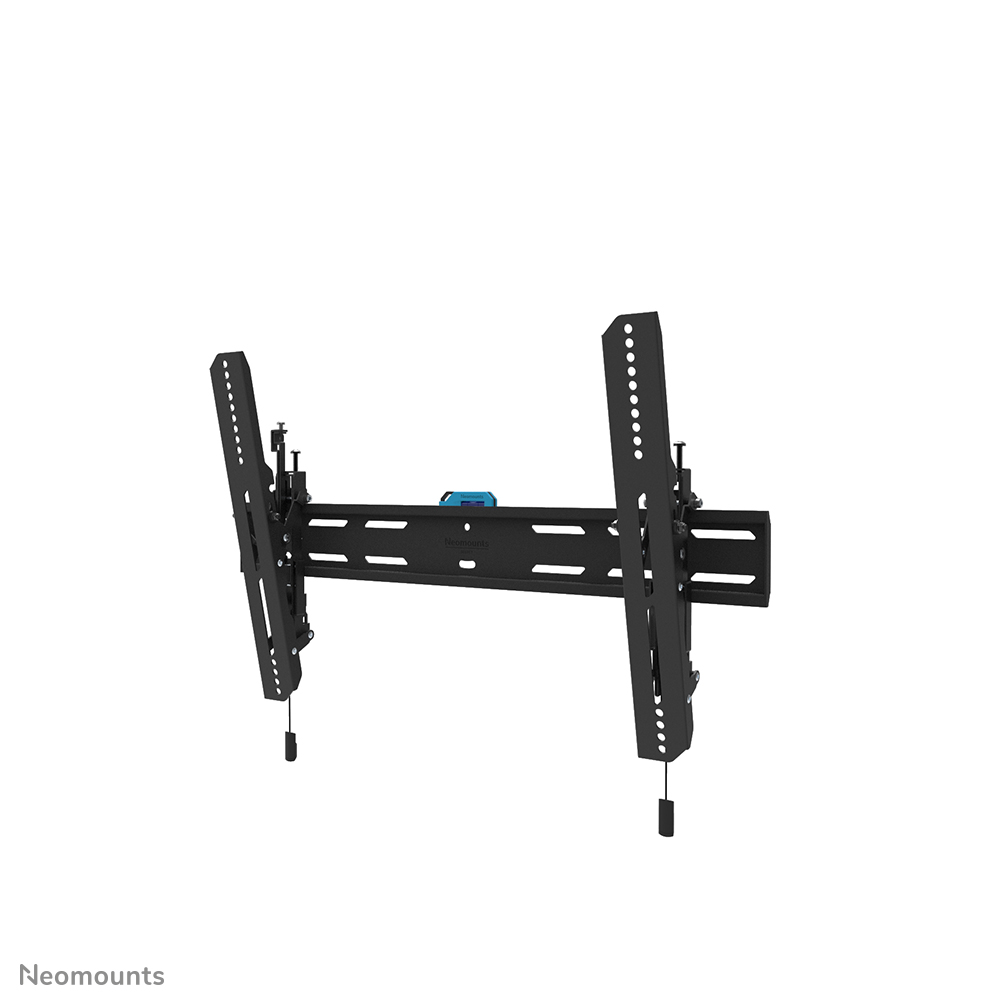

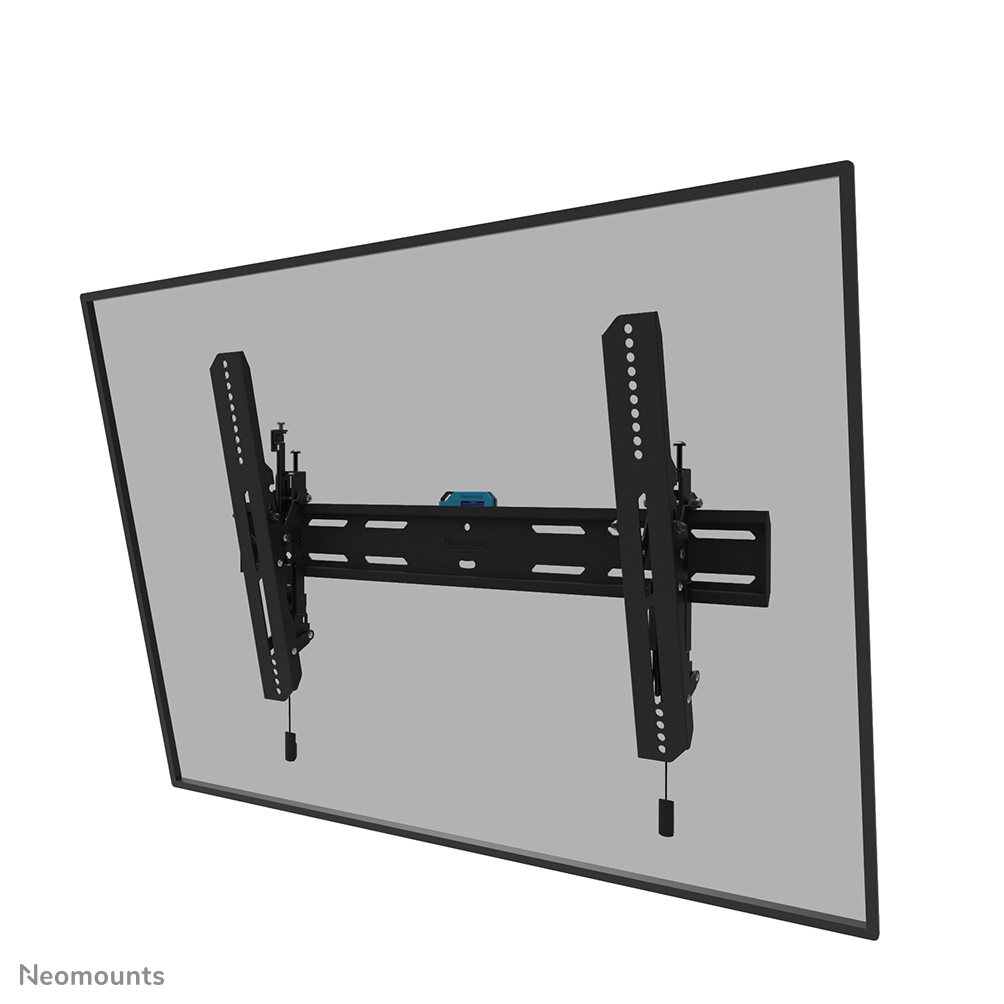

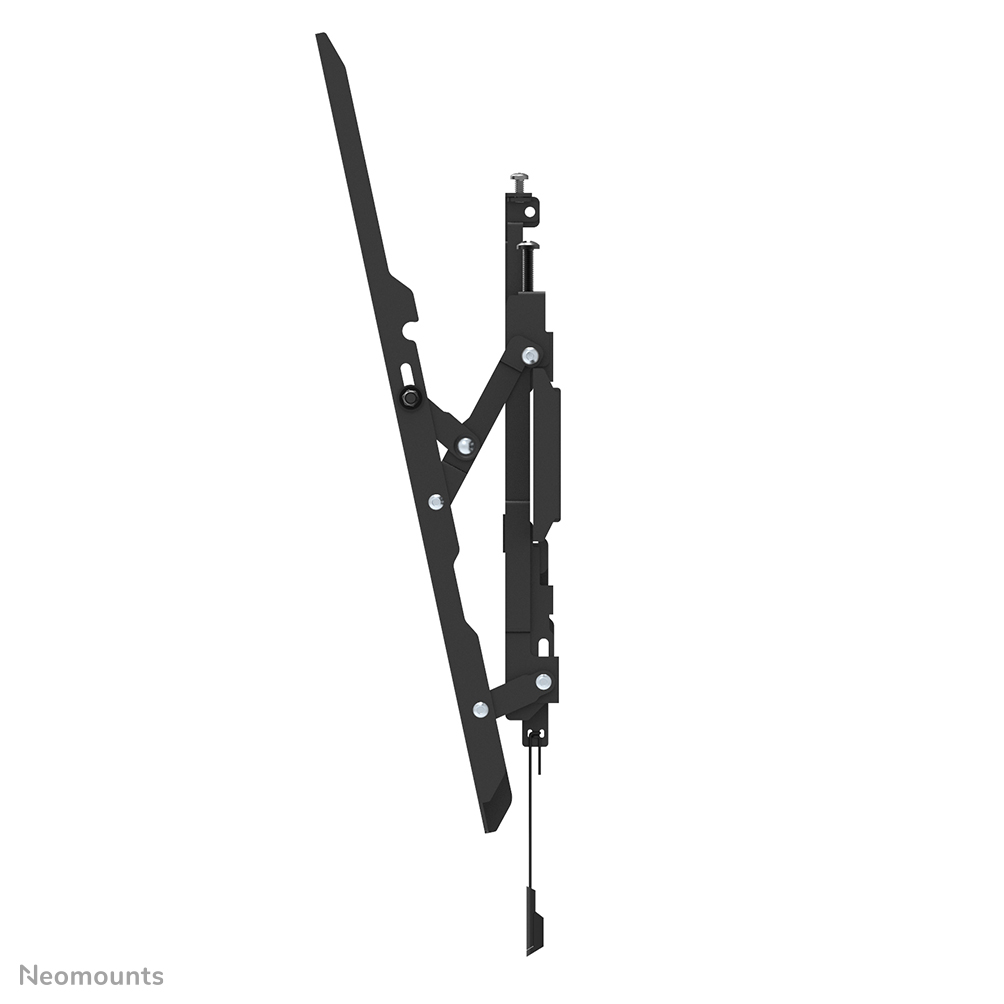

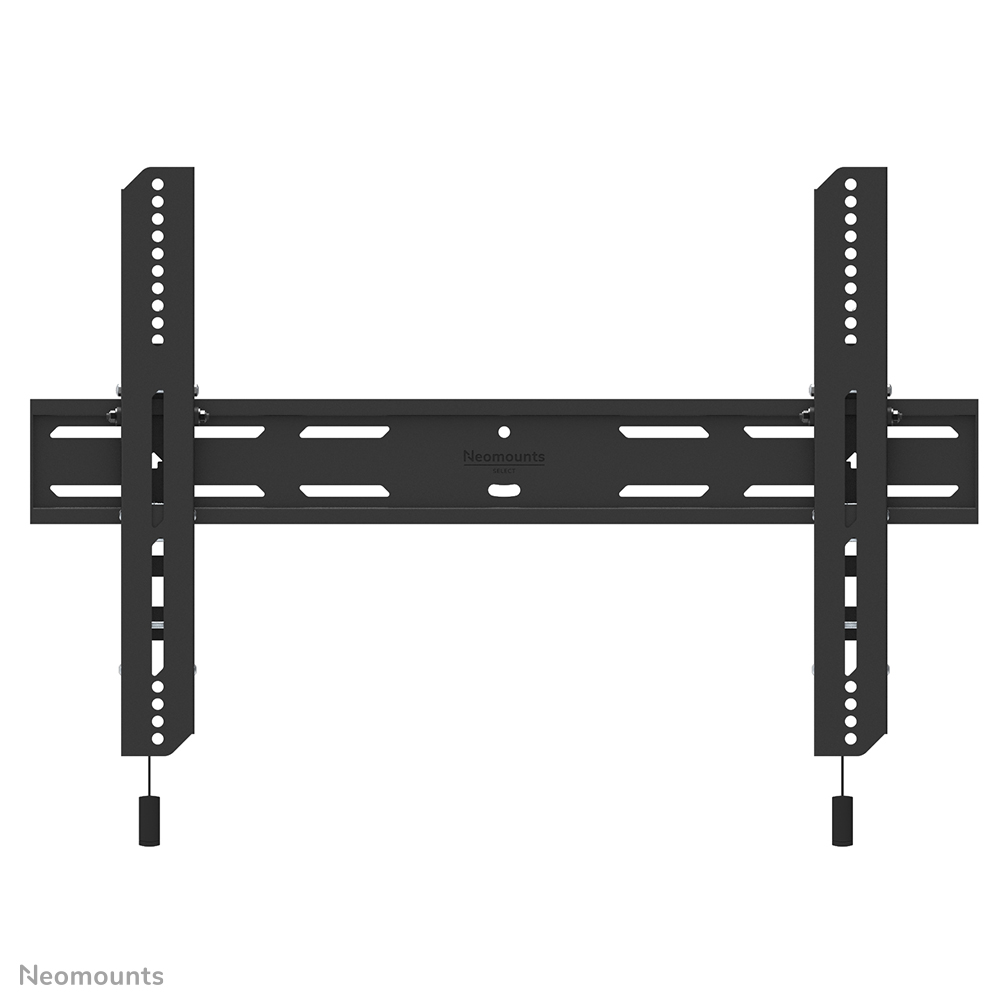

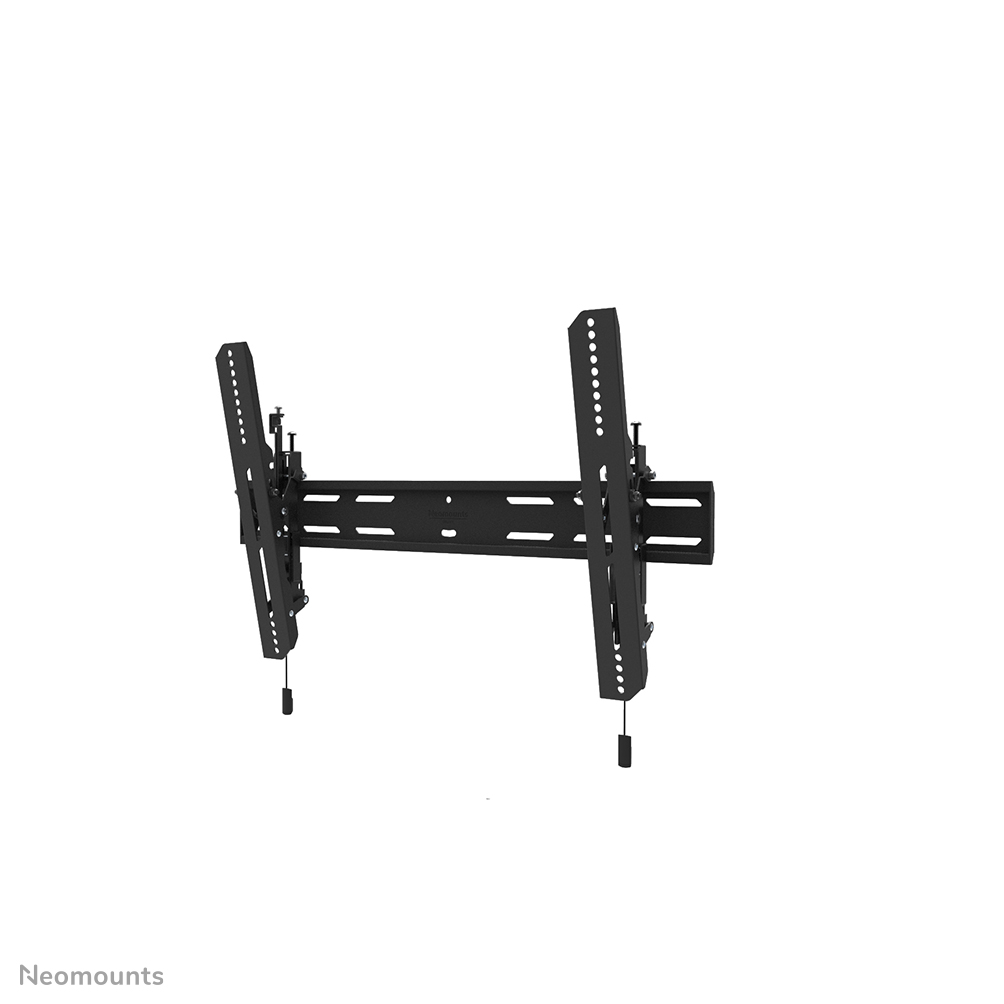

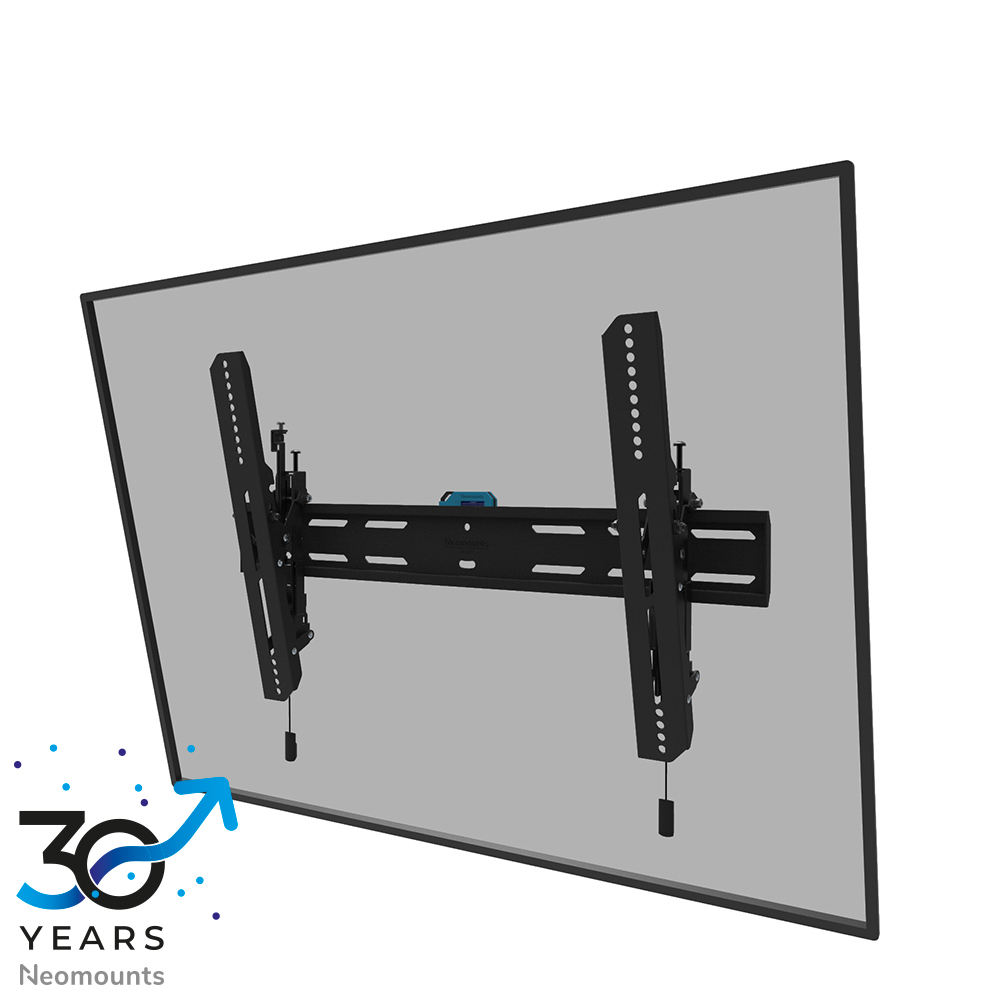

Neomounts WL35S-850BL16 TV mount wall 42-86" - tiltable - lockable - fast installation

Roll over image to zoom inClick to Open expanded view

Neomounts WL35S-850BL16 TV mount wall 42-86" - tiltable - lockable - fast installation

Name: Neomounts WL35S-850BL16 TV mount wall 42-86" - tiltable - lockable - fast installation
Brand: Neomounts
SKU: WL35S-850BL16

SKU: WL35S-850BL16

Log In to View Pricing

Currently out of Stock

Neomounts WL35S-850BL16 TV mount wall 42-86" - tiltable - lockable - fast installation, 2.18 m (86"), 100 x 100 mm, 600 x 400 mm, 0 - 12°, Steel, Black

Currently out of Stock

hypertec

Safety information (Download)

WL35S-850BL16_Greensheet_EN (Download)

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Neomounts

Warranty
5 Years

SKU
WL35S-850BL16

EAN
8717371448868

Design

Housing material
Steel

Product colour
Black

Ergonomics

Distance to the wall (max)
3.5 cm

Height adjustment
Yes

Height adjustment range
0 - 20 mm

Tilt adjustment
Yes

Tilt angle range
0 - 12°

Logistics data

Harmonized System (HS) code
7326909890

Master (outer) case gross weight
16.7 kg

Master (outer) case height
180 mm

Master (outer) case length
315 mm

Master (outer) case net weight
13.6 kg

Master (outer) case width
724 mm

Products per master (outer) case
4 pc(s)

Products per pallet (EU)
100 pc(s)

Mounting

Maximum screen size
2.18 m (86")

Maximum VESA mount
600 x 400 mm

Maximum weight capacity
60 kg

Maximum weight capacity (per display)
60 kg

Minimum screen size
106.7 cm (42")

Minimum VESA mount
100 x 100 mm

Mounting type
Wall

Number of displays supported
1

Panel mounting interface
600 x 400 mm

Packaging data

Package depth
158 mm

Package height
74 mm

Package weight
4 kg

Package width
704 mm

Technical details

Country of origin
China

Lockable
Security screw included

Package net weight
4 kg

Quantity per pack
1 pc(s)

Weight & dimensions

Depth
36 mm

Height
425 mm

Weight
2.95 kg

Width
684 mm

Description

Neomounts WL35S-850BL16 TV mount wall 42-86" - tiltable - lockable - fast installation. Maximum weight capacity: 60 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 0 - 20 mm, Tilt angle range: 0 - 12°, Distance to the wall (max): 3.5 cm. Product colour: Black

Maximum weight capacity: 60 kg
Minimum screen size: 106.7 cm (42") Maximum screen size: 2.18 m (86") Wall
Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 600 x 400 mm
Number of displays supported: 1
Height adjustment Tilt adjustment
Steel Black
