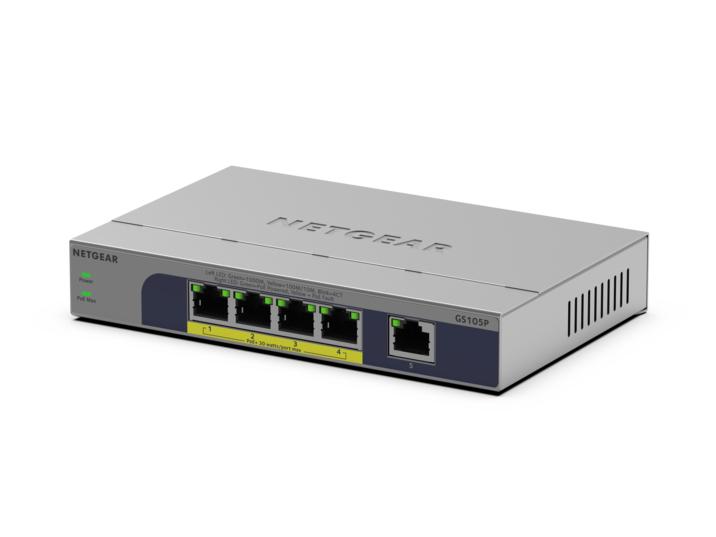

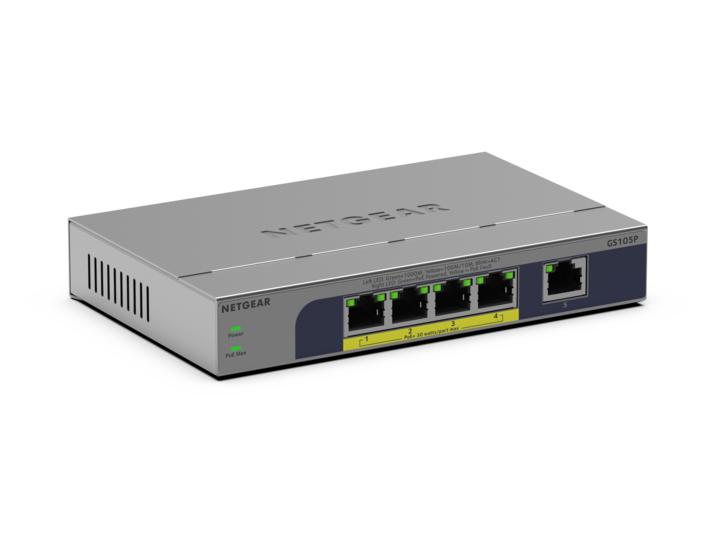

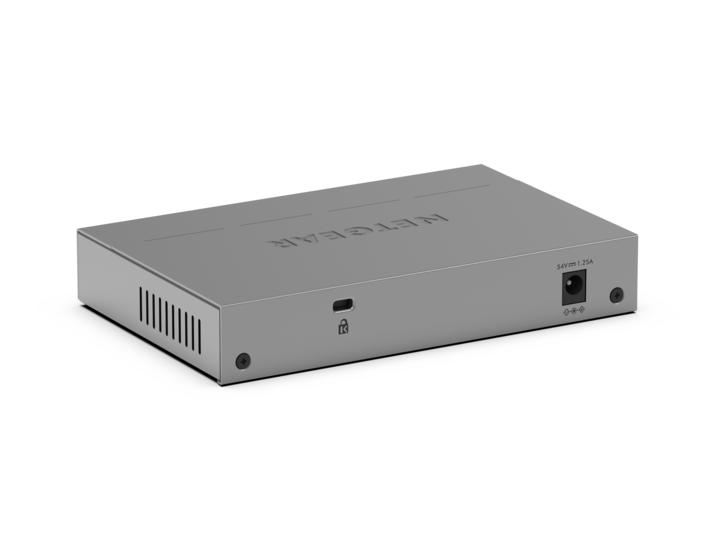

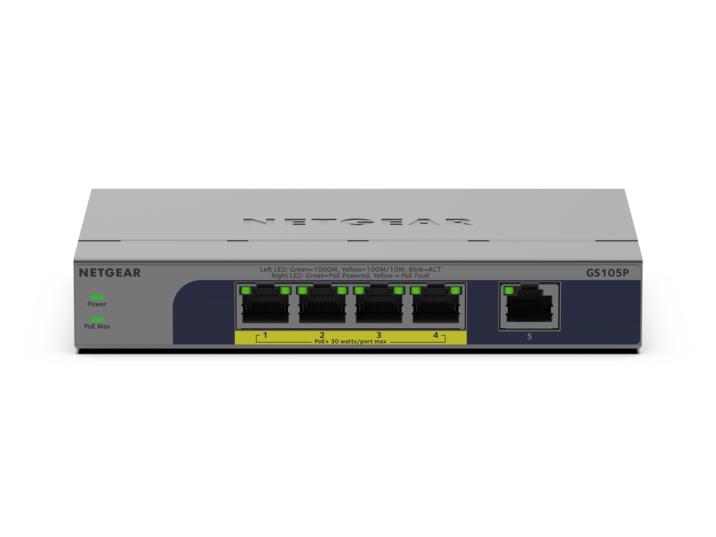

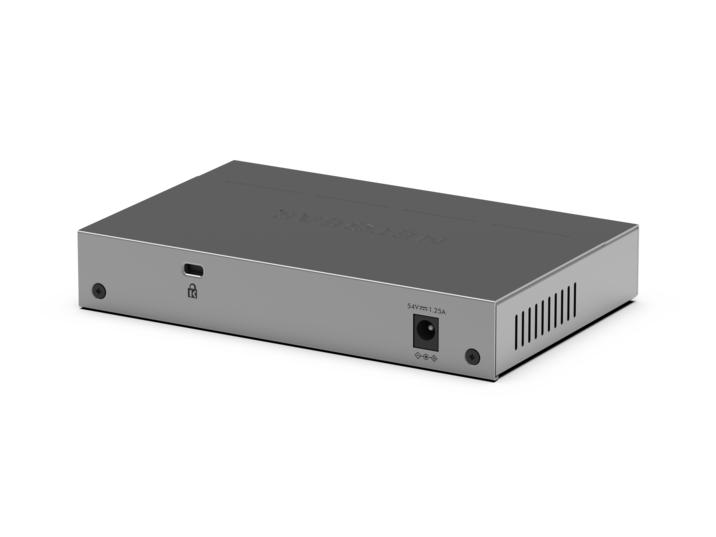

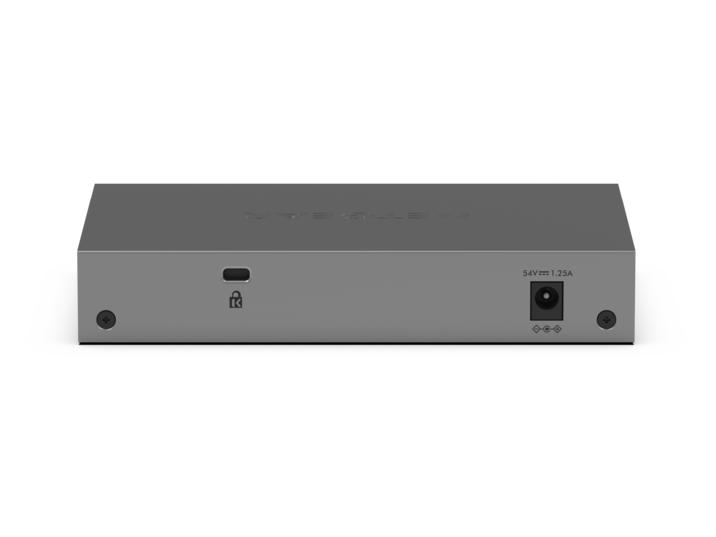

NETGEAR GS105P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Grey

Roll over image to zoom inClick to Open expanded view

NETGEAR GS105P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Grey

Name: NETGEAR GS105P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Grey
Brand: Netgear
SKU: GS105P-300EUS

SKU: GS105P-300EUS

Log In to View Pricing

Currently out of Stock

NETGEAR GS105P, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Desktop/Wall-Mounting

Currently out of Stock

hypertec

Datasheets (Download)

Quick Start Guide (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
Lifetime

SKU
GS105P-300EUS

EAN
606449174694

Bullet points

Certificates

Certification
CB, CE LVD, CSA

Compliance certificates
CB, CE, Federal Communications Commission (FCC)

Data transmission

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
2000 entries

Packet buffer memory
0.128 MB

Store-and-forward
Yes

Design

Form factor
Desktop/Wall-Mounting

Housing material
Metal

LED indicators
Activity, Link, PoE, Power, Speed, Status

Product colour
Grey

Rack mounting
No

Stackable
No

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Broadcast storm control
Yes

Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10BASE-T

Flow control support
Yes

Full duplex
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az

Port mirroring
Yes

Rate limiting
Yes

VLAN support
Yes

Operational conditions

Heat dissipation
3.24 BTU/h

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Other features

Bandwidth
10 Gbit/s

Packaging content

Quick start guide
Yes

Performance

Fanless
Yes

Mean time between failures (MTBF)
4113947 h

Ports & interfaces

Switch Number of Ports
5

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

DC input voltage
54 V

Input current
1.66 A

Power consumption (max)
67.5 W

Power source
AC/DC

Power supply included
No

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
4

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
83 W

Security

DHCP features
DHCP client

IGMP snooping
Yes

Weight & dimensions

Depth
101 mm

Height
27 mm

Weight
400 g

Width
158 mm

Description

NETGEAR GS105P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltage: 54 V. Power over Ethernet (PoE). Form factor: Desktop/Wall-Mounting

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 5
1000BASE-T, 100BASE-T, 10BASE-T
MAC address table: 2000 entries
Desktop/Wall-Mounting
AC/DC Power over Ethernet (PoE)
5 x Gigabit Ethernet ports with PoE
Plug and play switch, no management required
Energy Efficient Ethernet for maximum power savings
Fanless and silent
Desktop or wall-mount
