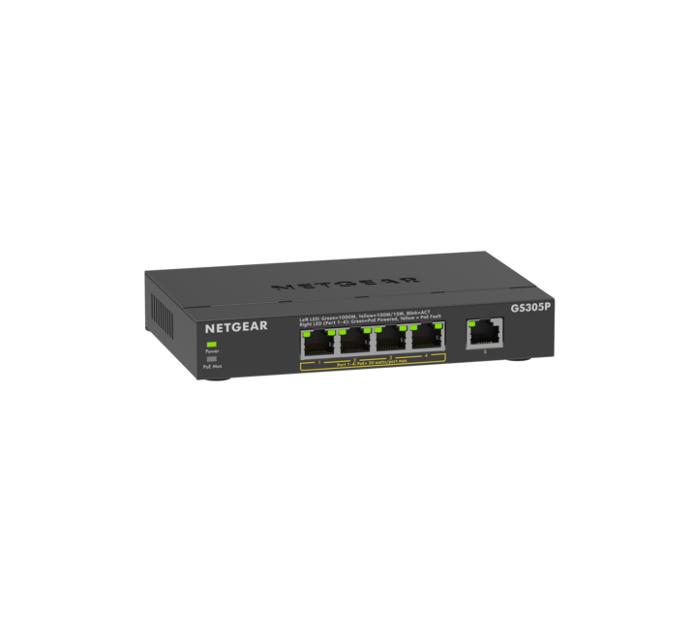

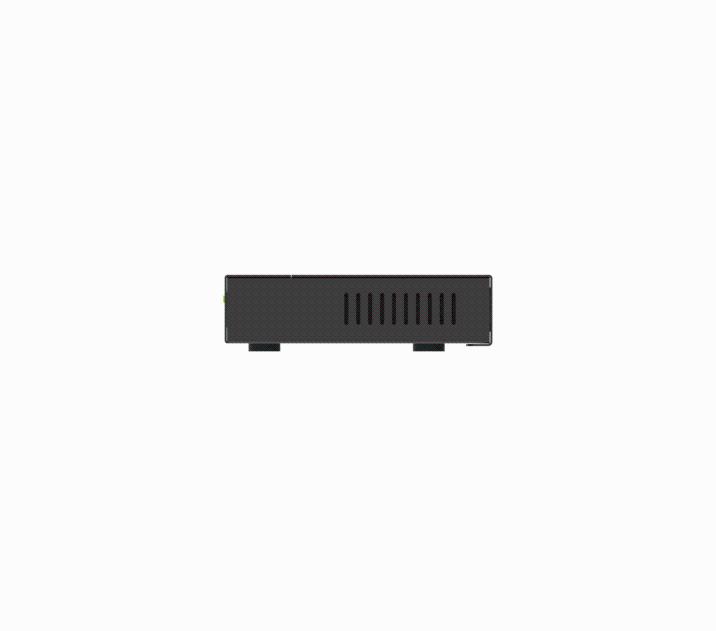

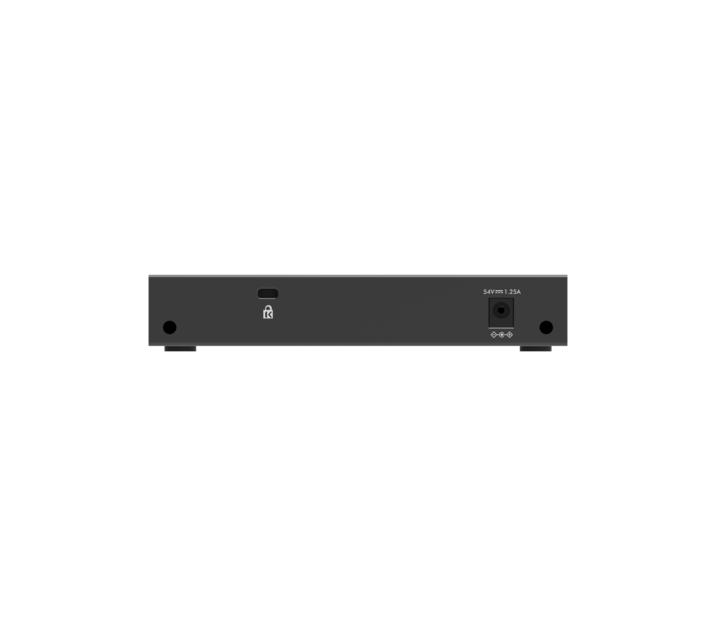

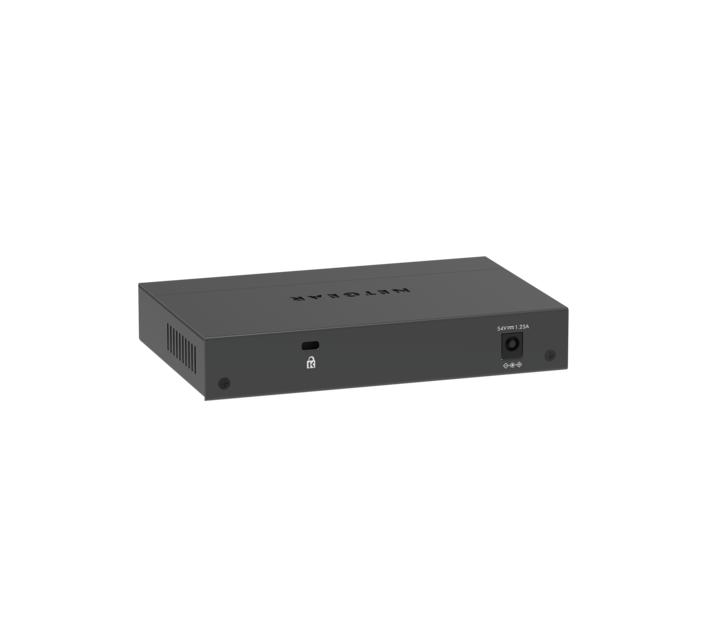

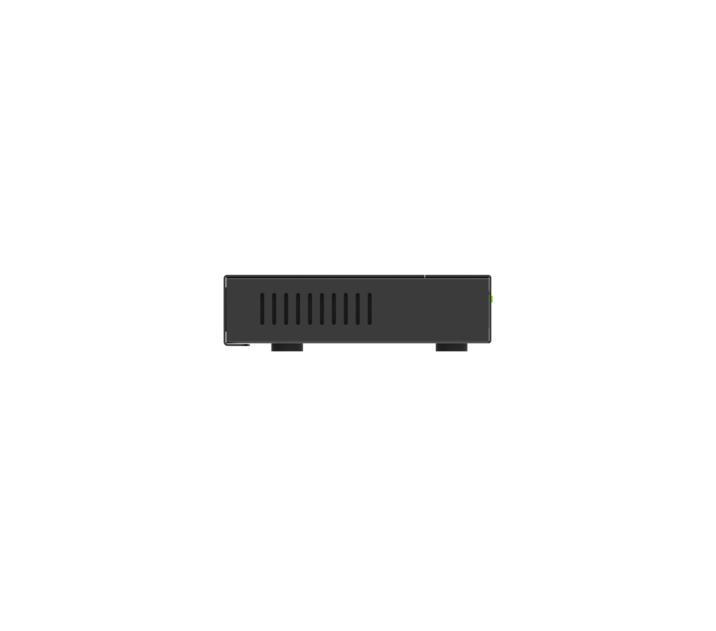

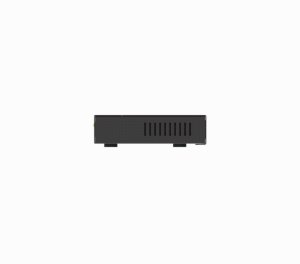

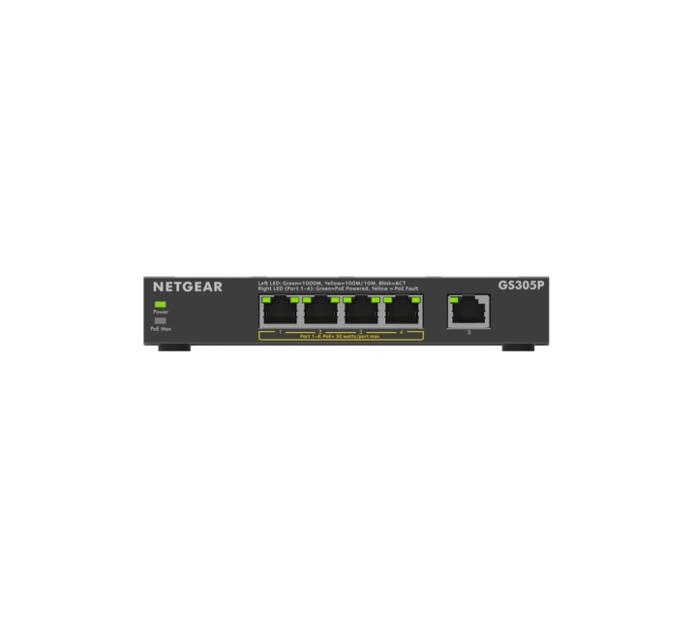

NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Roll over image to zoom inClick to Open expanded view

NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Name: NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Netgear
SKU: GS305P-300EUS

SKU: GS305P-300EUS

NETGEAR GS305Pv3, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
Lifetime

SKU
GS305P-300EUS

EAN
606449164909

Data transmission

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
2000 entries

Packet buffer memory
0.128 MB

Packet forwarding rate (1 Gbps)
1448000 pps

Switching capacity
10 Gbit/s

Design

LED indicators
Yes

Product colour
Black

Rack mounting
No

Stackable
No

Wall mountable
Yes

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-sensing
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Operational conditions

Heat dissipation
228.38 BTU/h

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 40 °C

Performance

Mean time between failures (MTBF)
4113947 h

Ports & interfaces

Power connector
DC-in jack

Switch Number of Ports
5

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

DC input voltage
54 V

Input current
1.25 A

Power consumption (max)
66.78 W

Power source
DC

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
63 W

Weight & dimensions

Depth
101 mm

Height
27 mm

Weight
400 g

Width
158 mm

Description

NETGEAR GS305Pv3. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 5
MAC address table: 2000 entries Switching capacity: 10 Gbit/s
DC Power over Ethernet (PoE)
