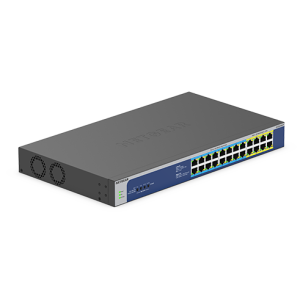

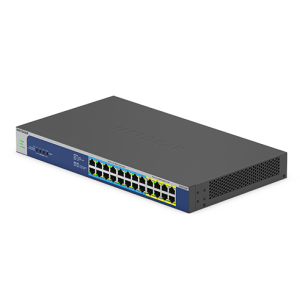

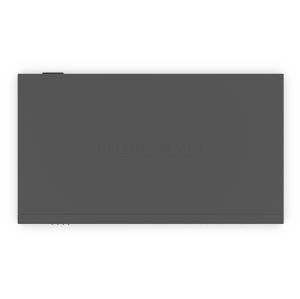

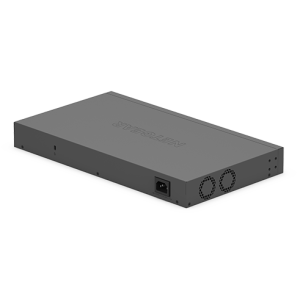

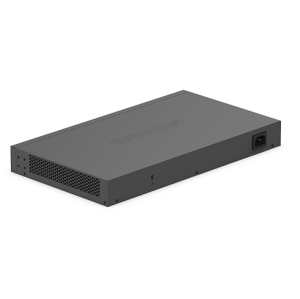

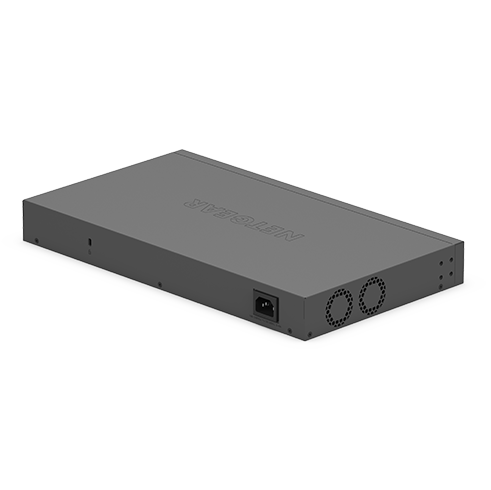

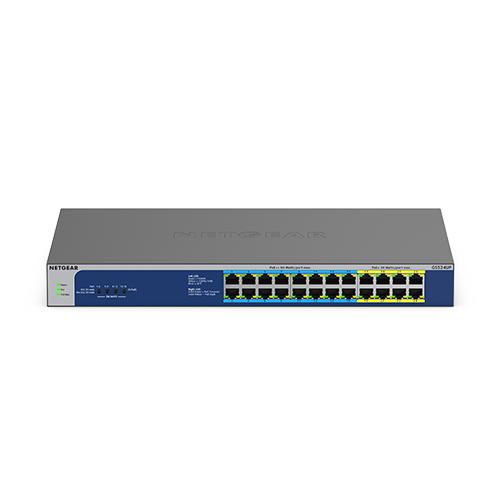

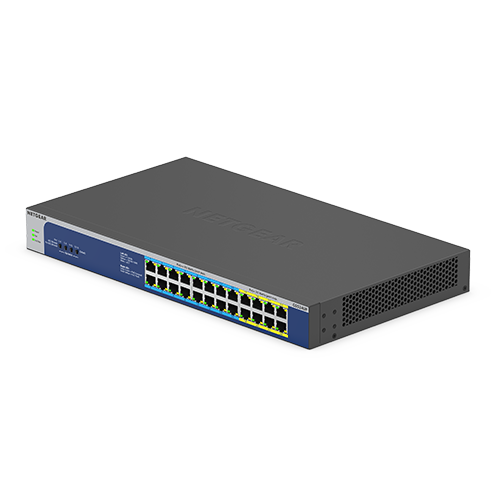

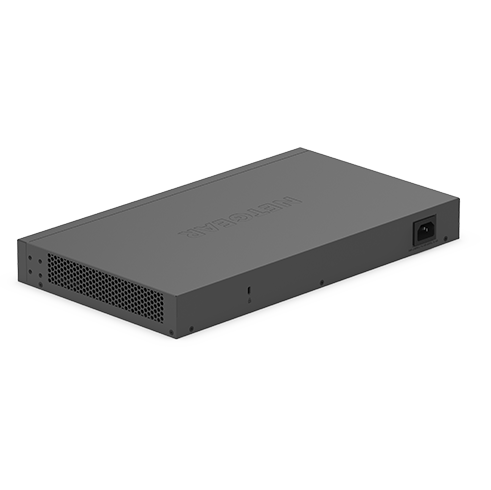

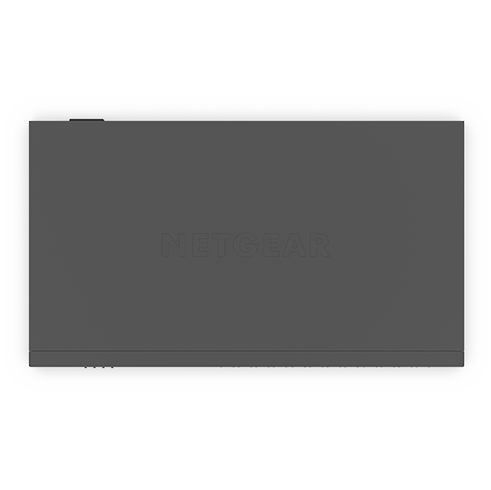

NETGEAR GS524UP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Roll over image to zoom inClick to Open expanded view

NETGEAR GS524UP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Name: NETGEAR GS524UP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Brand: Netgear
SKU: GS524UP-100EUS

SKU: GS524UP-100EUS

Log In to View Pricing

Currently out of Stock

NETGEAR GS524UP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting

Currently out of Stock

hypertec

Datasheets (Download)

Installation (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
Lifetime

SKU
GS524UP-100EUS

EAN
606449149777

Bullet points

Data transmission

Latency (1 Gbps)
12 µs

MAC address table
8000 entries

Packet buffer memory
0.192 MB

Packet forwarding rate (1 Gbps)
1448000 pps

Switching capacity
48 Gbit/s

Design

Housing material
Metal

LED indicators
Activity, Link, PoE, Power, Speed

Number of fans
2 fan(s)

Product colour
Grey

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Full duplex
Yes

Half duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u

Operational conditions

Heat dissipation
1976.0232 BTU/h

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-20 - 70 °C

Performance

Mean time between failures (MTBF)
809853.3 h

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
8 - 4 A

Power consumption (max)
578.8 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
60 W

Power over Ethernet (PoE) type supported
PoE+

Power over Ethernet plus (PoE+) ports quantity
24

Total Power over Ethernet (PoE) budget
480 W

Weight & dimensions

Depth
220 mm

Height
43 mm

Weight
3.1 kg

Width
390 mm

Description

NETGEAR GS524UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE.... Power over Ethernet (PoE). Rack mounting

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 24
MAC address table: 8000 entries Switching capacity: 48 Gbit/s
Rack mounting
Power supply included Power over Ethernet (PoE)
PLUG-AND-PLAY - Simple set up with no software or configuration needed
POWER-OVER-ETHERNET: impressive 480W PoE budget with 16 Ultra60 PoE++ ports and 8 PoE+ ports to power wireless AP, 4K/8K IP Cameras, LED lights, IoT devices, and much more
COMPACT, FLEXIBLE FORM FACTOR – Small case with internal power supply and whisper-quiet fans, perfect for desktop, wall-mount, or rackmount deployment
EASY-MONITORING - Per port LEDs for port activity and speed
GIGABIT ETHERNET – 24 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 48Gb non-blocking switching
PoE AUTO-BALANCE - unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. The switches deliver the power the device needs, at the most granular level
