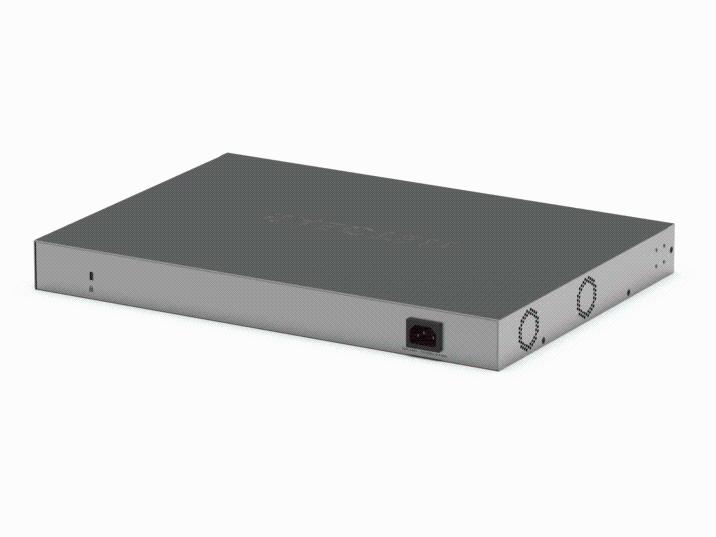

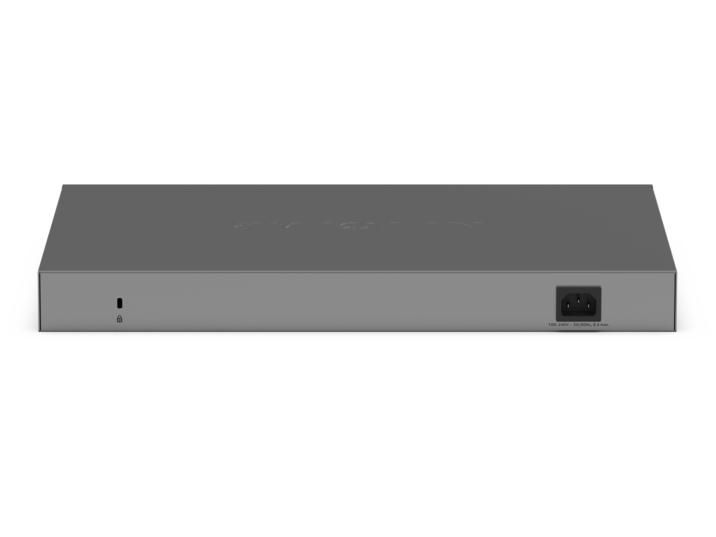

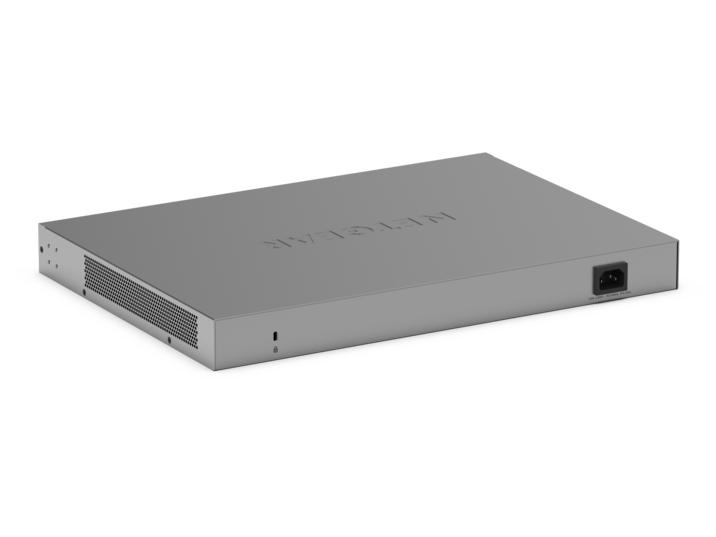

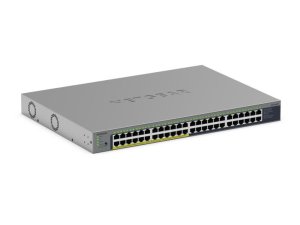

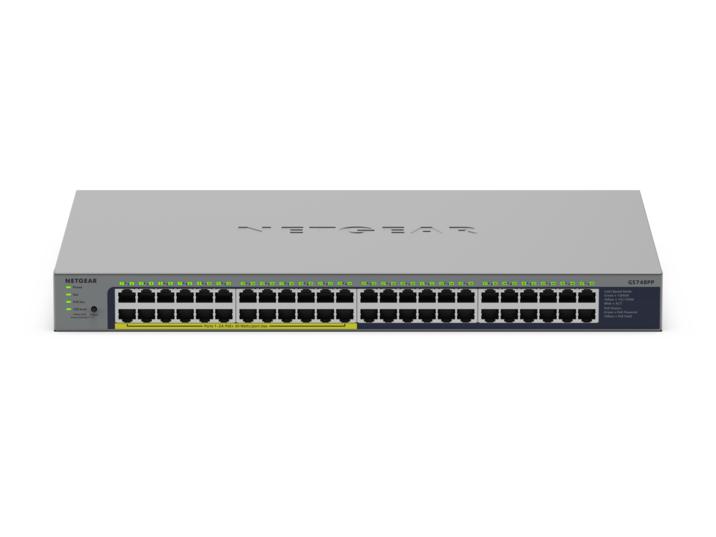

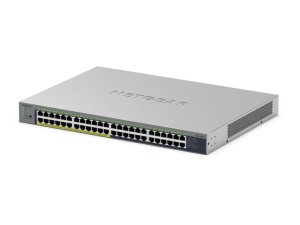

NETGEAR GS748PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Roll over image to zoom inClick to Open expanded view

NETGEAR GS748PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Name: NETGEAR GS748PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Brand: Netgear
SKU: GS748PP-100EUS

SKU: GS748PP-100EUS

Log In to View Pricing

Currently out of Stock

NETGEAR GS748PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting

Currently out of Stock

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
Lifetime

SKU
GS748PP-100EUS

EAN
606449174915

Bullet points

Certificates

Compliance certificates
CB, CE, Federal Communications Commission (FCC), KC, Low Voltage Directive (LVD), RCM, UL, VCCI

Data transmission

Jumbo frames
12.288

Jumbo frames support
Yes

MAC address table
8000 entries

Maximum data transfer rate
1 Gbit/s

Packet buffer memory
1.5 MB

Design

Number of fans
2 fan(s)

Product colour
Grey

Rack mounting
Yes

Redundant fans support
Yes

Safety
CE mark, cUL IEC950/EN60950

Management features

MIB support
RFC 1213 MIB II, RFC 1643, RFC 1493

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

Copper ethernet cabling technology
10BASE-T

Ethernet LAN data rates
1000 Mbit/s

Flow control support
Yes

Full duplex
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1p, IEEE 802.3az

Operational conditions

Heat dissipation
34.2 BTU/h

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Authentication method
802.1x

Bandwidth
96 Gbit/s

Connectivity technology
Wired

Electromagnetic emissions
CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick

I/O ports
48 x 10/100/1000 Mbps 4 x SFP

Latency
2,900ns

Warranty period
2 year(s)

Performance

Mean time between failures (MTBF)
570972 h

Ports & interfaces

Switch Number of Ports
48

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Input current
8 A

Power consumption (max)
410 W

Power source
AC/DC

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
380 W

Weight & dimensions

Depth
310 mm

Height
43 mm

Weight
4.6 kg

Width
440 mm

Description

NETGEAR GS748PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.1p, IEEE 802.3az. Power over Ethernet (PoE). Rack mounting

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 48
10BASE-T
MAC address table: 8000 entries
Rack mounting
AC/DC Power over Ethernet (PoE)
48 x Gigabit Ethernet ports with 24 ports of PoE+
Plug and play switch, no management required
Energy Efficient Ethernet for maximum power savings
Dynamic fans for quiet operation
Rackmount or desktop
