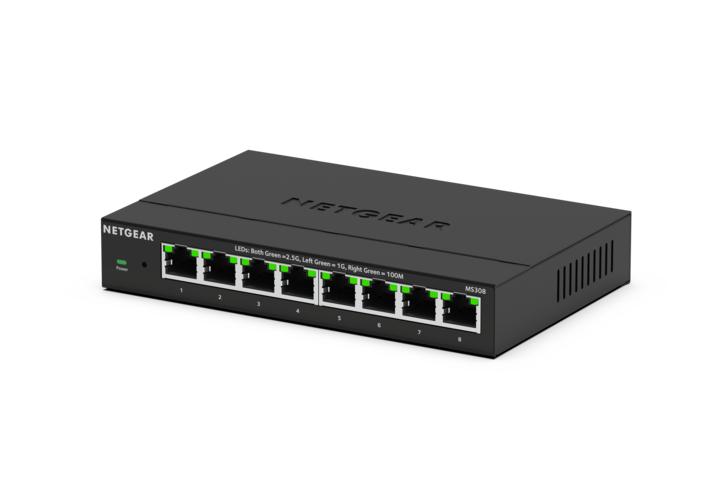

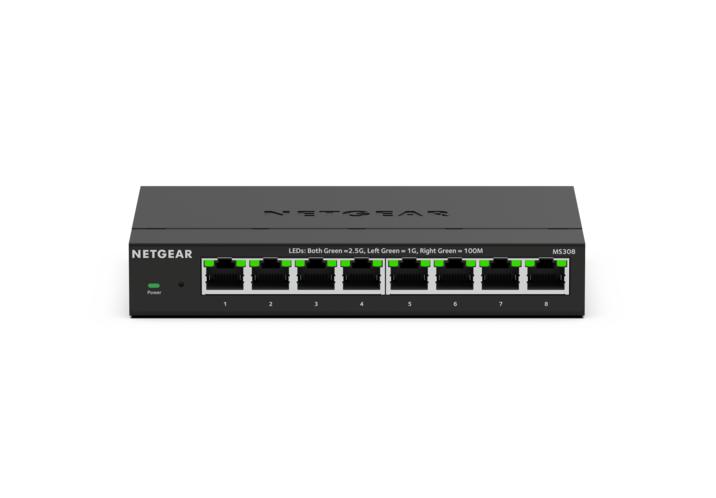

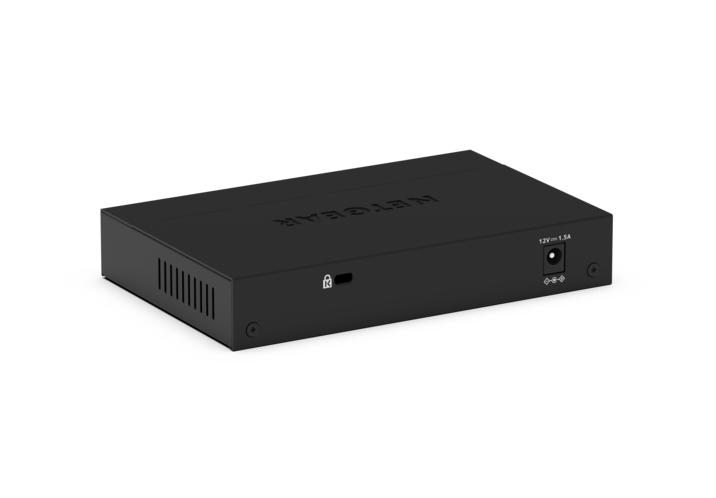

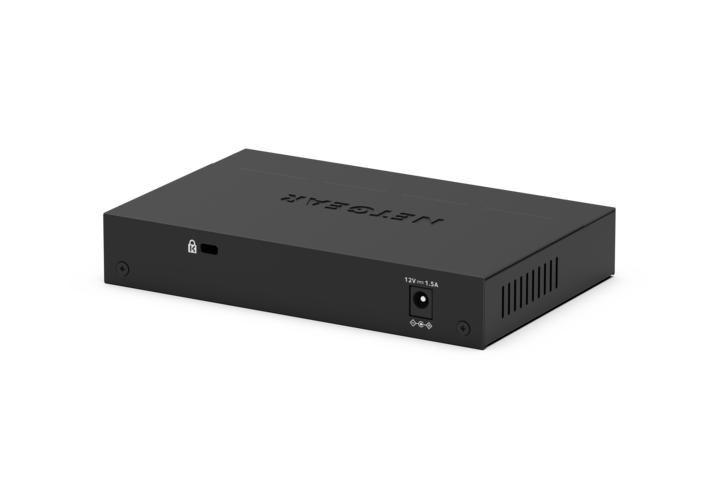

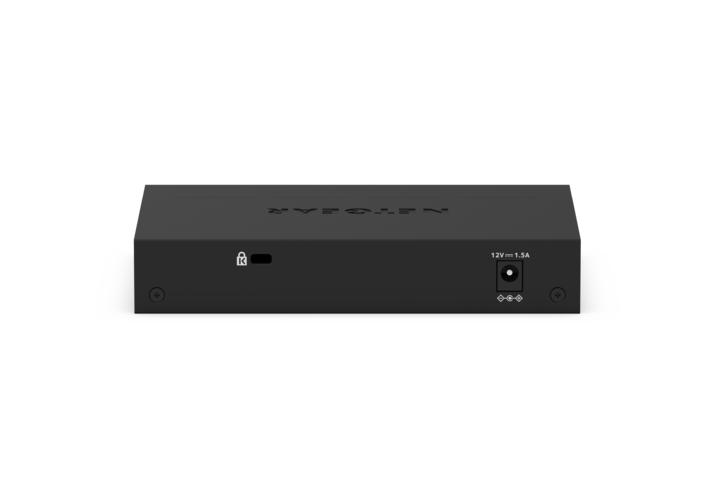

NETGEAR MS308 Unmanaged 2.5G Ethernet (100/1000/2500) Black

Roll over image to zoom inClick to Open expanded view

NETGEAR MS308 Unmanaged 2.5G Ethernet (100/1000/2500) Black

Name: NETGEAR MS308 Unmanaged 2.5G Ethernet (100/1000/2500) Black
Brand: Netgear
SKU: MS308-100EUS

SKU: MS308-100EUS

Log In to View Pricing

Currently out of Stock

NETGEAR MS308, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Wall mountable

Currently out of Stock

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
3 Years

SKU
MS308-100EUS

EAN
606449170788

Certificates

Compliance certificates
CCC, Low Voltage Directive (LVD)

Data transmission

Forwarding rate
3.72 Mpps

Jumbo frames
12288

Jumbo frames support
Yes

Latency (1 Gbps)
4.9 µs

MAC address table
16000 entries

Packet buffer memory
1 MB

Switching capacity
40 Gbit/s

Design

Housing material
Metal

LED indicators
Yes

Number of fans
0 fan(s)

Product colour
Black

Rack mounting
No

Stackable
No

Wall mountable
Yes

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Cable length detection
Yes

Ethernet LAN data rates
100,1000,2500 Mbit/s

Full duplex
Yes

Half duplex
Yes

Head-of-line (HOL) blocking
Yes

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Other features

Warranty period
3 year(s)

Performance

Fanless
Yes

Mean time between failures (MTBF)
3309911 h

Noise level
0 dB

Ports & interfaces

Switch Number of Ports
8

Switch Port Speed
2.5G Ethernet (100/1000/2500)

Power

DC input voltage
12 V

Input current
1 A

Input voltage
12 V

Power consumption (max)
7.98 W

Power source
DC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
101 mm

Height
27 mm

Weight
430 g

Width
158 mm

Description

NETGEAR MS308. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Wall mountable

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 8
MAC address table: 16000 entries Switching capacity: 40 Gbit/s
DC Power supply included
