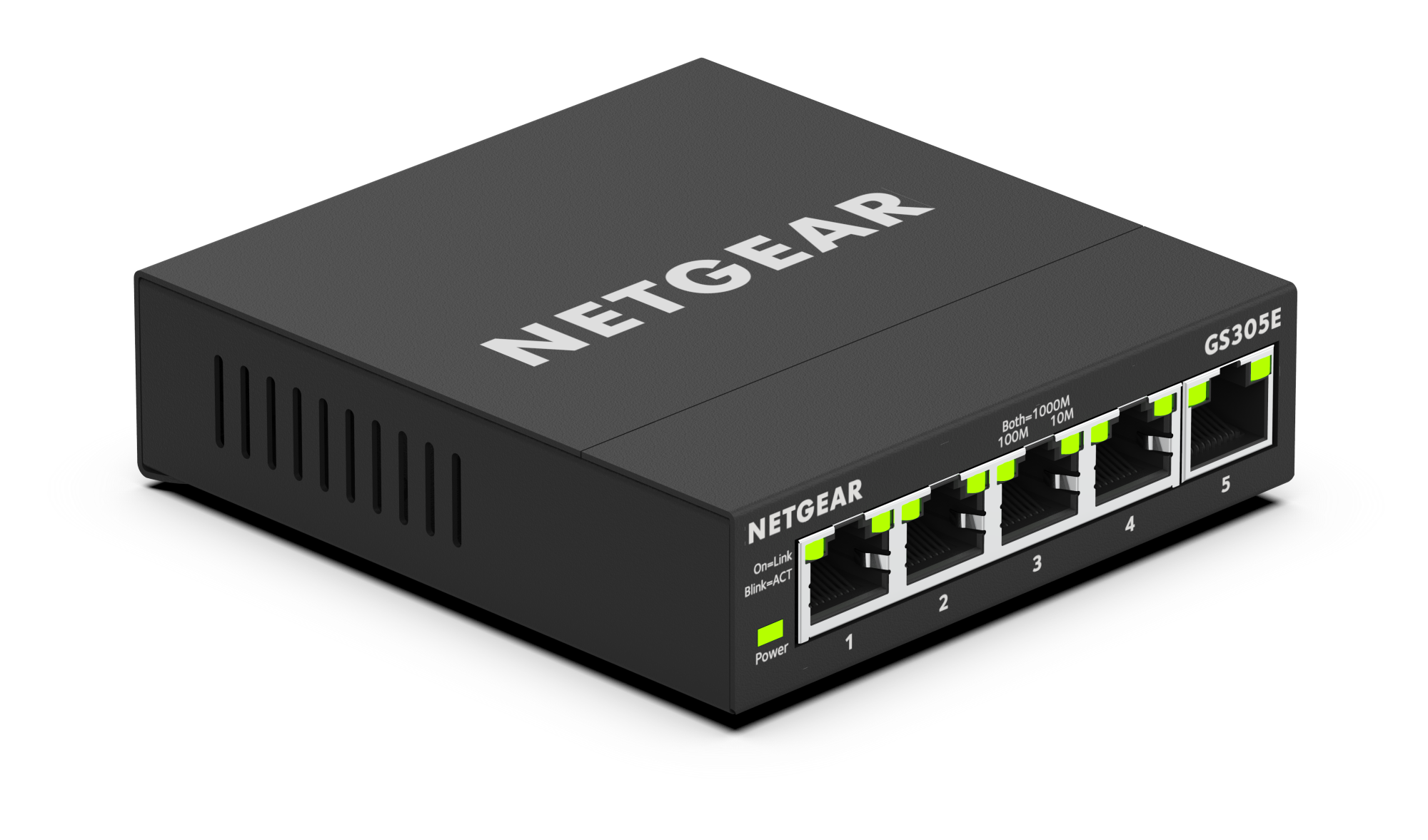

NETGEAR SOHO Managed L3 Gigabit Ethernet (10/100/1000) Black

Roll over image to zoom inClick to Open expanded view

NETGEAR SOHO Managed L3 Gigabit Ethernet (10/100/1000) Black

Name: NETGEAR SOHO Managed L3 Gigabit Ethernet (10/100/1000) Black
Brand: Netgear
SKU: GS305E-100UKS

SKU: GS305E-100UKS

Currently out of Stock

NETGEAR SOHO, Managed, L3, Gigabit Ethernet (10/100/1000)

Currently out of Stock

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
2 Years

SKU
GS305E-100UKS

EAN
606449140576

Bullet points

Point
Auto “denial-of-service” (DoS) prevention

Gigabit speed with QoS, VLAN and network monitoring

IGMP snooping v1, v2 and v3 support for multicast optimization

Jumbo frame support

Loop prevention and broadcast storm controls

Port mirroring for network monitoring

Port Trunking to increase bandwidth and provide redundant links

Quality of Service (QoS) for traffic prioritization

Rate limiting for better bandwidth allocation

Simple, yet useful network set-up on top of plug-and-play connectivity

Smart Managed Plus Switch delivers network monitoring, traffic prioritization and VLAN

Troubleshoot connection issues via cable test

VLAN support for traffic segmentation

Certificates

Certification
CE mark, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
8000 entries

Packet buffer memory
0.128 MB

Store-and-forward
Yes

Design

Housing material
Metal

LED indicators
Activity, Link, Power, Speed, System

Product colour
Black

Rack mounting
No

Stackable
No

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast MAC address table
128 entries

Multicast support
Yes

Network

10G support
Yes

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Number of VLANs
64

Port mirroring
Yes

Virtual LAN features
Port-based VLAN, Tagged VLAN

VLAN support
Yes

Operational conditions

Non-operating altitude
0 - 3000 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Performance

Mean time between failures (MTBF)
2531294 h

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
5

Switch Number of Ports
5

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Security

DHCP features
DHCP client

IGMP snooping
Yes

Password protection
Yes

Queue scheduling algorithms
Priority queuing (PQ), Weighted Round Robin (WRR)

Weight & dimensions

Depth
94 mm

Height
27 mm

Weight
250 g

Width
100 mm

Description

NETGEAR SOHO. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Managed L3 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 5
10G support
MAC address table: 8000 entries
Smart Managed Plus Switch delivers network monitoring, traffic prioritization and VLAN
Up to 48 ports (depending on model) deliver up to 2000 Mbps of dedicated, non-blocking bandwidth per port
Simple, yet useful network set-up on top of plug-and-play connectivity
Gigabit speed with QoS, VLAN and network monitoring
VLAN support for traffic segmentation
Quality of Service (QoS) for traffic prioritization
Auto “denial-of-service” (DoS) prevention
Troubleshoot connection issues via cable test
Loop prevention and broadcast storm controls
IGMP snooping v1, v2 and v3 support for multicast optimization
Rate limiting for better bandwidth allocation
Port mirroring for network monitoring
Jumbo frame support
Port Trunking to increase bandwidth and provide redundant links
