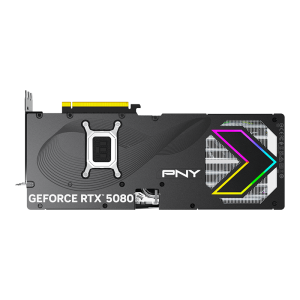

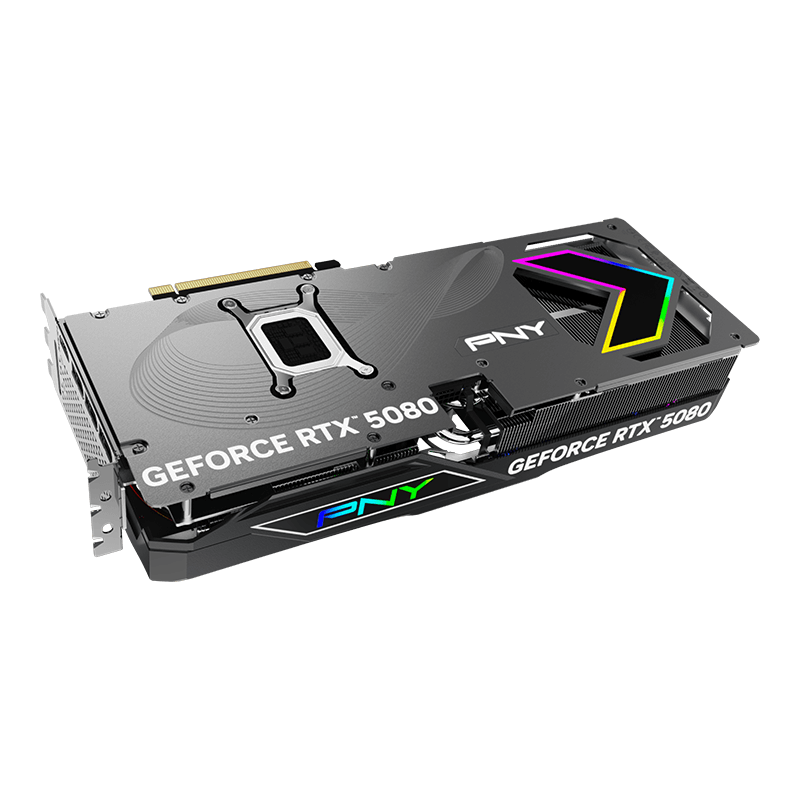

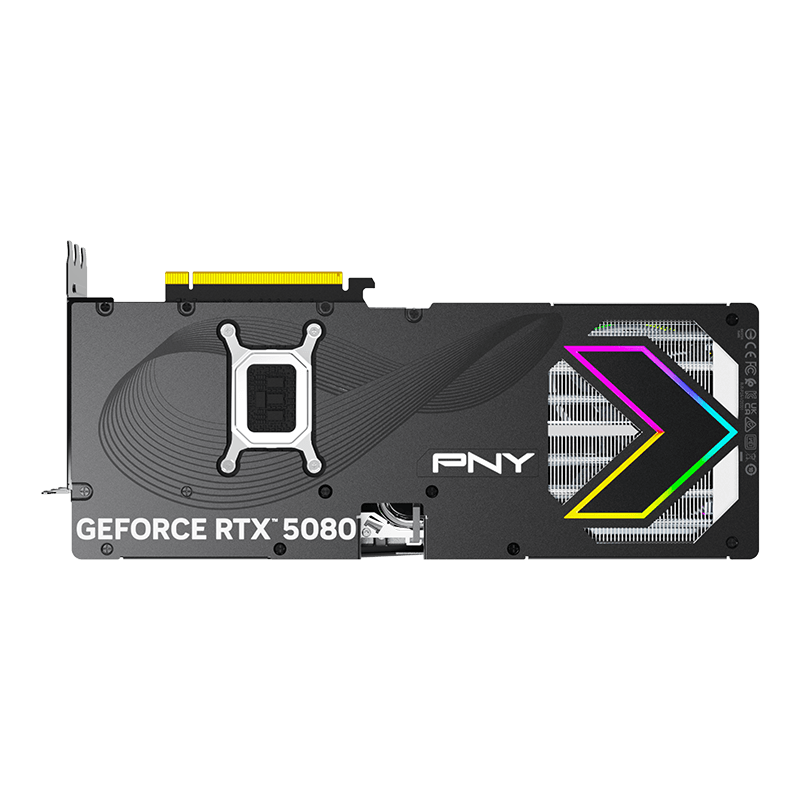

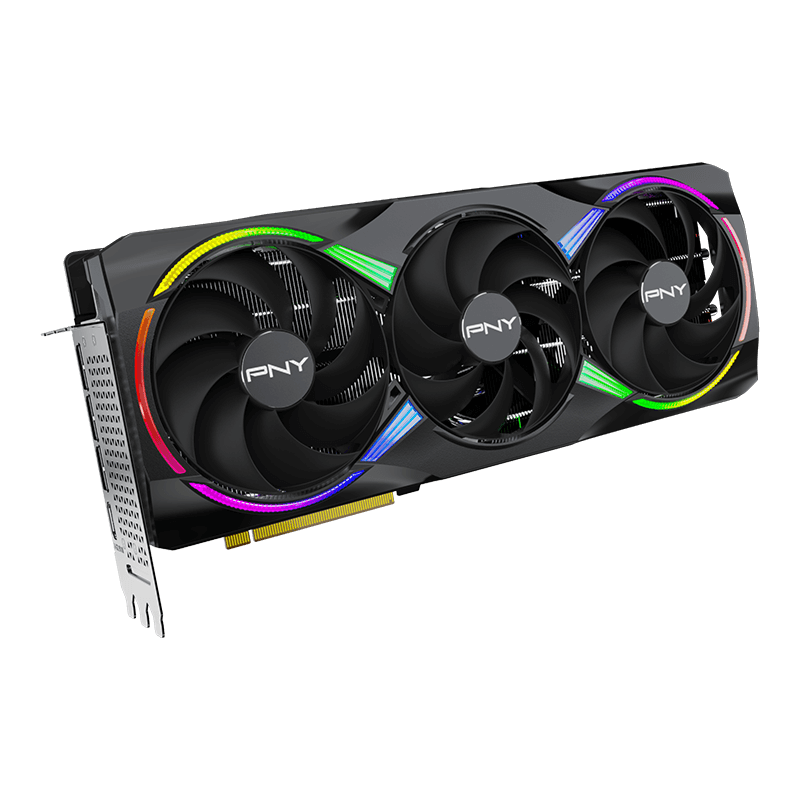

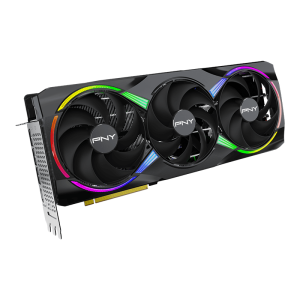

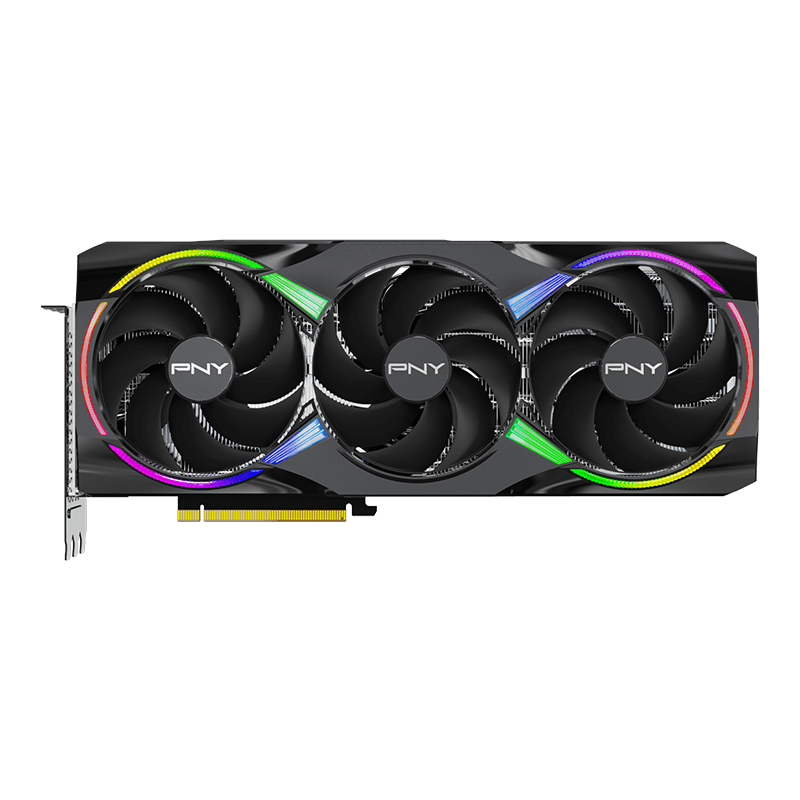

PNY VCG508016TFXXPB1-O graphics card NVIDIA GeForce RTX 5080 16 GB GDDR7

Roll over image to zoom inClick to Open expanded view

PNY VCG508016TFXXPB1-O graphics card NVIDIA GeForce RTX 5080 16 GB GDDR7

Name: PNY VCG508016TFXXPB1-O graphics card NVIDIA GeForce RTX 5080 16 GB GDDR7
Brand: Geforce
SKU: VCG508016TFXXPB1-O

SKU: VCG508016TFXXPB1-O

Log In to View Pricing

Currently out of Stock

PNY VCG508016TFXXPB1-O, GeForce RTX 5080, 16 GB, GDDR7, 256 bit, 7680 x 4320 pixels, PCI Express x16 5.0

Currently out of Stock

Datasheets (Download)

PNY LOGISTIC SHEET (Download)

EU Declaration of Conformity (Download)

Statement for the Compliance of Non-Use of Persistent Organic Pollutants (Download)

Statement for the Compliance of Non-Use of Hazardous Substances (Download)

Certificate of RoHS2 Compliance (Download)

Add to compare

Product Properties

Manufacturer
Geforce

Warranty
3 Years

SKU
VCG508016TFXXPB1-O

EAN
751492794242

Design

Bracket height
Full-Height (FH)

Cooling type
Active

Form factor
Full-Height/Full-Length (FH/FL)

Illumination
Yes

Illumination colour
Multi

Number of fans
3 fan(s)

Number of slots
3

Product colour
Black

Memory

Data transfer rate
30 Gbit/s

Discrete graphics card memory
16 GB

Graphics card memory type
GDDR7

Memory bandwidth (max)
960 GB/s

Memory bus
256 bit

Other features

External video modes refresh rate (max)
480 Hz

Packaging data

Package depth
102.9 mm

Package height
198.9 mm

Package width
404.9 mm

Performance

DirectX version
12 Ultimate

Dual Link DVI
No

HDCP
Yes

HDCP version
2.3

NVIDIA G-SYNC
Yes

OpenGL version
4.6

Overclocked (OC) edition
Yes

TV tuner integrated
No

Virtual Reality (VR) ready
Yes

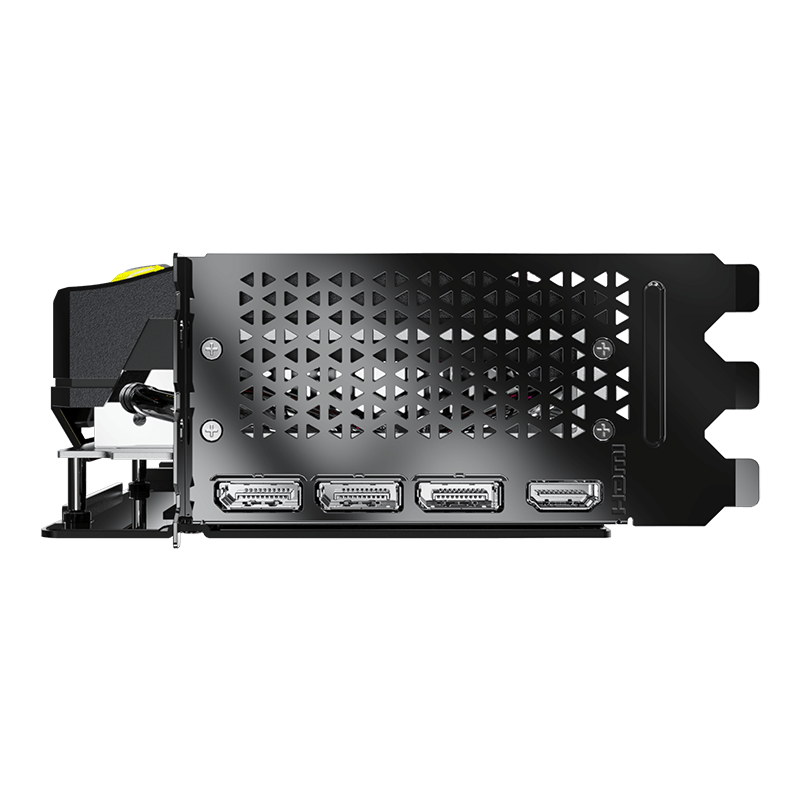

Ports & interfaces

DisplayPort version
2.1b

DisplayPorts quantity
3

DVI-D ports quantity
0

DVI-I ports quantity
0

HDMI ports
1

HDMI version
2.1b

Interface type
PCI Express x16 5.0

Power

Minimum system power supply
850 W

Supplementary power connectors
1x 16-pin, 3x 8-pin

Thermal Design Power (TDP)
360 W

Processor

CUDA
Yes

CUDA cores
10752

Graphics processor
GeForce RTX 5080

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
2775 MHz

Processor frequency
2295 MHz

System requirements

Linux operating systems supported
Yes

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Weight & dimensions

Depth
59.6 mm

Height
137.6 mm

Length
328.7 mm

Description

PNY VCG508016TFXXPB1-O. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5080, Processor frequency: 2295 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
