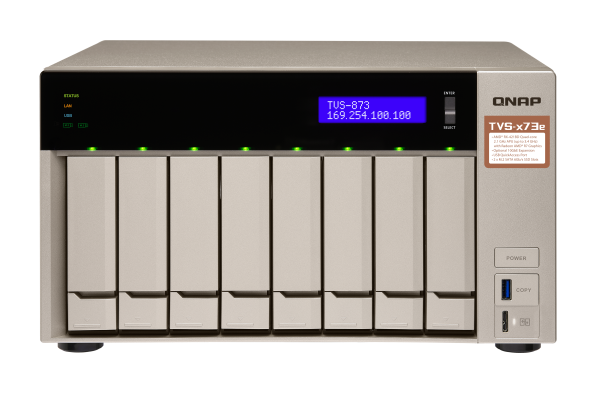

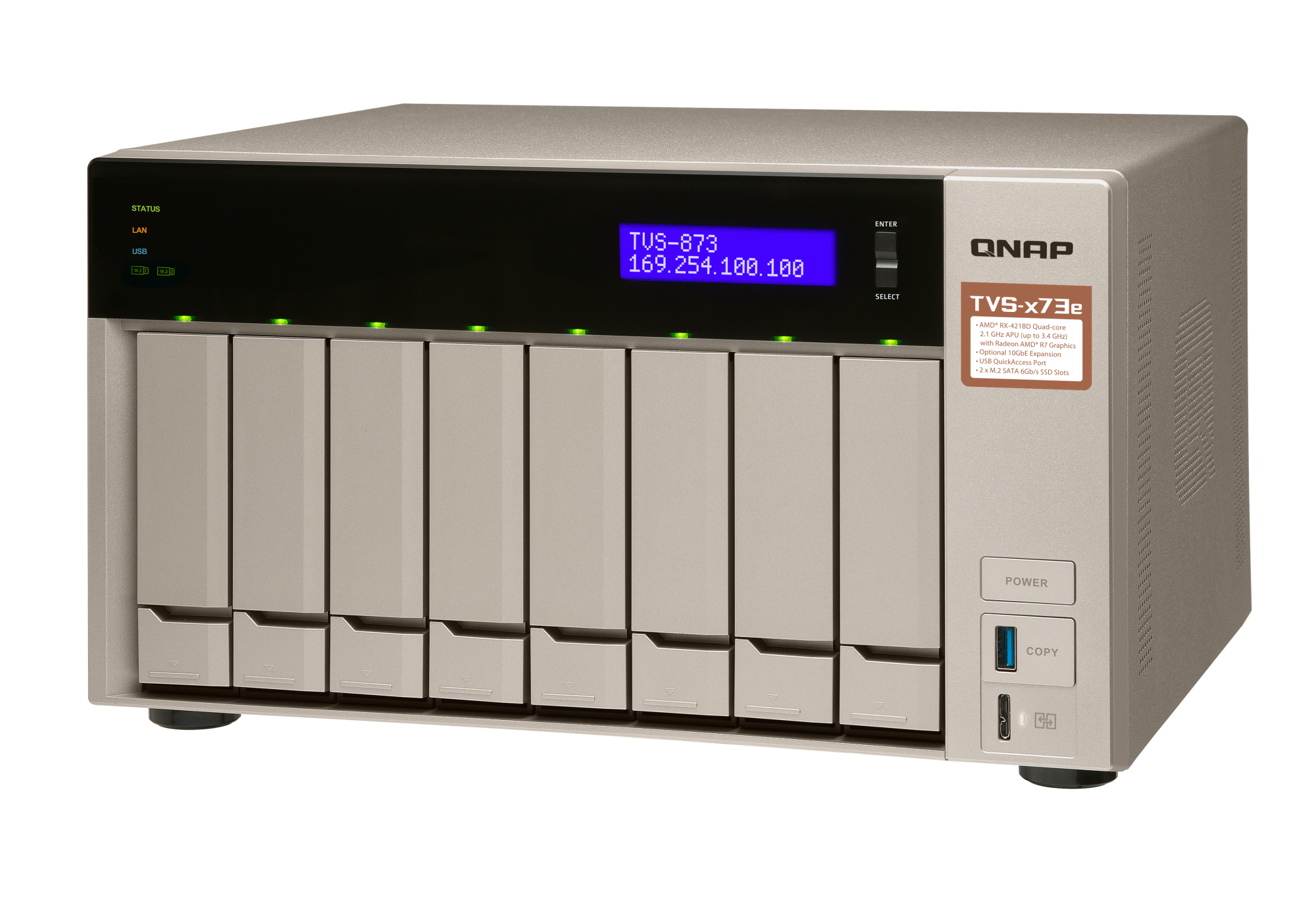

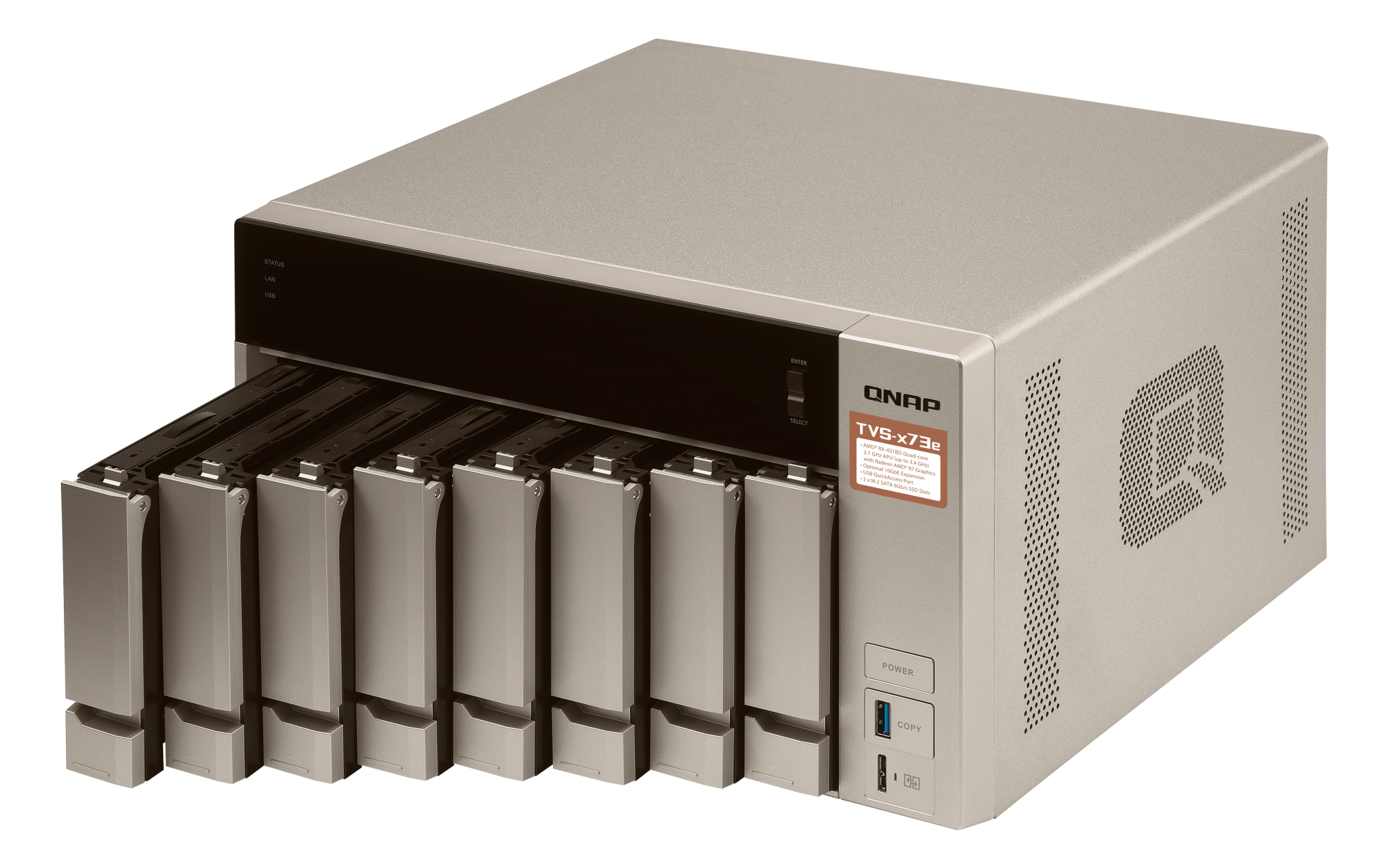

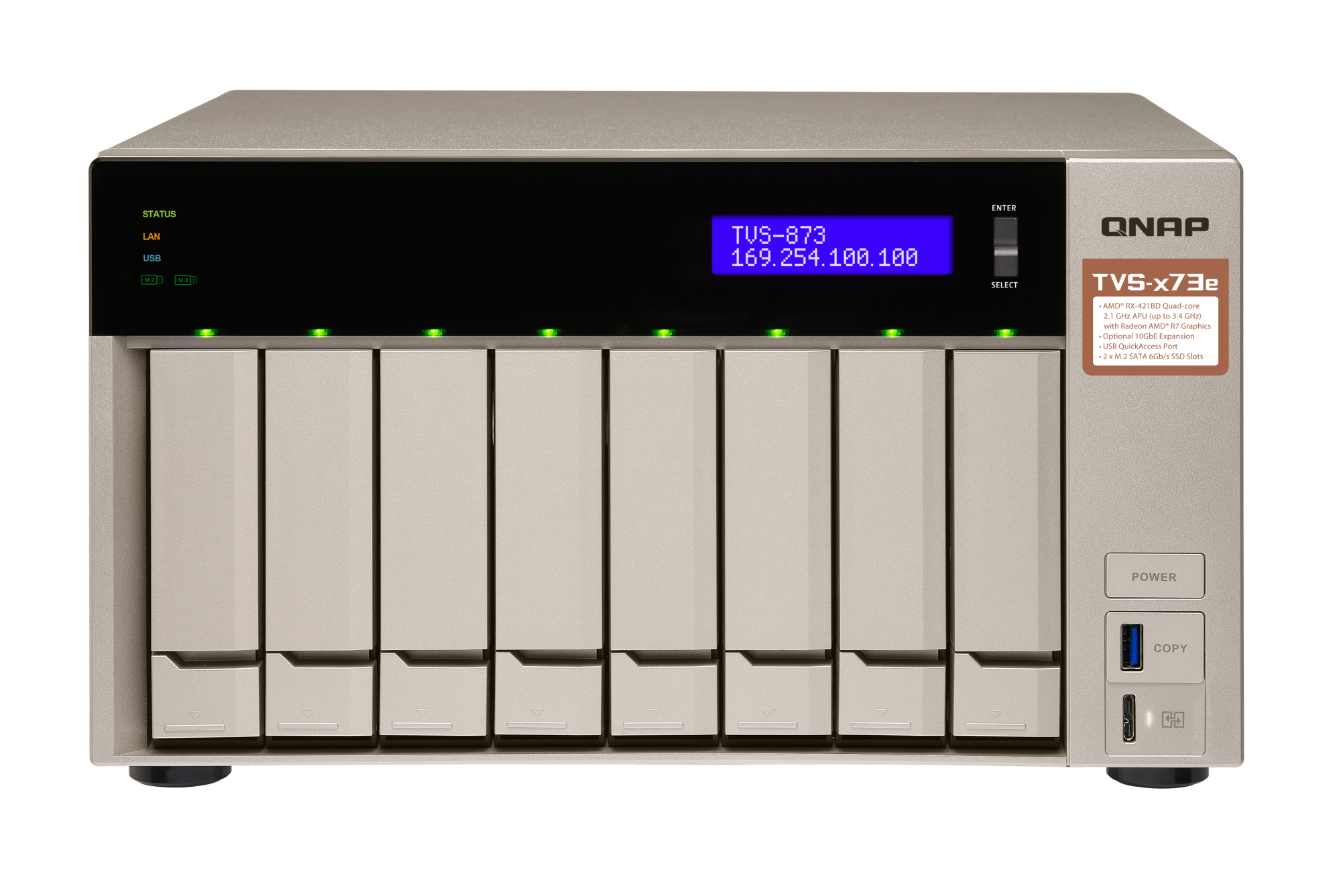

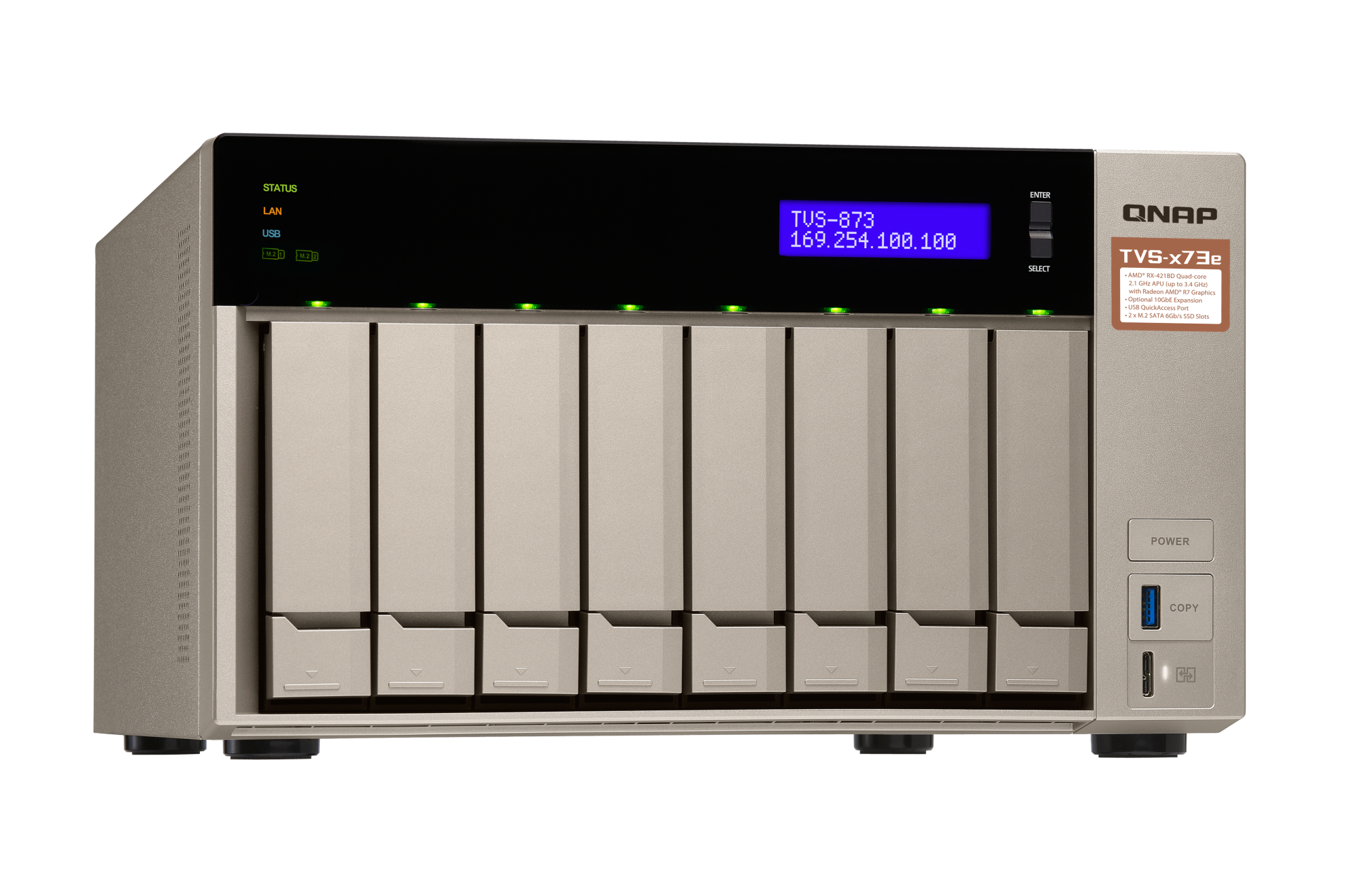

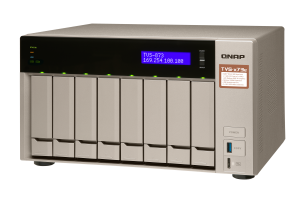

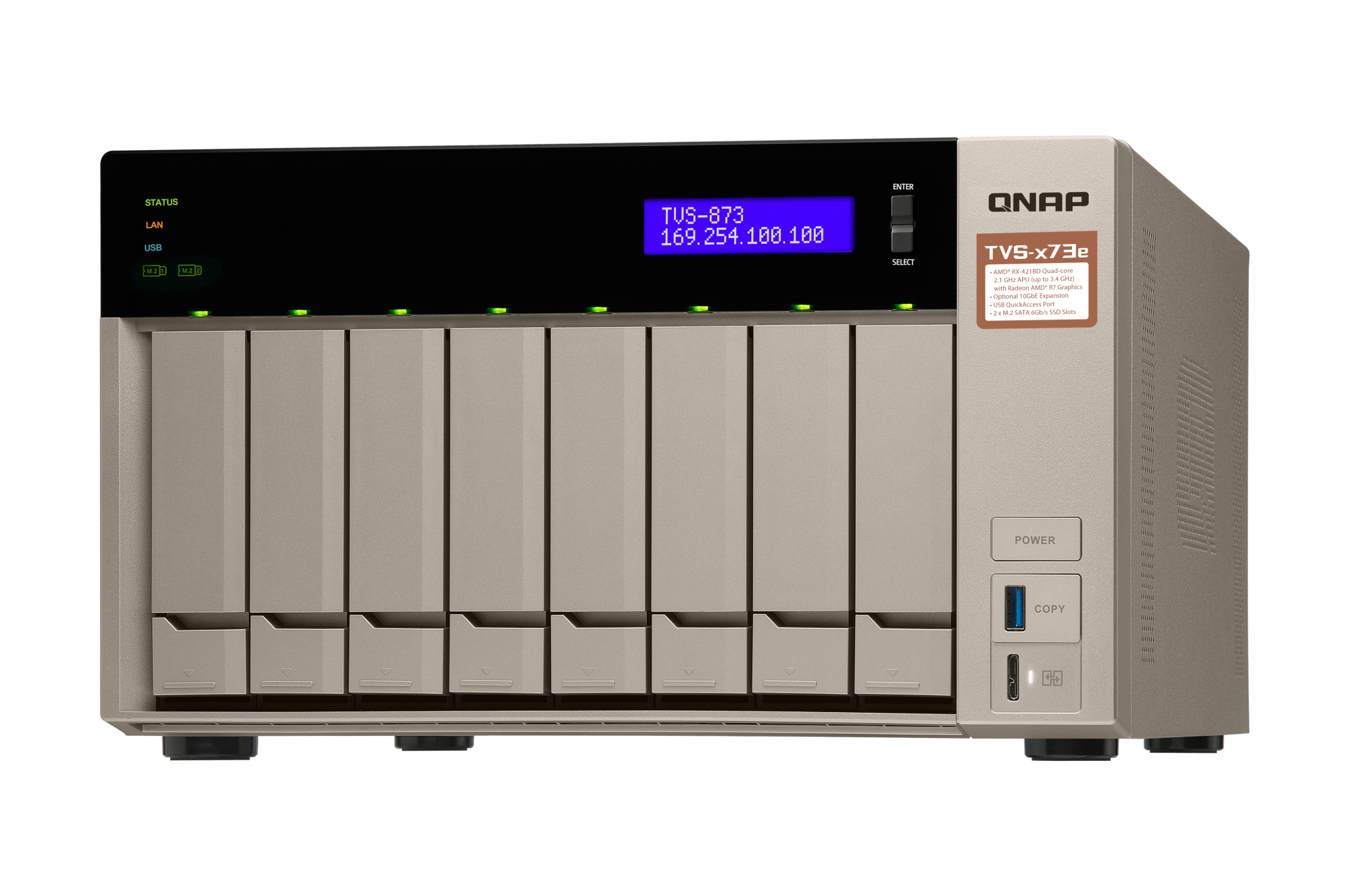

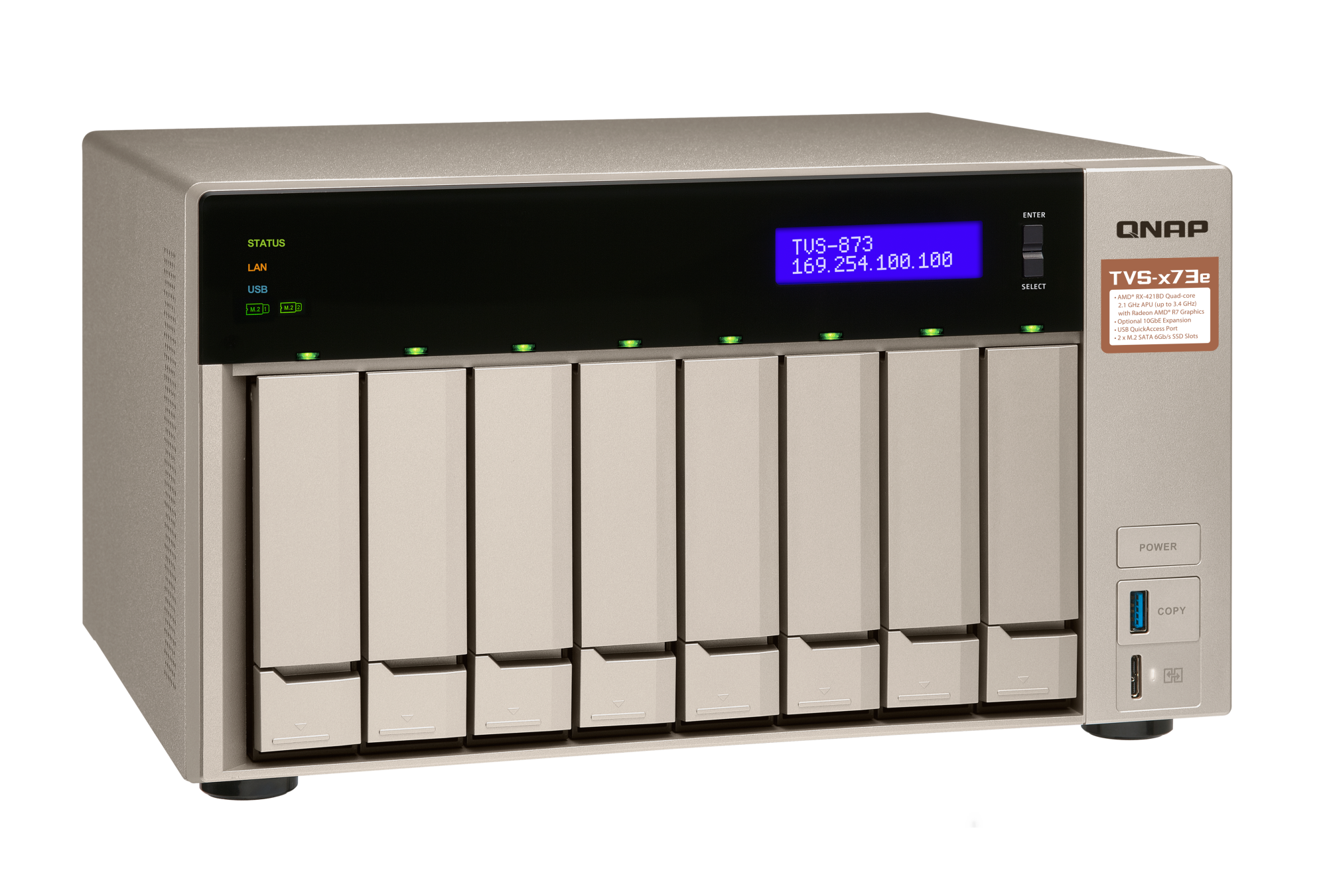

QNAP TVS-873e NAS Tower AMD Embedded R-Series SoC RX-421BD 8 GB DDR4 80 TB HDD QNAP Turbo System Gold

Roll over image to zoom inClick to Open expanded view

QNAP TVS-873e NAS Tower AMD Embedded R-Series SoC RX-421BD 8 GB DDR4 80 TB HDD QNAP Turbo System Gold

Name: QNAP TVS-873e NAS Tower AMD Embedded R-Series SoC RX-421BD 8 GB DDR4 80 TB HDD QNAP Turbo System Gold
Brand: QNAP
SKU: TVS-873E-8G-80TB-GLD

SKU: TVS-873E-8G-80TB-GLD

Log In to View Pricing

End of Life

QNAP TVS-873e, NAS, Tower, AMD Embedded R-Series SoC, RX-421BD, 8 GB, DDR4

End of Life

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
2 Years

SKU
TVS-873E-8G-80TB-GLD

Bullet points

Point
Integrated Radeon™ R7 GPU for 4K video playback

Qtier™ auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency

Two PCIe slots support 10GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards

Use the NAS as a PC by attaching a keyboard, mouse, and HDMI display

Design

Built-in display
Yes

Built-in speaker(s)
Yes

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Display type
LCD

Fan diameter
12 cm

Fan diameter 2
6 cm

LED indicators
Yes

Number of built-in speakers
2

Number of fans
3 fan(s)

Product colour
Gold

Memory

Flash memory
512 MB

Internal memory type
DDR4

Maximum RAM supported
64 GB

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory slots
4

Network

DHCP client
Yes

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Wake-on-LAN ready
Yes

Wi-Fi
No

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Other features

Compliance certificates
RoHS

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
26

Quick installation guide
Yes

Performance

Access Control List (ACL)
Yes

Backup button
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox

Buzzer
Yes

Device class
Home & Home Office

Multilingual support
Yes

On/off switch
Yes

Type
NAS

Universal Plug and Play (UPnP)
Yes

Ports & interfaces

3.5 mm (1/8-inch) out
Yes

Ethernet LAN (RJ-45) ports
4

Fiber ports quantity
0

HDMI ports
2

HDMI version
1.4b

PCI Express x4 (Gen 3.x) slots
2

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Number of power supply units
1

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

Number of Cores
4

Processor
RX-421BD

Processor family
AMD Embedded R-Series SoC

Processor frequency
2.1 GHz

Software

Linux operating systems supported
Yes

Mac compatibility
Yes

Mac operating systems supported
Yes

Operating system installed
QNAP Turbo System

Operating system version
4.3

Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Windows operating systems supported
Yes

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives installed
8

Number of storage drives supported
8

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, JBOD

RAID support
Yes

Storage drive capacity
10 TB

Storage drive interface
Serial ATA III

Storage drive size
2.5/3.5"

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, HPFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
80 TB

Weight & dimensions

Depth
279.6 mm

Height
188.2 mm

Weight
6.52 kg

Width
329.3 mm

Description

QNAP TVS-873e. Type: NAS. Chassis type: Tower. Device class: Home & Home Office. Processor family: AMD Embedded R-Series SoC, Processor model: RX-421BD, Processor frequency: 2.1 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 80 TB, Installed storage drive type: HDD. Operating system installed: QNAP Turbo System

Home & Home Office NAS Tower Gold
QNAP Turbo System 4.3
Total installed storage capacity: 80 TB Number of storage drives supported: 8 HDD & SSD Serial ATA III
AMD Embedded R-Series SoC RX-421BD 2.1 GHz
8 DDR4 Memory slots: 4 SO-DIMM
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active LCD
Backup features: Cloud, iSCSI LUN 250 W
Integrated Radeon™ R7 GPU for 4K video playback
Two PCIe slots support 10GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards
Use the NAS as a PC by attaching a keyboard, mouse, and HDMI display
Qtier™ auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery
RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance
