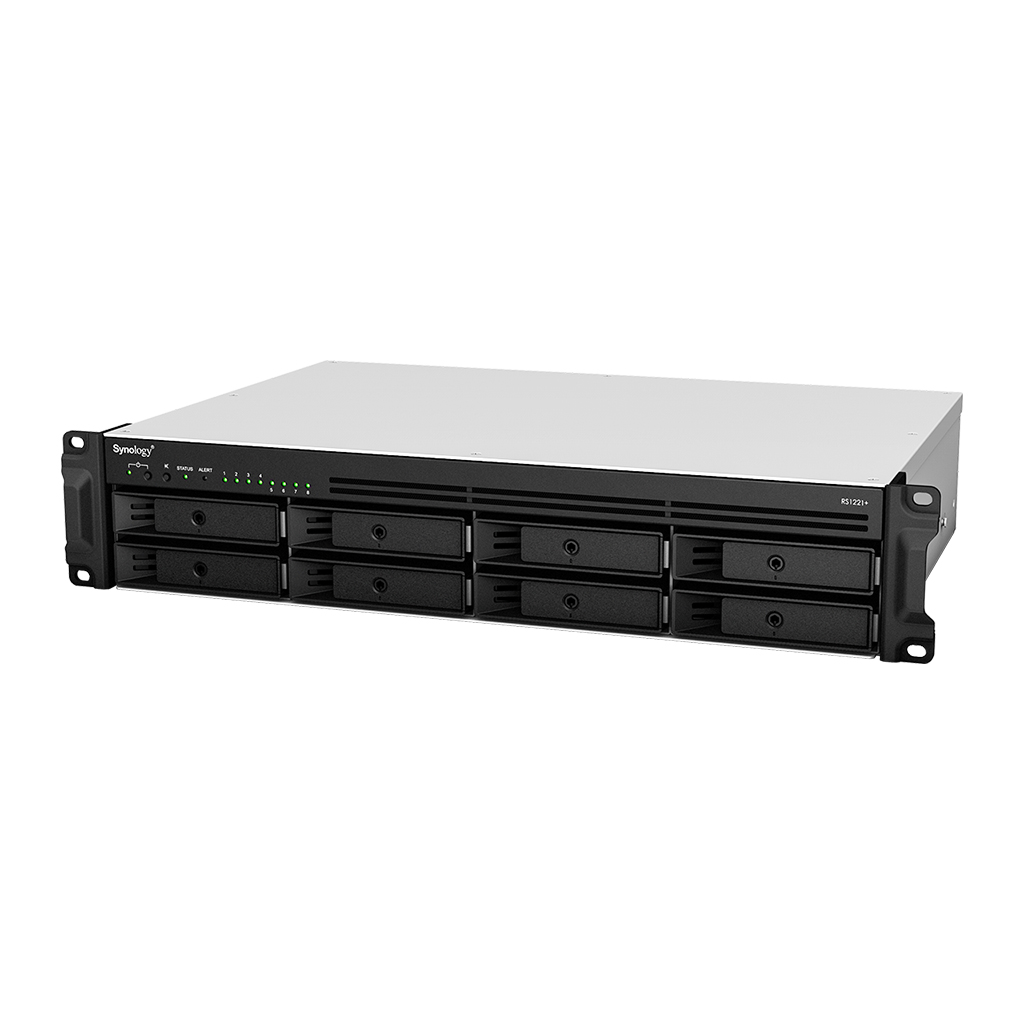

Synology RackStation RS1221+ NAS Rack (2U) Ryzen Embedded V1500B 4 GB DDR4 48 TB HDD DiskStation Manager Black

Roll over image to zoom inClick to Open expanded view

Synology RackStation RS1221+ NAS Rack (2U) Ryzen Embedded V1500B 4 GB DDR4 48 TB HDD DiskStation Manager Black

Name: Synology RackStation RS1221+ NAS Rack (2U) Ryzen Embedded V1500B 4 GB DDR4 48 TB HDD DiskStation Manager Black
Brand: Synology
SKU: RS1221+/48TB-REDPRO

SKU: RS1221+/48TB-REDPRO

Non-Cancellable, Non-Returnable

ETA 10 days

Synology RackStation RS1221+, NAS, Rack (2U), Ryzen Embedded, V1500B, 4 GB, DDR4

ETA 10 days

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Synology

Warranty
3 Years

Drive
With drives

SKU
RS1221+/48TB-REDPRO

EAN
5050914172756

Bullet points

Design

Chassis type
Rack (2U)

Cooling type
Active

Drive bay locking
Yes

Fan diameter
8 cm

LED indicators
HDD, Power, Status

Number of fans
2 fan(s)

Product colour
Black

Logistics data

Harmonized System (HS) code
84714100

Memory

ECC
Yes

Internal memory type
DDR4

Maximum RAM supported
32 GB

Memory form factor
SO-DIMM

Memory Installed
4 GB

Memory slots
2

Network

Ethernet LAN
Yes

Ethernet LAN data rates
1000 Mbit/s

iSCSI support
Yes

Link aggregation
Yes

Load balancing system
Yes

Supported network protocols
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN

Wake-on-LAN ready
Yes

Operational conditions

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 35 °C

Storage temperature (T-T)
-20 - 60 °C

Other features

Compliance certificates
CE, RoHS

Packaging content

Cables included
AC

Power cables quantity
2

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Safari, Chrome, Edge, Internet Explorer, Firefox

Built-in FTP server
Yes

Device class
Small & Medium Business

Hot spare
Yes

Management protocols
SNMP

Multilingual support
Yes

Noise level
25.2 dB

On/off switch
Yes

Reset button
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

Share folder
AFP, CIFS/SMB, FTP, WebDAV

Snapshot
Yes

System log
Yes

Type
NAS

Web-based management
Yes

Ports & interfaces

eSATA ports quantity
1

Ethernet LAN (RJ-45) ports
4

Fiber ports quantity
0

PCI Express x8 (Gen 3.x) slots
1

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (HDD standby)
22.64 W

Power consumption (typical)
49.89 W

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

Number of Cores
4

Processor
V1500B

Processor family
Ryzen Embedded

Processor frequency
2.2 GHz

Processor generation
AMD Ryzen Embedded V1000 Series

Processor manufacturer
AMD

Software

Mac operating systems supported
Yes

Operating system installed
DiskStation Manager

Windows operating systems supported
Yes

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of storage drives installed
8

Number of storage drives supported
8

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, JBOD

RAID support
Yes

Storage drive capacity
6 TB

Storage drive interface
Serial ATA II, Serial ATA III

Storage drive size
2.5/3.5"

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
48 TB

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
306.6 mm

Height
88 mm

Width
482 mm

Description

Synology RackStation RS1221+. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 48 TB, Installed storage drive type: HDD. Operating system installed: DiskStation Manager

Small & Medium Business NAS Rack (2U) Black
DiskStation Manager
Total installed storage capacity: 48 TB Number of storage drives supported: 8 HDD & SSD Serial ATA II, Serial ATA III
Ryzen Embedded V1500B 2.2 GHz
4 DDR4 Memory slots: 2 SO-DIMM ECC
Ethernet LAN iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 250 W
AMD Ryzen™ V1500B quad-core 2.2 GHz
2,300 MB/s seq. read 100K 4K random read IOPS
4 GB ECC DDR4 Up to 32 GB
30cm depth (38cm for RP model)
