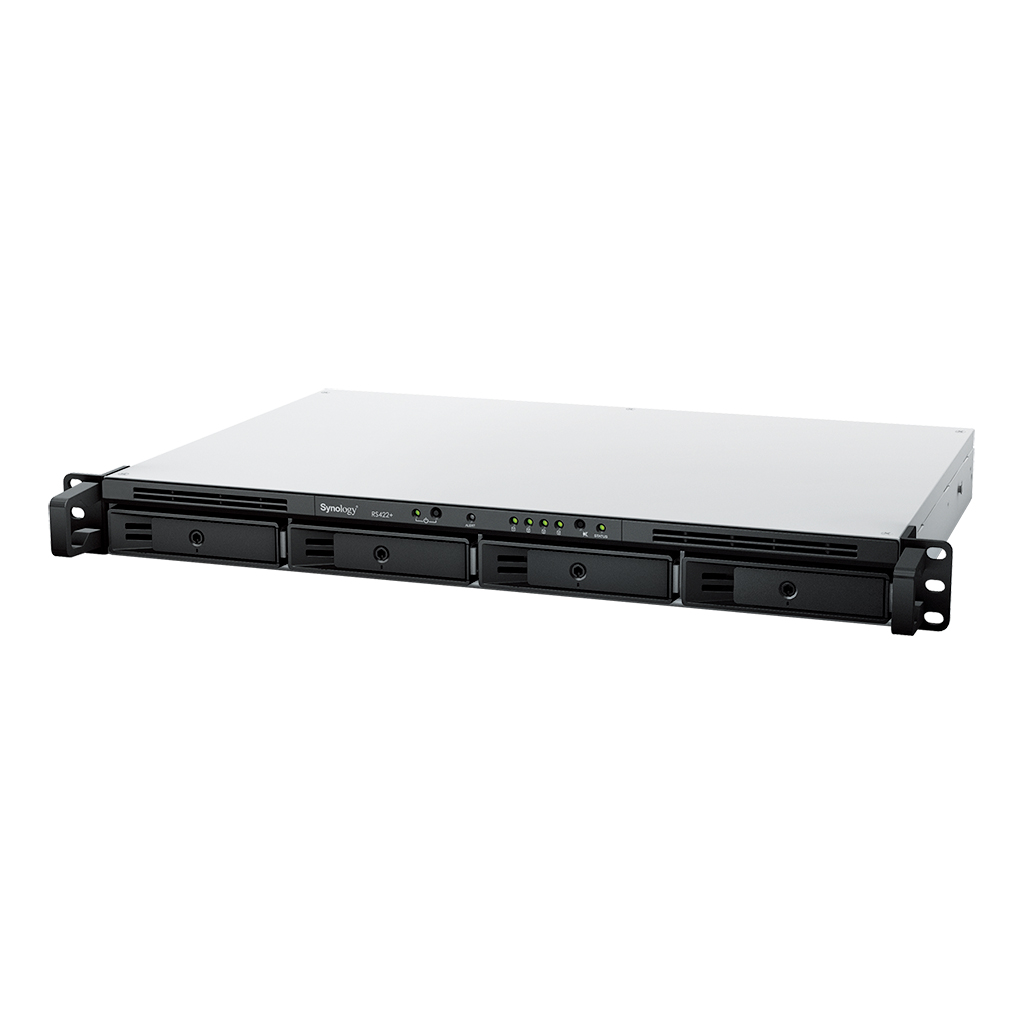

Synology RackStation RS422+ NAS Rack (1U) Ryzen Embedded R1600 2 GB DDR4 32 TB HDD DiskStation Manager Black

Roll over image to zoom inClick to Open expanded view

Synology RackStation RS422+ NAS Rack (1U) Ryzen Embedded R1600 2 GB DDR4 32 TB HDD DiskStation Manager Black

Name: Synology RackStation RS422+ NAS Rack (1U) Ryzen Embedded R1600 2 GB DDR4 32 TB HDD DiskStation Manager Black
Brand: Synology
SKU: RS422+/32TB-IW

SKU: RS422+/32TB-IW

Non-Cancellable, Non-Returnable

ETA 10 days

Synology RackStation RS422+, NAS, Rack (1U), Ryzen Embedded, R1600, 2 GB, DDR4

ETA 10 days

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
Synology

Warranty
3 Years

Drive
With drives

SKU
RS422+/32TB-IW

EAN
5050914188917

Bullet points

Design

Chassis type
Rack (1U)

Cooling type
Active

Fan diameter
4 cm

LED indicators
Yes

Number of fans
3 fan(s)

Product colour
Black

Logistics data

Harmonized System (HS) code
84714100

Memory

ECC
Yes

Internal memory type
DDR4

Memory Installed
2 GB

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

iSCSI support
Yes

Link aggregation
Yes

Supported network protocols
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Wake-on-LAN ready
Yes

Operational conditions

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
8 - 80%

Operating temperature (T-T)
0 - 35 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 60 °C

Other features

Compliance certificates
RoHS

Packaging content

Cables included
AC

Power cables quantity
1

Rack mount kit
Yes

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Google Chrome, Firefox, Microsoft Edge, Safari

Built-in FTP server
Yes

Device class
Small & Medium Business

Hot spare
Yes

Multilingual support
Yes

Noise level
28.5 dB

Number of users
2048 user(s)

On/off switch
Yes

Reset button
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

Share folder
SMB/AFP/NFS/FTP/WebDAV

Share folder access right management
Yes

Snapshot
Yes

Third-party support
Yes

Type
NAS

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Number of power supply units
1

Power consumption (HDD standby)
13.43 W

Power consumption (typical)
37.93 W

Power supply location
Built-in

Power supply unit (PSU) capacity
100 W

Processor

Number of Cores
2

Processor
R1600

Processor boost frequency
3.1 GHz

Processor family
Ryzen Embedded

Processor frequency
2.6 GHz

Processor generation
AMD Ryzen Embedded R1000 Series

Processor manufacturer
AMD

Processor threads
4

Software

Operating system installed
DiskStation Manager

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of storage drives installed
4

Number of storage drives supported
4

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, JBOD

RAID support
Yes

Storage drive capacity
8 TB

Storage drive interface
Serial ATA

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA

Supported storage drive types
HDD & SSD

Total installed storage capacity
32 TB

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
327.5 mm

Height
44 mm

Width
478 mm

Description

Synology RackStation RS422+. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: R1600, Processor frequency: 2.6 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Total installed storage capacity: 32 TB, Installed storage drive type: HDD. Operating system installed: DiskStation Manager

Small & Medium Business NAS Rack (1U) Black
DiskStation Manager
Total installed storage capacity: 32 TB Number of storage drives supported: 4 HDD & SSD Serial ATA
Ryzen Embedded R1600 2.6 GHz
2 DDR4 ECC
Ethernet LAN iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 100 W
601/516 MB/s sequential read/write throughput
Depth of just 327.5 mm with handles
Built-in dual 1GbE ports with easy 10GbE option
ECC memory prevents data corruption
