• Bullet points

• Point

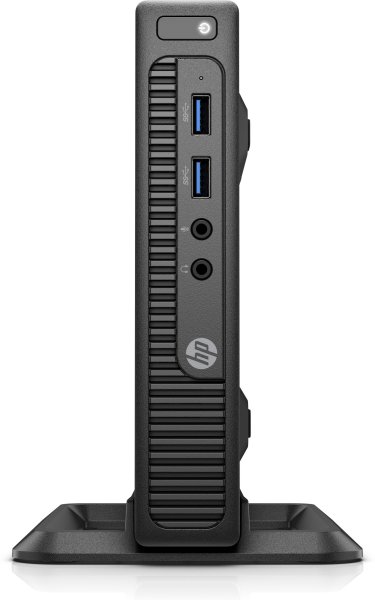

• 177 x 175 x 34 mm, HDMI
  4GB (2400 MHz) DDR4-SDRAM (1 x 4 GB) & 128GB SSD
  6th gen Intel® Core™ i5 i5-6200U (3M Cache, 2.3 GHz)
  Windows 10 Pro 64

• Design

• Cable lock slot
• Yes

• Chassis type
• mini PC

• Country of origin
• China

• Number of 2.5" bays
• 1

• Placement supported
• Horizontal/Vertical

• Product colour
• Black

• Volume
• 1 L

• Expansion slots

• Mini PCI Express slots
• 1

• Filters

• Machinecategory
• Personal computer

• Graphics

• Discrete graphics card
• No

• Discrete graphics card model
• Not available

• Maximum on-board graphics card memory
• 1.74 GB

• Number of displays supported (on-board graphics)
• 3

• On-board graphics card
• Yes

• On-board graphics card base frequency
• 300 MHz

• On-board graphics card DirectX version
• 12.0

• On-board graphics card dynamic frequency (max)
• 1000 MHz

• On-board graphics card ID
• 1916

• On-board graphics card model
• Intel® HD Graphics 520

• On-board graphics card OpenGL version
• 4.4

• Memory

• Internal memory type
• DDR4-SDRAM

• Memory channels
• Dual-channel

• Memory clock speed
• 2400 MHz

• Memory Installed
• 4 GB

• Memory layout (slots x size)
• 1 x 4 GB

• Memory Slot Support
• 32 GB

• Memory slots
• 2x SO-DIMM

• Network

• Bluetooth
• No

• Ethernet LAN
• Yes

• Ethernet LAN data rates
• 10,100,1000 Mbit/s

• Wi-Fi
• No

• Packaging content

• Display included
• No

• Keyboard included
• No

• Mouse included
• No

• Performance

• Product type
• Mini PC

• Ports & interfaces

• DisplayPorts quantity
• 1

• DVI port
• No

• Ethernet LAN (RJ-45) ports
• 1

• HDMI ports
• 1

• Headphone outputs
• 1

• Line-in
• Yes

• Line-out
• Yes

• Microphone in
• Yes

• USB 2.0 ports quantity
• 2

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
• 4

• VGA (D-Sub) ports quantity
• 1

• Power

• Power supply
• 65 W

• Power supply input frequency
• 50 - 60 Hz

• Processor

• Bus type
• QPI

• Configurable TDP-down
• 7.5 W

• Configurable TDP-down frequency
• 0.8 GHz

• Configurable TDP-up
• 25 W

• Configurable TDP-up frequency
• 2.4 GHz

• ECC supported by processor
• No

• Maximum internal memory supported by processor
• 32 GB

• Maximum number of PCI Express lanes
• 12

• Memory bandwidth supported by processor (max)
• 34.1 GB/s

• Memory clock speeds supported by processor
• 1866,2133,1600 MHz

• Memory types supported by processor
• DDR3L-SDRAM, LPDDR3-SDRAM, DDR4-SDRAM

• Number of Cores
• 2

• Number of processors installed
• 1

• PCI Express configurations
• 1x4, 4x1

• PCI Express slots version
• 3.0

• Processor
• i5-6200U

• Processor boost frequency
• 2.8 GHz

• Processor cache
• 3 MB

• Processor cache type
• Smart Cache

• Processor codename
• Skylake

• Processor family
• Intel® Core™ i5

• Processor frequency
• 2.3 GHz

• Processor generation
• 6th gen Intel® Core™ i5

• Processor lithography
• 14 nm

• Processor manufacturer
• Intel

• Processor operating modes
• 64-bit

• Processor series
• Intel Core i5-6200 series

• Processor socket
• LGA 1356 (Socket B2)

• Processor threads
• 4

• Stepping
• D1

• System bus rate
• 4 GT/s

• Thermal Design Power (TDP)
• 15 W

• Tjunction
• 100 °C

• Processor special features

• Conflict-Free processor
• Yes

• CPU configuration (max)
• 1

• Embedded options available
• No

• Enhanced Intel SpeedStep Technology
• Yes

• Execute Disable Bit
• Yes

• Graphics & IMC lithography
• 14 nm

• Idle States
• Yes

• Intel 64
• Yes

• Intel Clear Video Technology
• Yes

• Intel Enhanced Halt State
• Yes

• Intel Flex Memory Access
• Yes

• Intel Identity Protection Technology version
• 1.00

• Intel Secure Key Technology version
• 1.00

• Intel Small Business Advantage (SBA) version
• 1.00

• Intel Smart Response Technology version
• 1.00

• Intel Software Guard Extensions (Intel SGX)
• Yes

• Intel Stable Image Platform Program (SIPP)
• No

• Intel Stable Image Platform Program (SIPP) version
• 0.00

• Intel Trusted Execution Technology
• No

• Intel TSX-NI
• No

• Intel TSX-NI version
• 1.00

• Intel Virtualization Technology (VT-x)
• Yes

• Intel Virtualization Technology for Directed I/O (VT-d)
• Yes

• Intel VT-x with Extended Page Tables (EPT)
• Yes

• Intel® AES New Instructions (Intel® AES-NI)
• Yes

• Intel® Clear Video HD Technology (Intel® CVT HD)
• Yes

• Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
• Yes

• Intel® Hyper Threading Technology (Intel® HT Technology)
• Yes

• Intel® Identity Protection Technology (Intel® IPT)
• Yes

• Intel® Insider™
• Yes

• Intel® InTru™ 3D Technology
• Yes

• Intel® My WiFi Technology (Intel® MWT)
• Yes

• Intel® OS Guard
• Yes

• Intel® Quick Sync Video Technology
• Yes

• Intel® Secure Key
• Yes

• Intel® Small Business Advantage (Intel® SBA)
• Yes

• Intel® Smart Cache
• Yes

• Intel® Smart Response Technology
• Yes

• Intel® Turbo Boost Technology
• 2.0

• Intel® Wireless Display (Intel® WiDi)
• Yes

• Processor ARK ID
• 88193

• Processor code
• SR2EY

• Processor package size
• 42 x 24 mm

• Supported instruction sets
• SSE4.1, SSE4.2, AVX 2.0

• Thermal Monitoring Technologies
• Yes

• Software

• Operating system architecture
• 64-bit

• Operating system installed
• Windows 10 Pro

• Storage

• Card reader integrated
• No

• Number of SSDs installed
• 1

• Number of storage drives installed
• 1

• Optical drive type
• No

• SSD capacity
• 128 GB

• Storage Capacity
• 128 GB

• Storage type
• SSD

• Total SSDs capacity
• 128 GB

• Sustainability

• Sustainability certificates
• EPEAT Silver, ENERGY STAR

• Weight & dimensions

• Depth
• 175 mm

• Height
• 34 mm

• Weight
• 1.05 kg

• Width
• 177 mm
