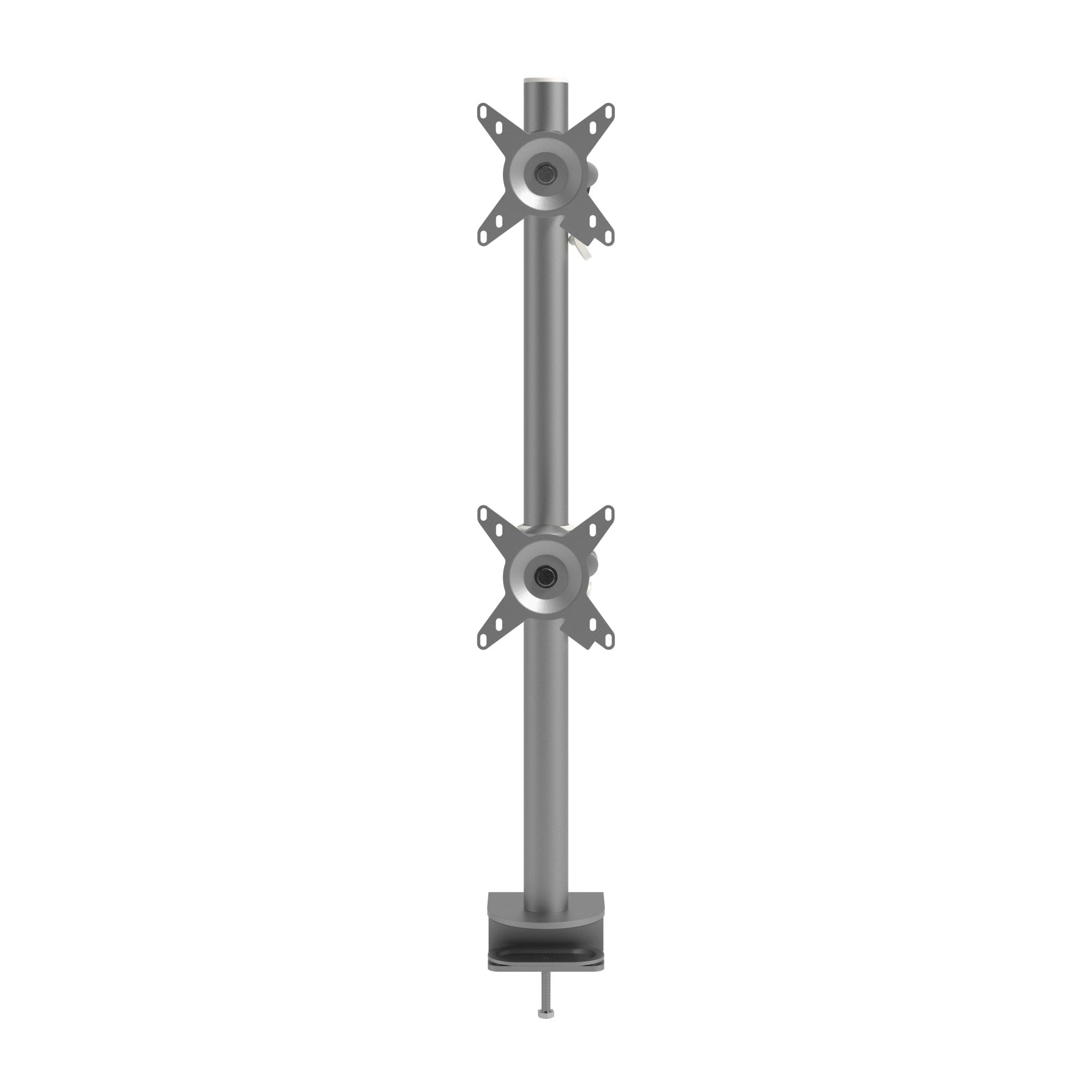

Dataflex Viewmate monitor arm - desk 672

Roll over image to zoom inClick to Open expanded view

Dataflex Viewmate monitor arm - desk 672

Name: Dataflex Viewmate monitor arm - desk 672
Brand: Dataflex
SKU: 52.672

SKU: 52.672

ETA 10 days

Dataflex Viewmate monitor arm - desk 672, Clamp/Bolt-through, 30 kg, 0 mm (0"), 44.5 cm (17.5"), 100 x 100 mm, Silver

ETA 10 days

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Dataflex

Warranty
5 Years

SKU
52.672

EAN
0805410526726

Bullet points

Point
Comes with a desk clamp mount and bolt-through desk mount

Easy to adjust in height using a clamp lever

Fixed depth

Main components made of steel

Monitor size limit: height 444 mm (17,5")

Monitor: tilt +90°/-90°, swivel +90°/-90°, rotate 360°

Static height adjustment

VESA MIS-D 75 x 75/100 x 100 mm compatible

Weight capacity max. 15 kg (33 lb) per monitor

Design

Housing material
Steel

Product colour
Silver

Ergonomics

Angle of rotation
360°

Height adjustment
Yes

Swivel angle
360°

Tilt angle range
-90 - 90°

Turn angle
180°

Logistics data

Harmonized System (HS) code
85299097

Mounting

Desk thickness (max)
7 cm

Desk thickness (min)
5 mm

Maximum screen size
44.5 cm (17.5")

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
30 kg

Minimum screen size
0 mm (0")

Minimum VESA mount
75 x 75 mm

Mounting
Clamp/Bolt-through

Mounting type
Desk

Number of displays supported
2

Packaging content

Clamp included
Yes

Packaging data

Package depth
170 mm

Package height
106 mm

Package weight
5.2 kg

Package width
830 mm

Weight & dimensions

Depth
192 mm

Height
882 mm

Width
110 mm

Description

Dataflex Viewmate monitor arm - desk 672. Mounting: Clamp/Bolt-through, Maximum weight capacity: 30 kg, Minimum screen size: 0 mm (0"), Maximum screen size: 44.5 cm (17.5"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -90 - 90°. Product colour: Silver

Maximum weight capacity: 30 kg
Maximum screen size: 44.5 cm (17.5")
Number of displays supported: 2
Clamp/Bolt-through Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Height adjustment
Steel Silver
Static height adjustment
Fixed depth
Main components made of steel
VESA MIS-D 75 x 75/100 x 100 mm compatible
Monitor: tilt +90°/-90°, swivel +90°/-90°, rotate 360°
Weight capacity max. 15 kg (33 lb) per monitor
Comes with a desk clamp mount and bolt-through desk mount
Suitable for a desktop thickness of 5 up to 40 mm (0,2" - 1,6") (clamp) or 50 mm (2,0") (bolt through)
Monitor size limit: height 444 mm (17,5")
Easy to adjust in height using a clamp lever
